Features:

1. Glass passivation chip

2. Can provide one-way and two-way productsFast response time

3. The clamping voltage is low

4. Small leakage current

5. Rohs compliant

Application:

1. Communication equipment

2. Computer

3. Industrial equipment

4. Consumer Electronics

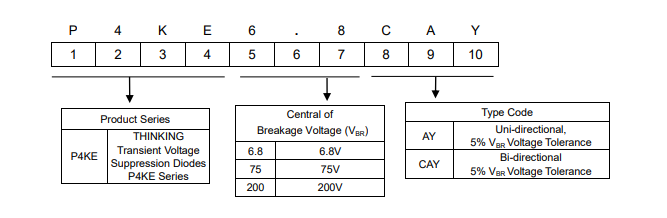

Encoding rules：

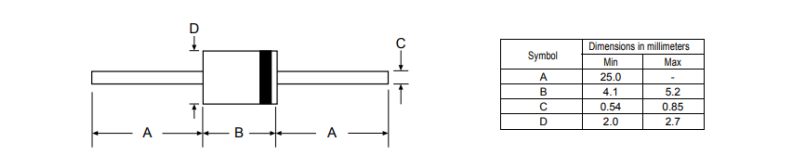

Outline structure drawing:

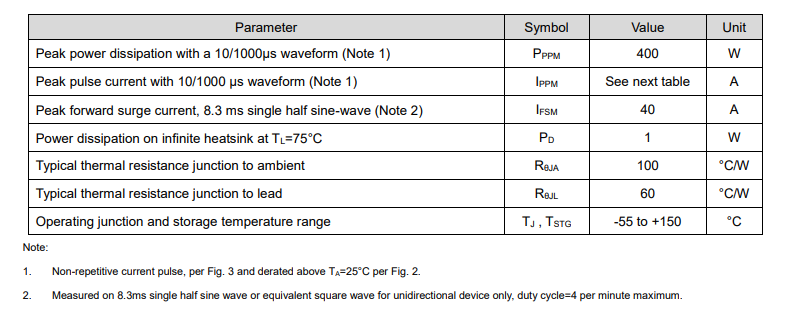

Maximum nominal information:

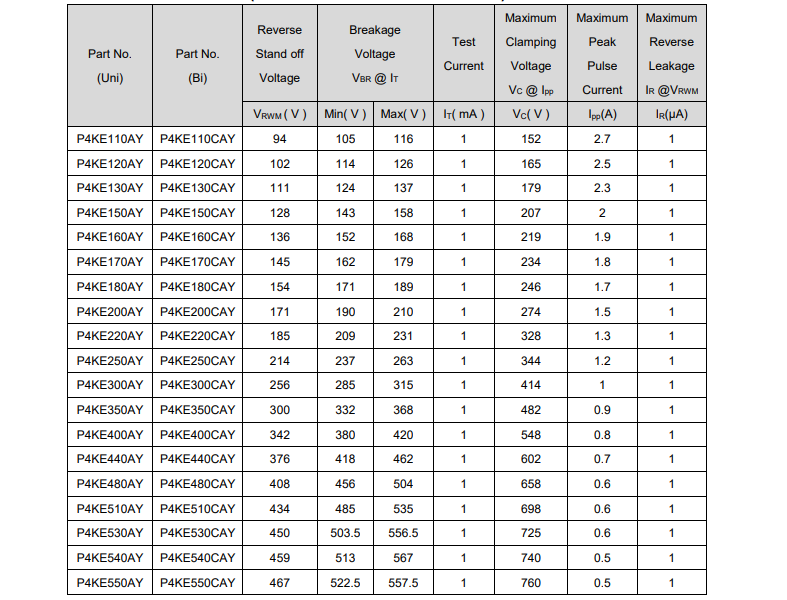

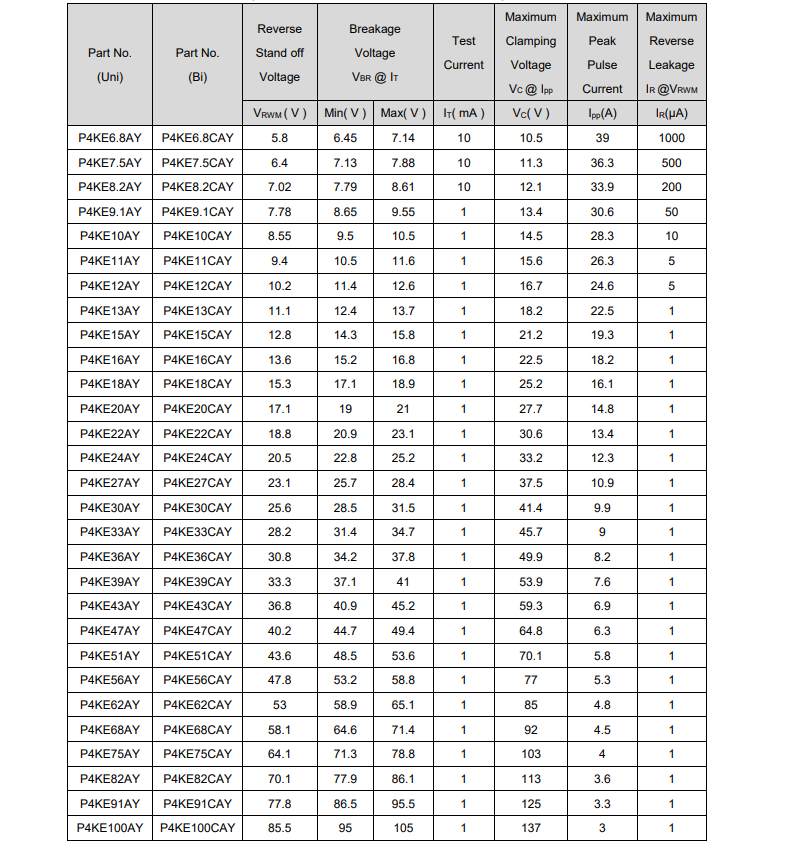

Electrical characteristics:

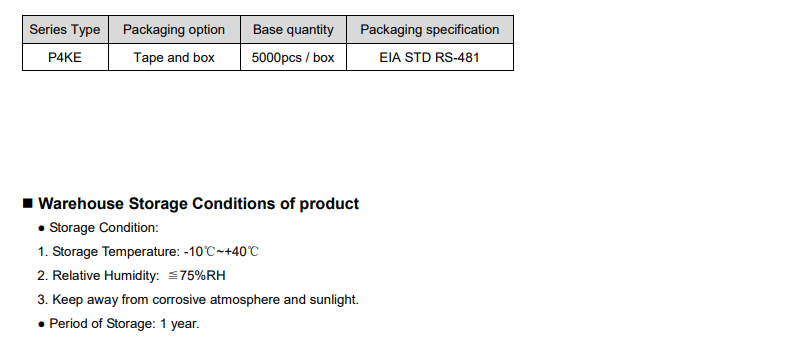

Packing:
