Features:

1. Glass passivated chip

2. Excellent clamping capability

3. Low clamping voltage

4. Low leakage current

5. Very fast response time

6. RoHS compliant

Application:

1. Computers

2. Telecom system

3. Industrial equipment

4. Consumer electronic applications

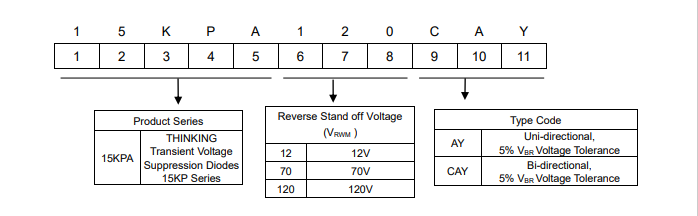

Encoding rules：

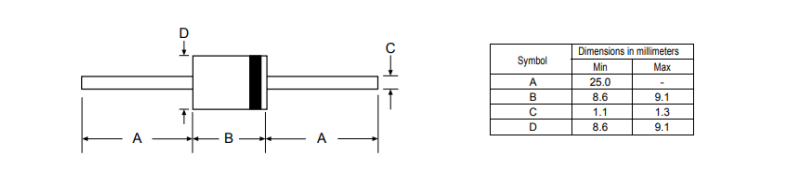

Outline structure drawing:

Maximum nominal information:

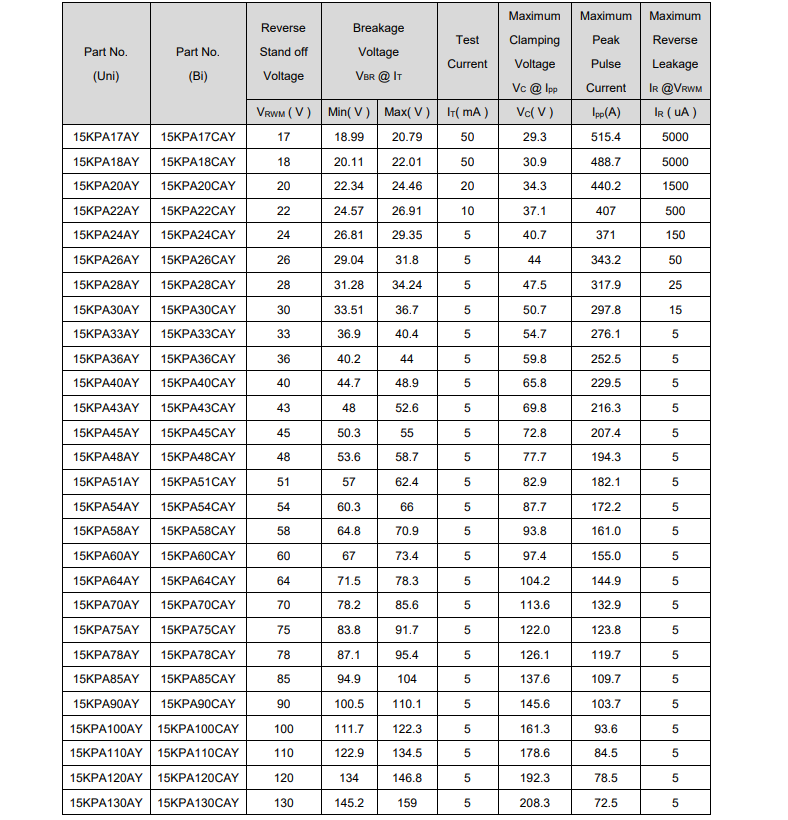

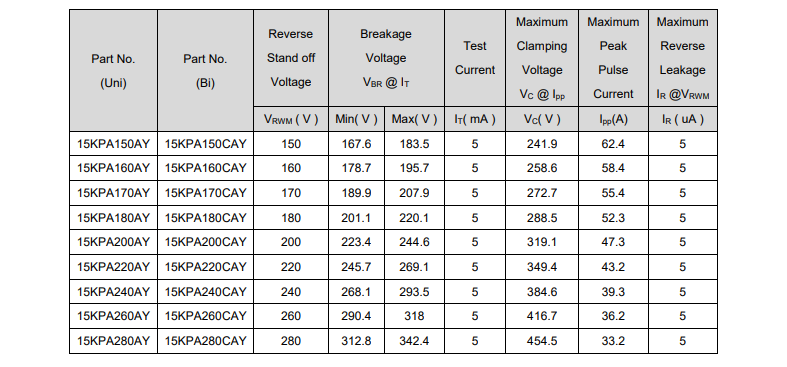

Electrical characteristics:

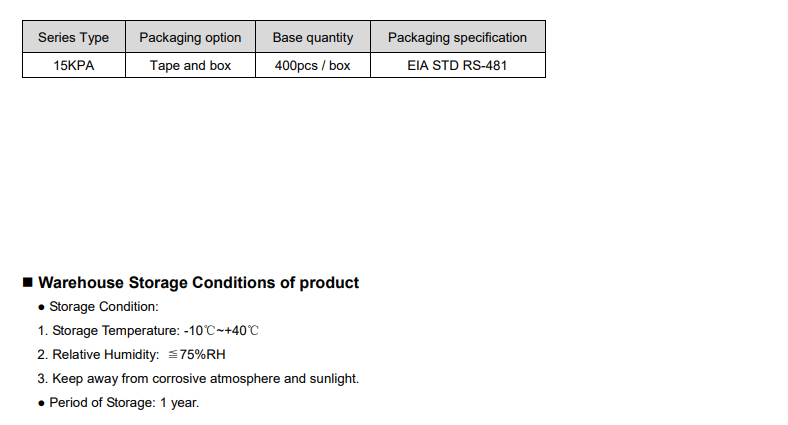

Packing：
