Features:

1. Glass passivation chip

2. Fast response time

3. The clamping voltage is low

4. Small leakage current

5. Meet MSL1

6. JESD22-A114-B HBM: 15KV

7. JEDEC EIA/JESD22-C101F CDM: 500V

8. JEDEC EIA/ JESD22-A115MM: 400V

9. Comply with IEC 61000-4-2 ±30kV (contact), ±30kV (air)

10. Meet RoHS and halogen-free requirements

Application:

1. Communication equipment

2. Computers

3. Industrial equipment

4. Consumer electronics

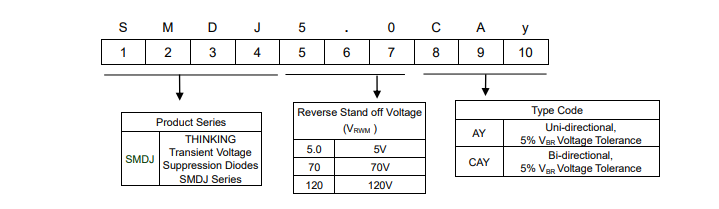

Encoding rules：

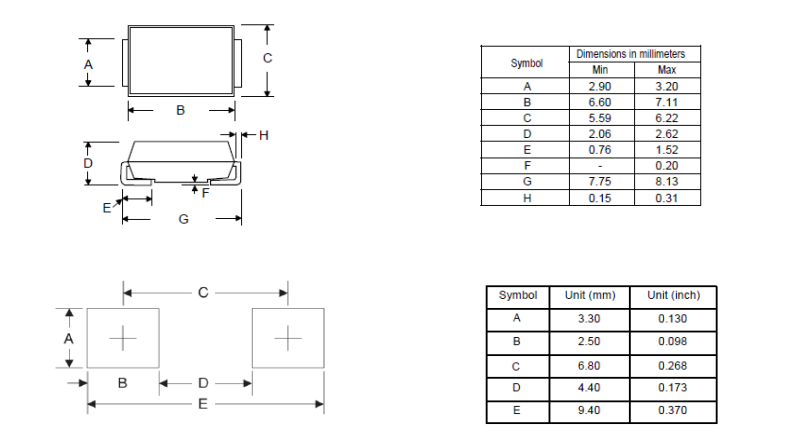

Outline structure drawing:

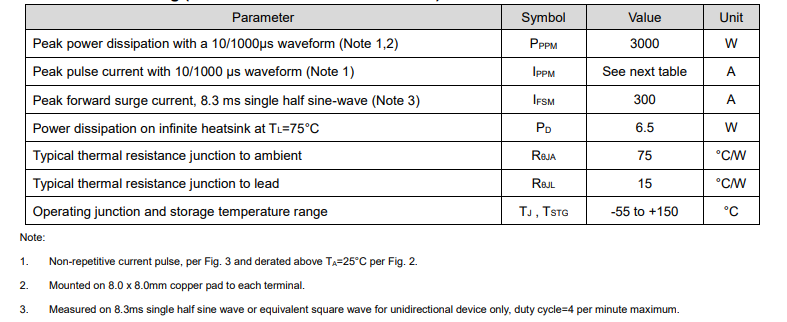

Maximum nominal information:

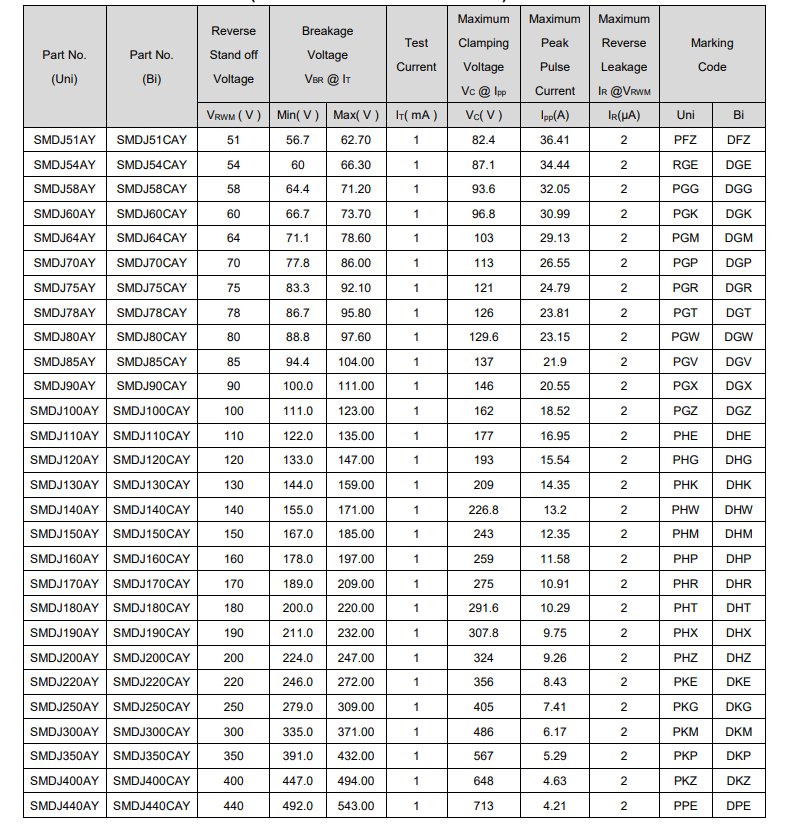

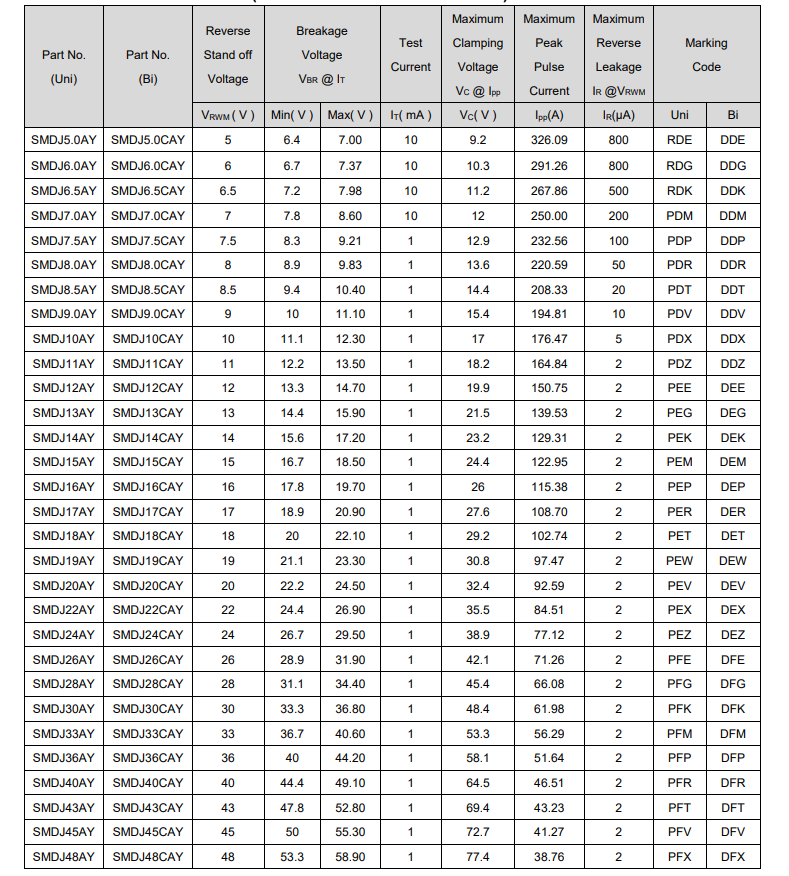

Electrical characteristics:

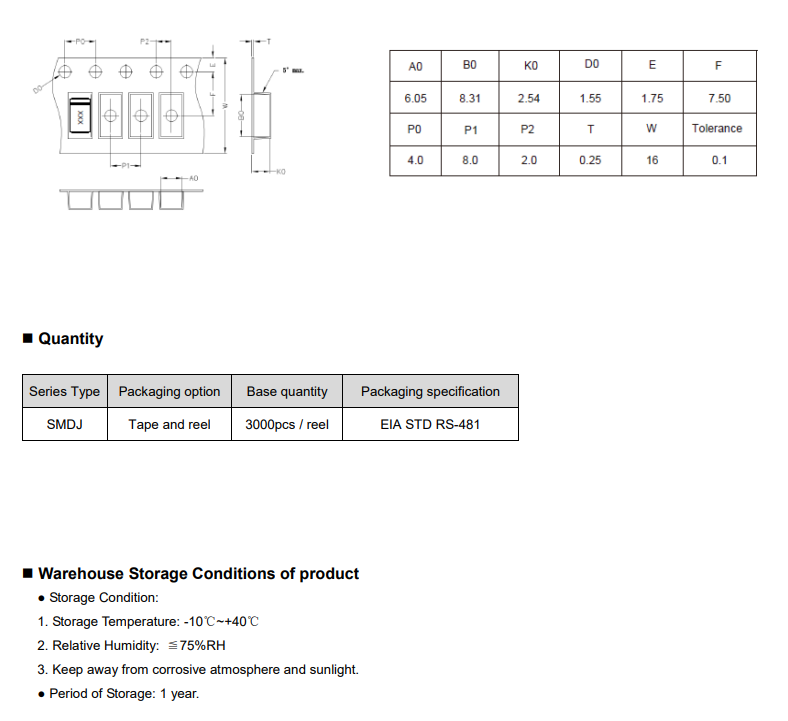

Packing:
