Features:

1. RoHS compliant

2. Suitable for surface mounting technology reflow soldering and wave soldering

3.Compact structure and space saving

4. Powerful ability to suppress high surge current

5. The packaging material conforms to UL94-V0 flame retardant grade

6. Fast response of low inductance structure

7. Operating temperature range: TVB7S series /TVB9S series: -40°C~+85°C

TVBDS series /TVBES series: -40°C to +105°C

Storage temperature range: -40°C ~ +125°C

8. Safety certification: TVB7S series /TVB9S Series: UL/cUL/TUV

TVBDS Series /TVBES Series: UL/cUL/TUV/CQC

Application:

1. Power supply

2. Power supply for household appliances

3. Industrial equipment

4. Communication equipment

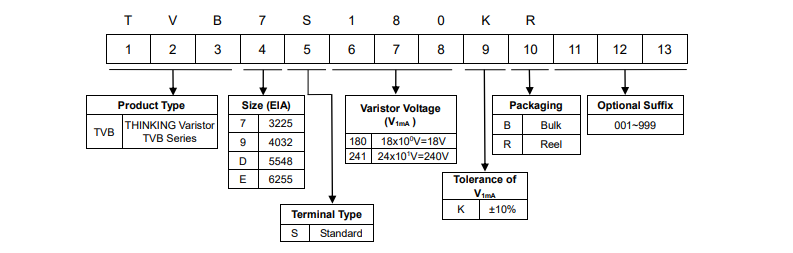

Encoding rules：

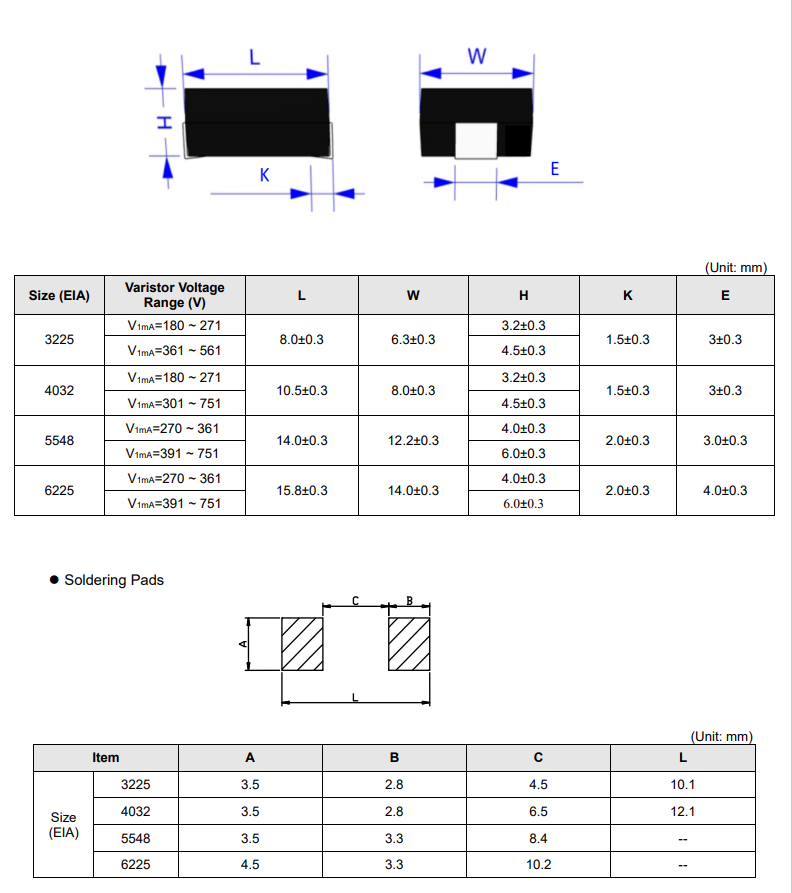

Outline structure drawing:

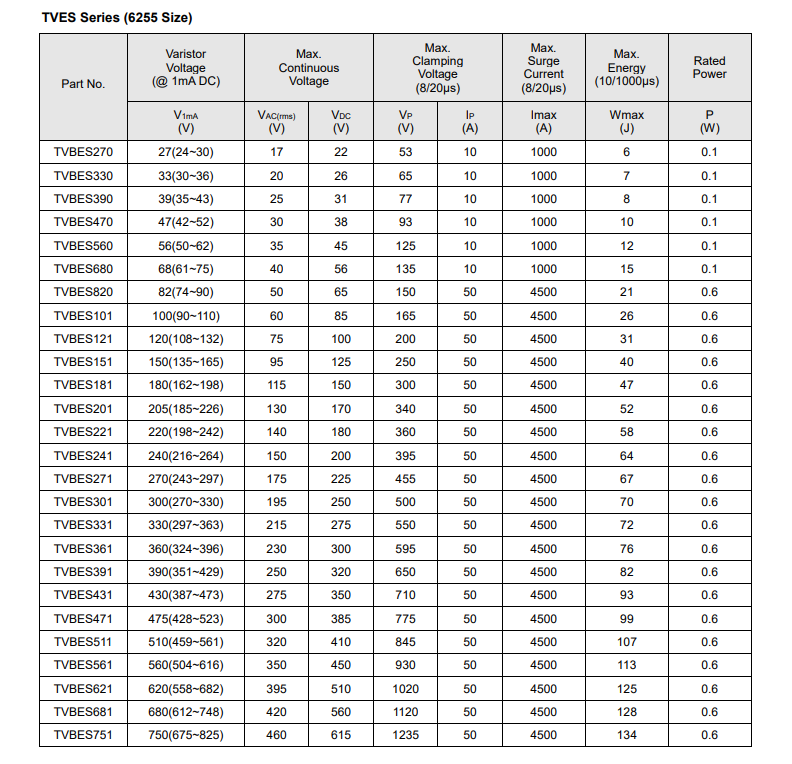

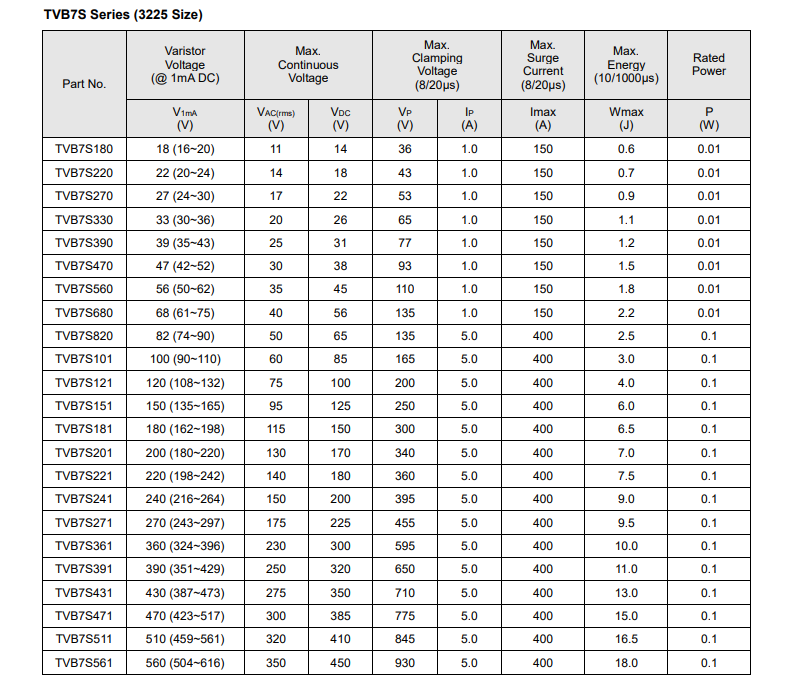

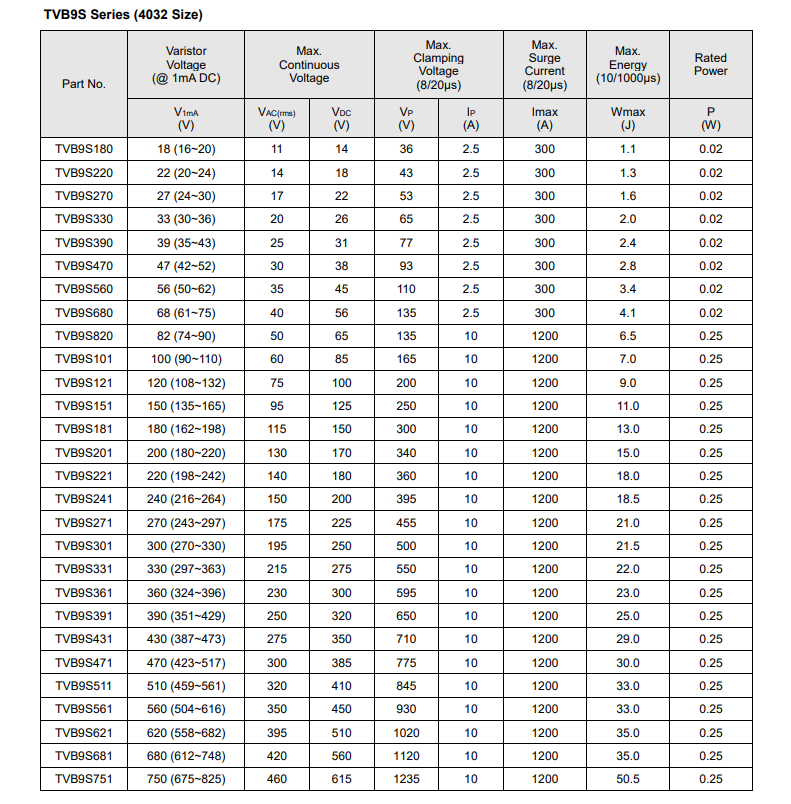

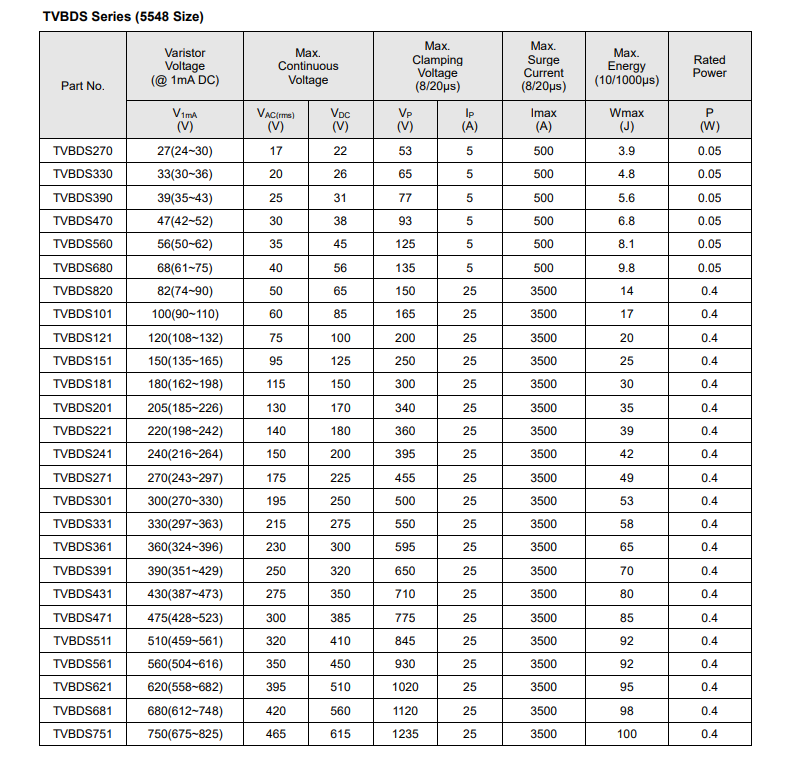

Electrical characteristics:

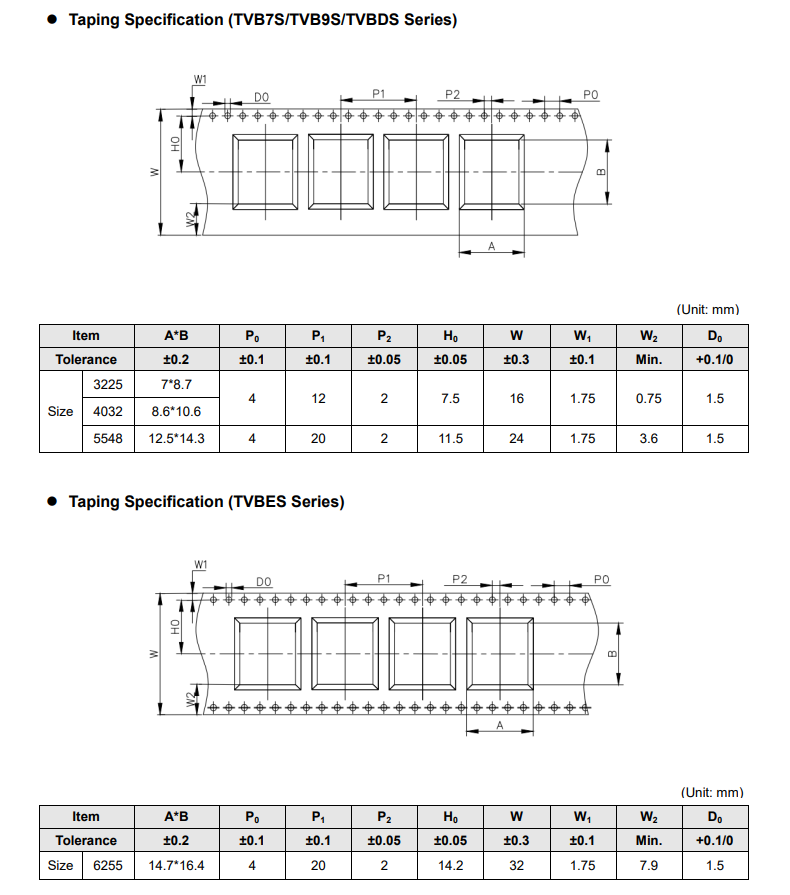

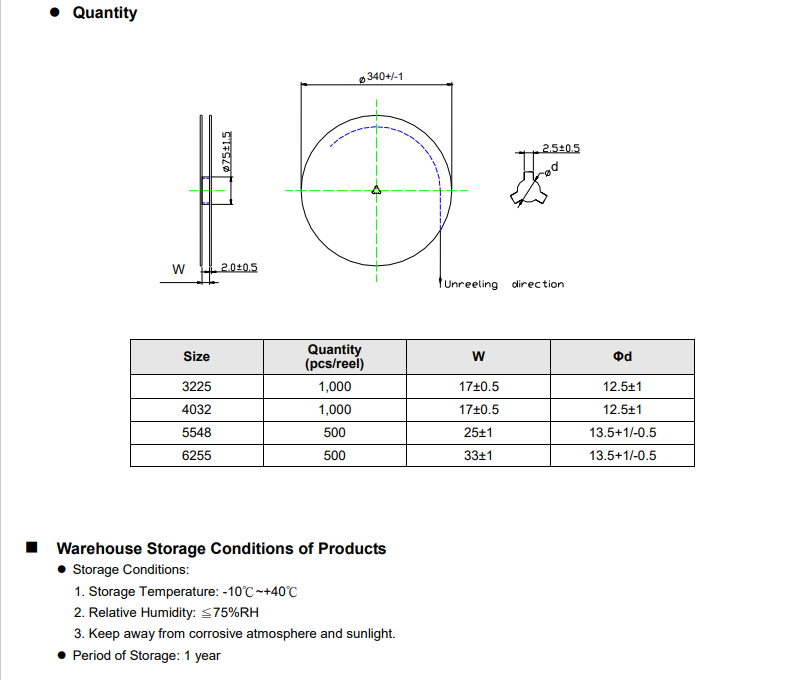

Packing:
