Features:

1. Meet RoHS and halogen-free requirements

2. EIA size: 0402 ~ 3025

3. Working voltage: 5.5 Vdc ~ 85 Vdc

4. High surge current suppression capability

5. Symmetrical and non-polar volt-ampere characteristics

6. Multilayer ceramic structure technology

7. Various capacitance values

8. Operating temperature range: -40℃ ~ + 85℃

Storage temperature range: -40℃~ +125℃

Application:

1. Power System

2. Computer motherboard/notebook

3. Scanner

4. Handheld device

5. Digital TV

6. Set-Top Box

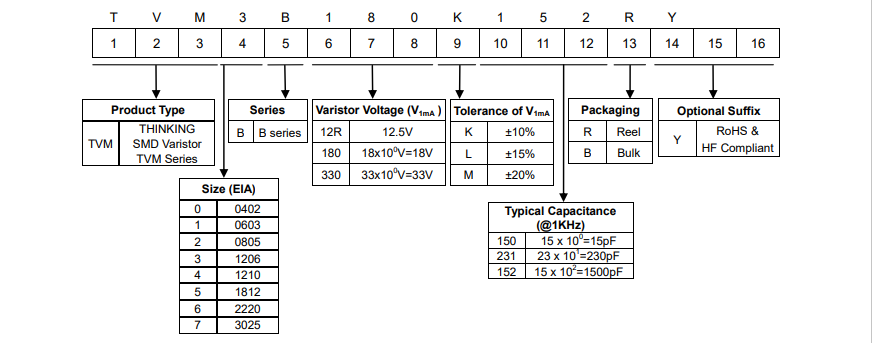

Encoding rules：

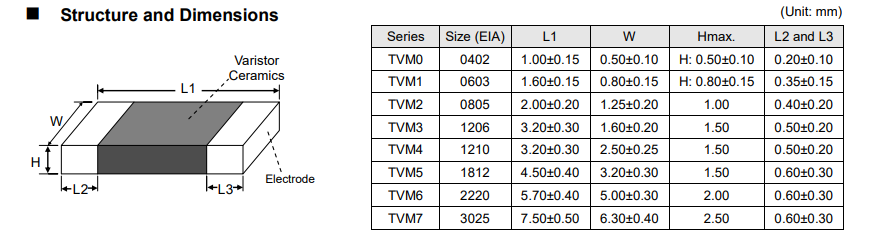

Outline structure drawing:

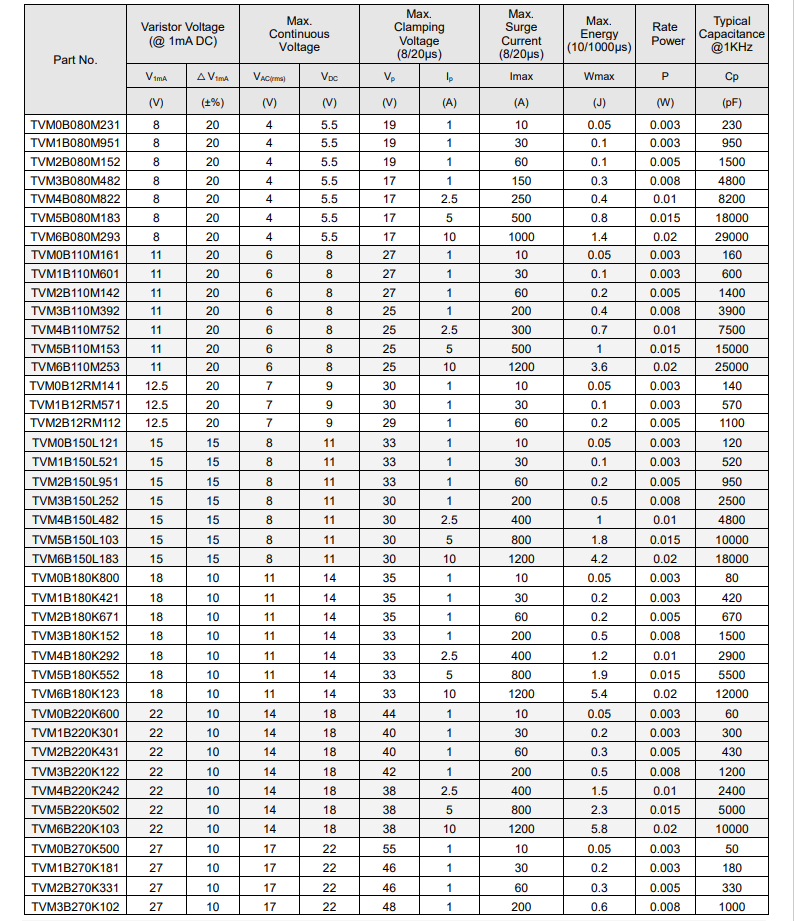

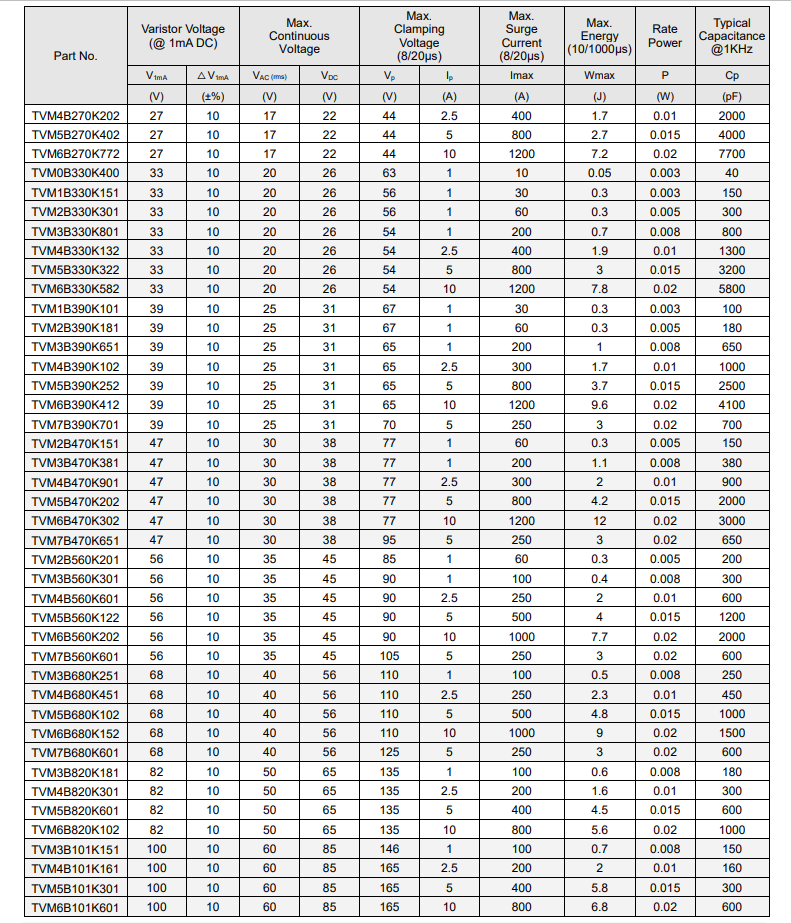

Electrical characteristics:

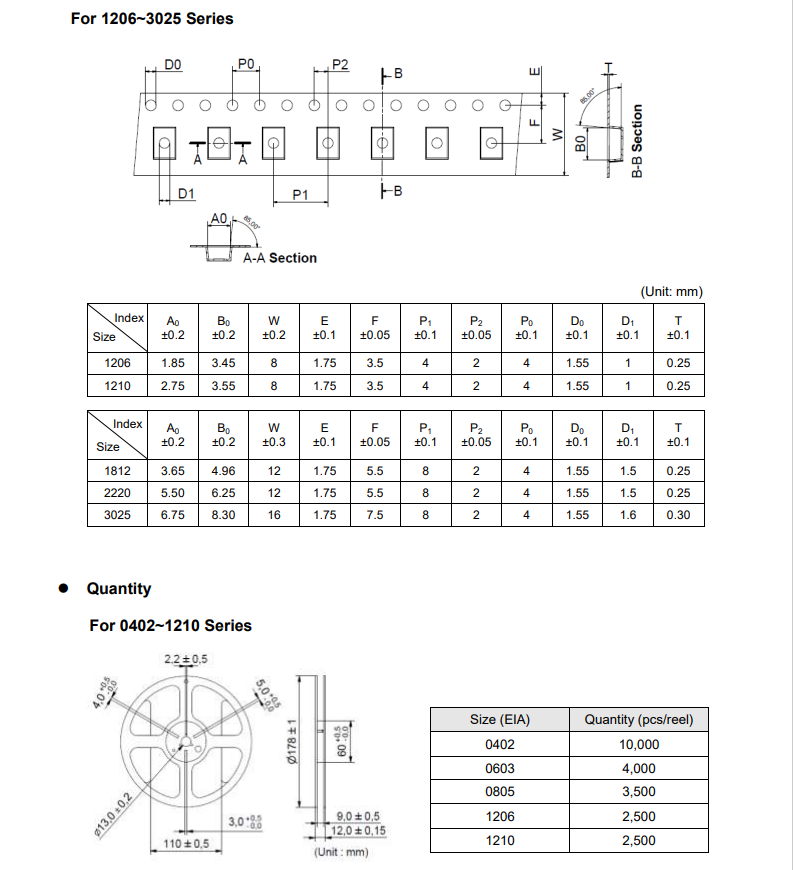

Packing:
