Features:

1. Comply with RoHS and halogen-free specifications

2. Body size: 14, 20, 25 mm

3. There are two-legged and three-legged types, and the three-legged type can play a monitoring role

4. Working voltage range: 50Vac ~ 1000Vac

5. Operating temperature range: -40°C ~ +105°C

        Storage temperature range: -40°C ~ +110°C

7. Safety certification: TVT14 and TVT20 series: UL1449 4th & cUL/ TUV/CQC

                                    TVT25, 34 series: UL1449 4th & cUL/ TUV

8. UL1449 4th SPD Type: Type 4 Assemblies

Application:

1. TVSS module

2. UPS power supply

3. Power Supply

4. Lighting

5. Communication equipment

6. Intelligent control meter

7. Photovoltaic system

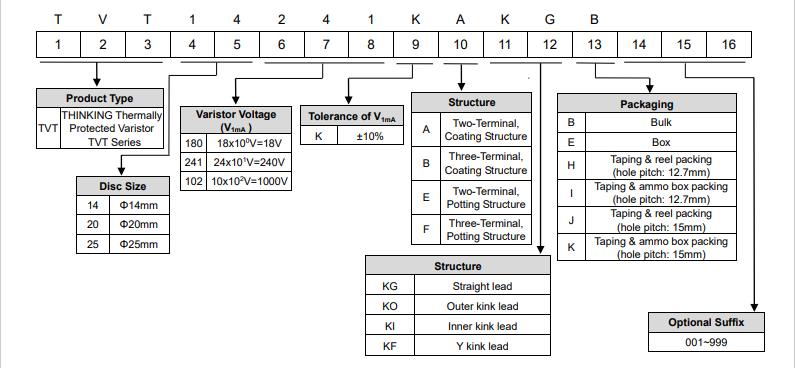

Encoding rules：

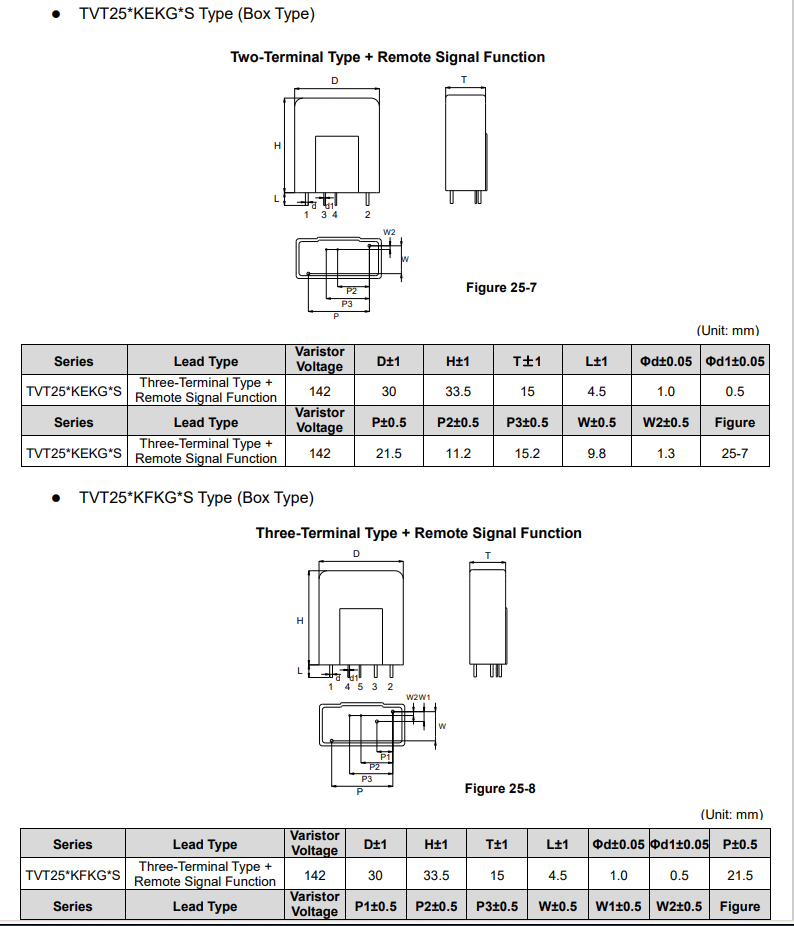

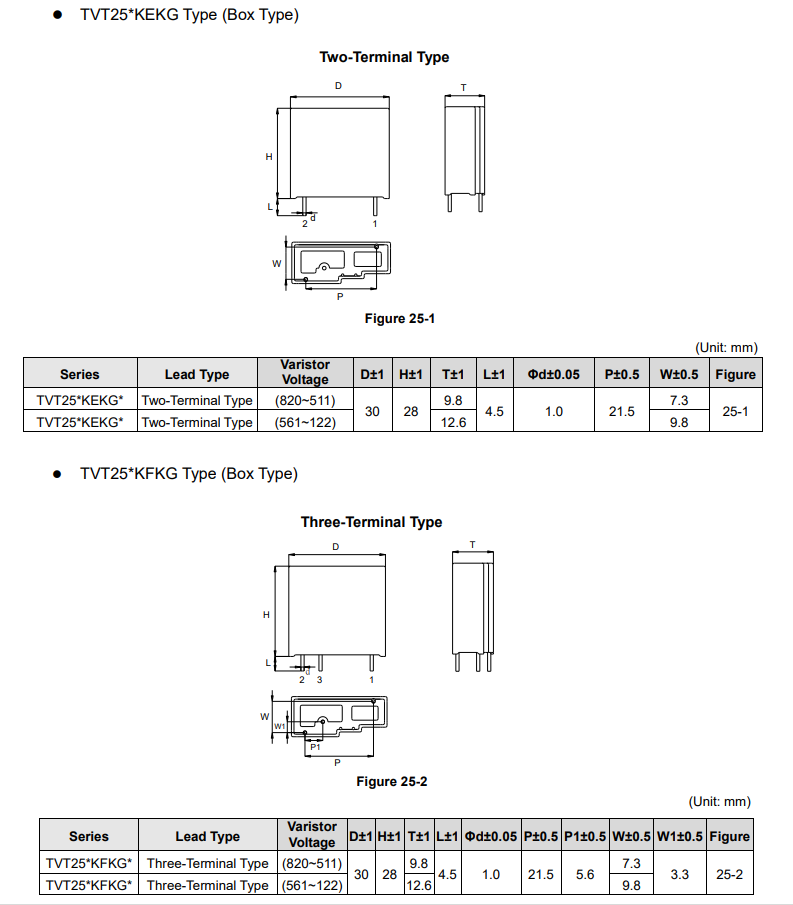

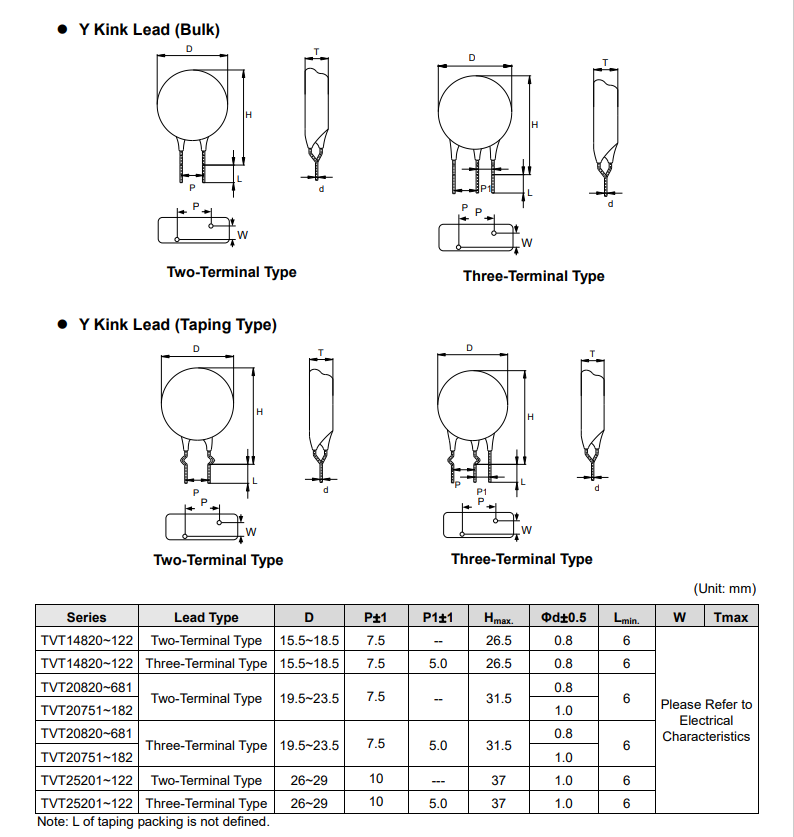

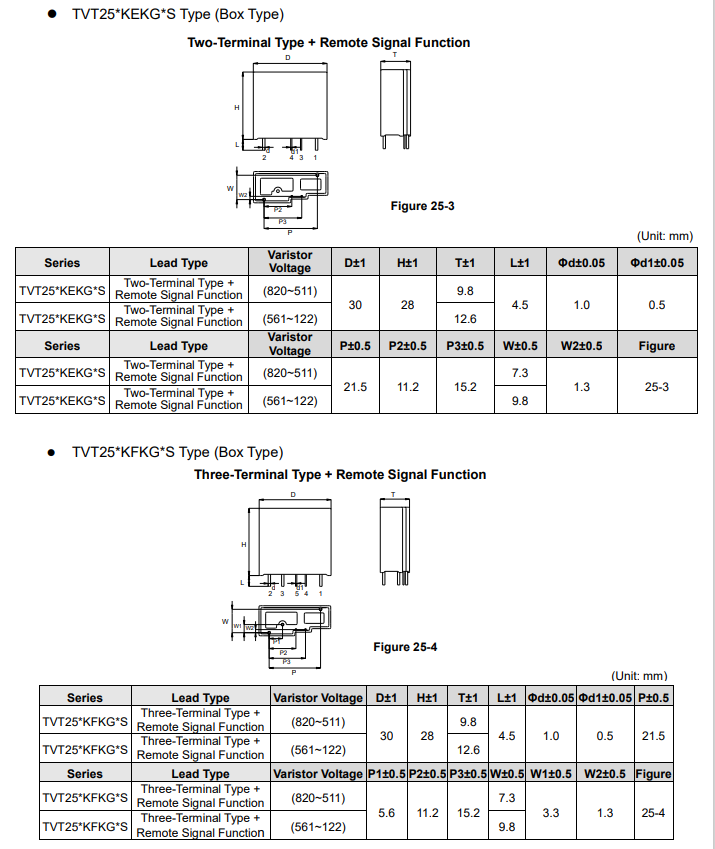

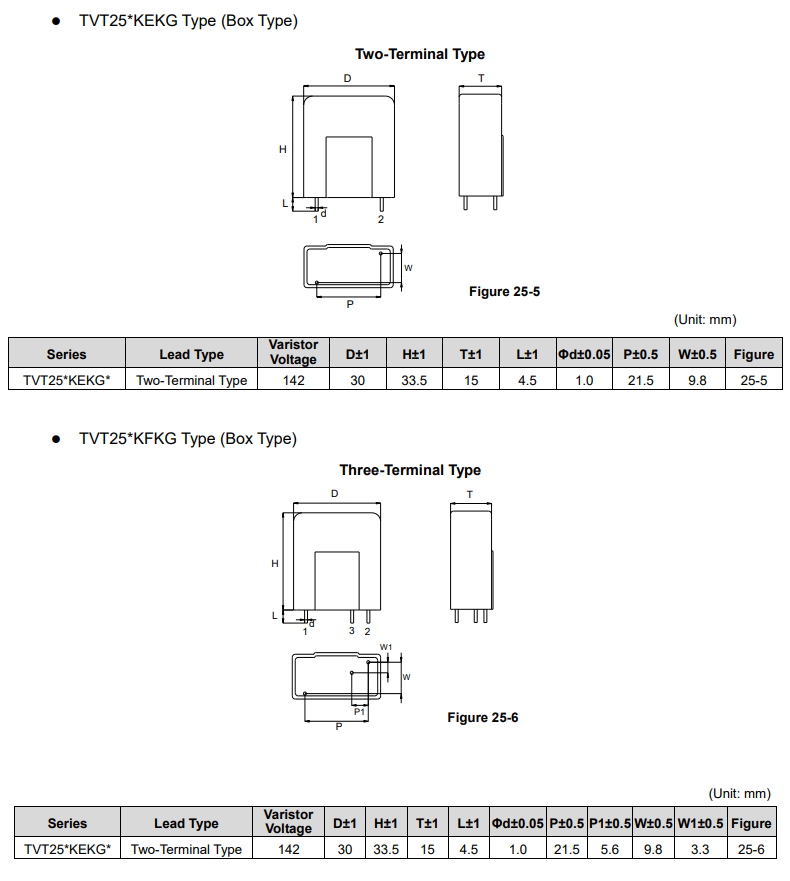

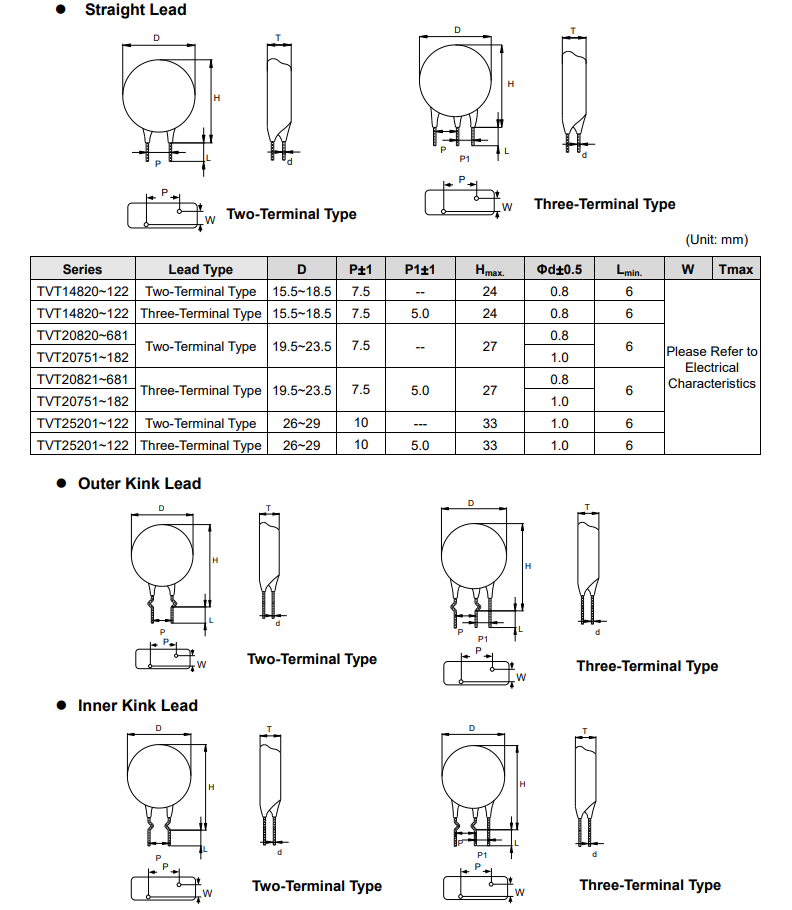

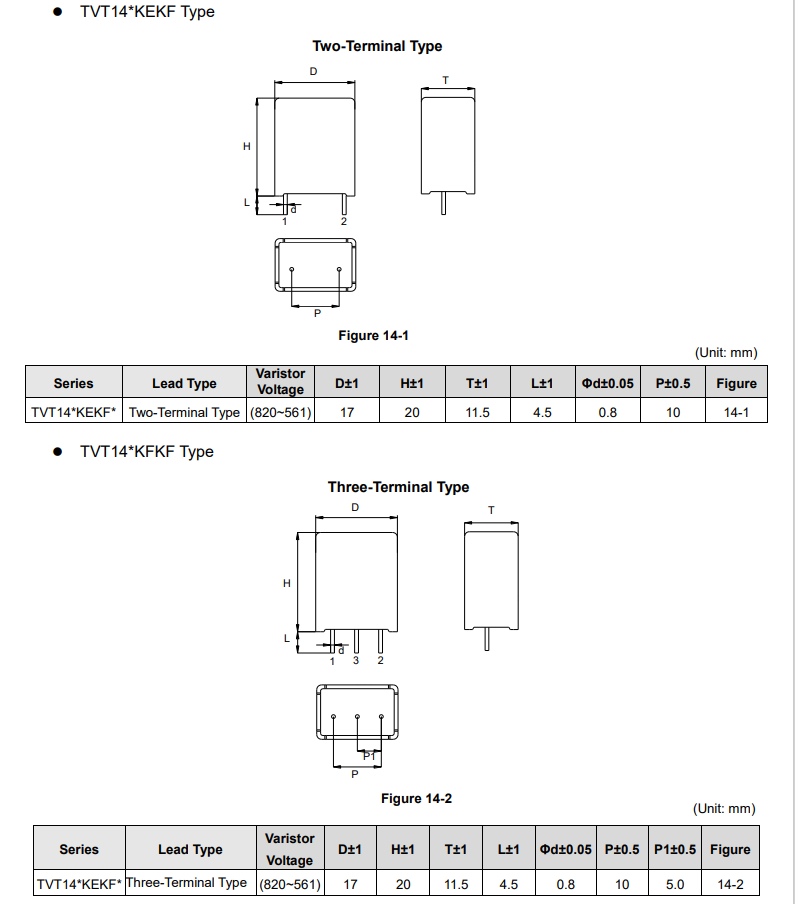

Outline structure drawing:

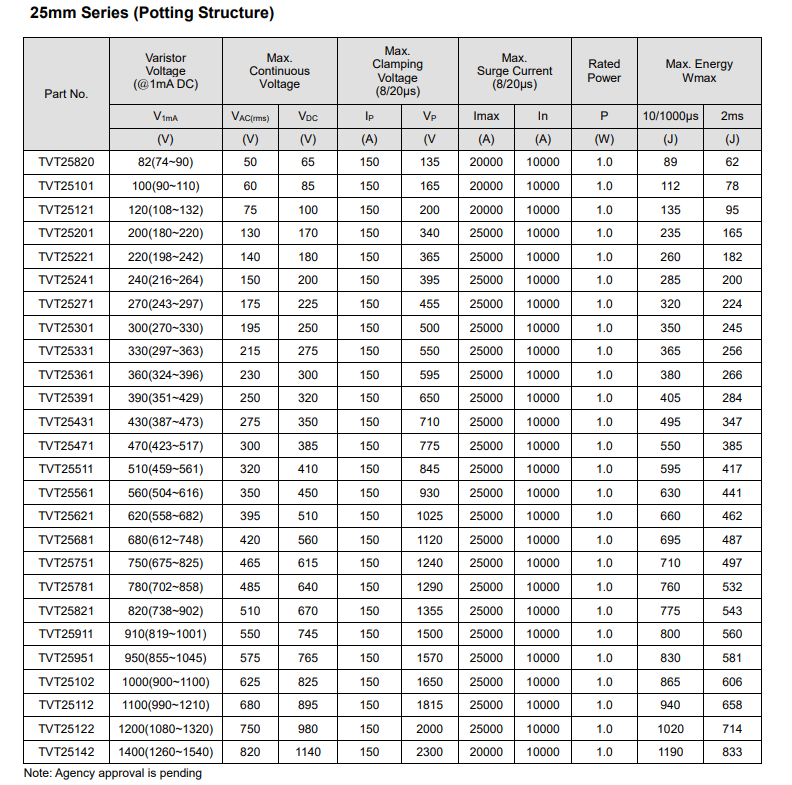

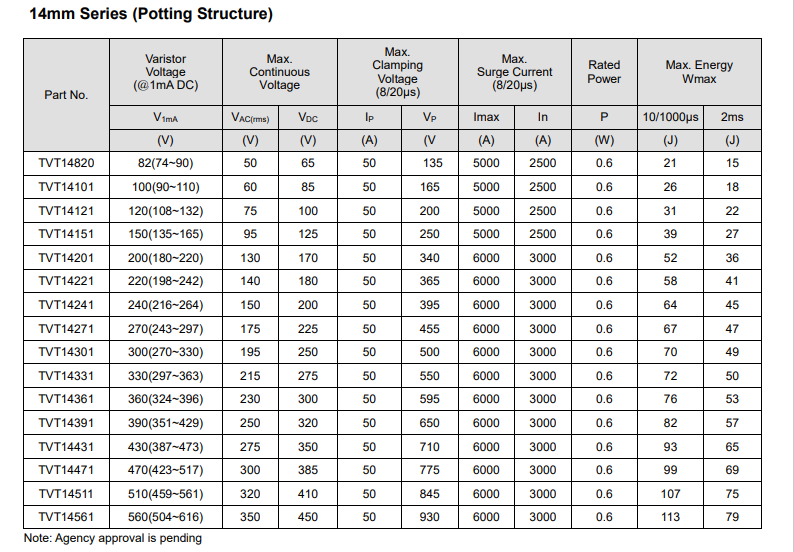

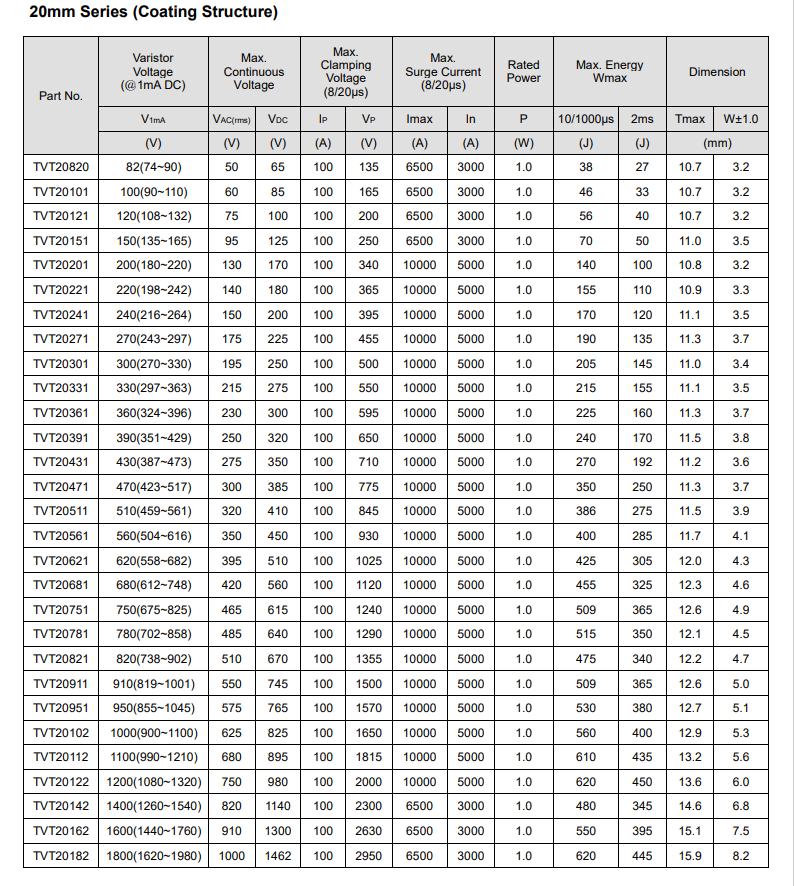

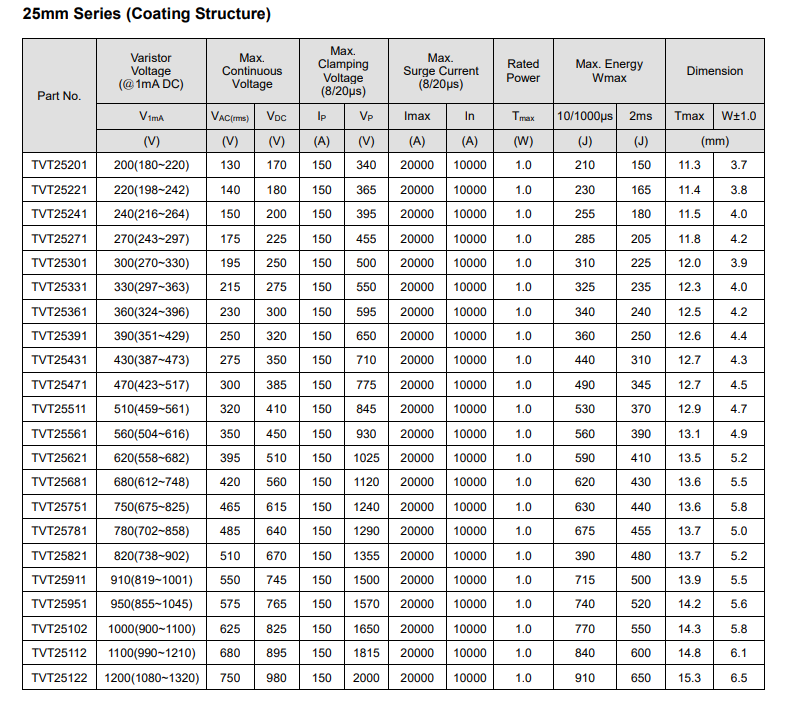

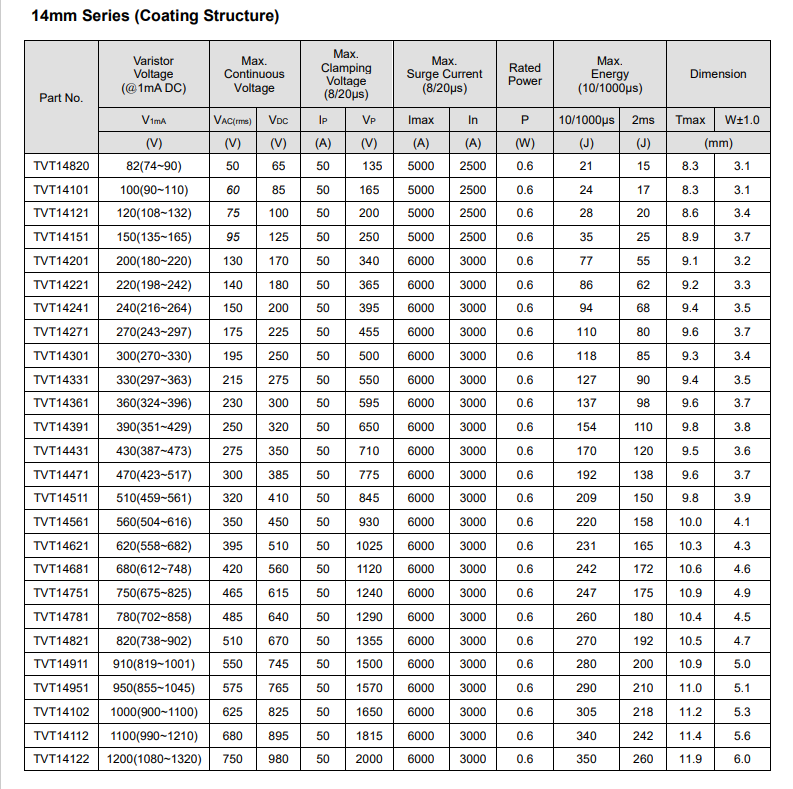

Electrical characteristics:

Packing:
