Features:

1. Comply with RoHS and halogen-free specifications

2. Body size: Ф5 ~ Ф20mm

3. Wide working voltage range: 130Vac~465Vac

4. Operating temperature range: -40°C ~ +125°C

5. Storage temperature range: -40°C ~ +150°C

6. UL 1449 4th SPD Type 5

7. Safety certification: UL /cUL/VDE/CQC

Application:

1. Power Supply

2. Household appliances

3. Industrial equipment

4. LED driver

5. Photovoltaic system

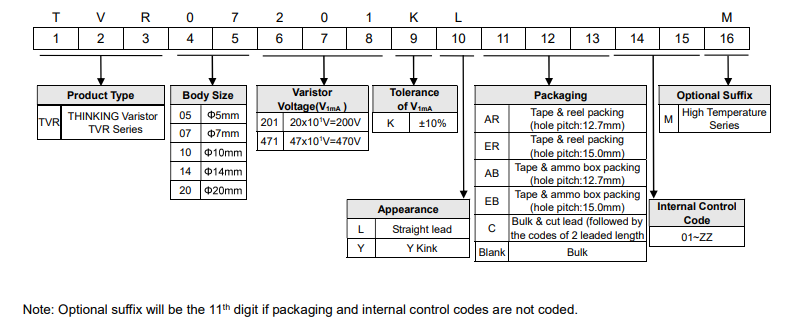

Encoding rules：

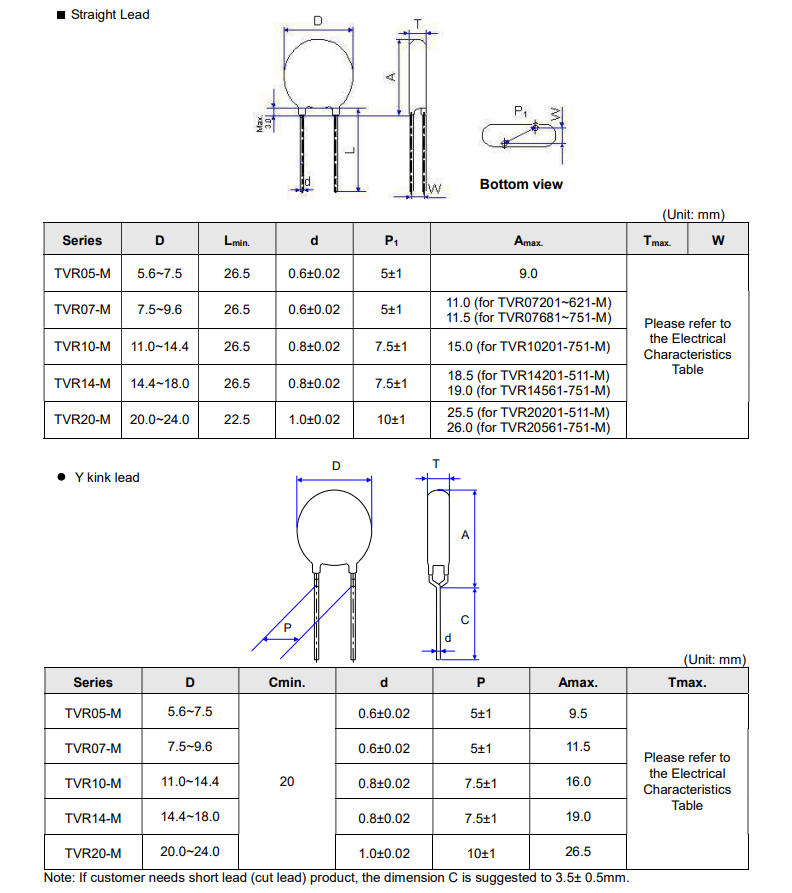

Outline structure drawing:

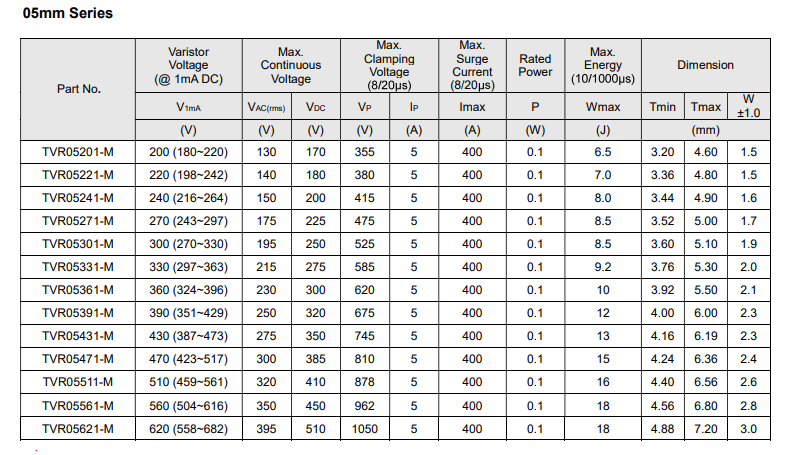

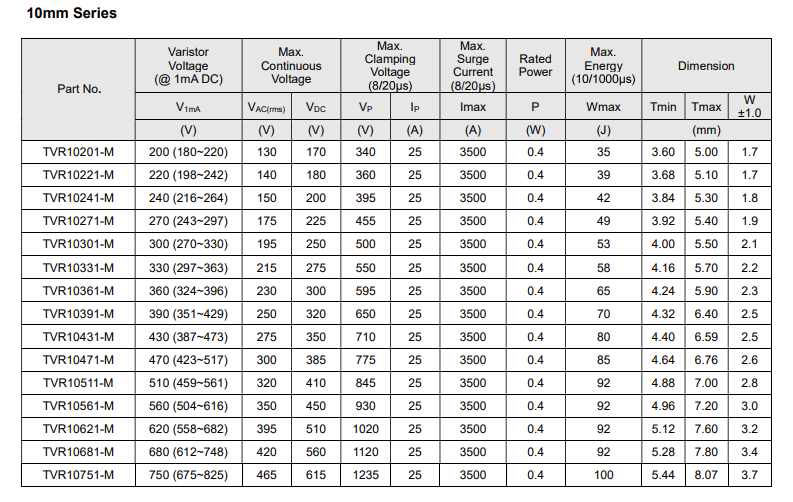

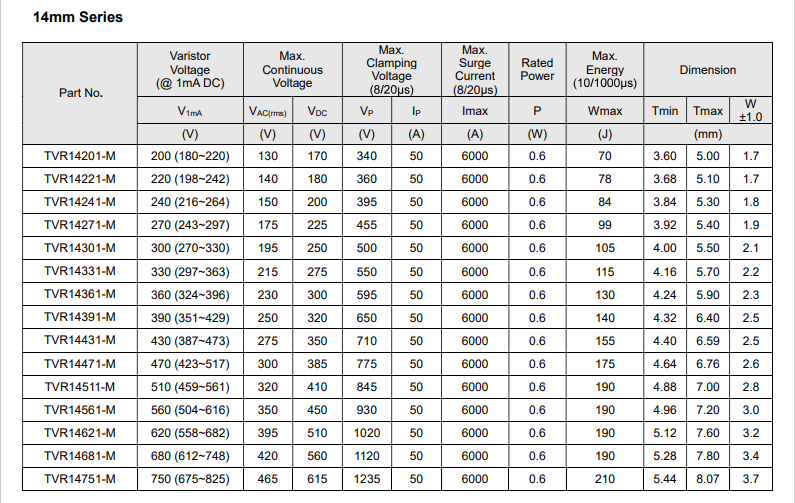

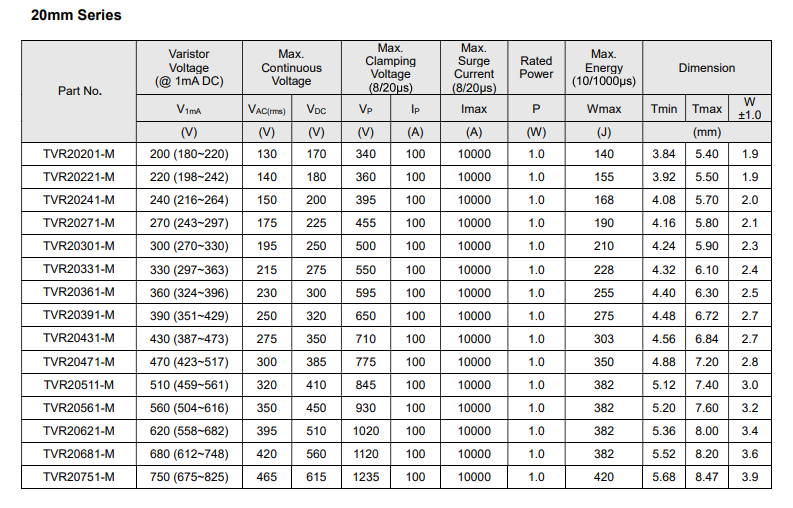

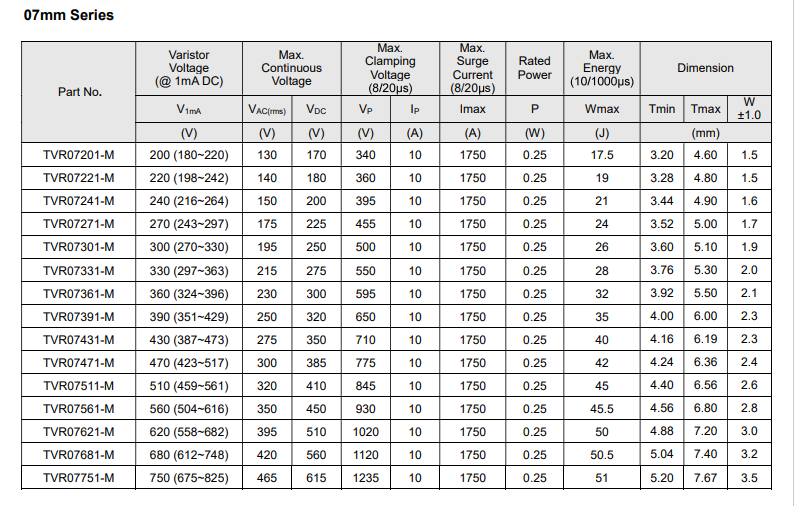

Electrical characteristics:

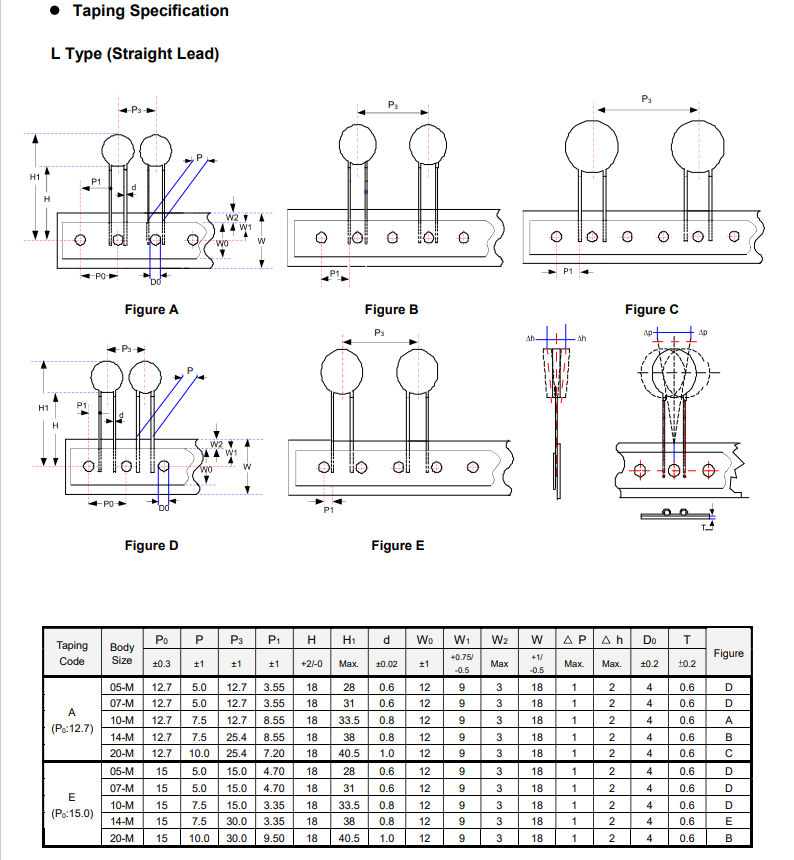

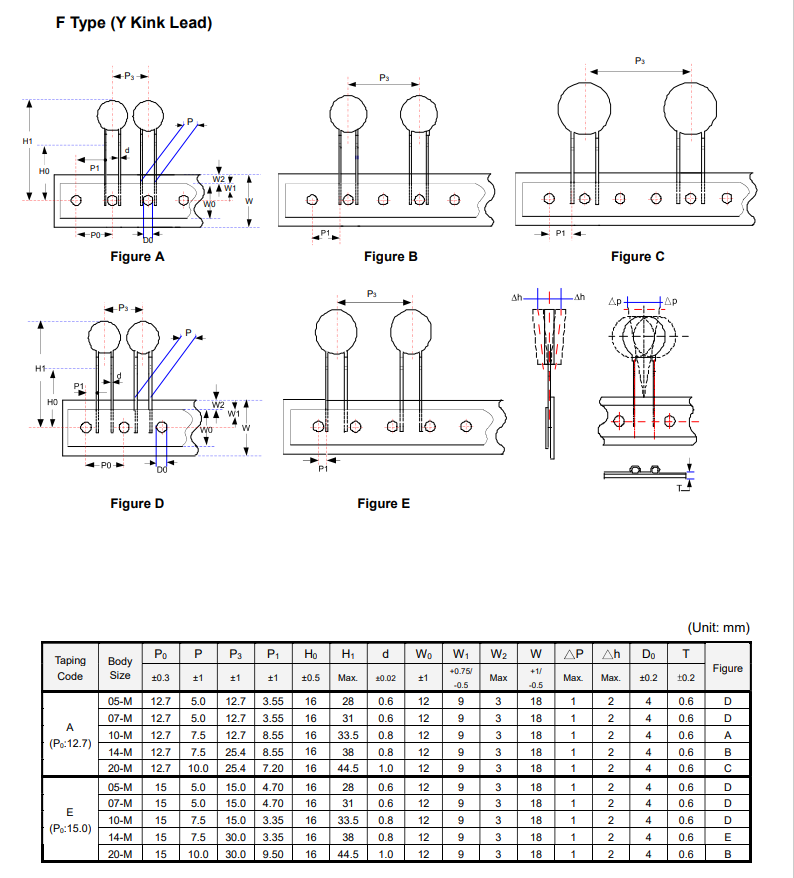

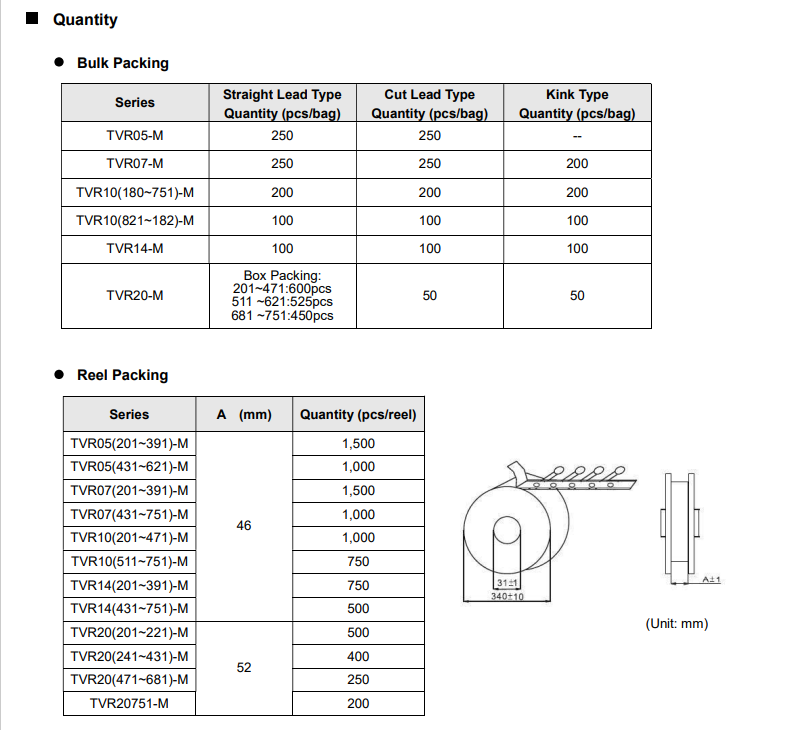

Packing:
