Features:

1. Based on AEC-Q200 Rev-C certification

2. High surge suppression capability for automotive applications

3. Bidirectional symmetrical V/I characteristics

4. Stability under high temperature and high humidity environment

5. Passed RoHS certification

Application:

1. Engine Management

2. Airbag

3. Control Unit

4. Electro-hydraulic brake

5. ABS / ESP

6. Skylight

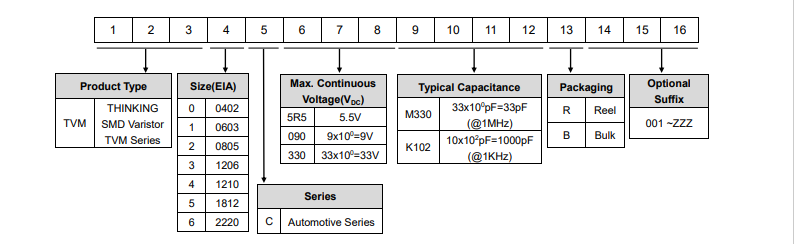

Encoding rules：

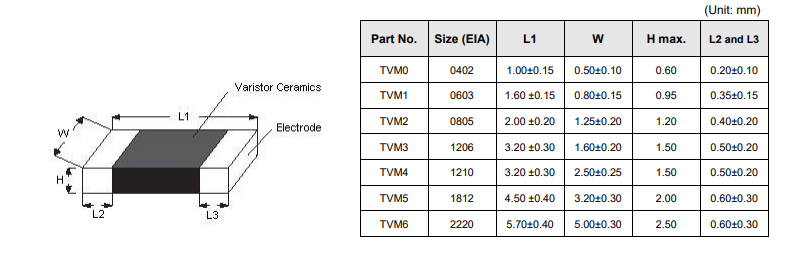

Outline structure drawing:

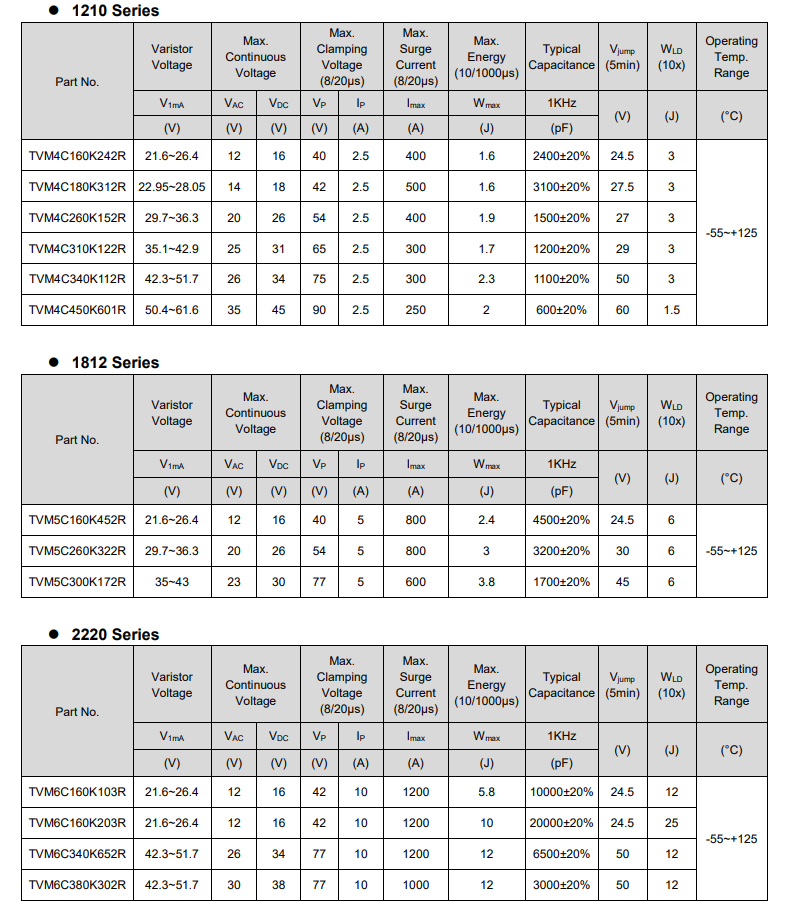

Electrical characteristics:

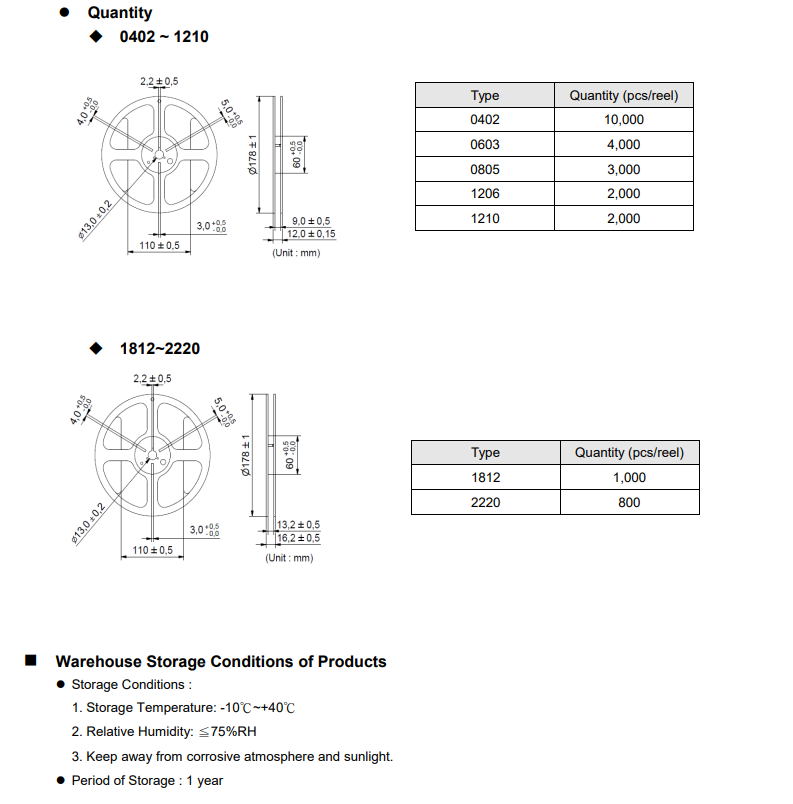

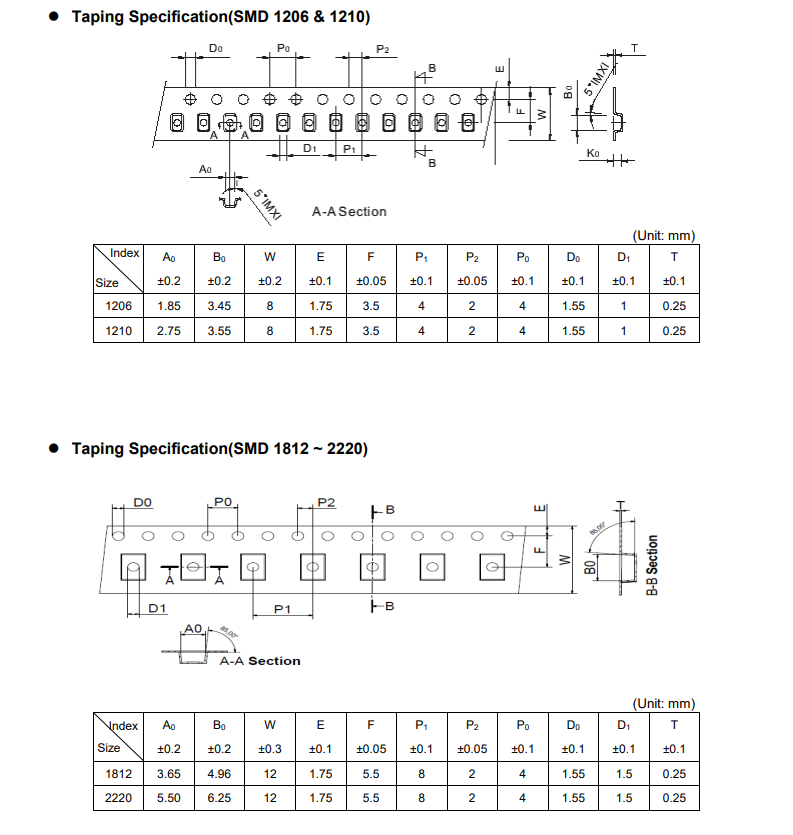

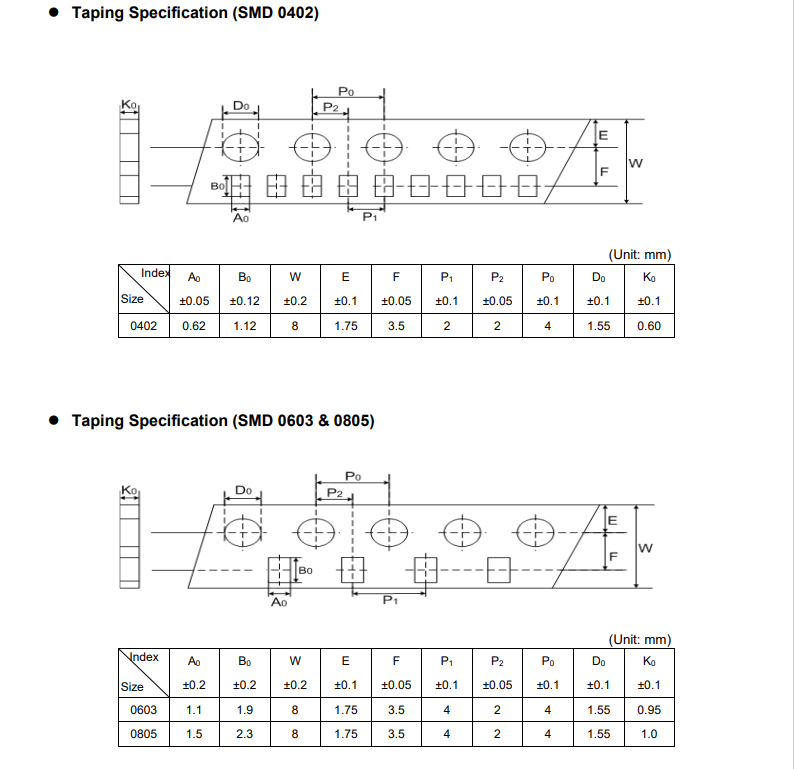

Packing:
