Features:

1. RoHS compliant

2. A series of products with halogen-free requirements can be provided

3. Body size: Ф7mm ~ Ф 20mm

4. Wide operating voltage range: 115 Vac ~ 680 Vac

5. The maximum flow rate can reach 13KA

6. The maximum energy level can reach 720 joules

7. Operating temperature range: -40°C ~ +105°C

Storage temperature range: -40°C ~ +125°C

8. Safety certification: UL 1449 4th / cUL / TUV/ VDE/ CQC

Application:

1. Power Supply

2. Household appliances

3. Industrial equipment

4. Communication equipment

5. Intelligent control meter

6. Powerline intelligent communication equipment

7. Lighting

8. Photovoltaic system

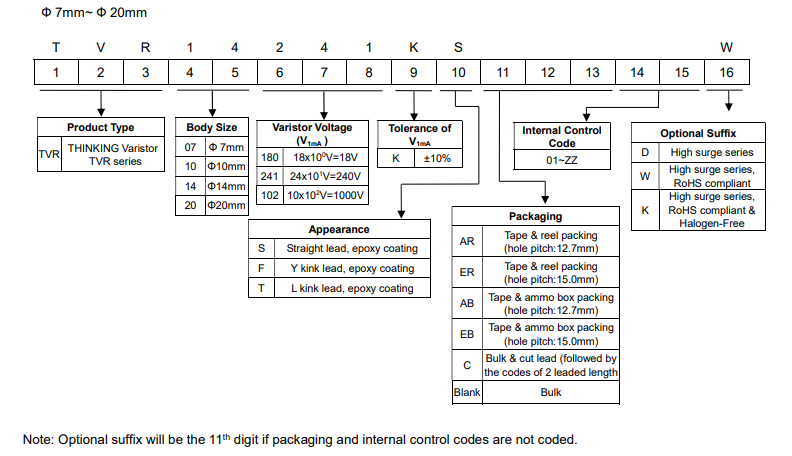

Encoding rules：

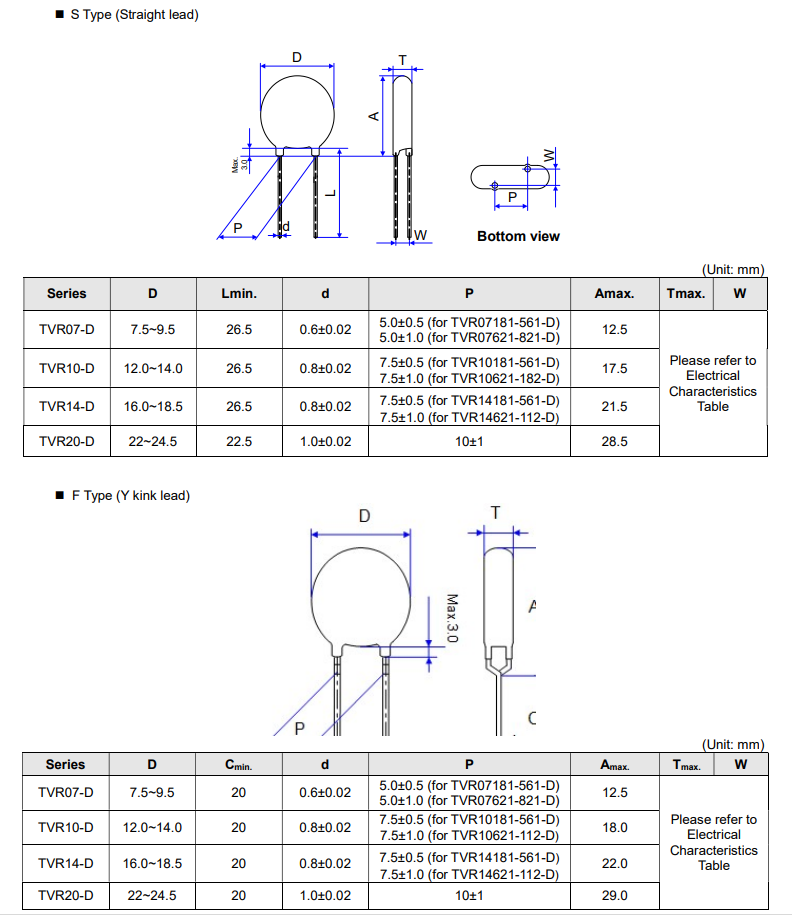

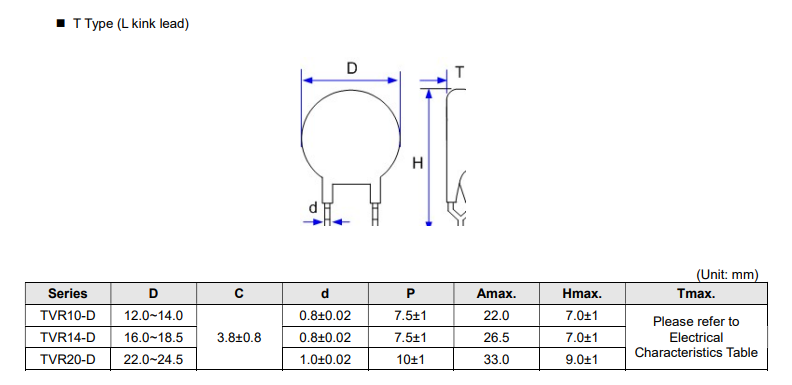

Outline structure drawing:

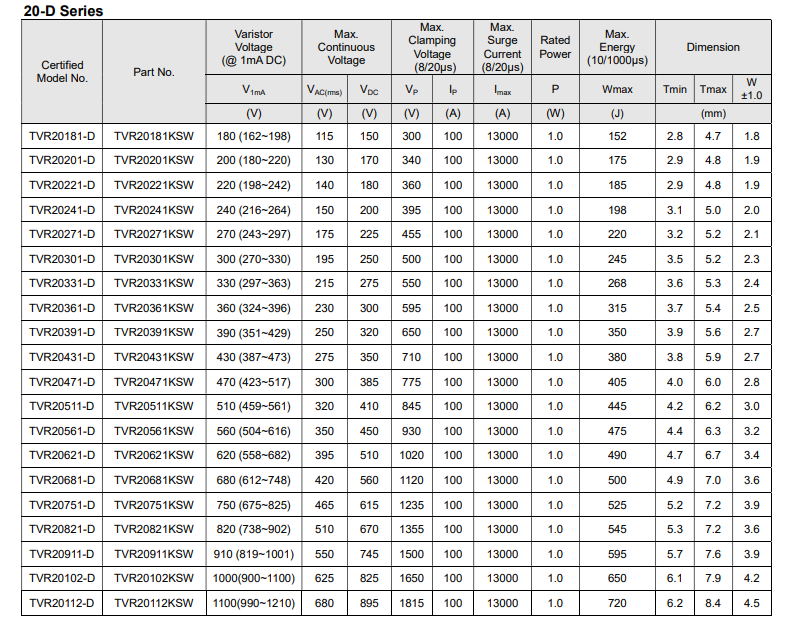

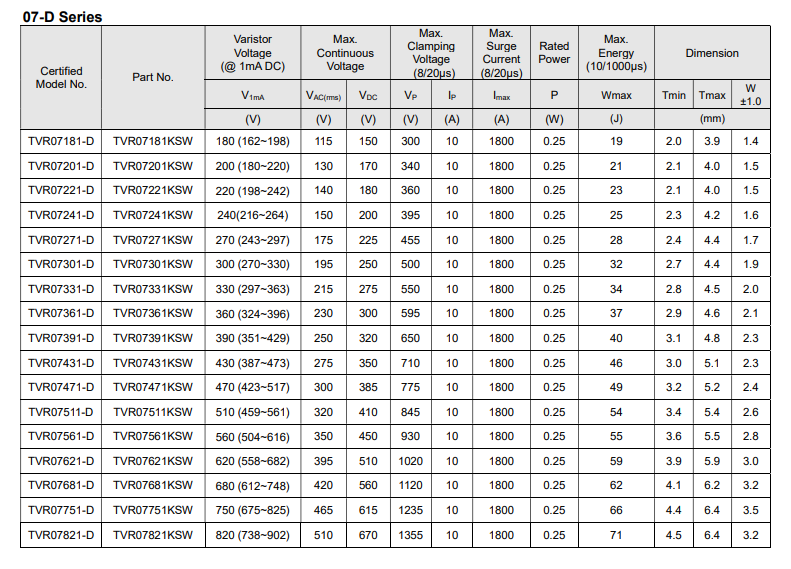

Electrical characteristics:

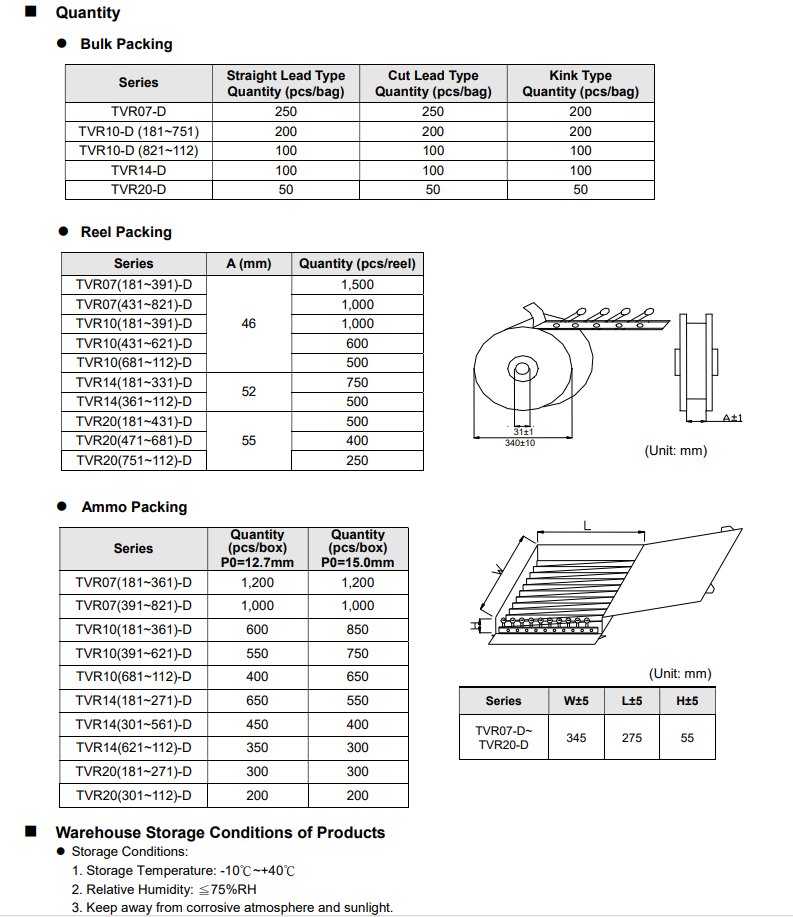

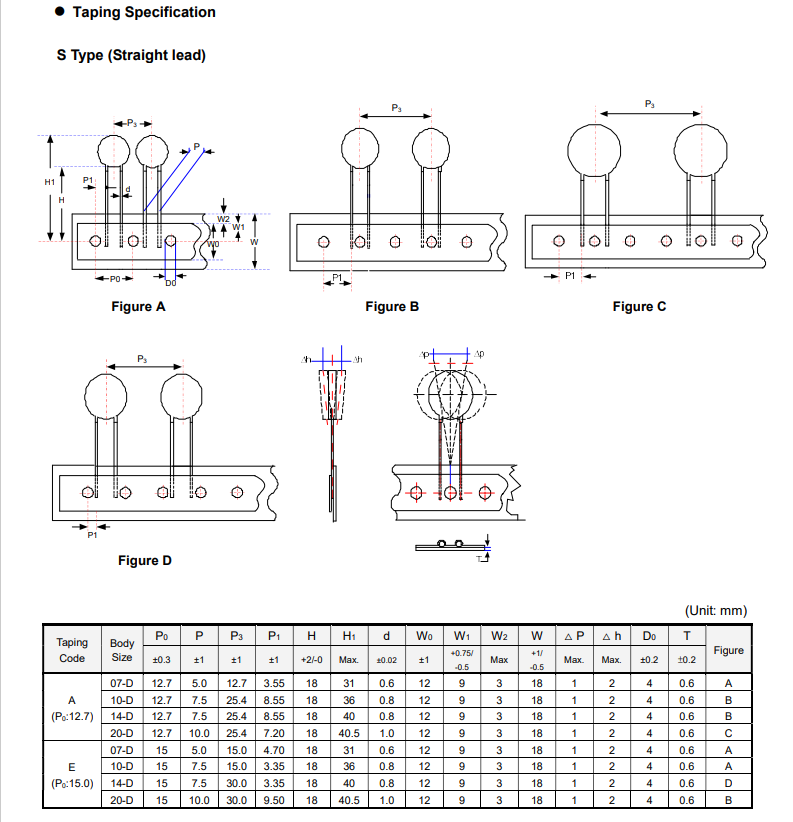

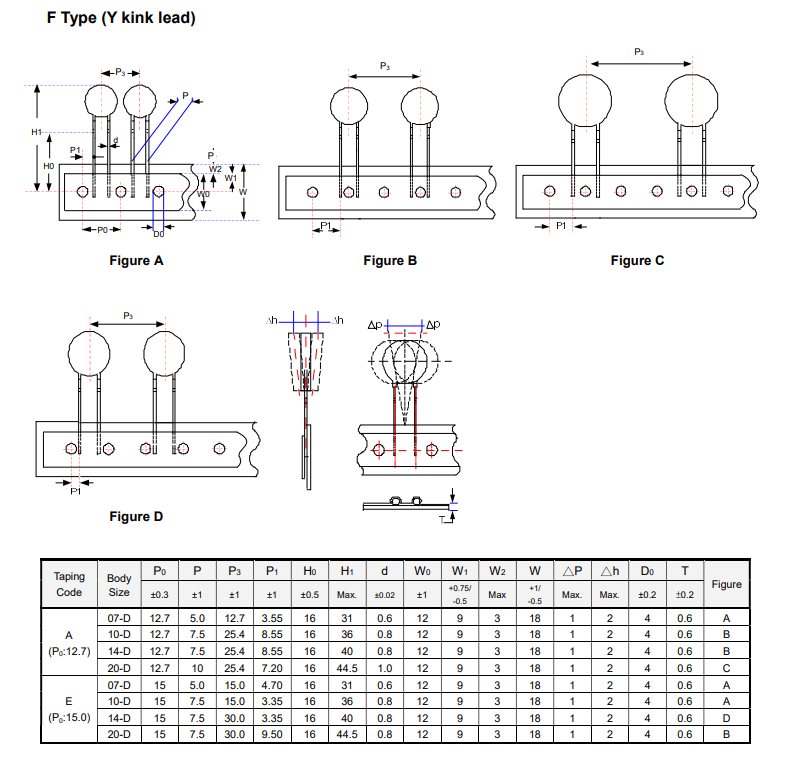

Packing:
