Features:

1. Meet RoHS requirements

2. A series of products with halogen-free requirements can be provided

3. Body size: Ф3mm

4. Radial lead resin package

5. Working temperature range: -40℃~+125℃

6. Wide resistance range

7. Low cost

8. Safety certification: UL / cUL / TUV / CSA / CQC

Application:

1. Household appliances

2. Computer

3. Digital Meter

4. Switching power supply

5. Adapter

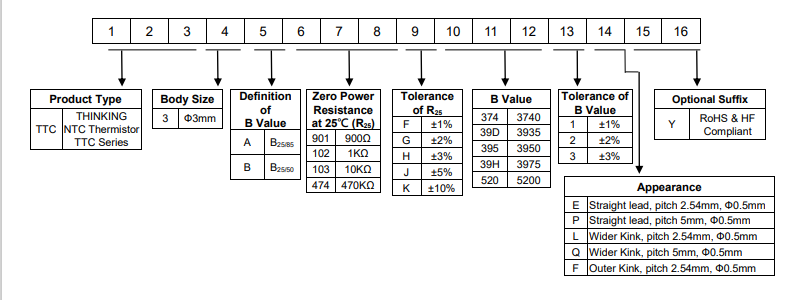

Encoding rules：

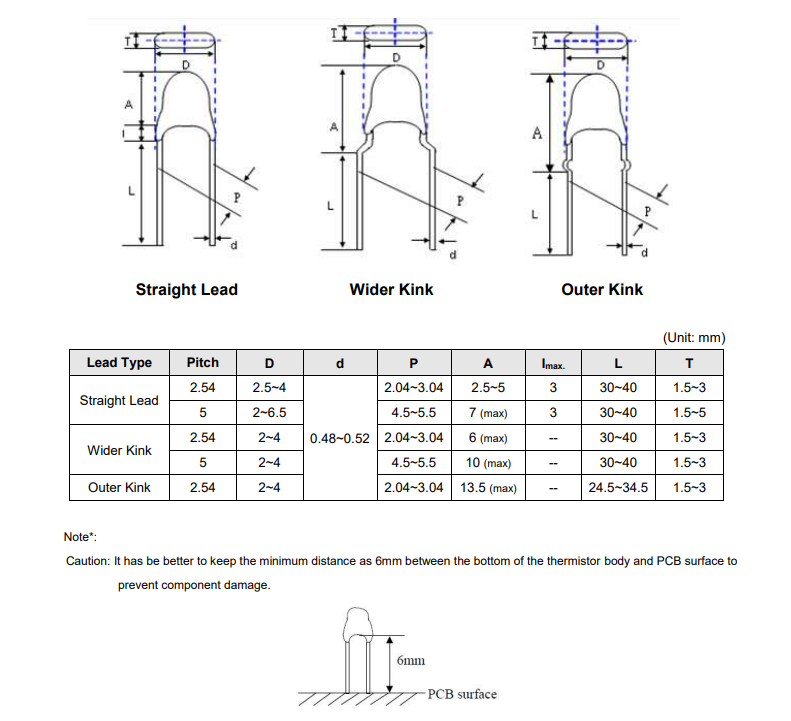

Outline structure drawing:

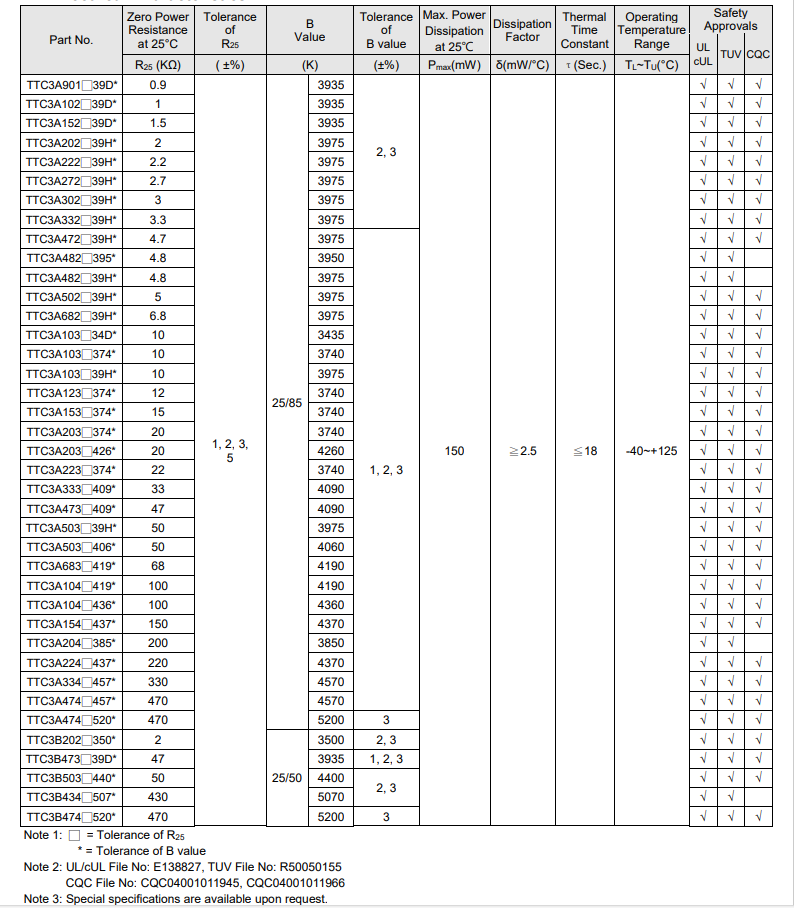

Electrical Specifications:

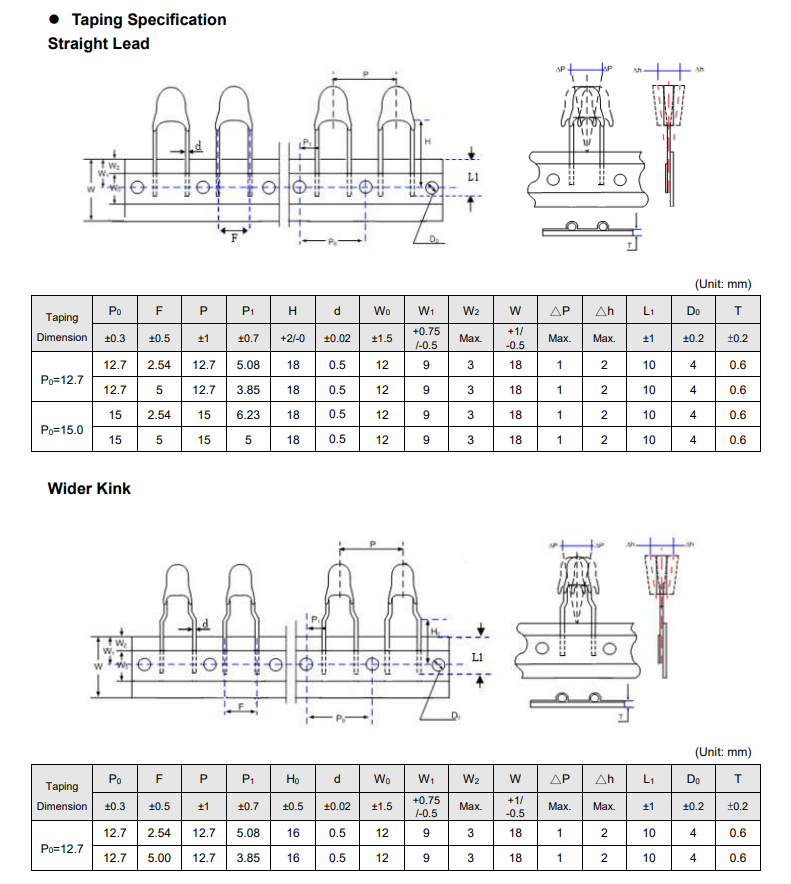

Packing:
