Features:

1. Meet the requirements of AEC-Q200 Rev-D

2. Meet RoHS requirements

3. A series of products with halogen-free requirements can be provided

4. Body size: Ф3mm

5. Working temperature range: -55℃~+150℃

Application:

1. Car audio, car navigation

2. Various engine control devices

3. ETC equipment circuit

4. Temperature compensation of various circuits

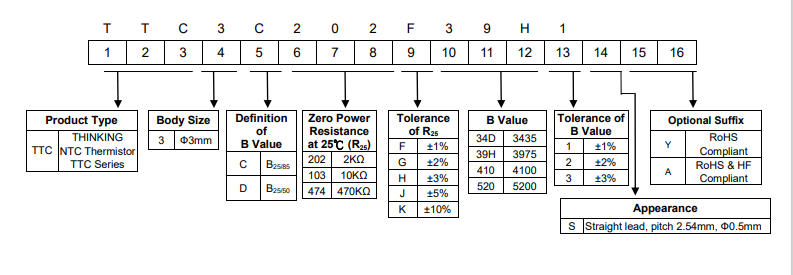

Encoding rules：

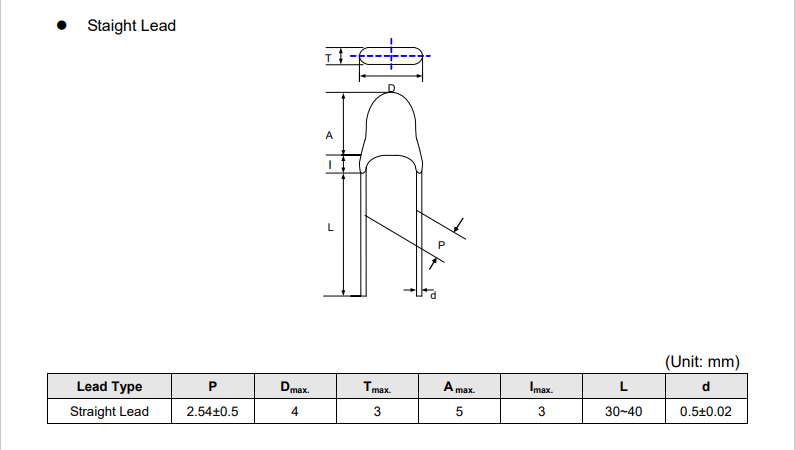

Outline structure drawing:

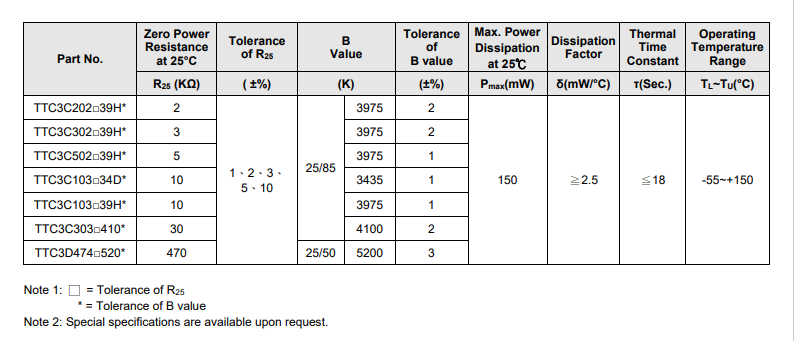

Electrical characteristics:

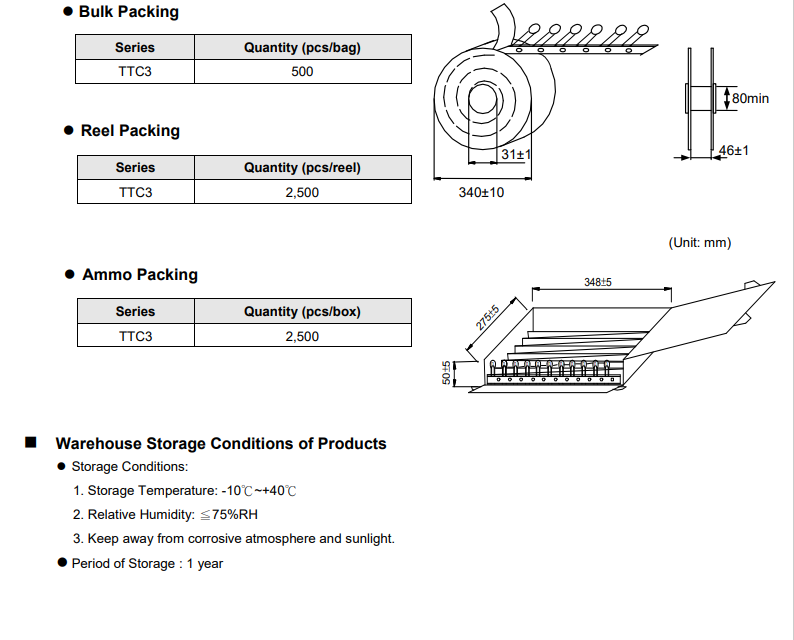

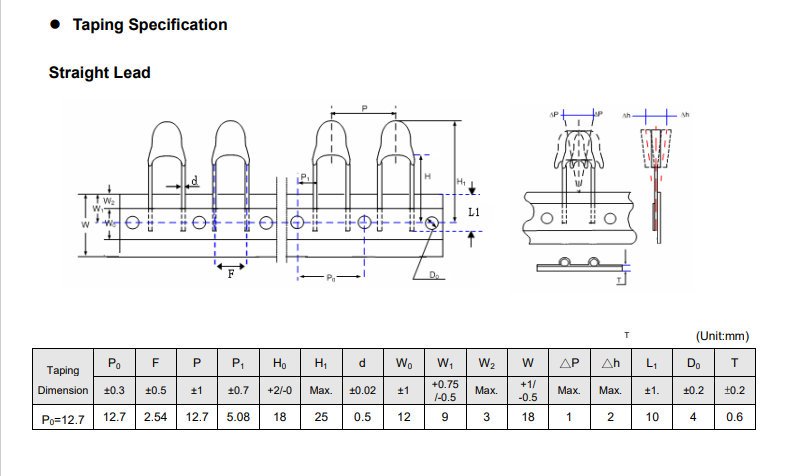

Packing:
