Features:

1. Meet RoHS requirements

2. A series of products with halogen-free requirements can be provided

3. Body size: Ф5mm

4. Body size: Radial lead resin package

5. Working temperature range: -30℃~ +125℃

6. Wide resistance range

7. Low cost

8. Safety certification: UL / cUL / CSA / TUV / CQC

Application:

1. Household appliances

2. Automotive Electronics

3. Computer

4. Switching power supply

5. Adapter

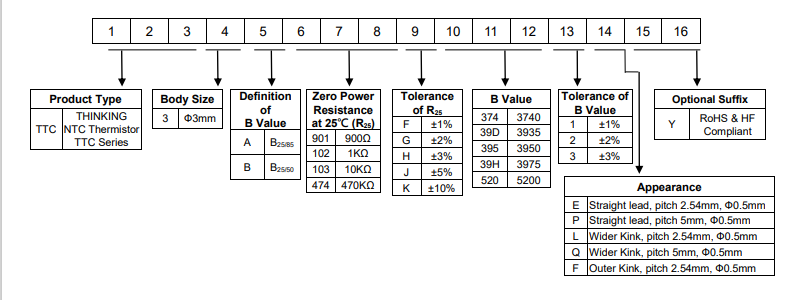

Encoding rules：

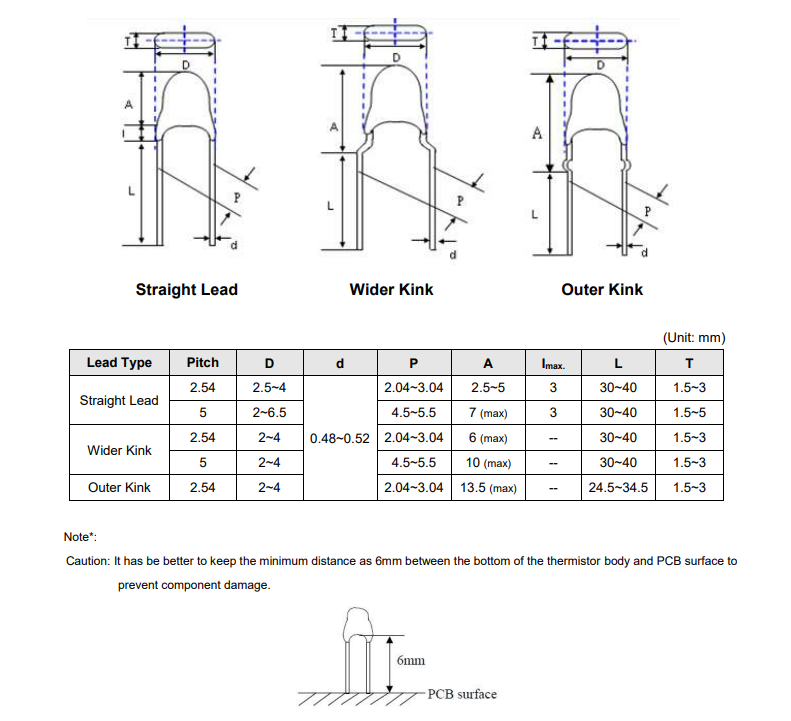

Outline structure drawing:

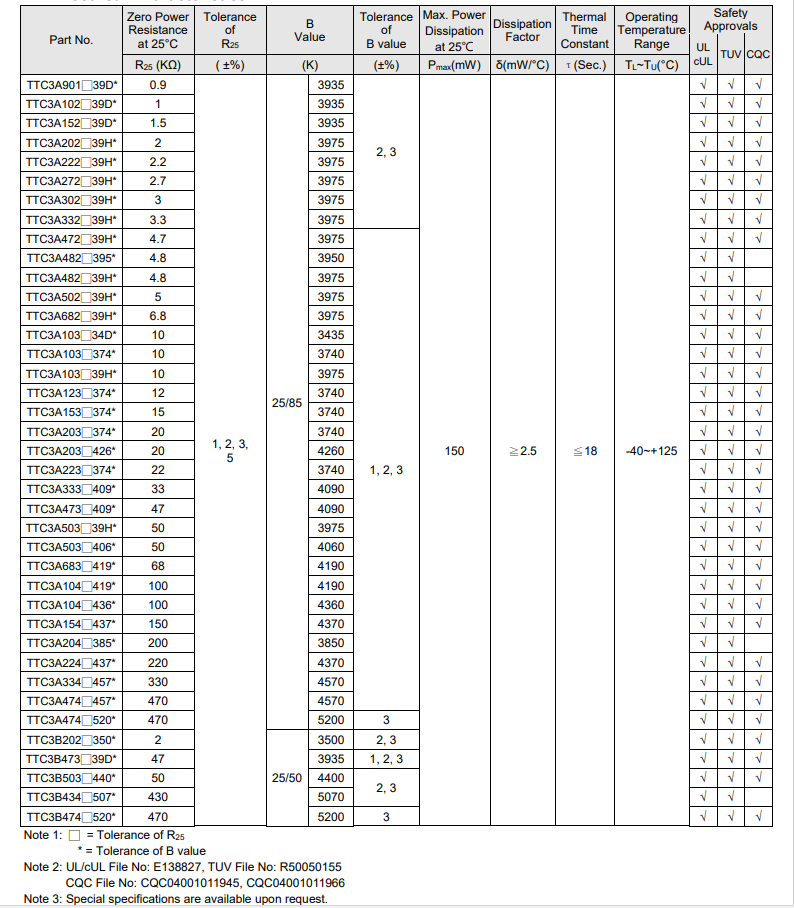

Electrical characteristics:

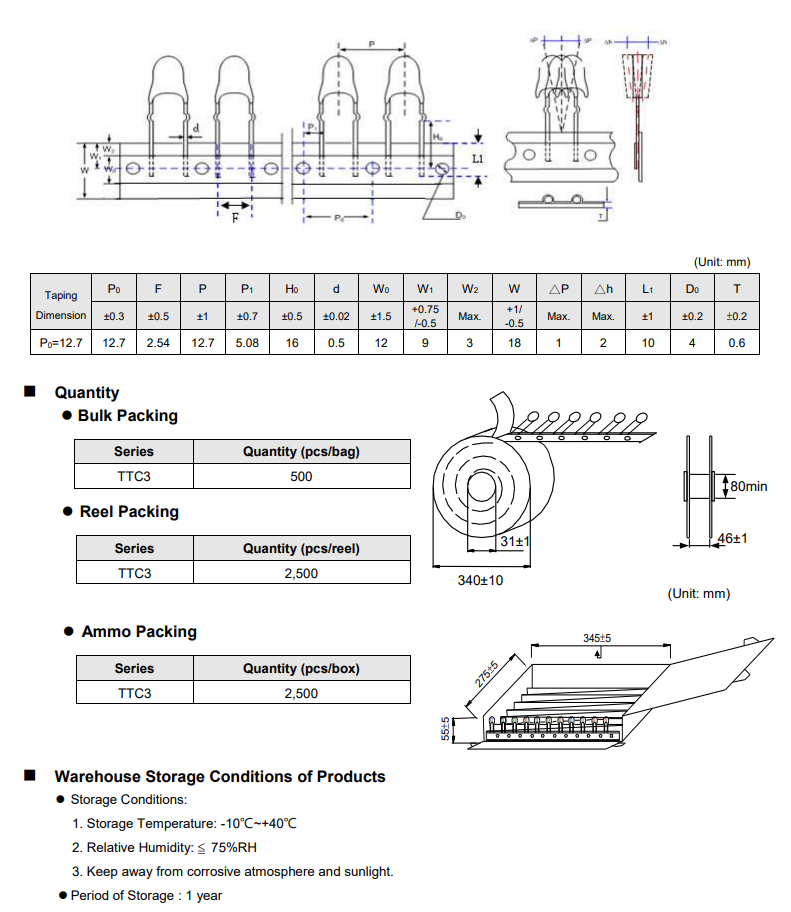

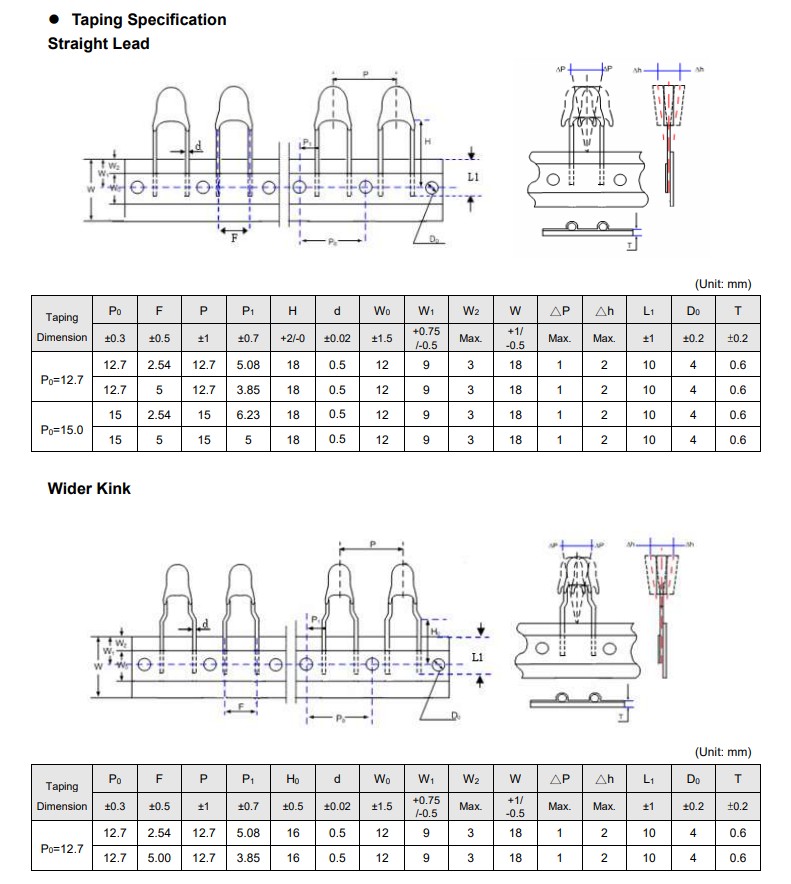

Packing:
