NTC temperature sensor for chiller thermostat

Number of Views:44142021-05-27 09:38:52

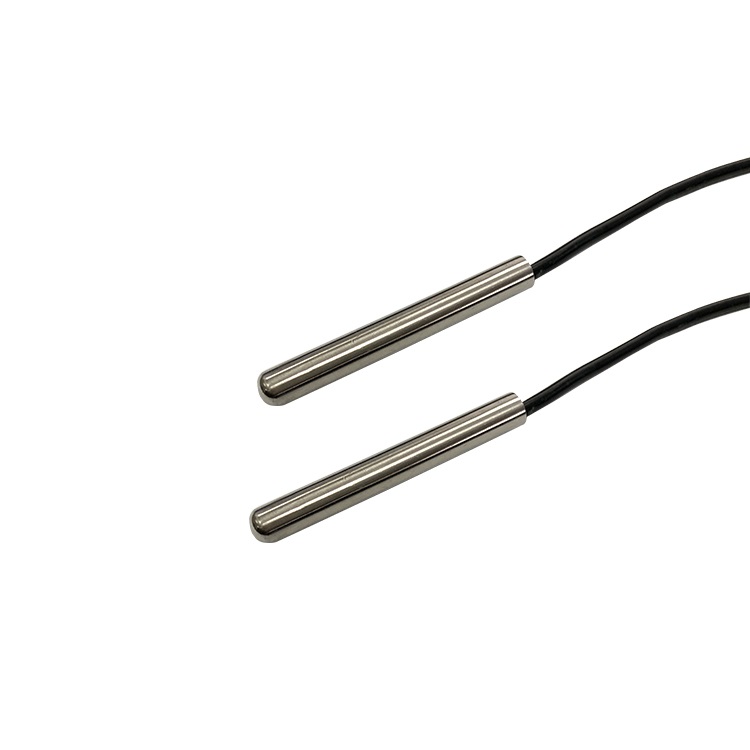

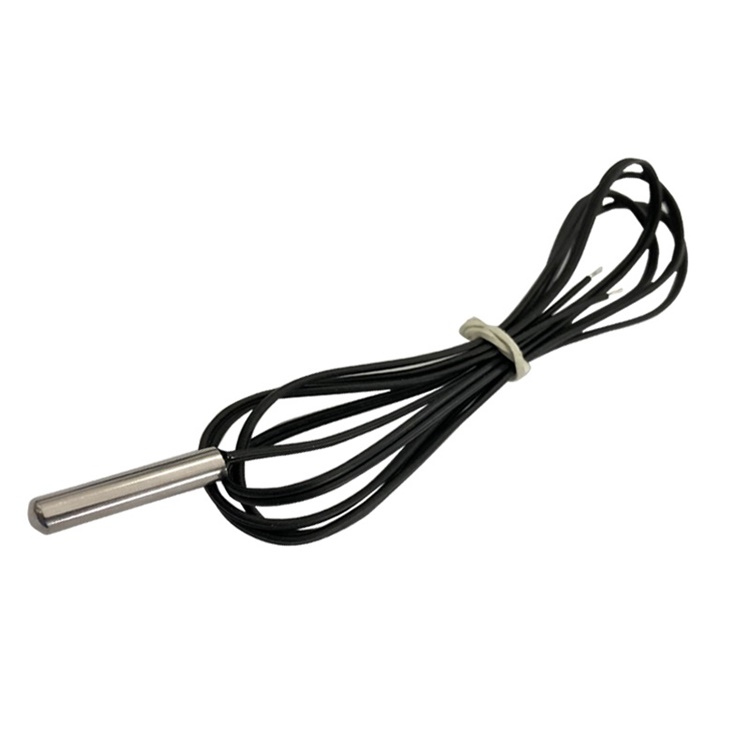

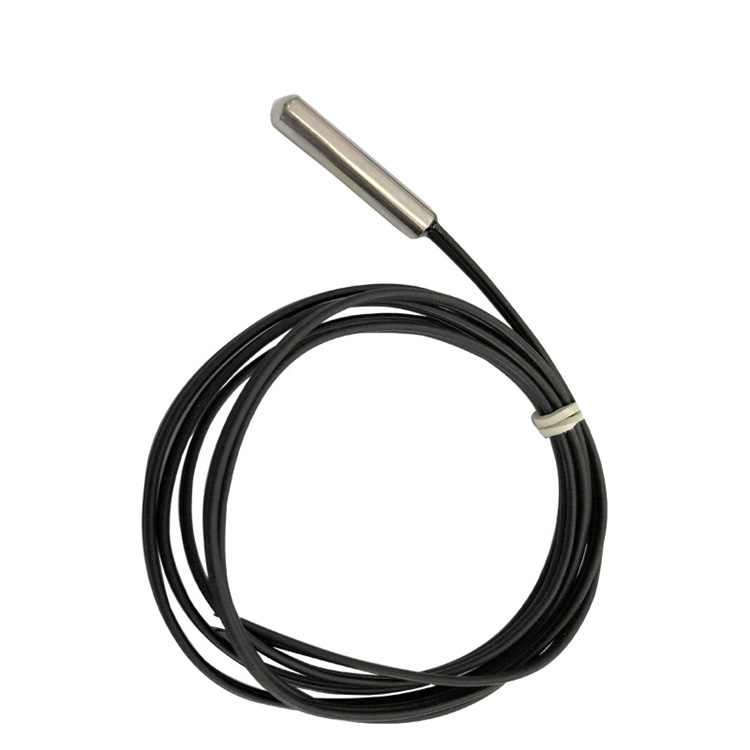

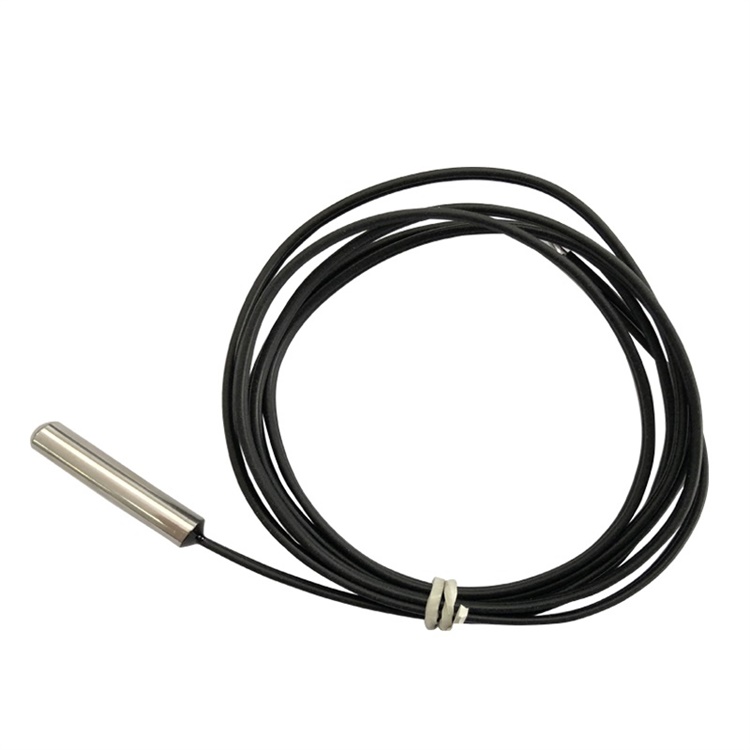

NTC temperature sensor for chiller thermostat

Features:

1. Good stability and high reliability

2. Wide resistance range: 1KΩ~1000KΩ

3. High resistance and B value accuracy

4. Due to the purchase of glass packaging, it can be used in harsh environments such as high temperature and high humidity

5. Small size, sturdy structure, easy for automatic installation

6. Fast heat induction and high sensitivity.

Application:

1. Chiller thermostat

2. Widely used in boilers, water pumps, thermostats, pipeline temperature measurement, household air conditioners

3. Temperature measurement and control of heaters, dishwashers, disinfection cabinets, washing machines, dryers, medium and low temperature drying ovens, thermostats and other occasions.

4. Automobile air conditioners, refrigerators, freezers, water heaters, water dispensers.

Electrical characteristics:

1. Thermal response time: ≤16 seconds in a water bath

2. Dissipation coefficient: about 2.6mW/℃ in the static air

3. Withstand voltage test: 2mA for 1 second, no flashover, no breakdown and other abnormal phenomena in the steel ball

4. Insulation test: ≥100MΩ in steel ball

5. Rated power: ≤10mW

6. Operating temperature: -50℃~105℃


Outline structure drawing:


Download Google:

Please inform the following parameters when ordering NTC temperature sensor:

1. What is the resistance requirement (can be selected according to the above table)

2. How much B value is required (can be selected according to the above table)

3. Working environment (whether it needs to be waterproof, moisture-proof, cold-resistant, etc.)

4. Purpose: Choose different temperature-resistant wires, different resistance values for different purposes, etc.

5. What is the operating temperature range?

6. Accuracy requirements (1%-5% optional)

7. Shell material (copper, brass, stainless steel, ABS, epoxy resin, etc.)

8. Shell size (all can be customized)

9. Wire and length (both can be customized)

10. Does the end of the wire need a connector? (Molex, JST, CJT, etc. are optional).

Conventional resistance R-T table:
