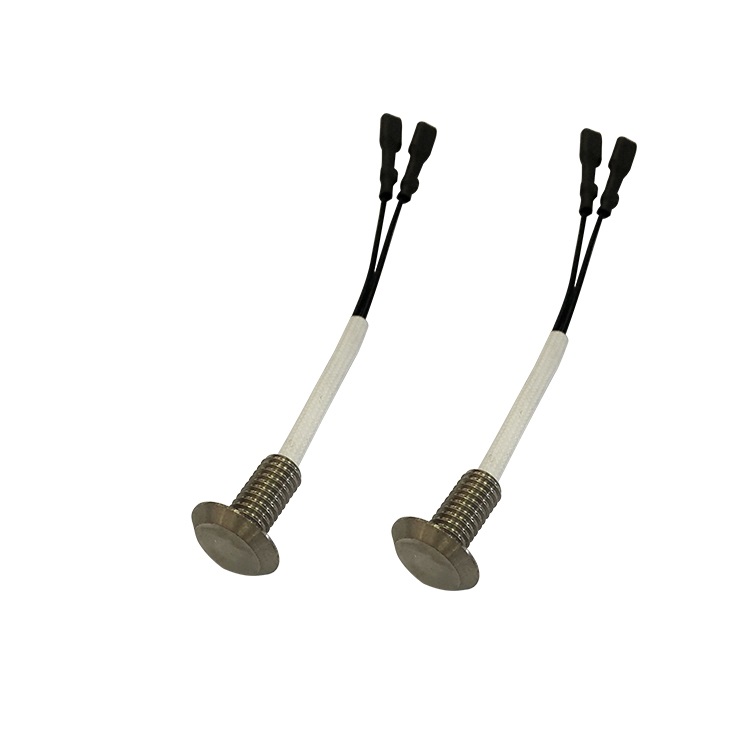

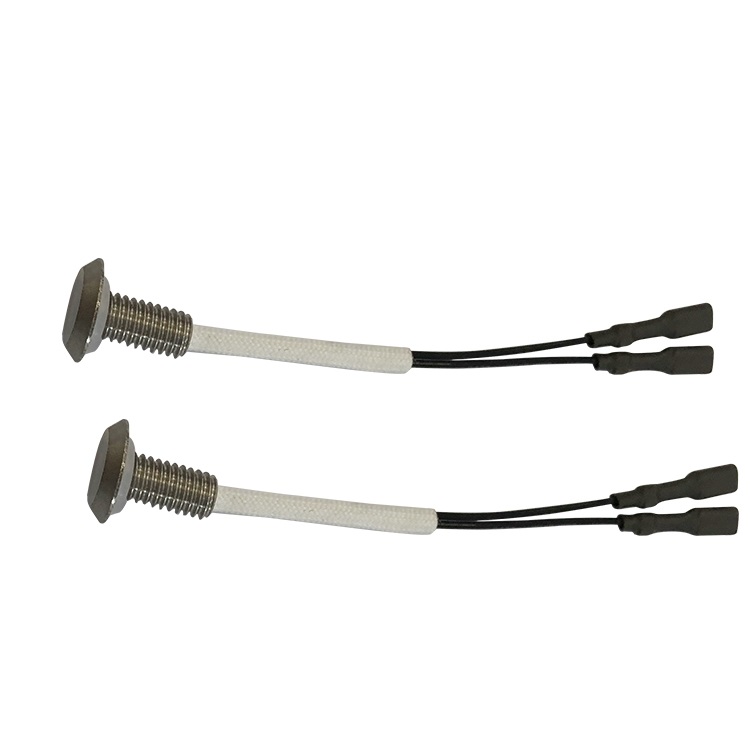

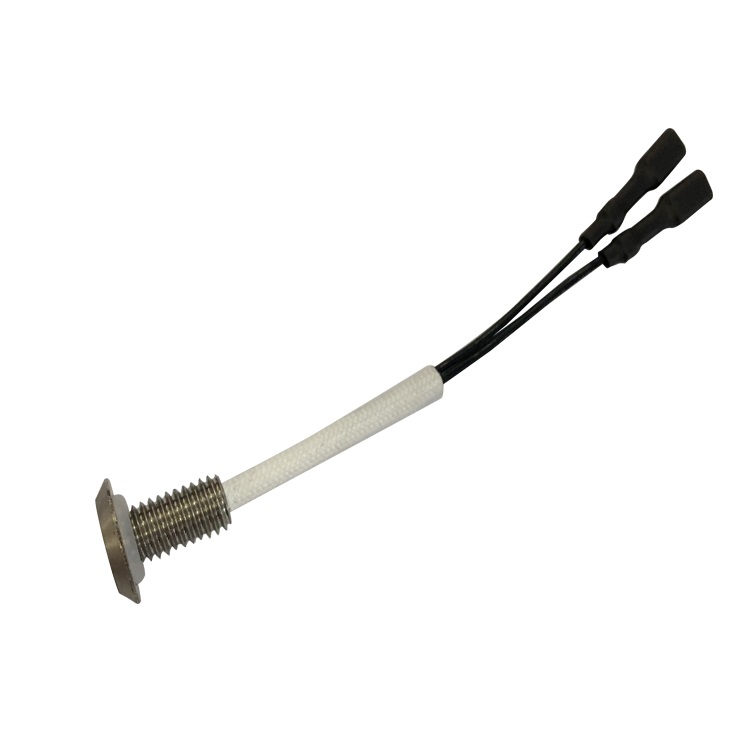

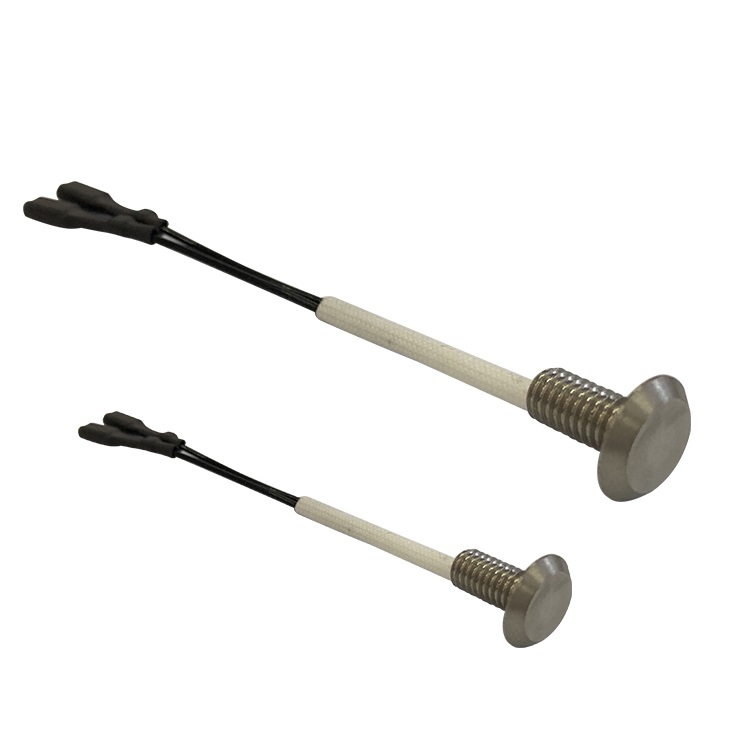

NTC temperature sensor thermistor for electric kettle

Number of Views:42872021-05-27 11:49:47



NTC temperature sensor thermistor for electric kettle

Features:

1. High temperature resistance, good water resistance

2. The resistance value and B value have high precision, good consistency and interchangeability

3. Adopting double-layer sealing process, with good insulation and sealing performance, resistance to mechanical collision, bending resistance, and high reliability

4. Can work stably for a long time (annual resistance value drift rate ≤ 1‰)

5. It can be packaged according to the installation conditions used, which is convenient for users to install

6. Operating temperature range: -40~250℃.

Application:


1. Electric kettle, air conditioning equipment, heating equipment, medical equipment, electronic calendar, rechargeable battery pack

2. Temperature control instruments, electronic gifts, electronic thermometers and hygrometers, automotive temperature measurement

3. Rice cookers, ovens, water heaters, heaters, refrigerators, water dispensers, disinfection cabinets, washing machines, soymilk machines.

Product parameter characteristics:



1. Thermal response time: maximum 16 seconds in a water bath

2. Dissipation coefficient: about 2.6mW/℃ in the static air

3. Withstand voltage test: 2mA 1min, no flashover, no breakdown and other abnormal phenomena in the steel ball

4. Insulation test: ≥100MΩ in steel ball

5. Rated power: 10mW

6. Operating temperature: -40℃~250℃ (the maximum use temperature of the head is 250℃, the maximum use temperature of the finished product is 200℃)

Download Google:

Please inform the following parameters when ordering NTC temperature sensor:

1. How much resistance is required (can be selected according to the above table)

2. How much B value is required (can be selected according to the above table)

3. Working environment (whether waterproof, moisture-proof, cold-resistant and others are required)

4. Purpose: Choose different temperature-resistant wires for different purposes, different resistance values, etc.

5. What is the operating temperature range?

6. Accuracy requirements (1%-5% optional)

7. Shell material (copper, brass, stainless steel, ABS, epoxy resin, etc.)

8. Shell size (all can be customized)

9. Wire and length (all can be customized)

10. Does the end of the wire need a connector? (Molex, JST, CJT, etc. are optional).

Conventional resistance R-T table:
