Features:

1. Resistance value：1mΩ~50mΩ
2. Tolerance：±1%、±2%、±5%
3. Power：1/4W~1W
4. Temperature coefficient：±50ppm/℃
5. Operating Temperature：-55℃~170℃
6. Surface mount：1206

Application:

1. Over current protection
2. Current sense applications
3. Servo motor control circuits
4. Inteligent power modules
5. Industrial PC modules and precision measurement system

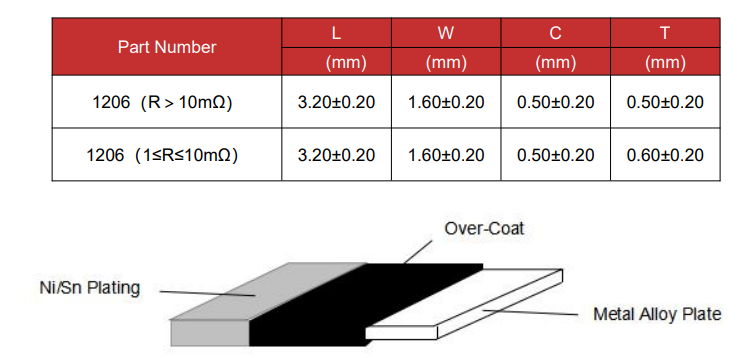

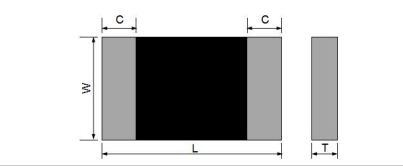

Outline structure drawing:

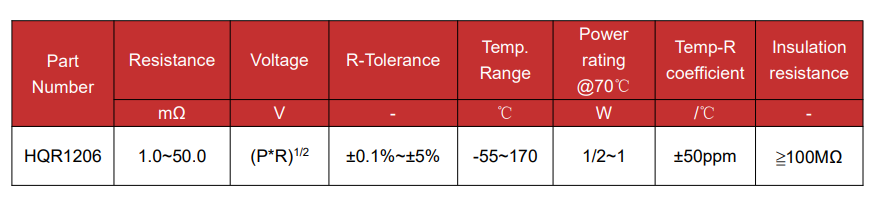

Electrical Specifications:
