Features:

1. Package size: 0402 to 2512

2. Resistance range: 10mΩ～1000mΩ

3. Compatible with reflow soldering and wave soldering processes

4. Lead-free process

5. Comply with ROHS Directive

6. Halogen free

Application:

1. Switching power supply

2. Battery pack

3. Notebooks and personal computers

4. Test equipment

5. Power amplifier

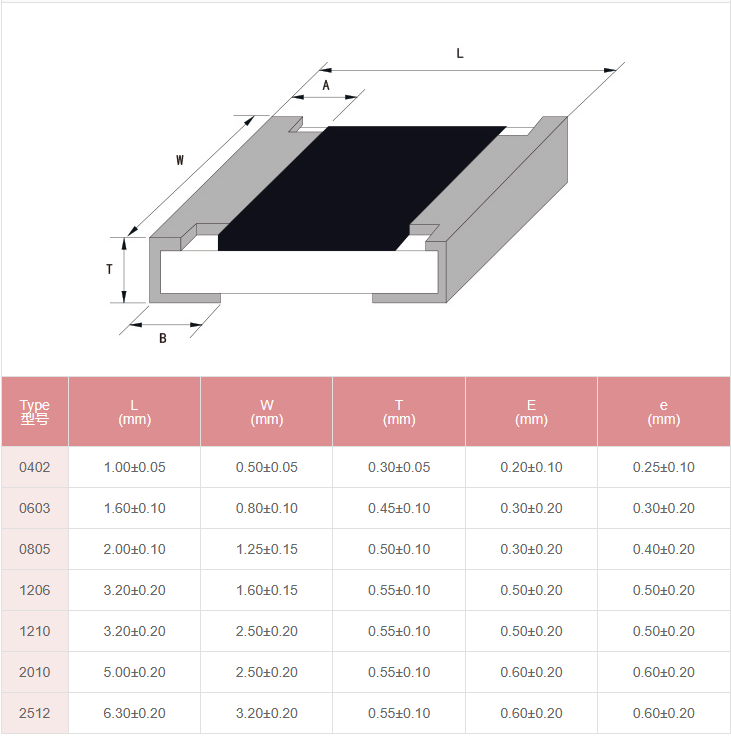

Outline structure drawing:

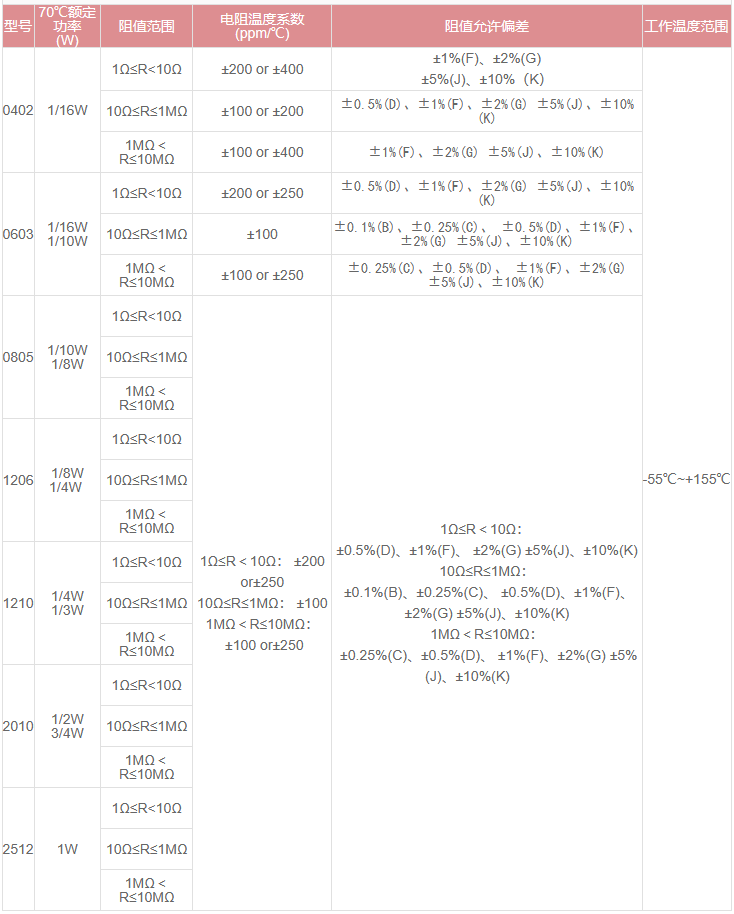

Electrical Specifications:
