Features:

1. Comply with RoHS and halogen-free specifications

2. Body size: Ф25mm ~ Ф 60mm

3. Wide working voltage range

4. Superior pressure limiting ratio

5. Bidirectional and symmetrical volt-ampere characteristics

6. High surge current suppression capability

7. Excellent thermal stability

8. Operating temperature range: -40°C ~ +85°C

9. Storage temperature range: -40°C ~ +110°C

10. Safety certification: UL/ cUL

11. Suitable for UL 1449 4th SPD Type 5 applications

Application:

1. Power configuration equipment

2. Communication power

3. Antenna

4. New Energy

5. Lighting

6. Railway transportation system

7. Industrial equipment

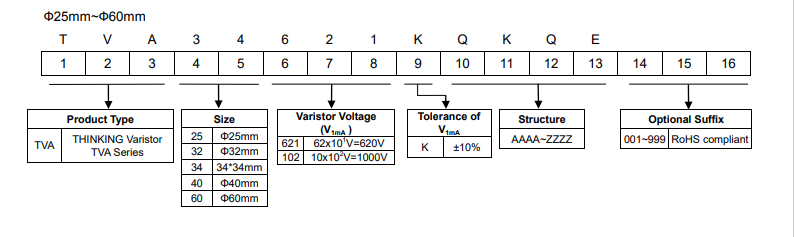

Encoding rules：

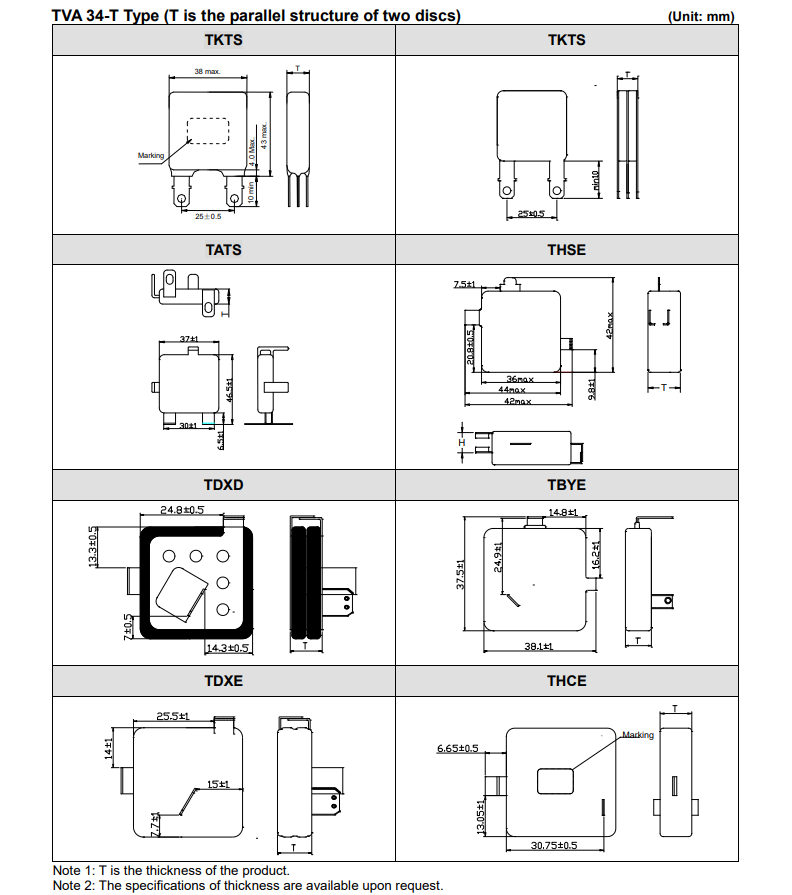

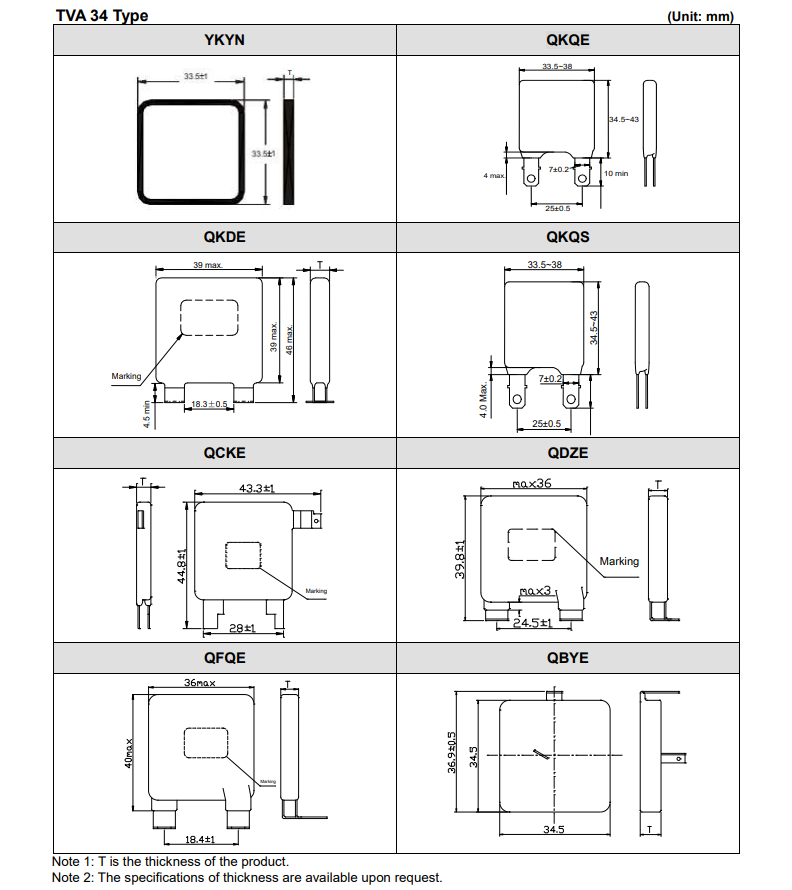

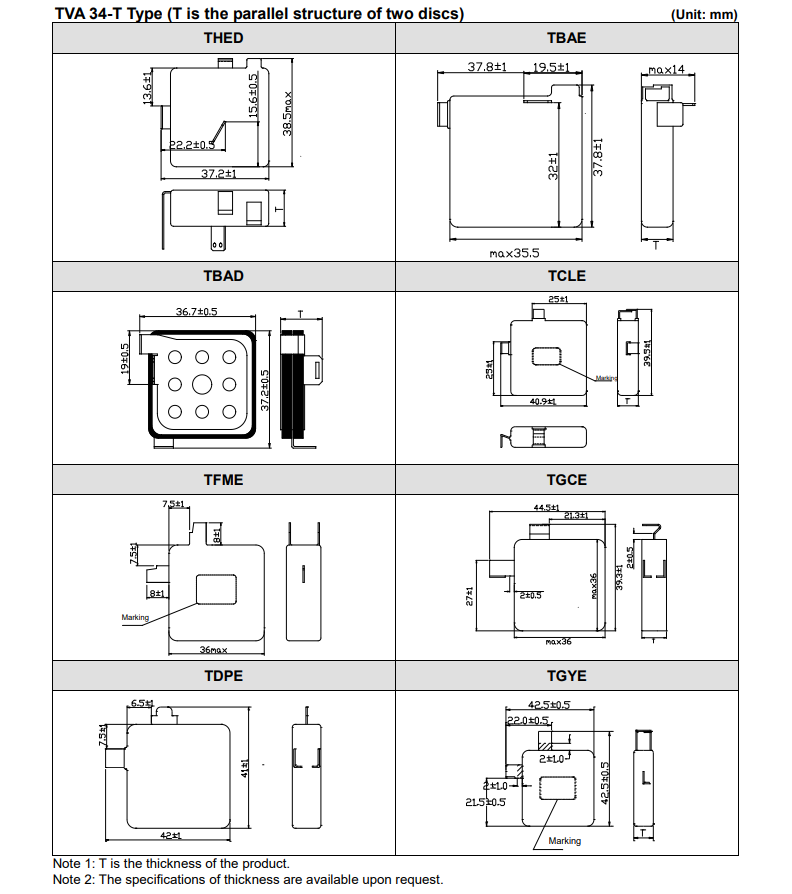

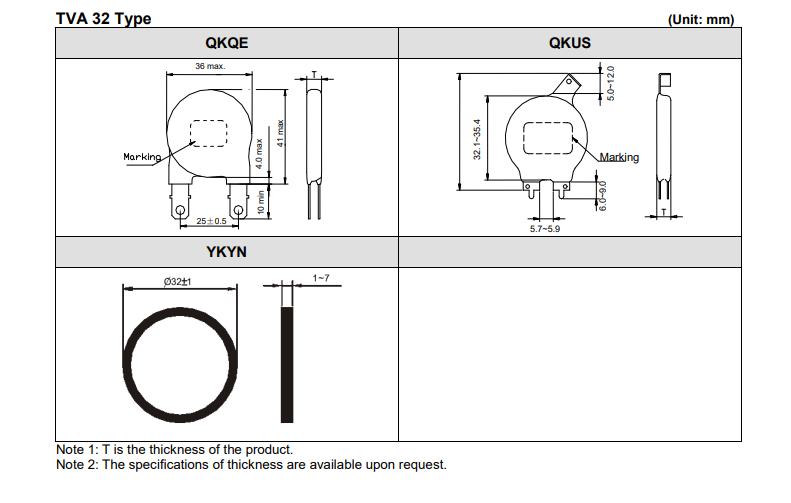

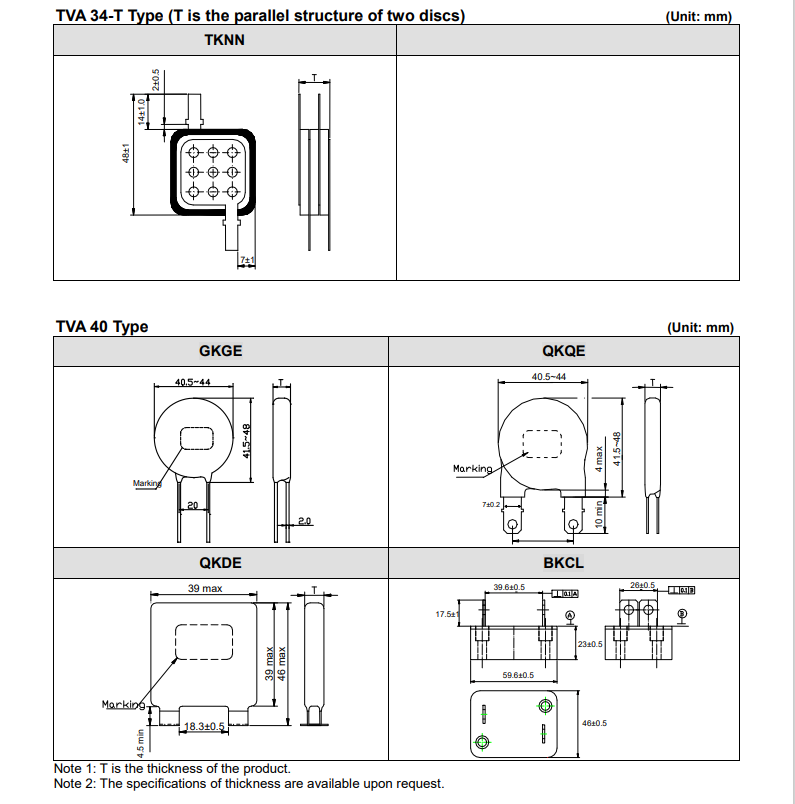

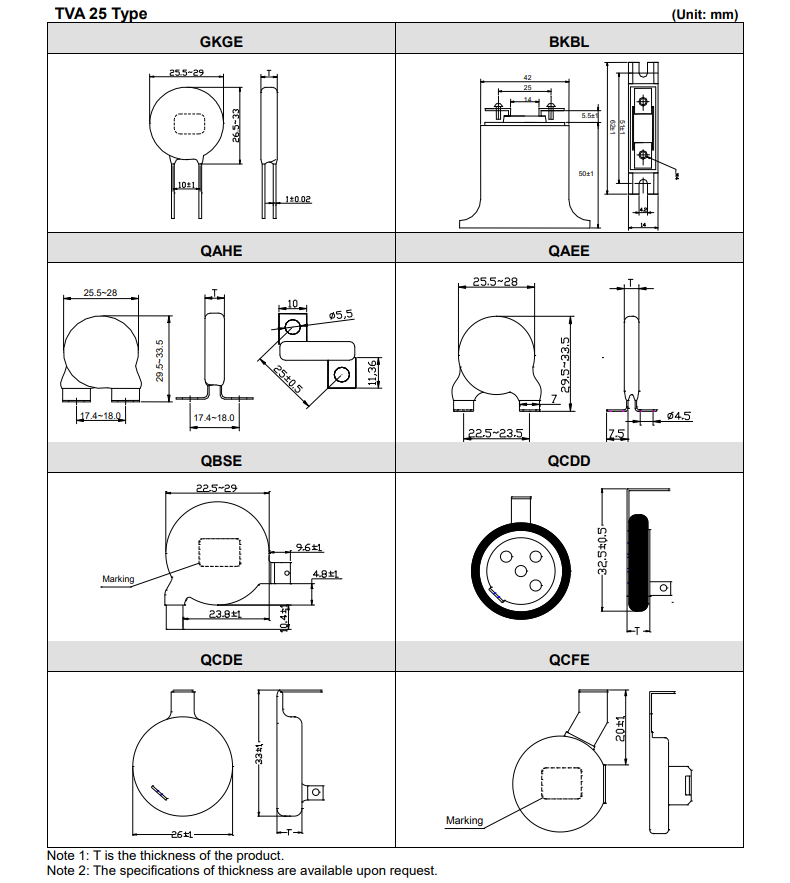

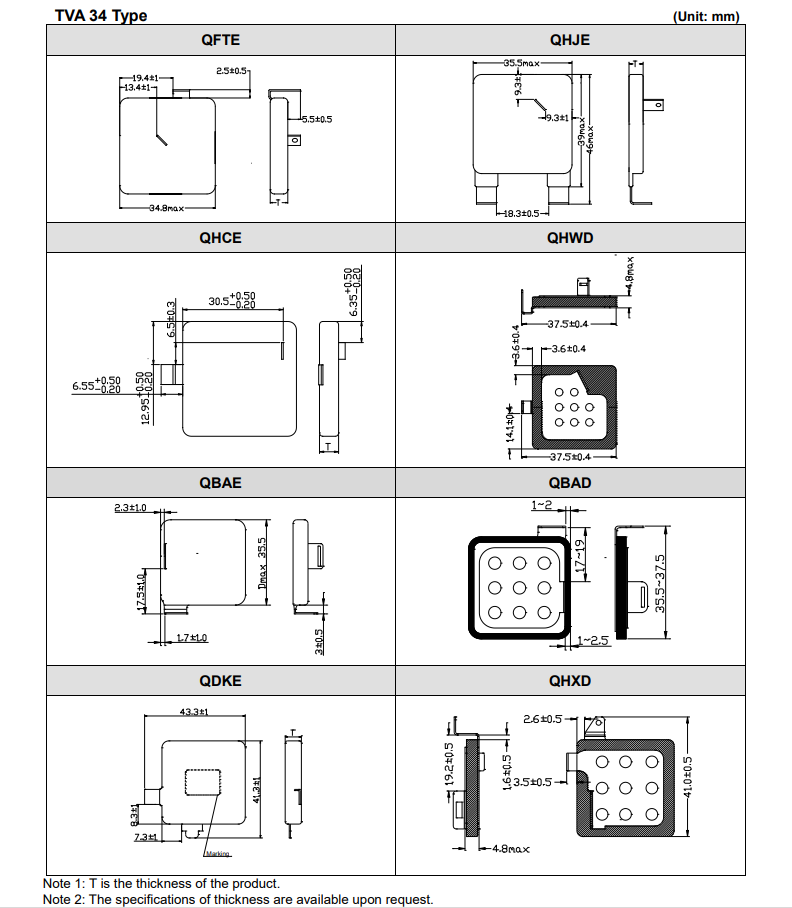

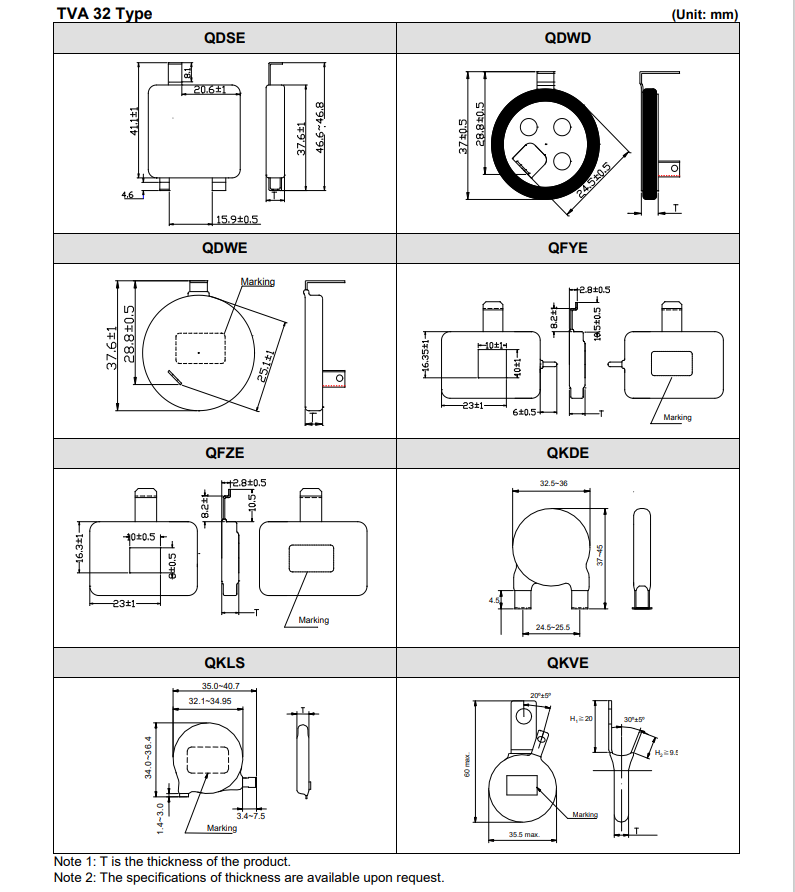

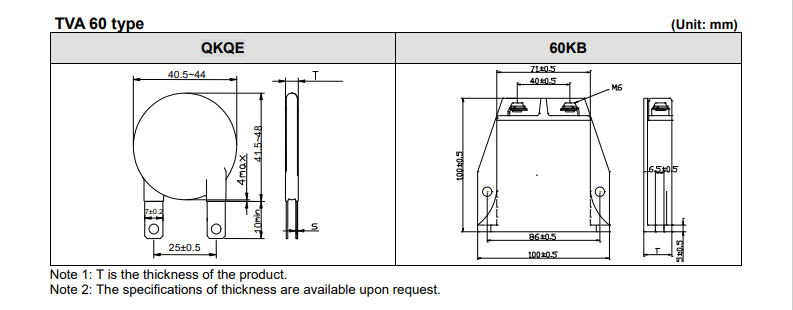

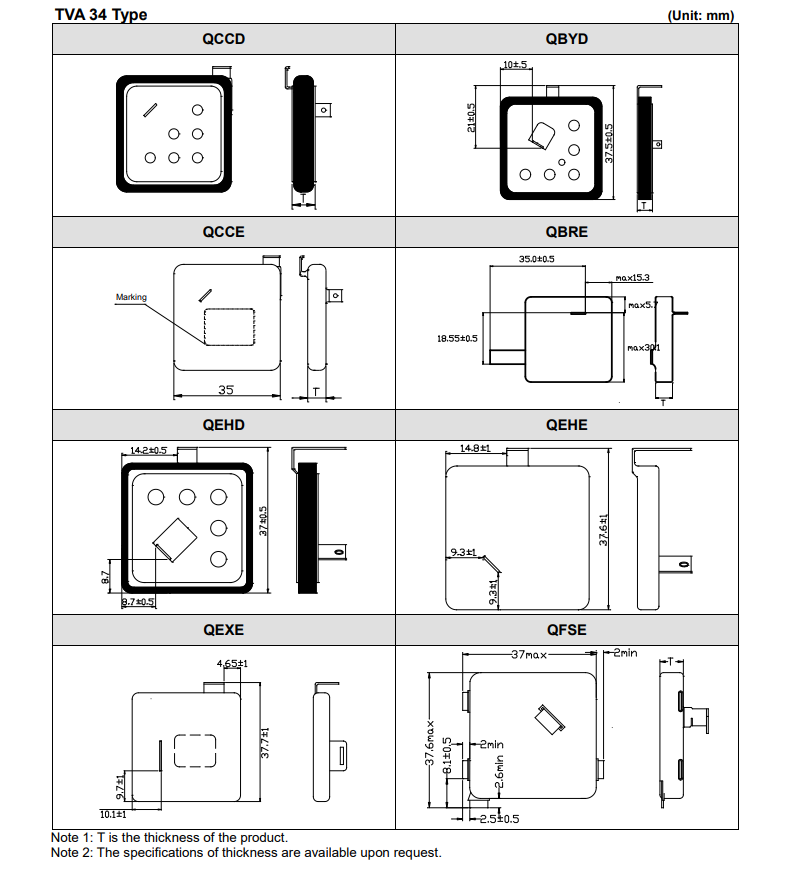

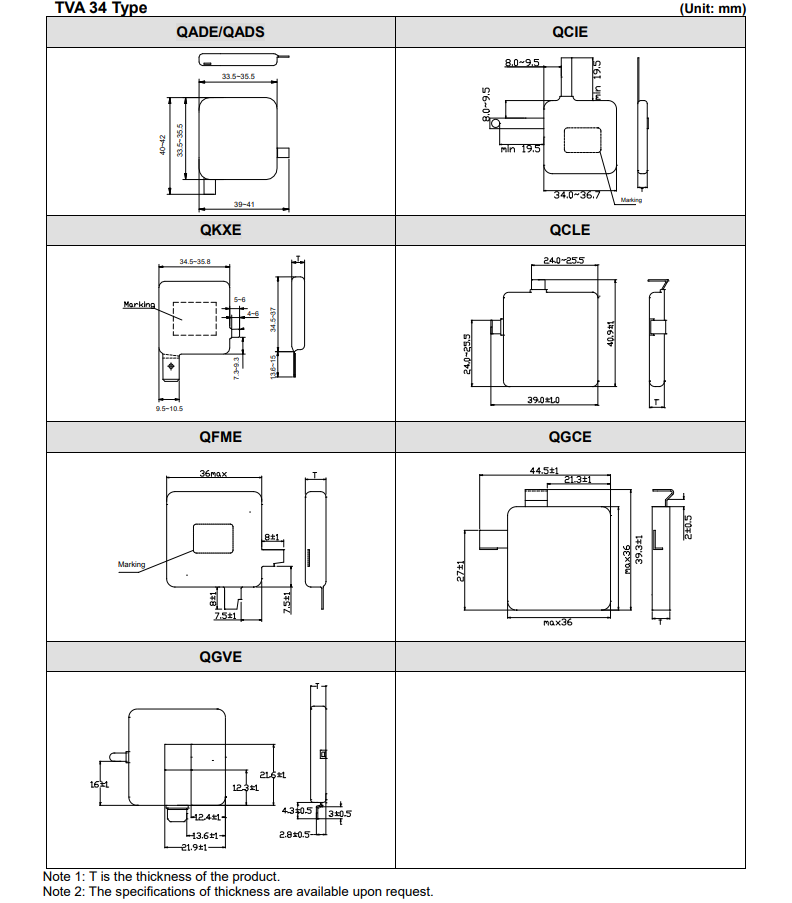

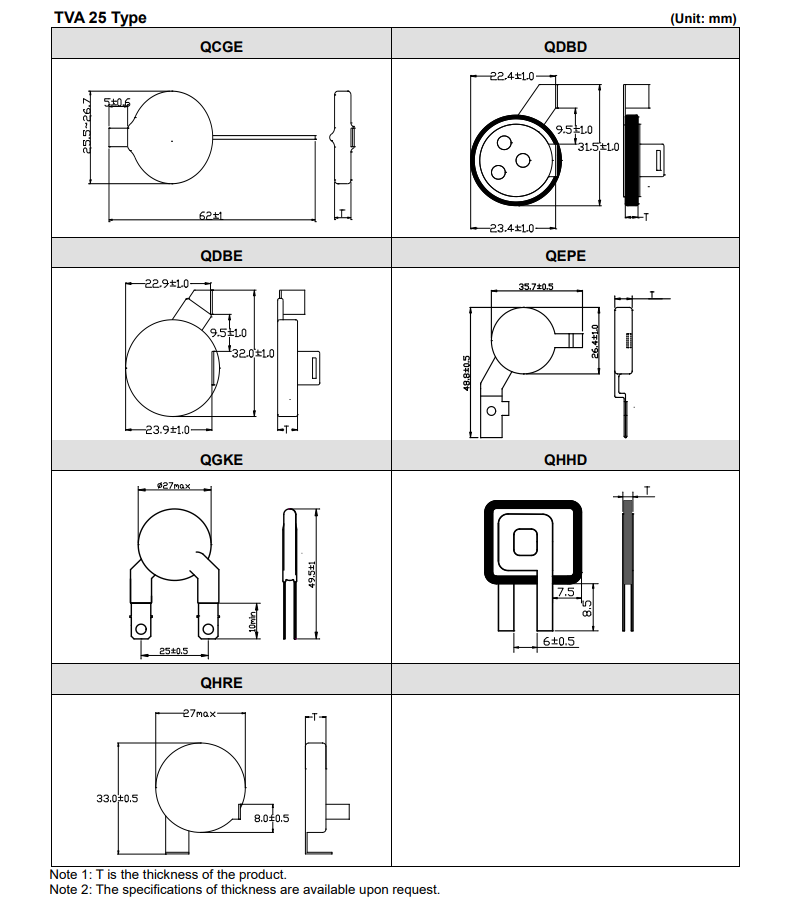

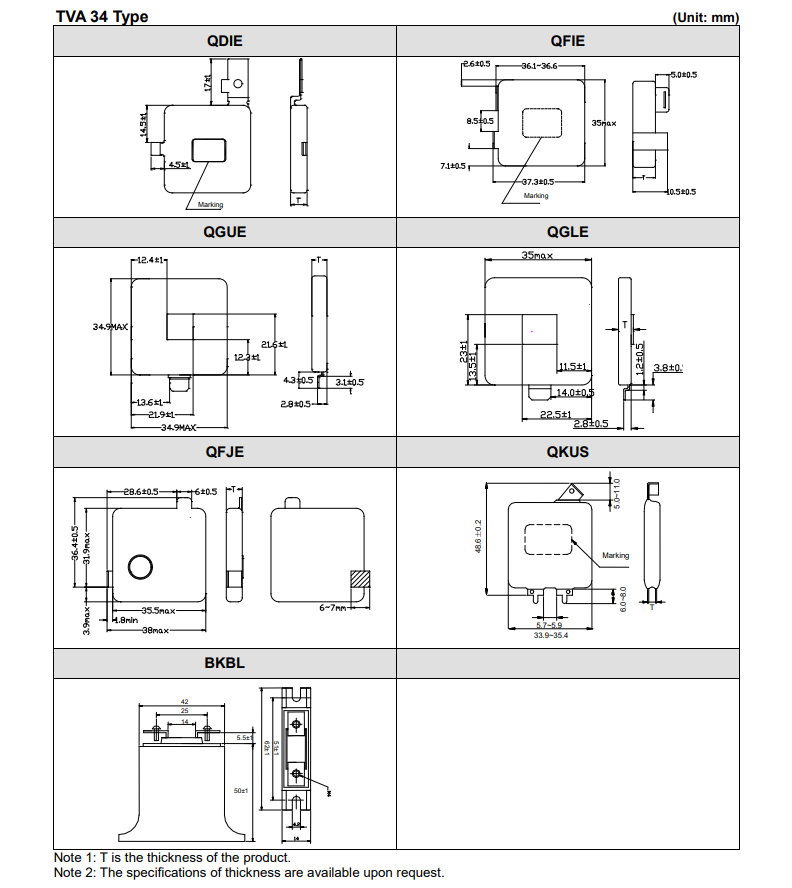

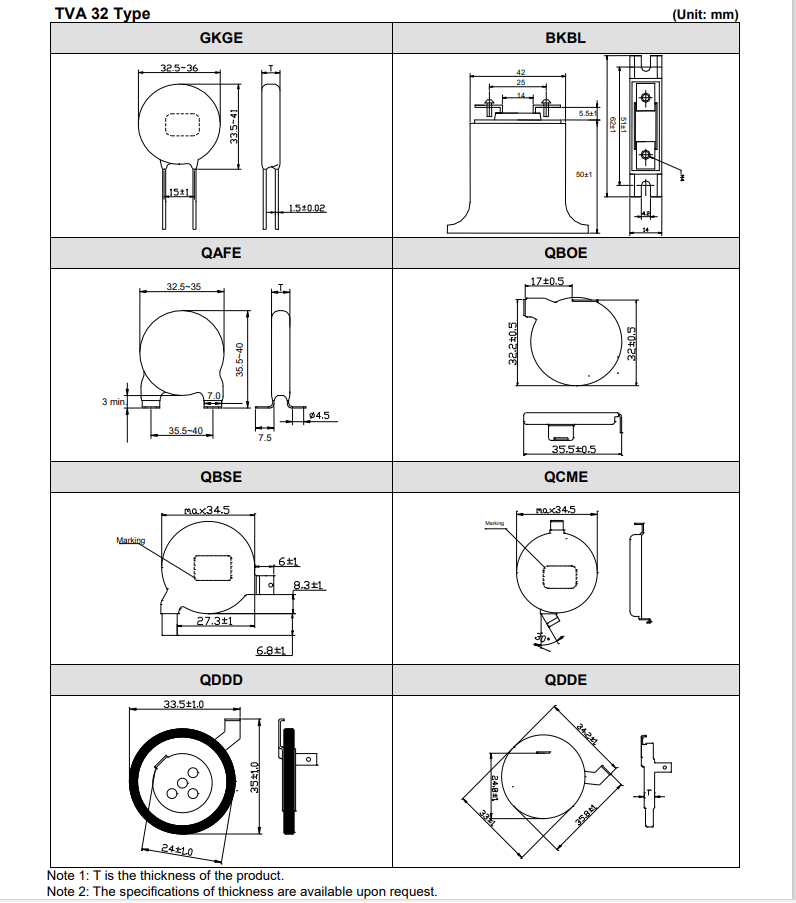

Outline structure drawing:

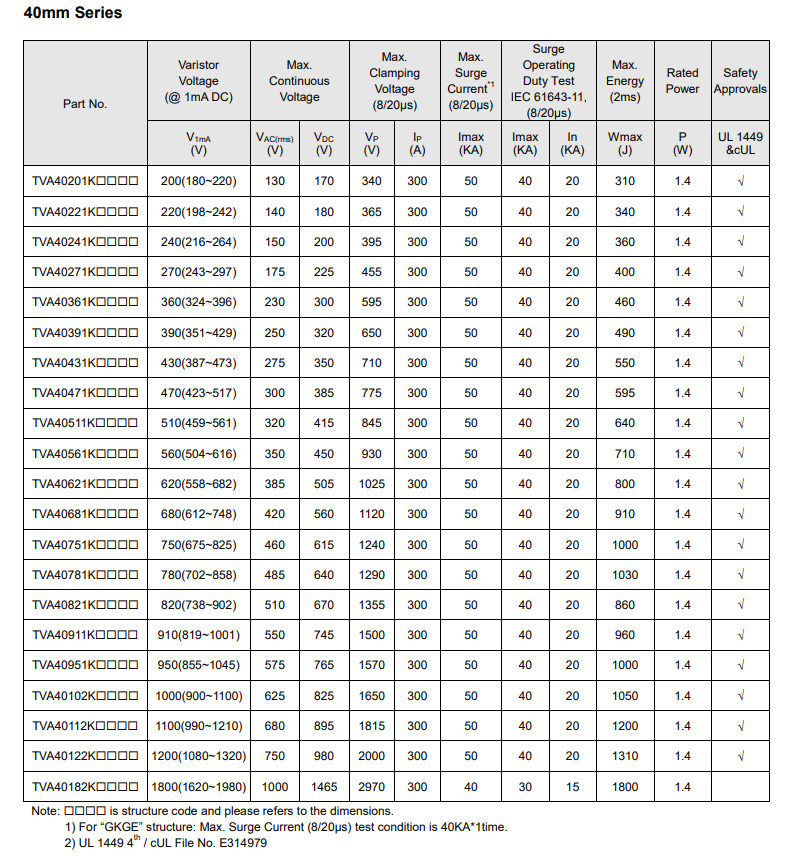

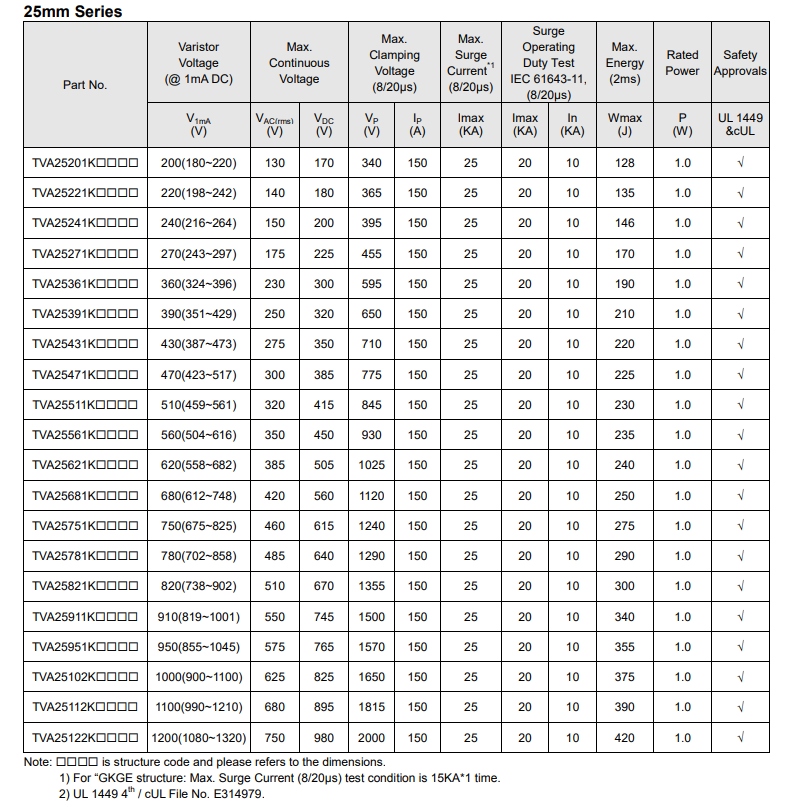

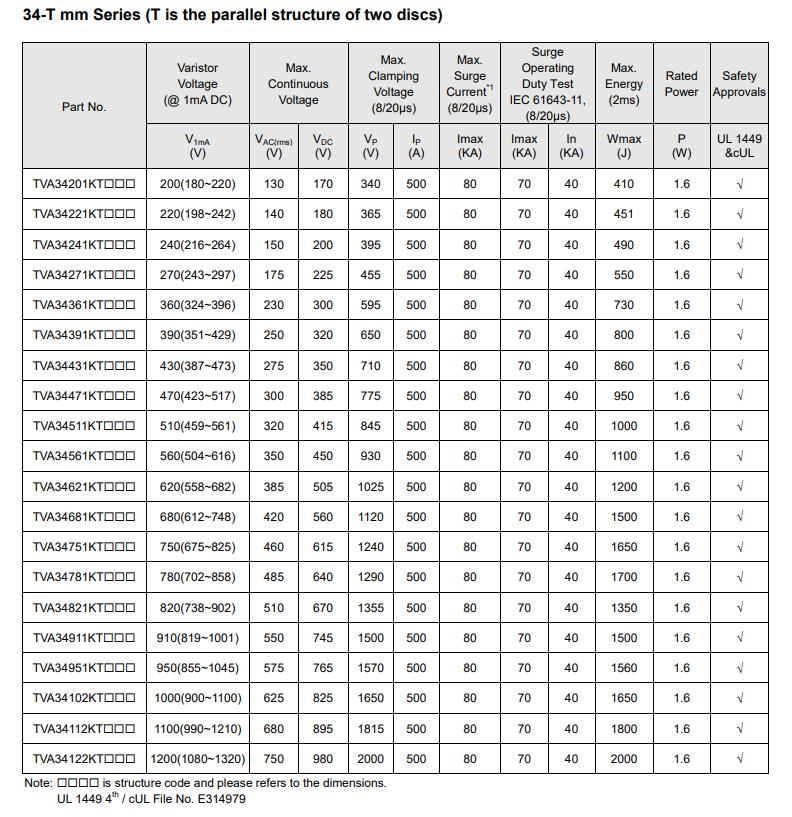

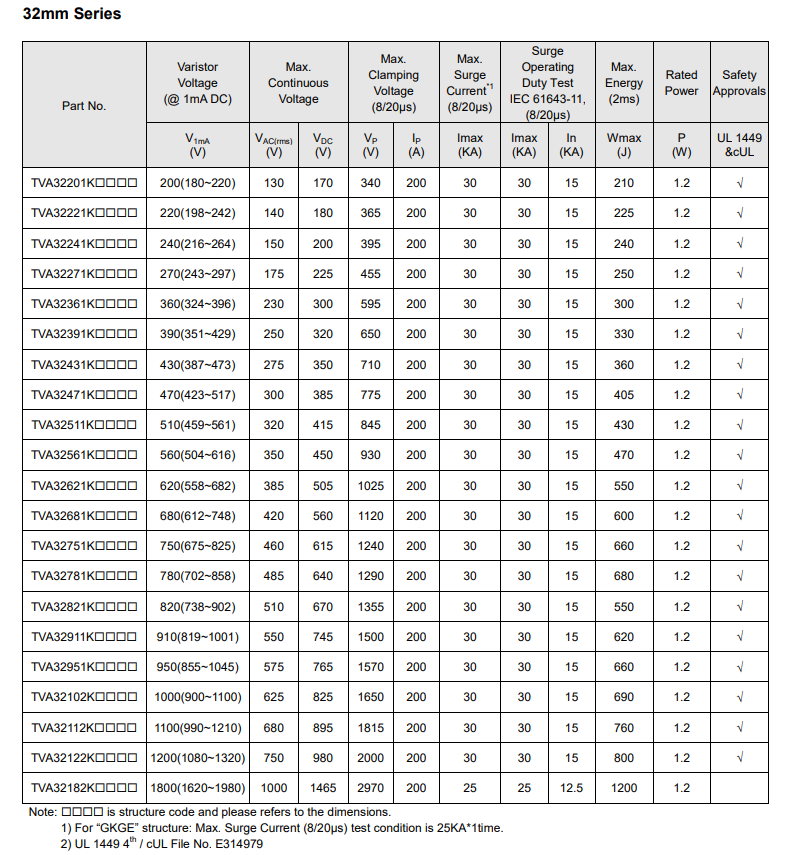

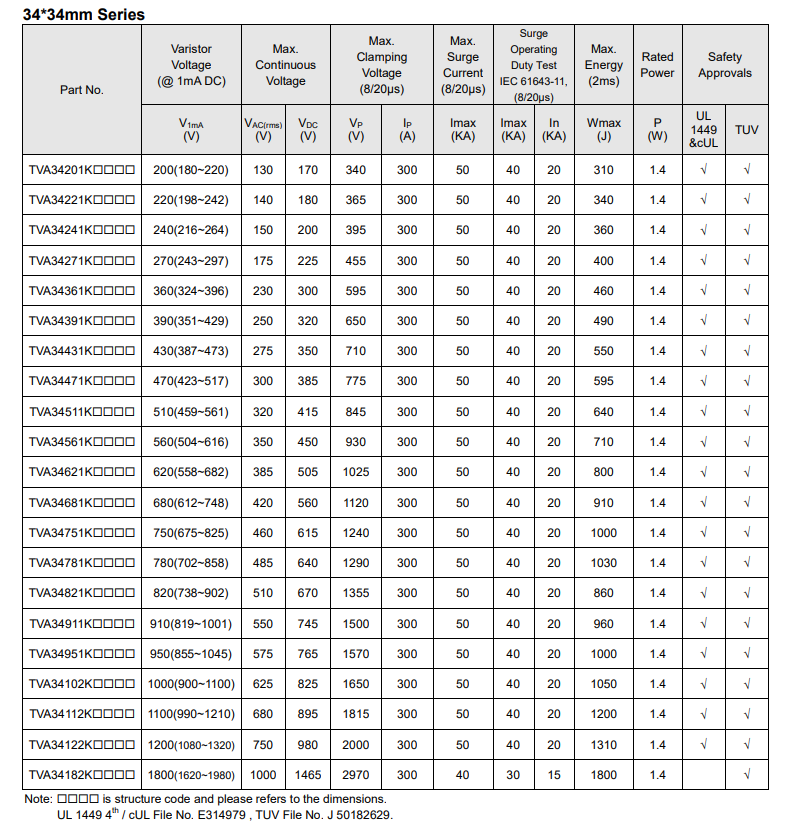

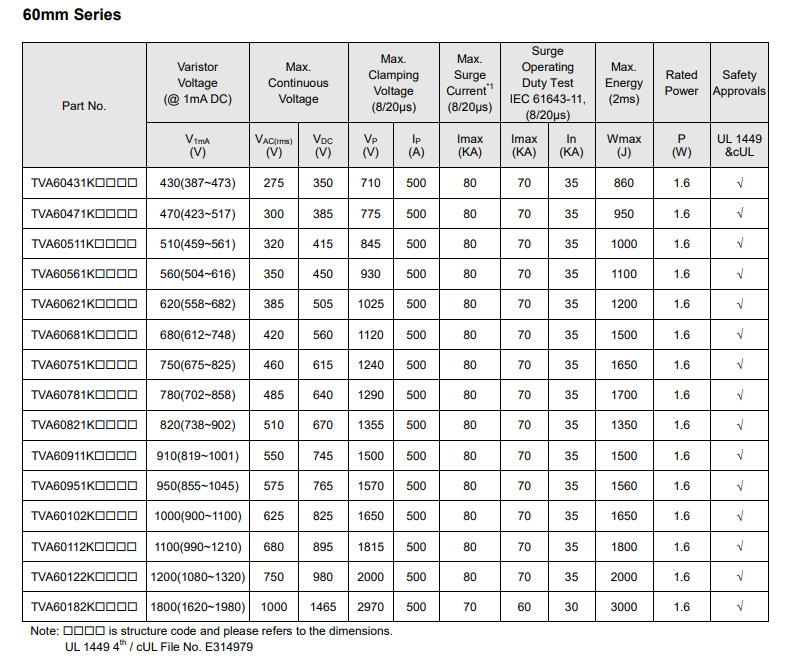

Electrical characteristics:

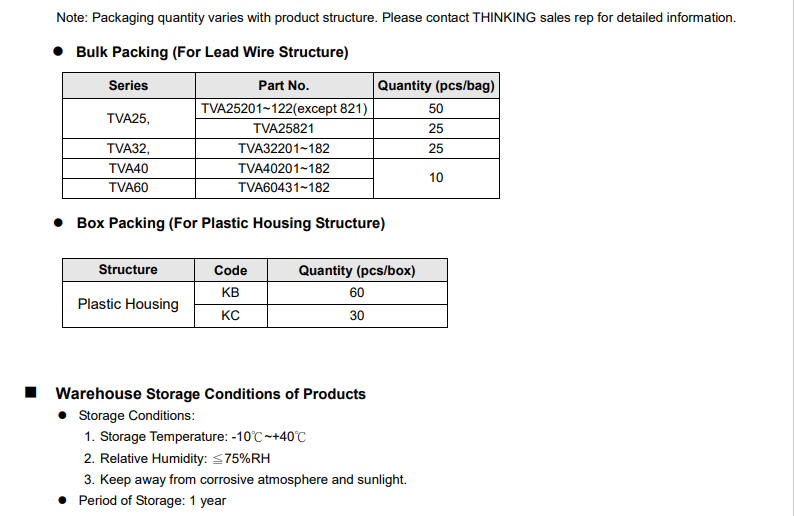

Packing:
