氧化锌压敏电阻
ZnO varistor
Current location:

TKS TVR series varistor

Number of Views:42362021-05-19 10:42:36



Features:

1. RoHS compliant

2. A series of products with halogen-free requirements can be provided

3. Body size: Ф5mm ~ Ф20mm

4. Wide operating voltage range: 11Vac ~ 1000Vac

5. Operating temperature range: -40°C ~ +105°C

Storage temperature range: -40°C ~ +125°C

6. Safety certification: UL 1449 4th / cUL / TUV/ VDE/ CQC

Application:

1. Power Supply

2. Household appliances

3. Industrial equipment

4. Communication equipment

5. Intelligent control meter

6. Powerline intelligent communication equipment

7. Lighting

8. Photovoltaic system

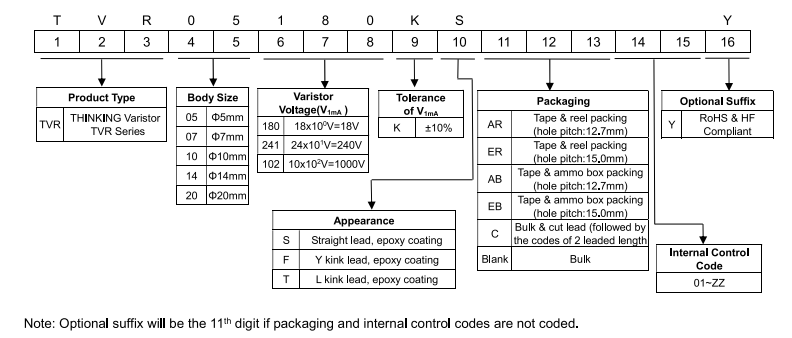

Encoding rules:

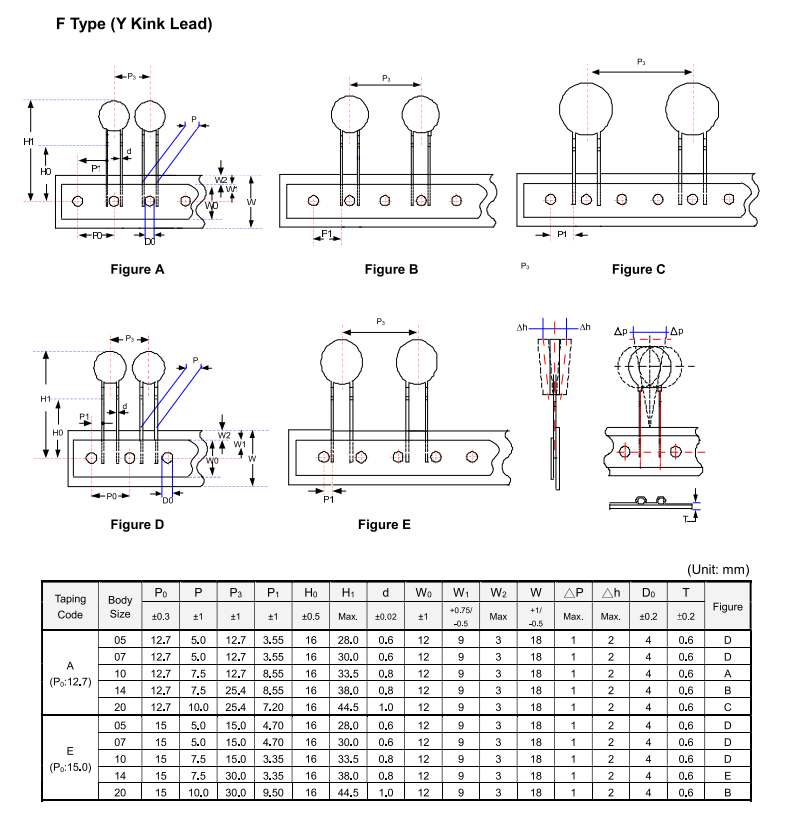

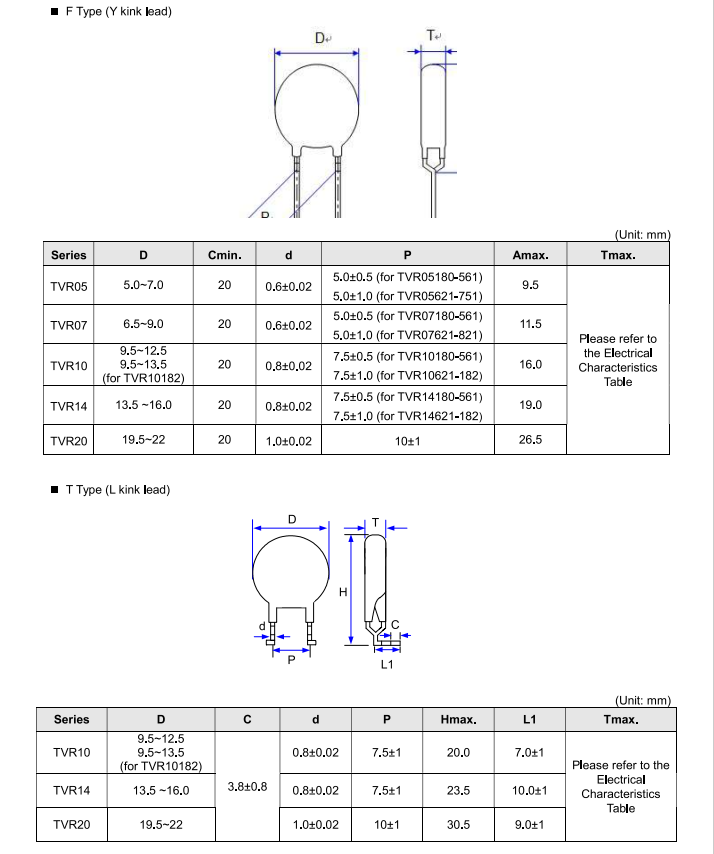

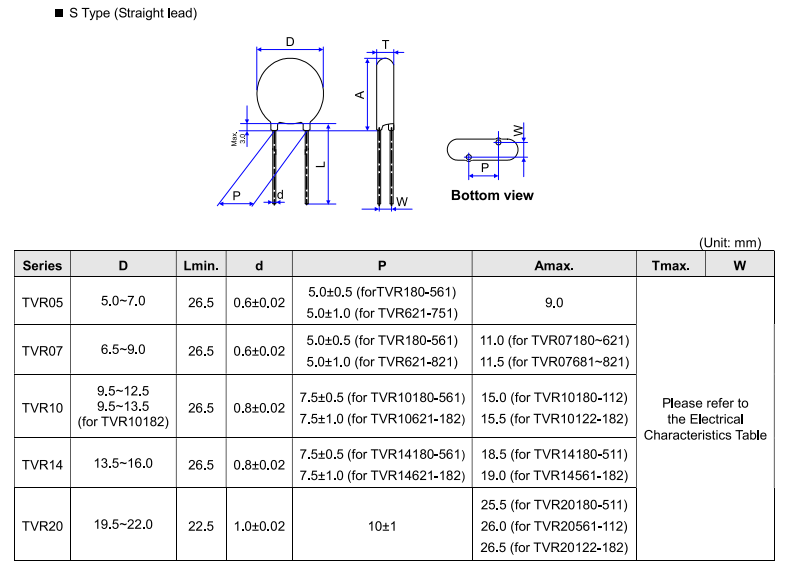

Outline structure drawing:

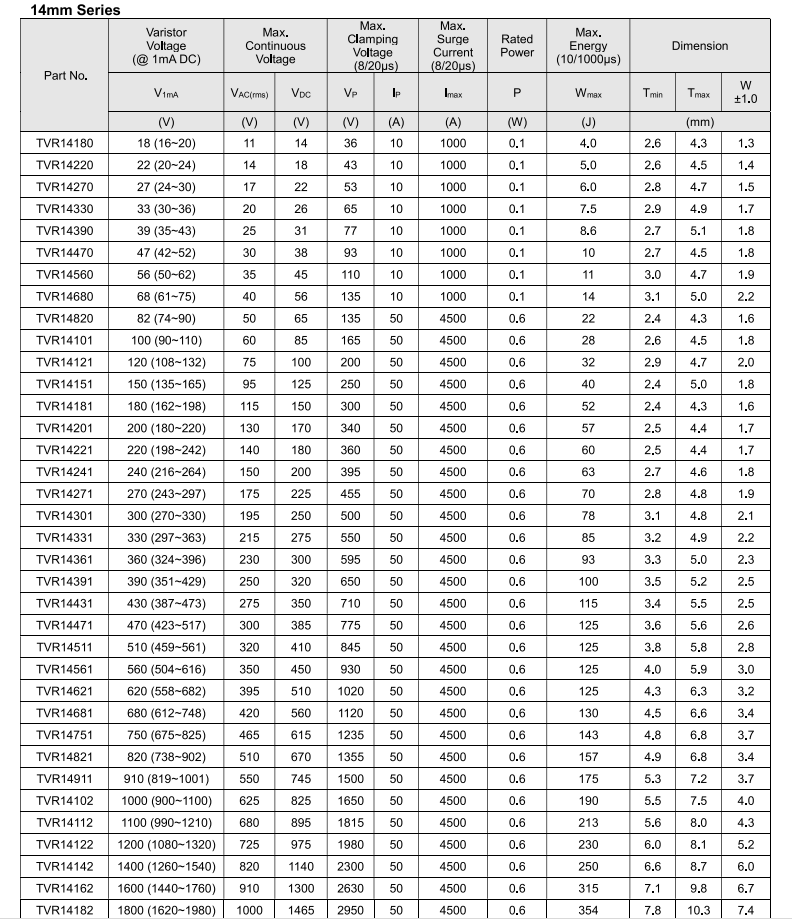

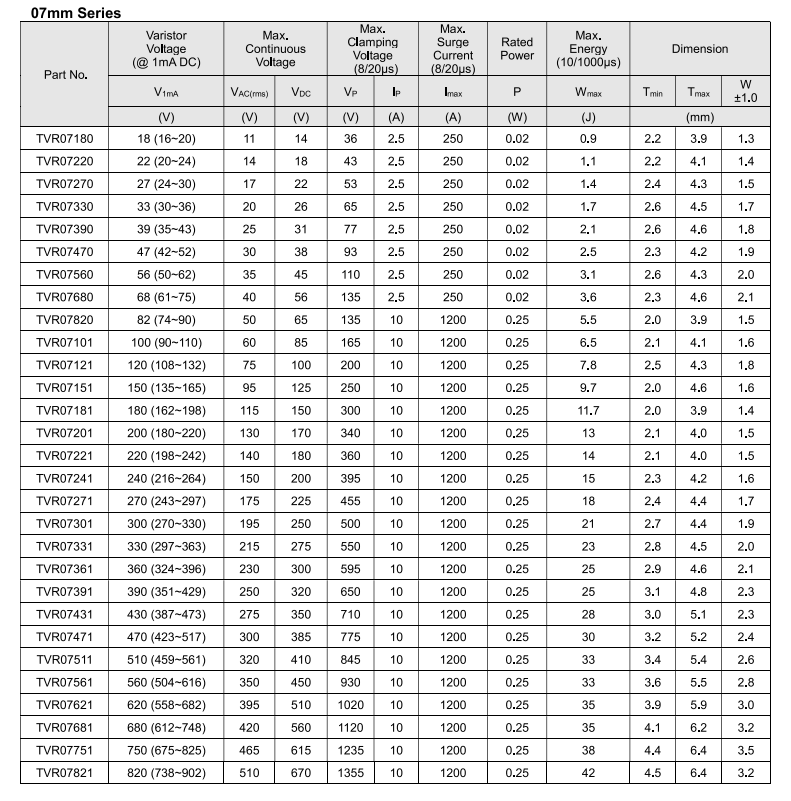

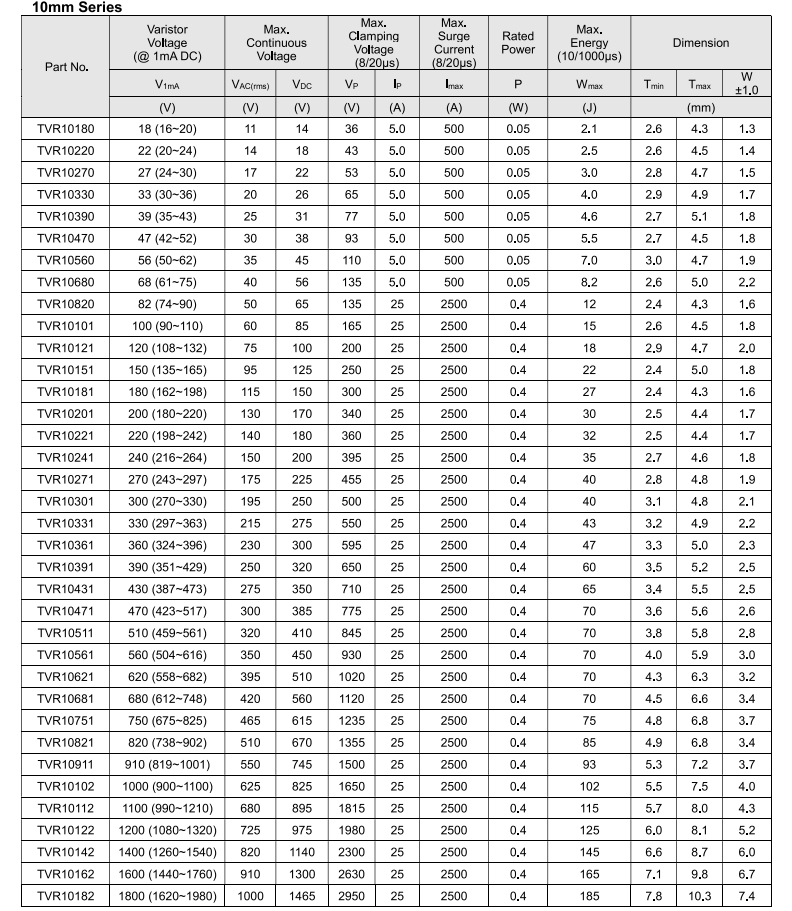

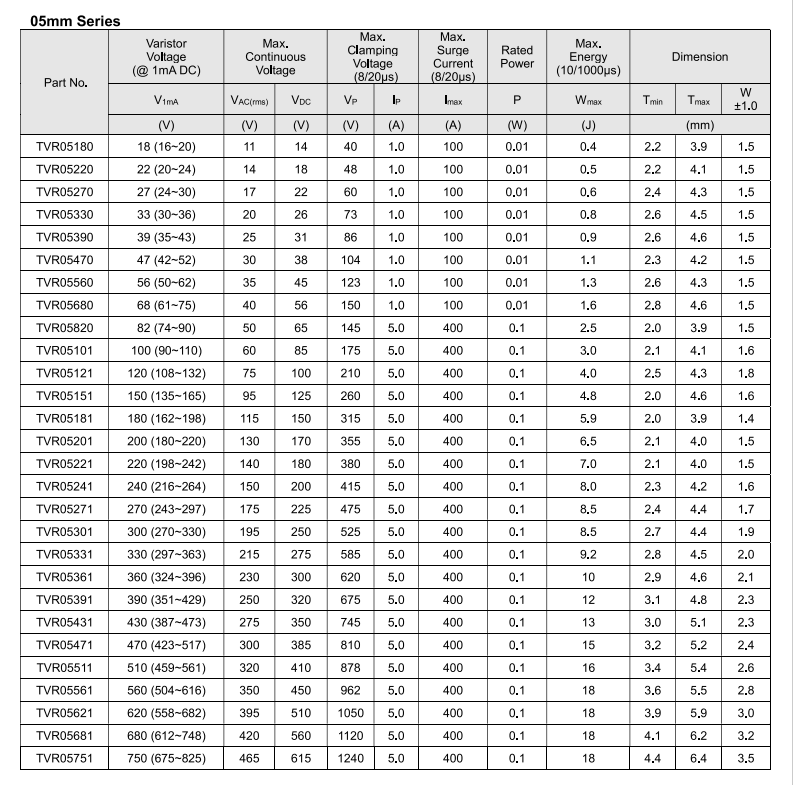

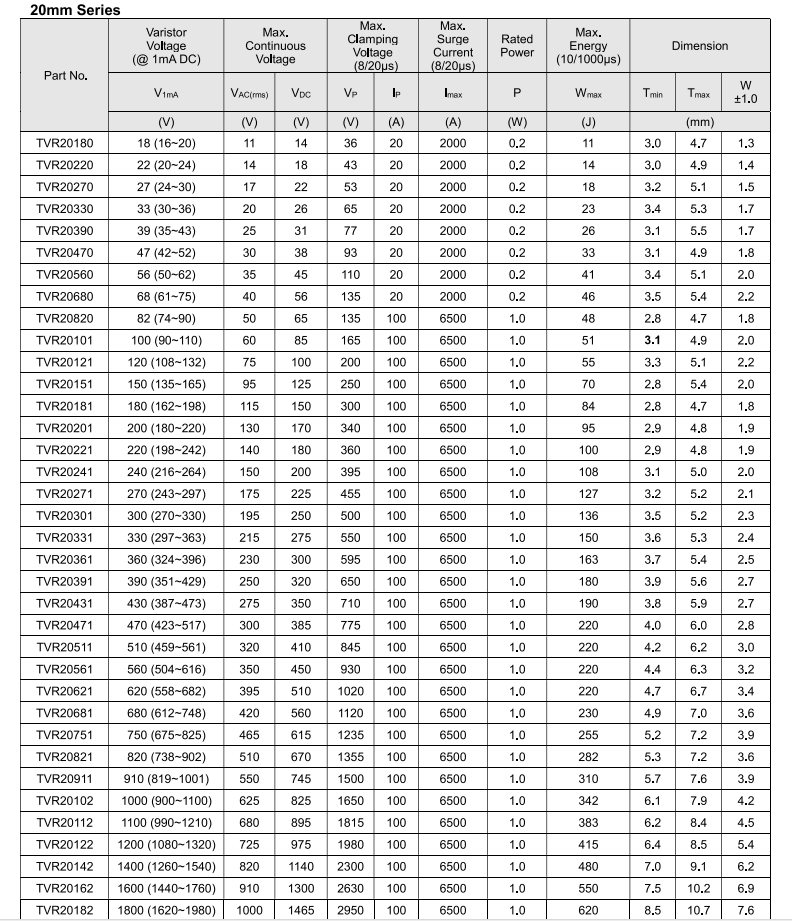

Electrical characteristics:

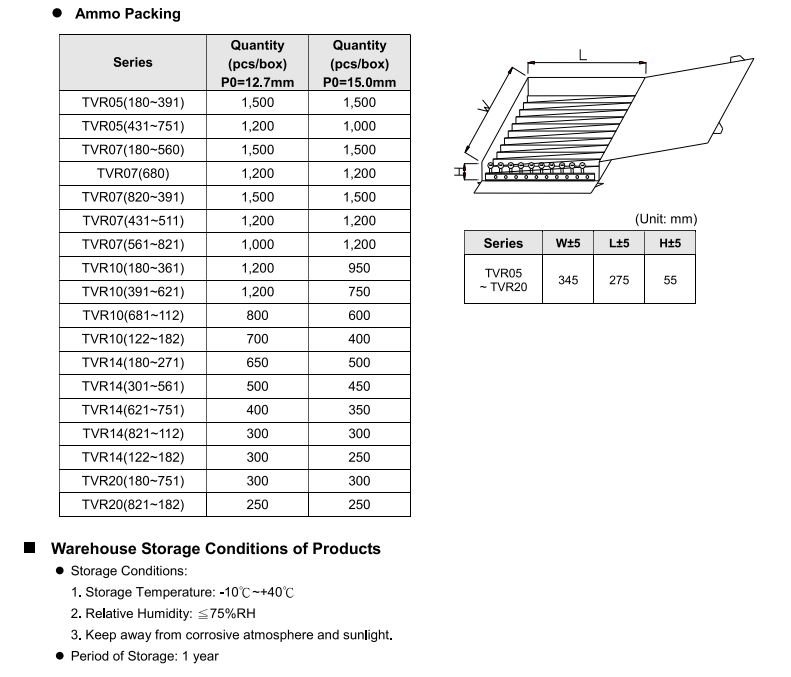

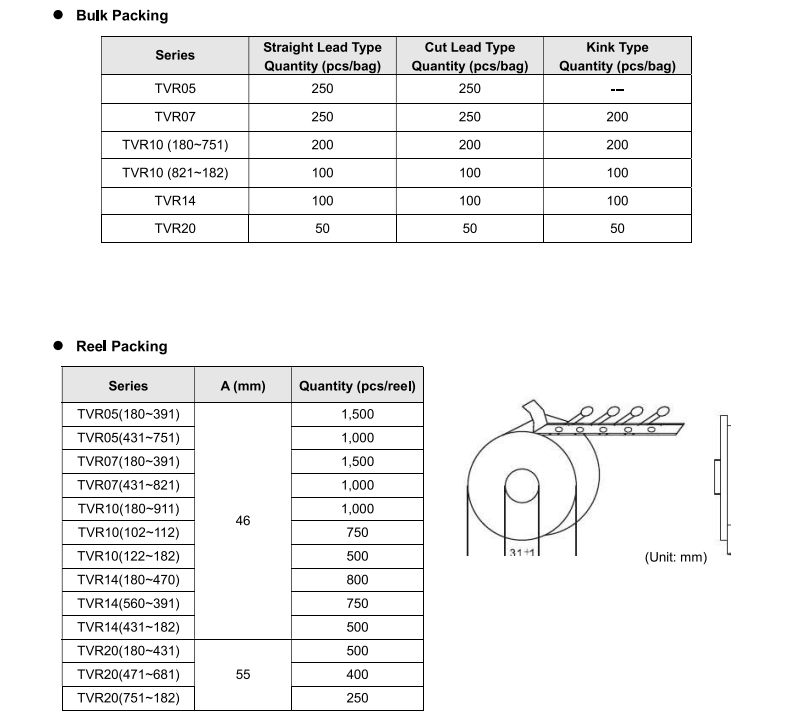

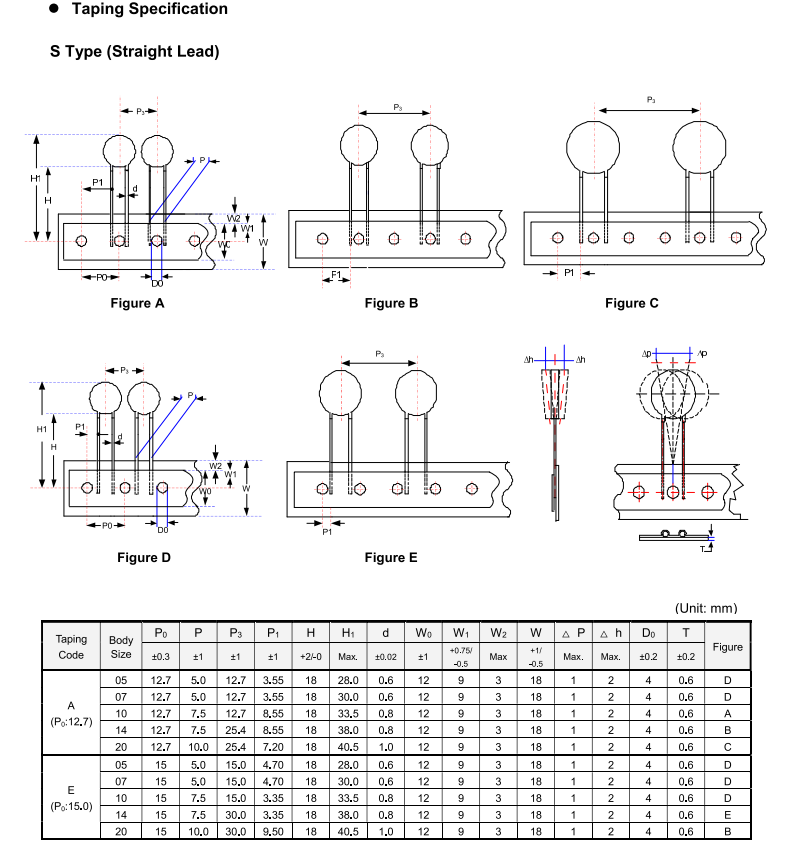

Packing:
