Features:

1. 48 Watts peak pulse power (8/20μs)

2. Tiny DFN0603 package

3. Bidirectional configurations

4. Solid state silicon-avalanche technology

5. Low clamping voltage

6. Low leakage current

7. Protect one data/power line

8. IEC61000-4-2 (ESD) ±20kV (Air), ±15kV (Contact)

9. IEC61000-4-4 (EFT) 40A (5/50ns)

10.IEC61000-4-5 (Lightning): 6A (8/20μs)

Application:

1. Cell Phone Handsets and Accessories

2. Micro processor based equipment

3. Personal Digital Assistants (PDA’s)

4. Notebooks, Desktops and Servers

5. Portable Instrumentation

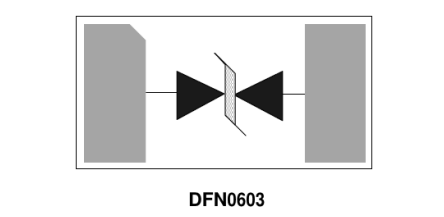

Schematic and PIN Configuration：

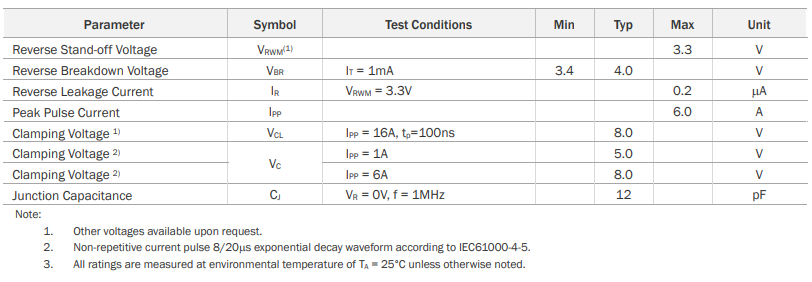

Electrical Characteristics:

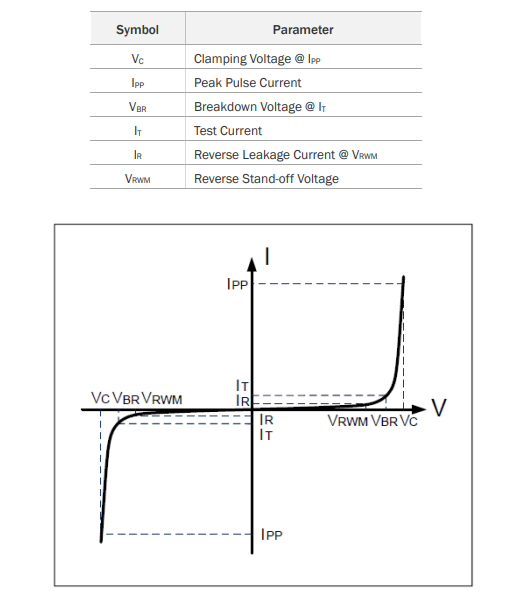

Electrical Parameters:

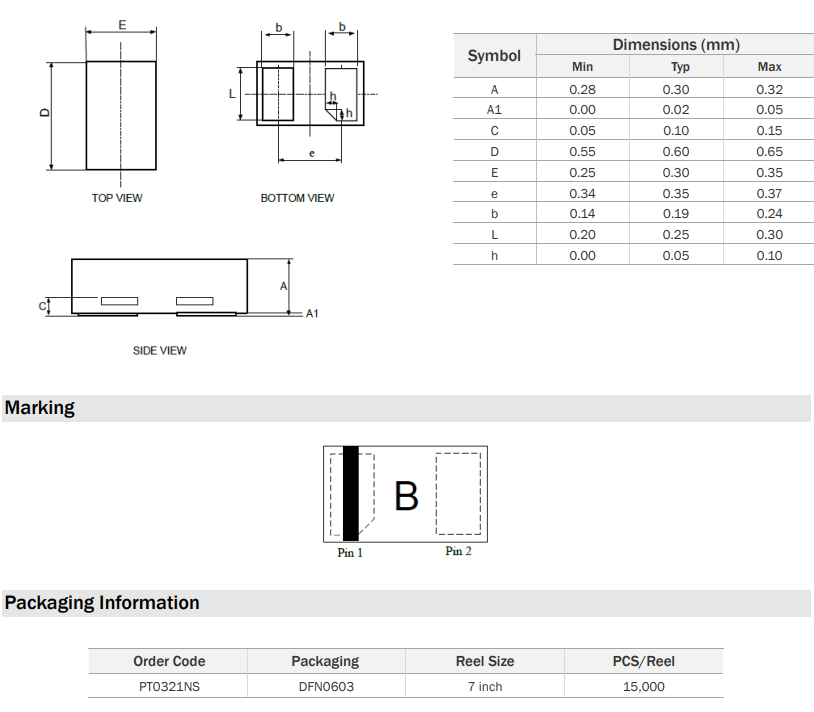

Packing:
