Features:

1. 500 Watts peak pulse power (8/20μs)

2. Tiny DFN1006 package

3. Bidirectional configurations

4. Solid state silicon-avalanche technology

5. Low clamping voltage

6.Low leakage current

7. IEC61000-4-2 (ESD) ±30kV (Air), ±30kV (Contact)

8. IEC61000-4-4 (EFT) 40A (5/50ns)

9. IEC61000-4-5 (Lightning): 45A (8/20μs)

Application:

1. Micro processor based equipment

2. Personal Digital Assistants (PDA’s)

3. Notebooks, Desktops and Servers

4. Portable Instrumentation

5. Cell Phone Handsets and Accessories

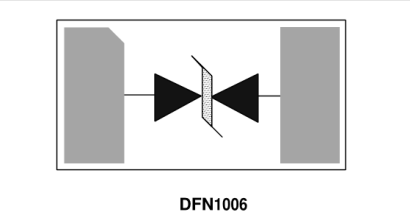

Schematic and PIN Configuration：

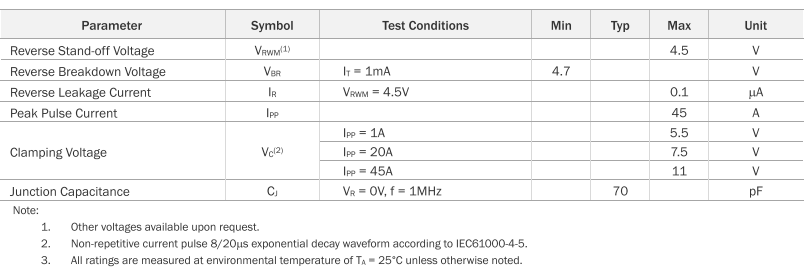

Electrical Characteristics:

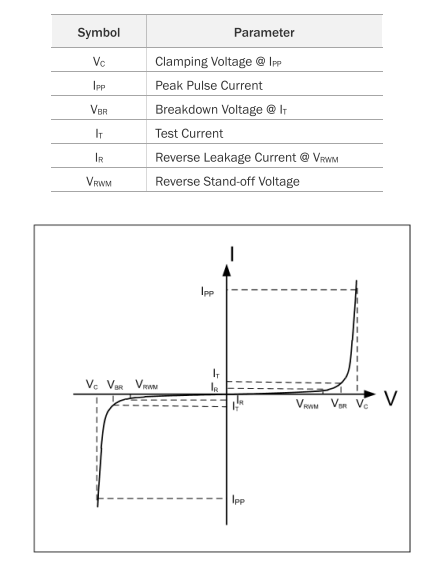

Electrical Parameters:

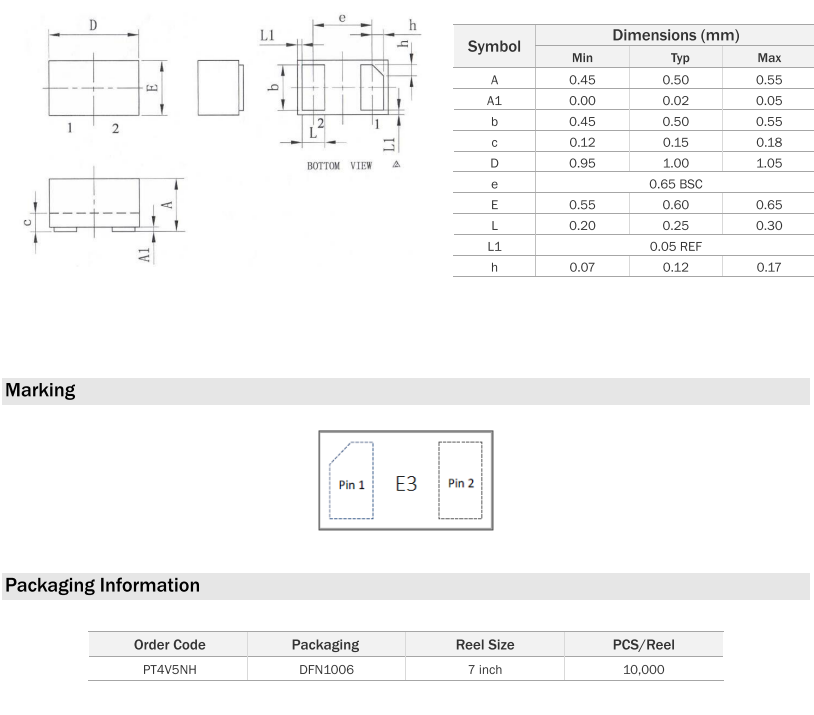

Packing:
