Features:

1. 400 Watts peak pulse power (8/20μs)

2. Solid state silicon-avalanche technology

3. Bidirectional configurations

4. Low clamping voltage

5. Low leakage current

6. IEC61000-4-2 (ESD) ±30kV (Air), ±30kV (Contact)

7. IEC61000-4-4 (EFT) 40A (5/50ns)

8. IEC61000-4-5 (Lightning): 22A (8/20μs)

Application:

1. Data lines

2. Automatic Teller Machines

3. Net works

4. Power line

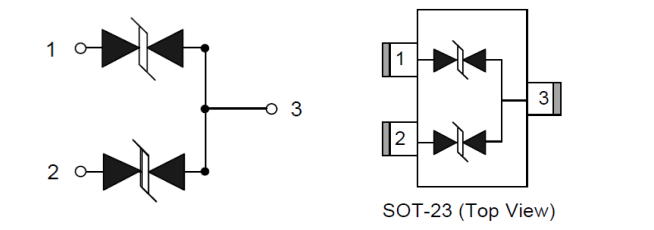

Schematic and PIN Configuration：

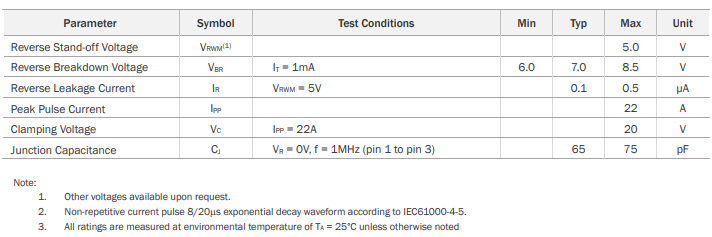

Electrical Characteristics:

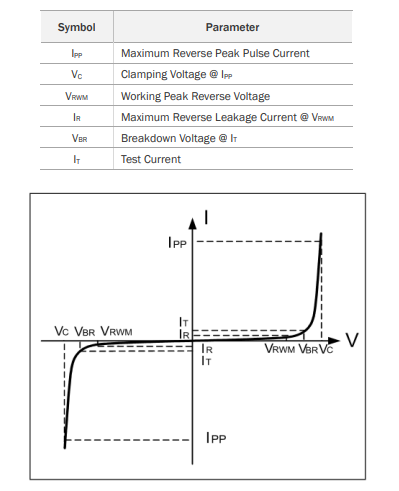

Electrical Parameters:

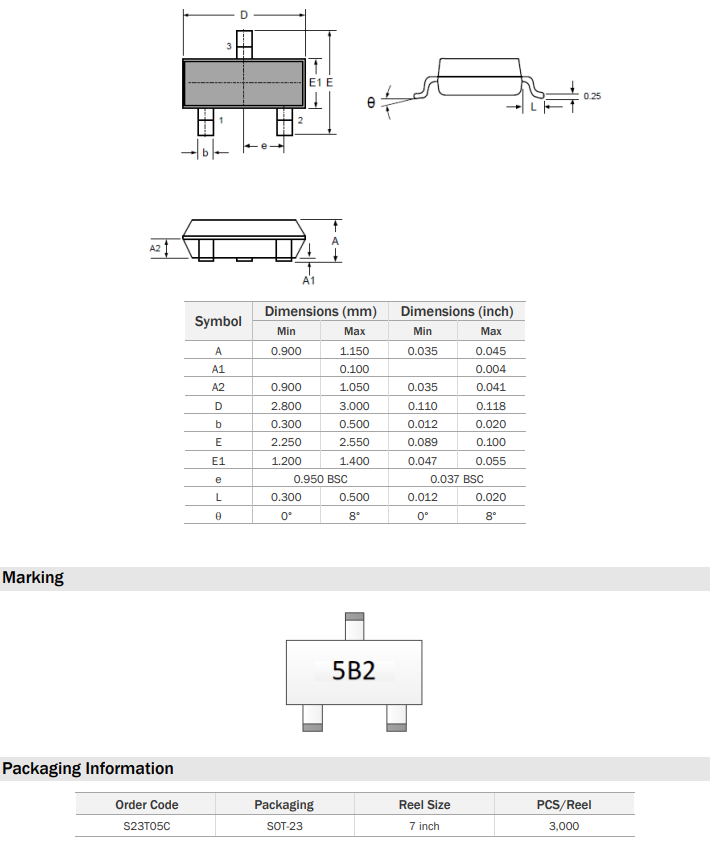

Packing:
