Features:

1. Comply with RoHS and lead-free regulations

2. EIA size 0402, 0603

3. Ultra-low capacitance (<0.2pF) and low leakage current (<0.05uA)

4. Fast response time (<1ns)

5. No polarity

6. Static suppressor that passed the IEC 61000-4-2 level 4 test

Application:

1. High-speed data transmission (high-definition multimedia interface, serial ATA, USB, IEEE1394)

2. Antenna circuit (mobile phone, global satellite positioning system...)

3. Digital Camera

4. Set-top box

5. Printer port

Encoding rules：

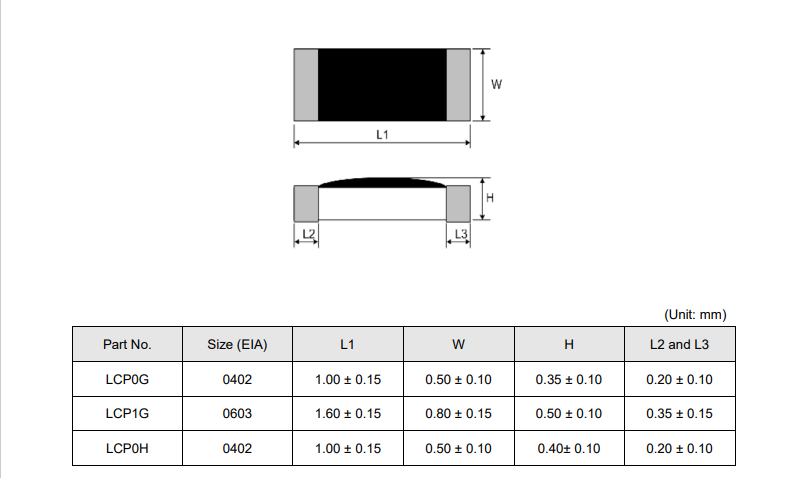

Outline structure drawing:

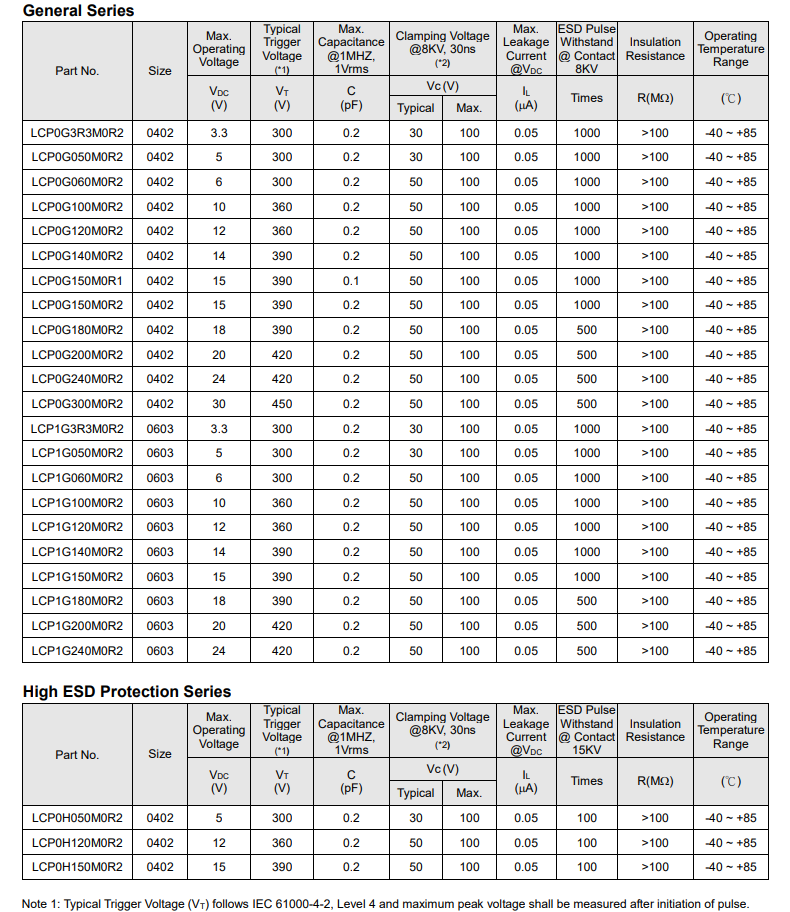

Electrical characteristics:

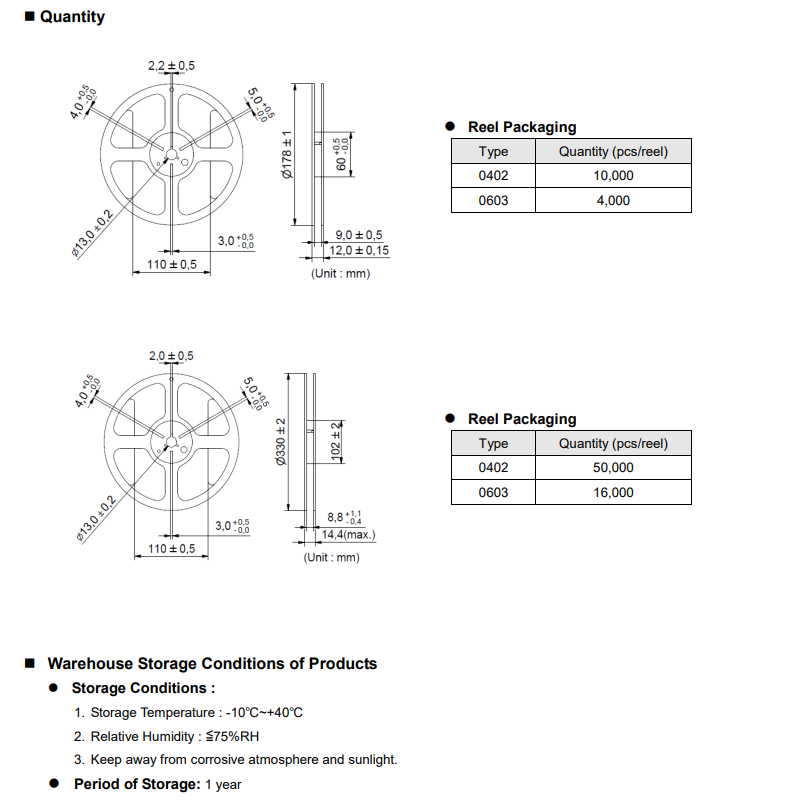

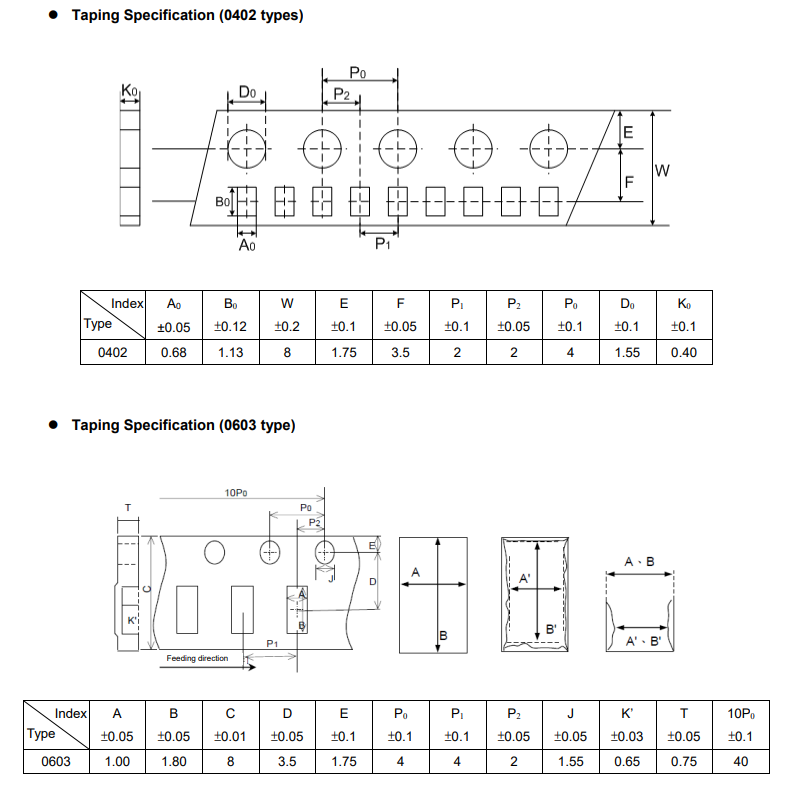

Packing:
