Features:

1. Meet RoHS and halogen-free requirements

2. EIA size: 0201, 0402, 0603, 0805

3. High reliability structure

4. Operating temperature range: -40℃~ +125℃

5. Wide resistance range

6. Low cost

7. Safety certification: UL / cUL / TUV / CQC

Application:

1. Battery pack

2. Motherboard/laptop/PC

3. Liquid crystal display

4. Mobile

5. Bluetooth headset

6. Wi-Fi module

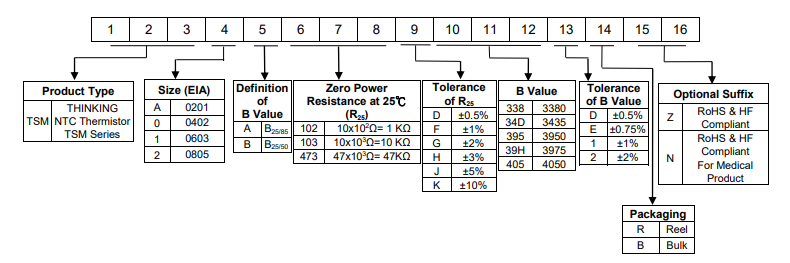

Encoding rules：

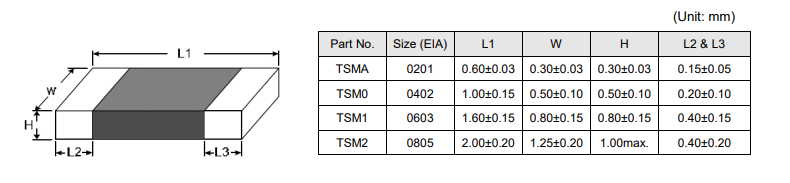

Outline structure drawing:

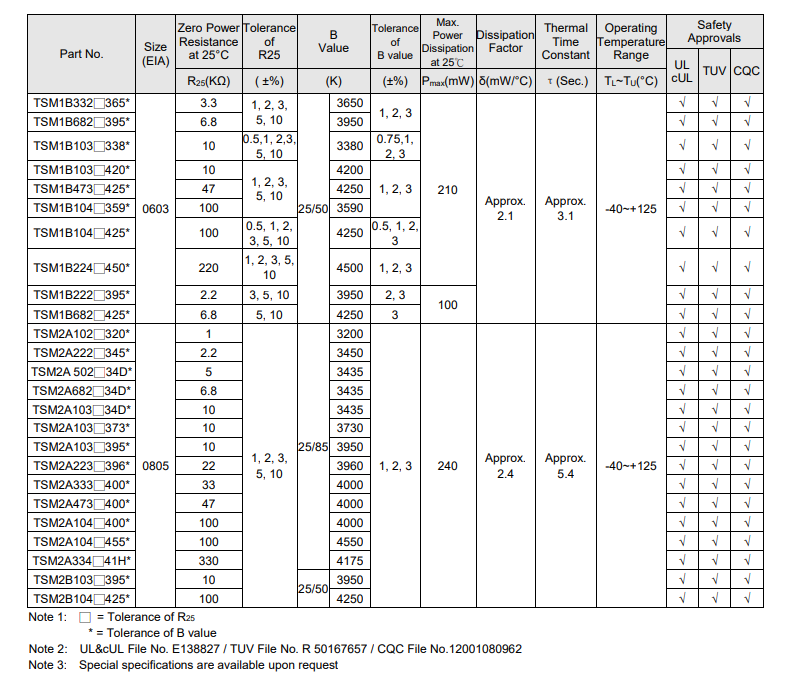

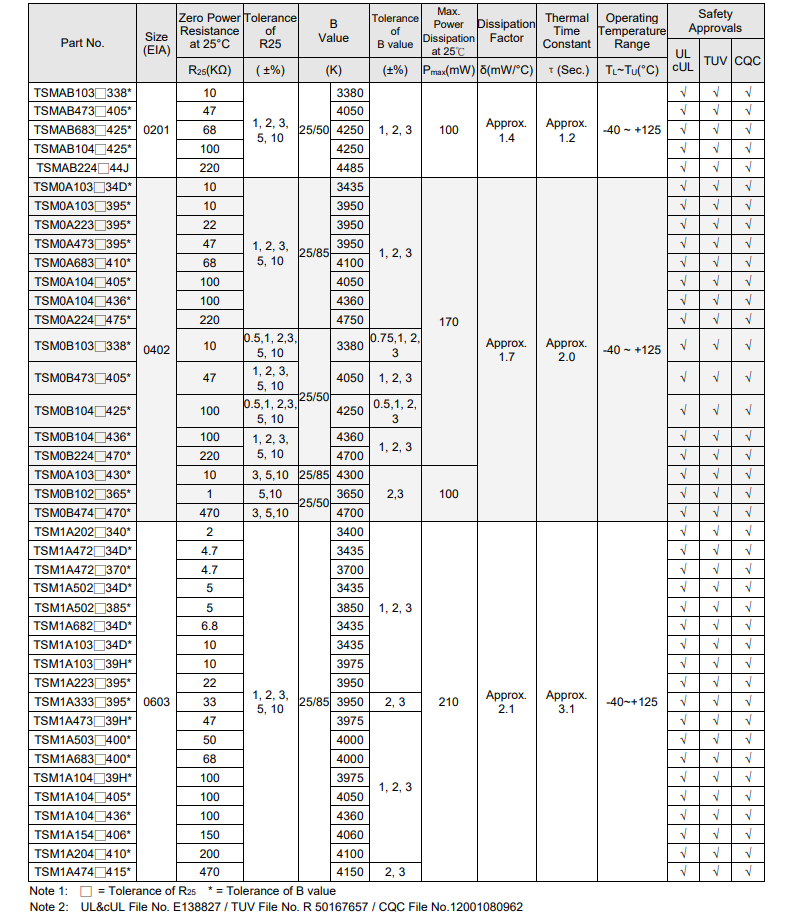

Electrical characteristics:

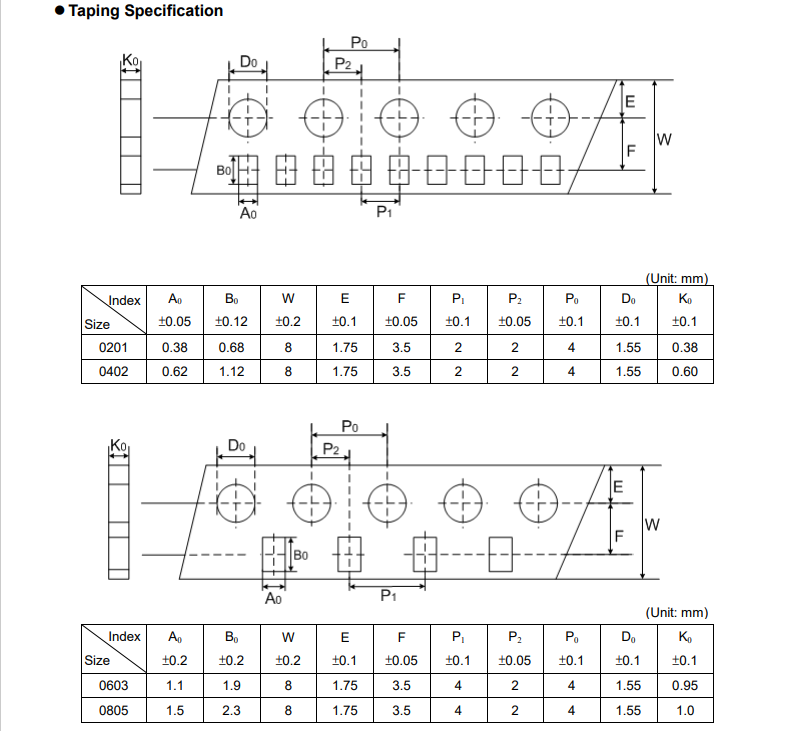

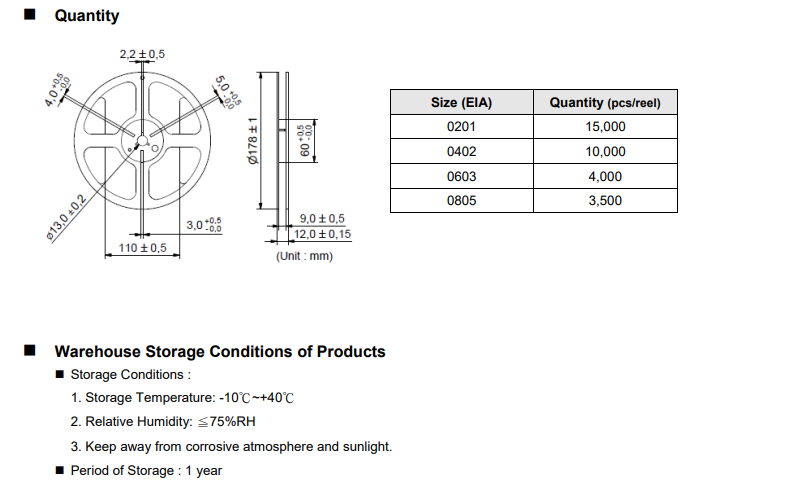

Packing:
