Features:

1. Meet RoHS and halogen-free requirements

2. Body size: Ф5mm~ Ф30mm

3. Radial lead resin package

4. High rated power

5. Wide resistance range

6. Low cost

7. Operating temperature range:

Φ5mm: -40℃~+150℃

Φ8~Φ10mm: -40℃~+170℃

Φ13mm~Φ30mm: -40℃~+200℃

8. Safety certification: UL / cUL / TUV / CSA / CQC

Application:

1. Switching power supply

2. Electronic Motor

3. Transformer

4. Adapter

5. Projector

6. Halogen lamp

7. LED drive circuit

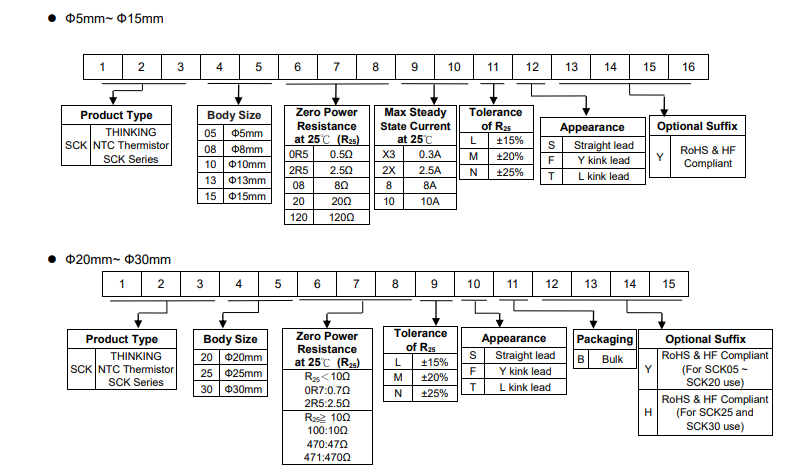

Encoding rules：

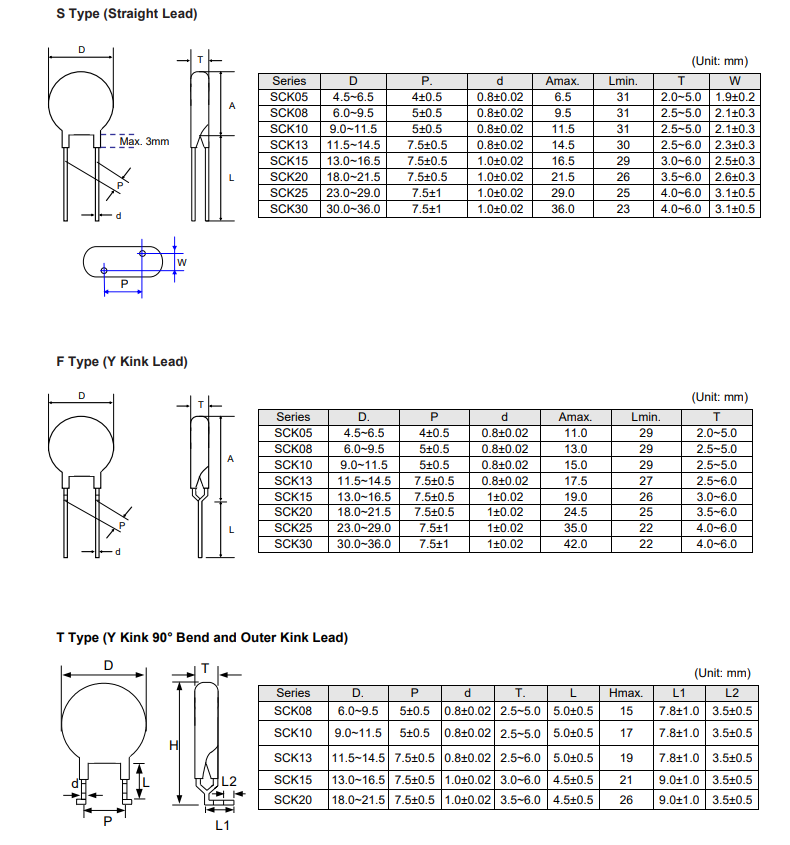

Outline structure drawing:

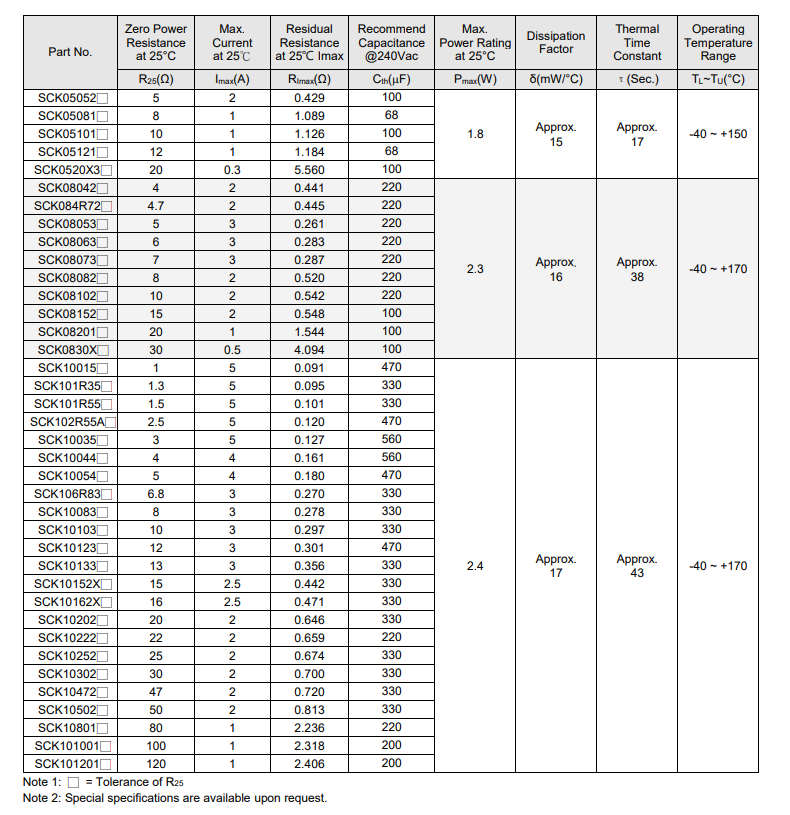

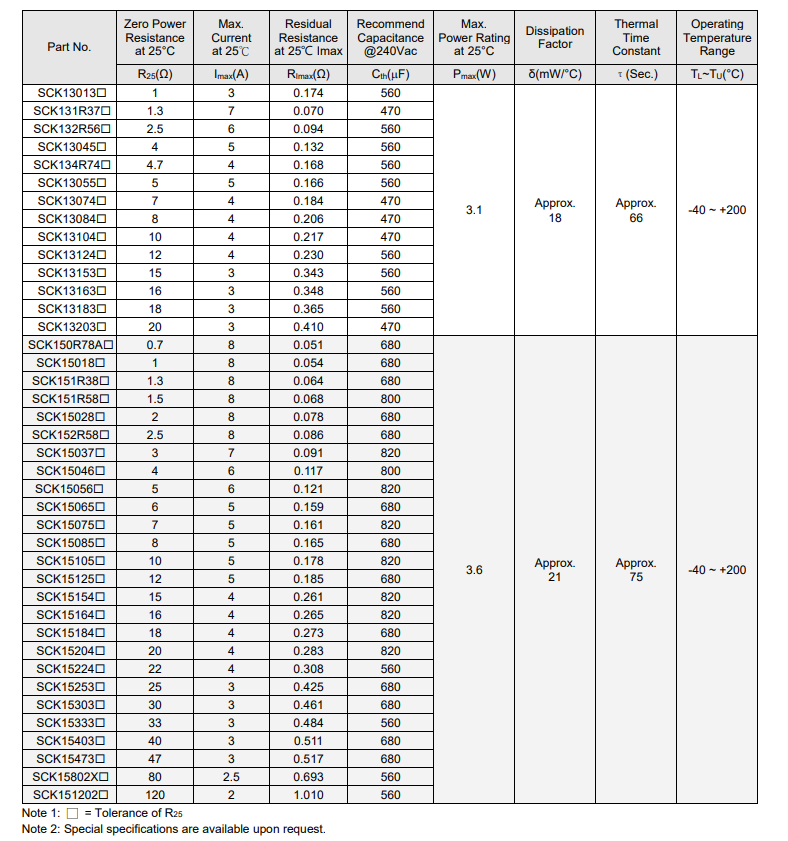

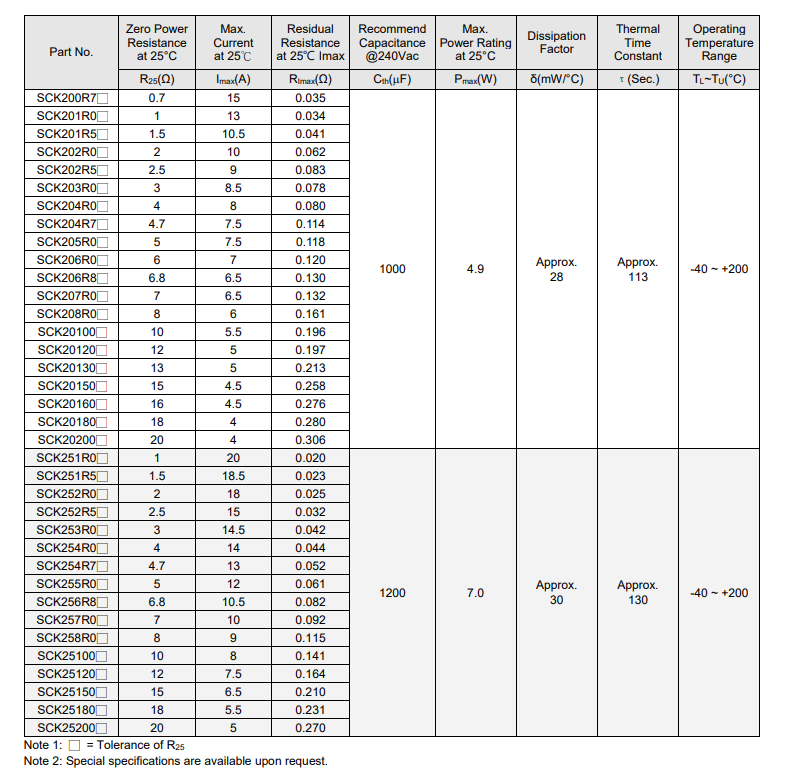

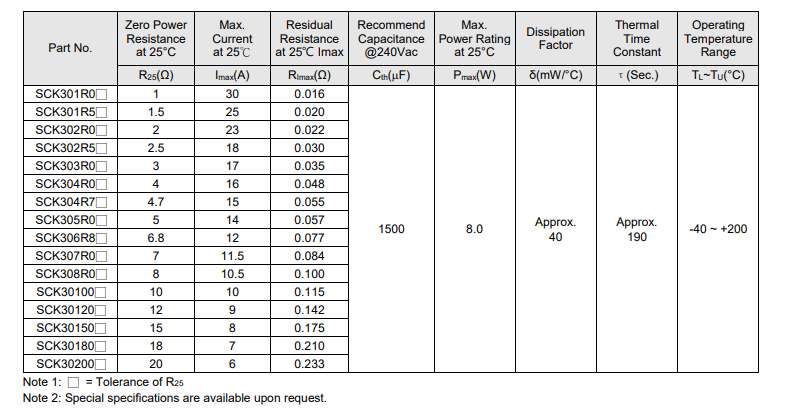

Electrical characteristics:

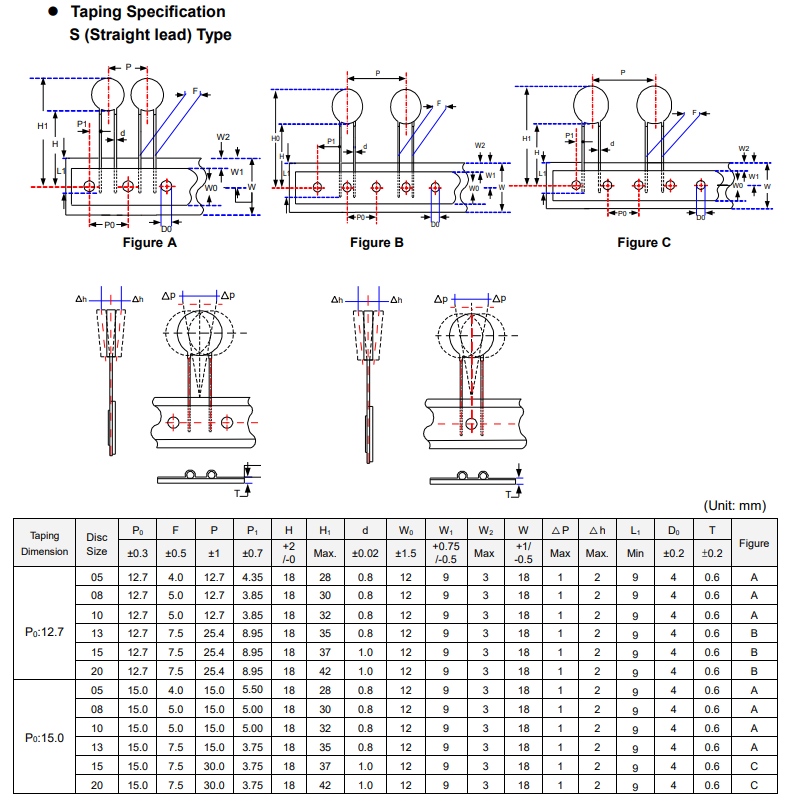

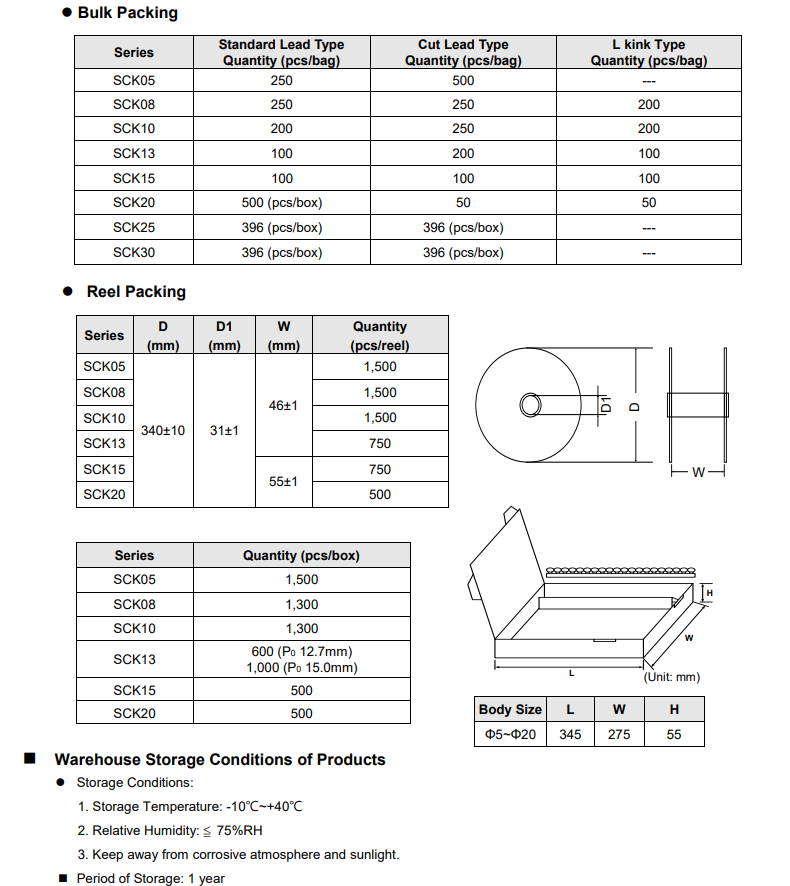

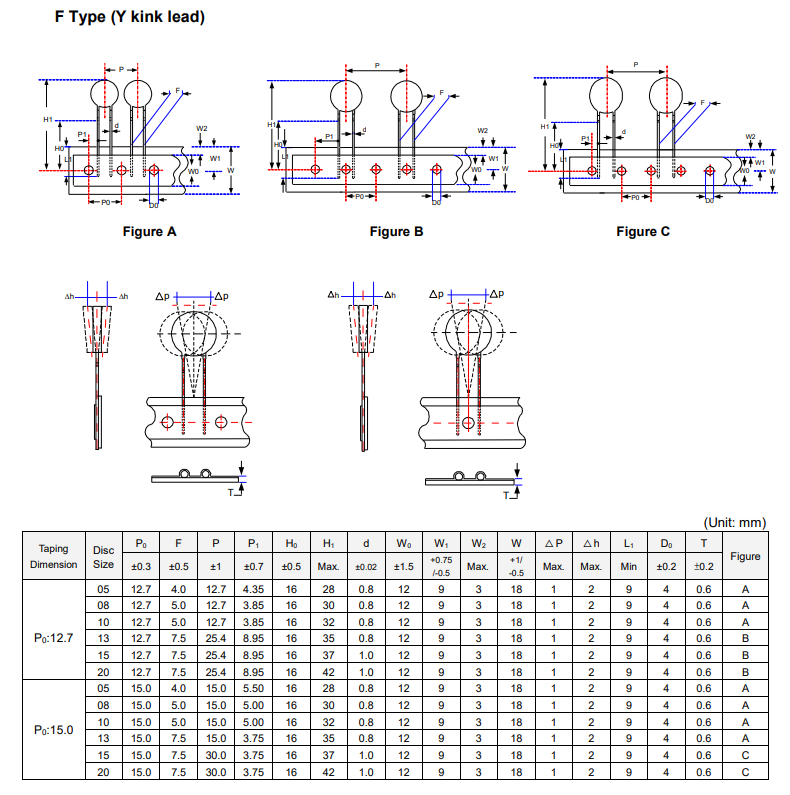

Packing:
