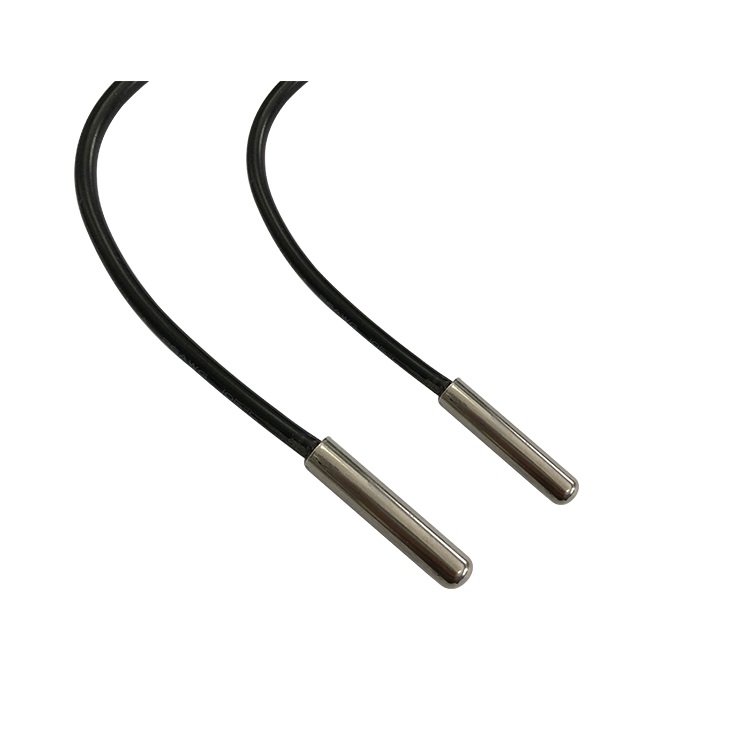

Features:

1. High sensitivity and rapid response

2. Small structure, easy installation, good waterproof

3. Wide operating temperature zone, good stability and high reliability

4. It can provide products with different R and B values, with strong interchangeability and high precision.

Application:

1. Heat pumps, household appliances, rice cookers, heaters, automobiles, electric cars, soy milk machines, coffee machines,

2. Burners, dishwashers, sterilizers, washing machines, automobile temperature control systems, medical equipment, new types of body temperature measurement, communication equipment,

3. Printers, copies, motors, computers, temperature control modules for optical communication, industrial automation equipment, temperature control instrument microwave ovens,

4. Granary temperature measurement, refrigerator, air conditioner, electric water heater, freezer, mobile phone battery, charger, induction cooker, bread maker, disinfection cabinet,

5. Electric oven, fire alarm, food storage, ocean, deep well, glacier temperature measurement, military industry and other fields.

Electrical characteristics:

1. Thermal response time: 20 seconds maximum in water bath

2. Dissipation coefficient: about 2.6mW/℃ in the static air

3. Withstand voltage test: AC 1500V 2mA for 1 second, no flashover, no breakdown and other abnormal phenomena in the steel ball

4. Insulation test: ≥100MΩ

5. Rated power: 10mW

6. Operating temperature: -30℃～105℃

Outline structure drawing:

Download Google:

Please inform the following parameters when ordering NTC temperature sensor:

1. How much resistance is required (can be selected according to the above table)

2. How much B value is required (can be selected according to the above table)

3. Working environment (whether waterproof, moisture-proof, cold-resistant and others are required)

4. Purpose: Choose different temperature-resistant wires for different purposes, different resistance values, etc.

5. What is the operating temperature range?

6. Accuracy requirements (1%-5% optional)

7. Shell material (copper, brass, stainless steel, ABS, epoxy resin, etc.)

8. Shell size (all can be customized)

9. Wire and length (all can be customized)

10. Does the end of the wire need a connector? (Molex, JST, CJT, etc. are optional).

Conventional resistance R-T table:
