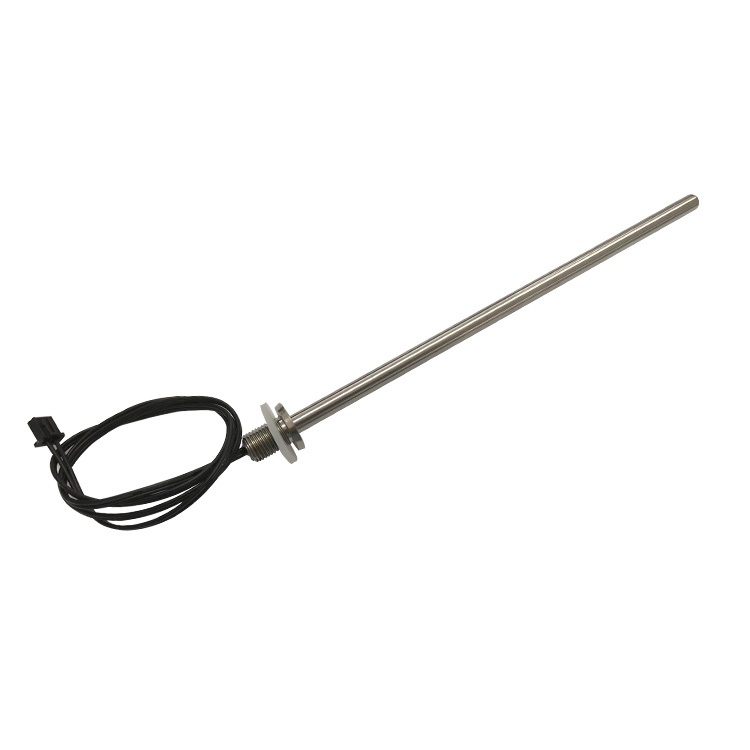

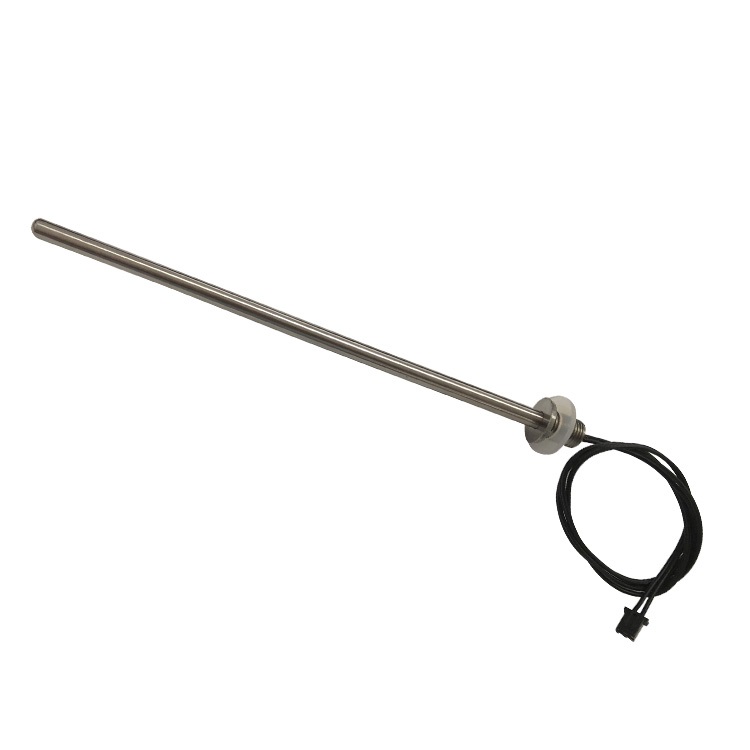

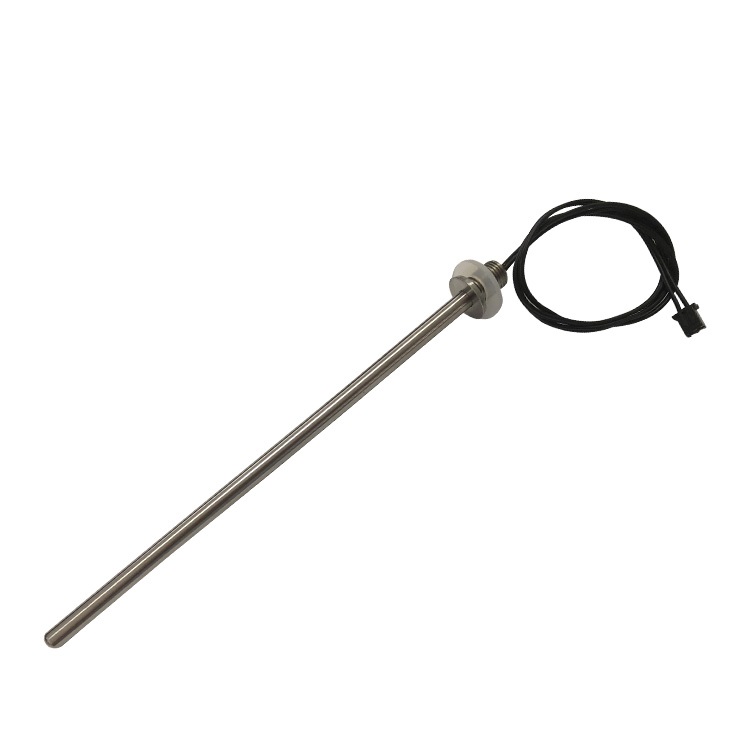

Features:

1. High sensitivity and rapid response

2. Small structure, easy installation, good waterproof

3. Wide operating temperature zone, good stability and high reliability

4. Stainless steel threaded housing

5. It can work stably for a long time (annual resistance value drift rate ≤ 1‰)

6. It can be packaged according to the installation conditions used, which is convenient for users to install

Application:

1. Beverage vending machine

2. Coffee machine, tofu machine

3. Water dispenser, disinfection cabinet, washing machine,

4. Soymilk machine, air conditioner, inverter, induction cooker

Outline structure drawing:

Product parameters:

Electrical characteristics:

1. Thermal response time: ≤16 seconds in a water bath

2. Dissipation coefficient: about 2.6mW/℃ in the static air

3. Withstand voltage test: AC 1800V 2mA for 1 second, no flashover, no breakdown and other abnormal phenomena in the steel ball

4. Insulation test: DC 500V≥100MΩ

5. Rated power: ≤10mW

6. Operating temperature: -30℃～105℃

Download Google:

Please inform the following parameters when ordering NTC temperature sensor:

1. What is the resistance requirement (can be selected according to the above table)

2. How much B value is required (can be selected according to the above table)

3. Working environment (whether it needs to be waterproof, moisture-proof, cold-resistant, etc.)

4. Purpose: Choose different temperature-resistant wires, different resistance values for different purposes, etc.

5. What is the operating temperature range?

6. Accuracy requirements (1%-5% optional)

7. Shell material (copper, brass, stainless steel, ABS, epoxy resin, etc.)

8. Shell size (all can be customized)

9. Wire and length (both can be customized)

10. Does the end of the wire need a connector? (Molex, JST, CJT, etc. are optional).

Conventional resistance R-T table:
