Features:

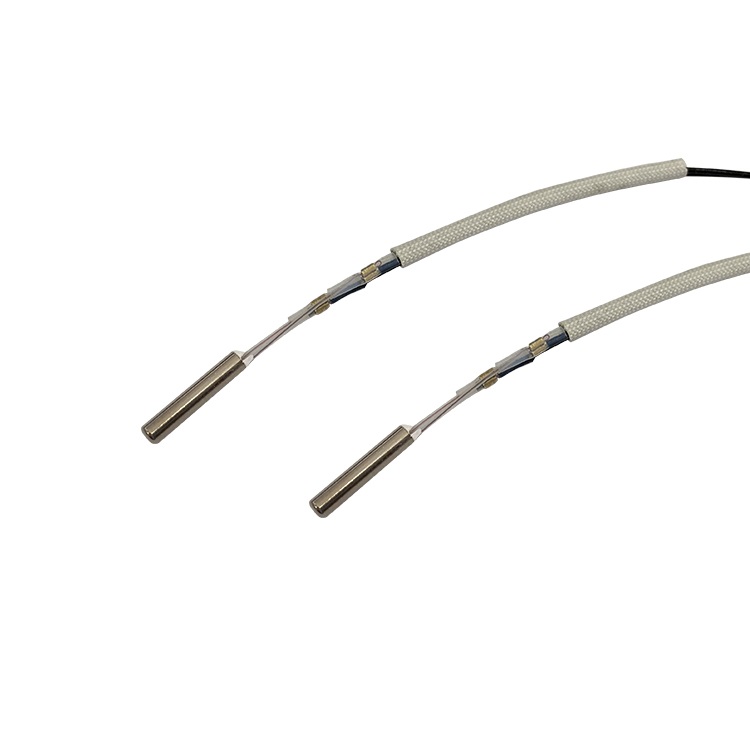

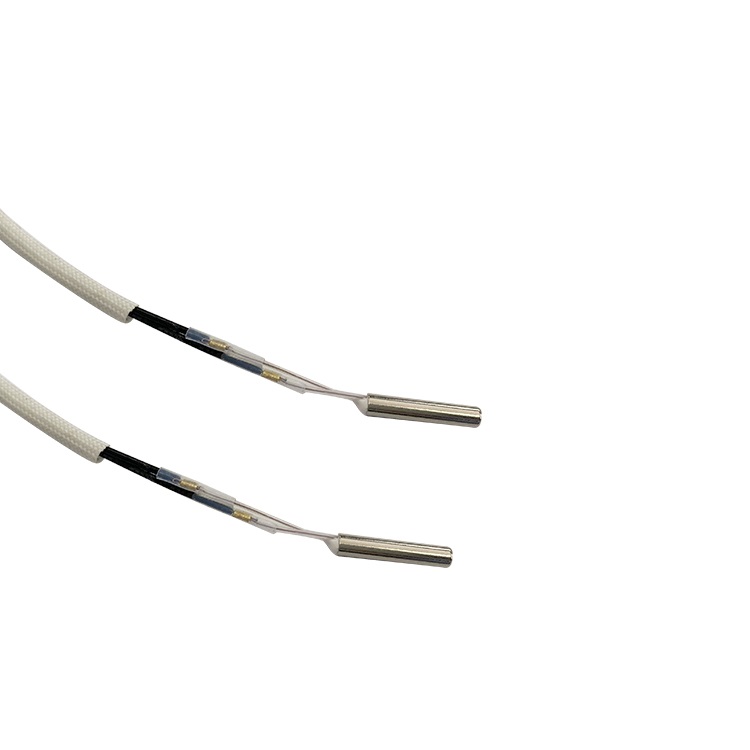

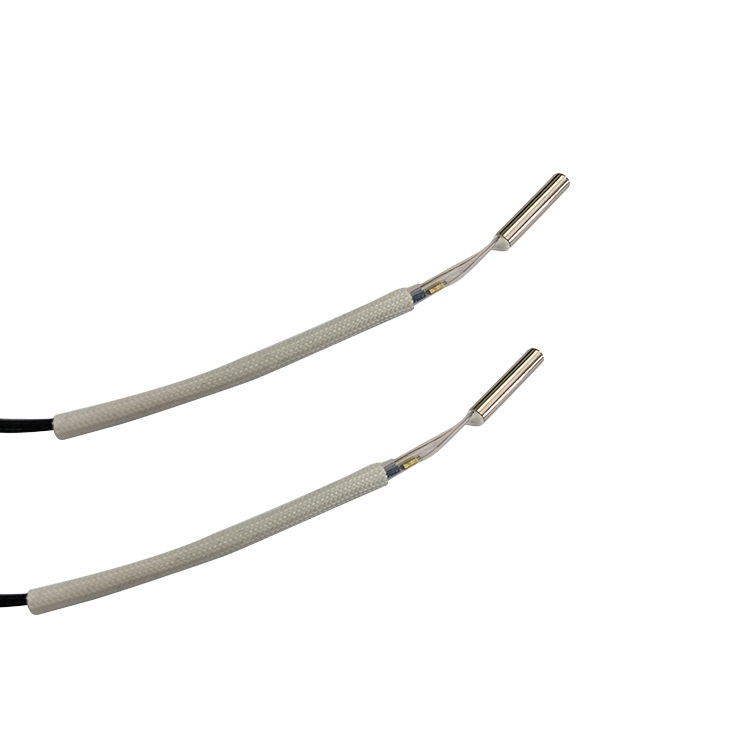

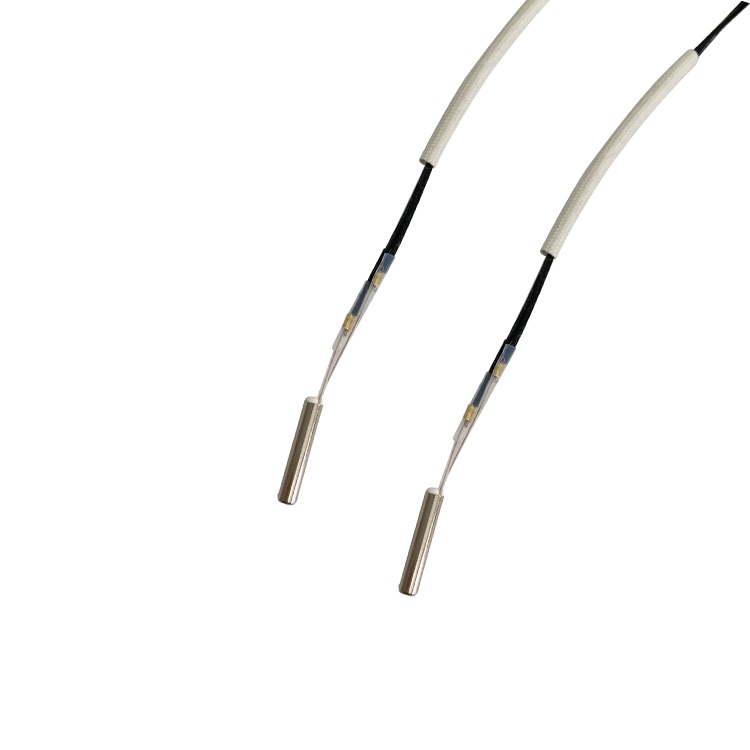

1. JPTF Series—High temperature resistant thermistor temperature sensor
2. Good stability and high reliability
3. Wide resistance range: 1KΩ~1000KΩ
4. High resistance and B value accuracy
5. Since the purchase is made of glass, it can be used in harsh environments such as high temperature and high humidity

Application:

1. 3D printer
2. Temperature control and temperature detection of household appliances such as induction cooker, electric pressure cooker, rice cooker, electric oven, disinfection cabinet, water dispenser, microwave oven, electric heater, etc.
3. Temperature control and detection of industrial, medical, environmental, meteorological, and food processing equipment
4. Temperature protection of rechargeable battery pack and charger.

Electrical characteristics:

1. Thermal response time: maximum 12 seconds in a water bath
2. Dissipation coefficient: about 2.6mW/℃ in the static air
3. Withstand voltage test: AC 1300V 2mA for 1 second, no flashover, no breakdown and other abnormal phenomena in the steel ball
4. Insulation test: ≥100MΩ
5. Rated power: 5mW
6. Operating temperature: -30℃～250℃

Outline structure drawing:

Download Google:

Please inform the following parameters when ordering NTC temperature sensor:
1. How much resistance is required (can be selected according to the above table)
2. How much B value is required (can be selected according to the above table)
3. Working environment (whether waterproof, moisture-proof, cold-resistant and others are required)
4. Purpose: Choose different temperature-resistant wires for different purposes, different resistance values, etc.
5. What is the operating temperature range?
6. Accuracy requirements (1%-5% optional)
7. Shell material (copper, brass, stainless steel, ABS, epoxy resin, etc.)
8. Shell size (all can be customized)
9. Wire and length (all can be customized)
10. Does the end of the wire need a connector? (Molex, JST, CJT, etc. are optional).

Conventional resistance RT table:
