Features:

1. Comply with ROHS and lead-free

2. Halogen free

3. Quick response to fault current

4. Compact design saves board space

5. Compatible with high temperature solder

Application:

1. Mobile phones and PDAs

2. USB peripherals

3. Portable MP3 and Media Player

4. Integrated circuit VCC protection

5. Mobile Internet Devices (MID)

6. Set-top box and HDMI

7. Game console port protection

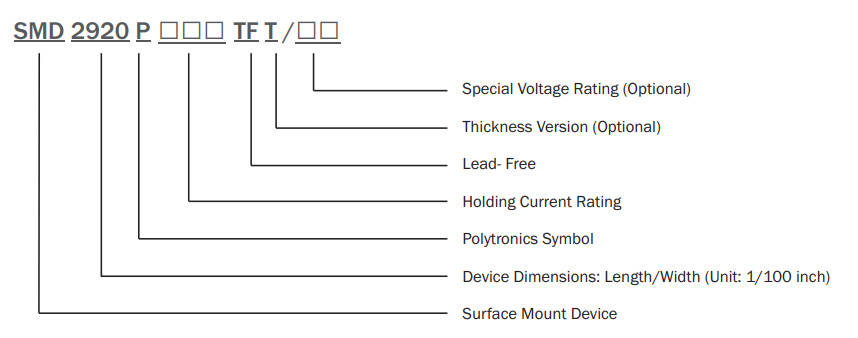

Encoding rules：

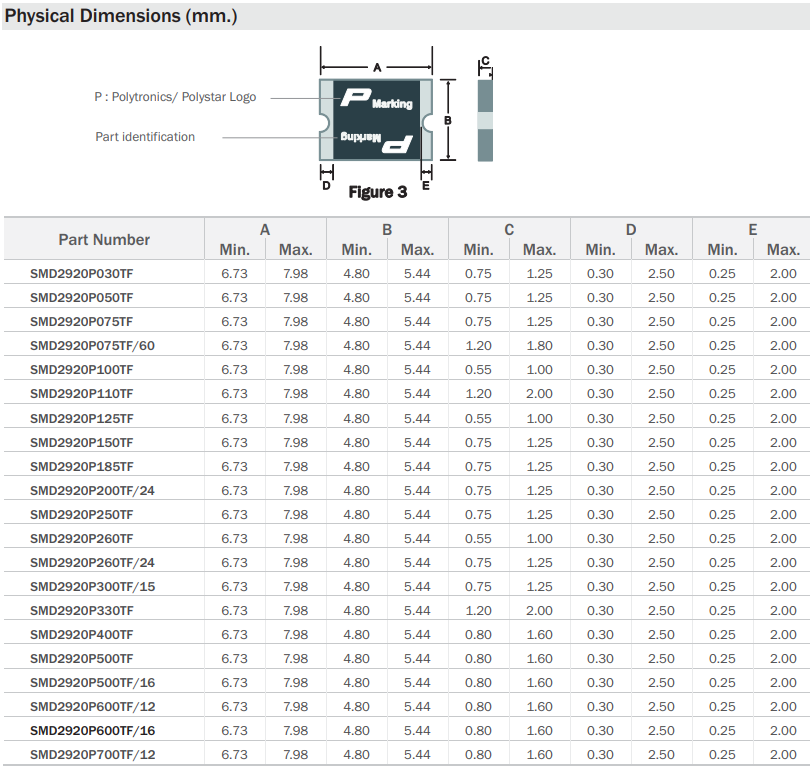

Outline structure drawing:

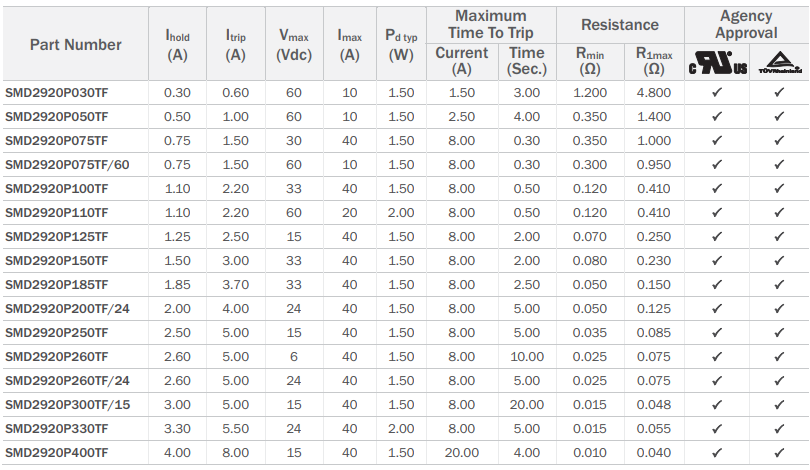

Electrical characteristics:

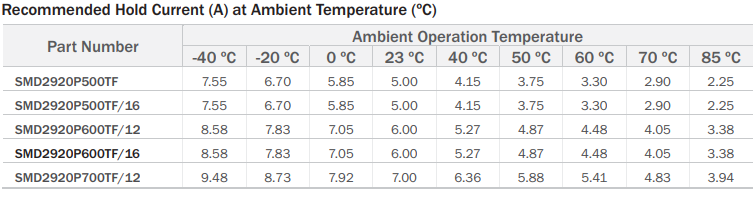

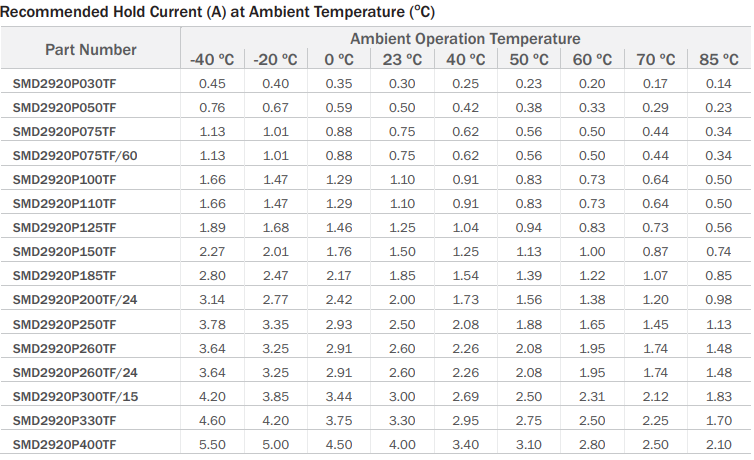

Rated value of heat drop:

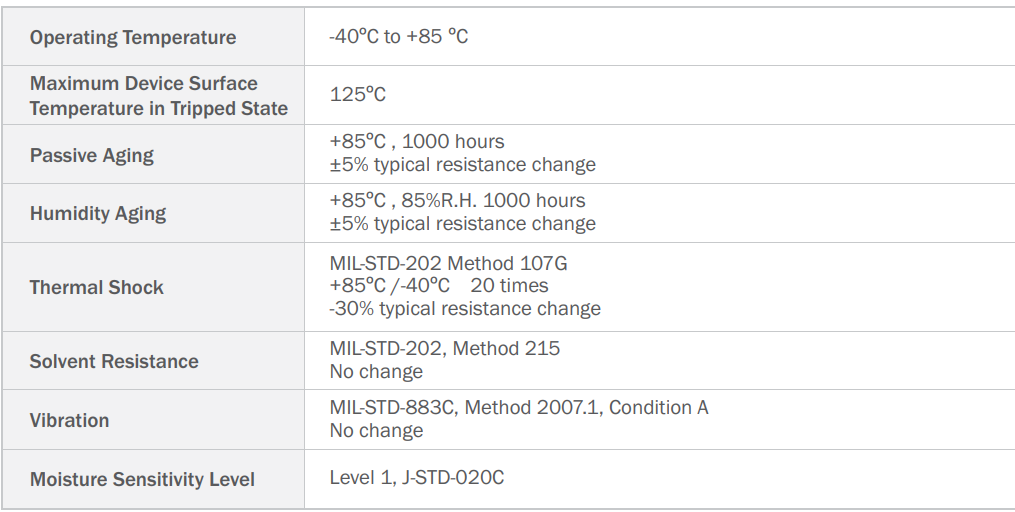

Environmental protection regulations:

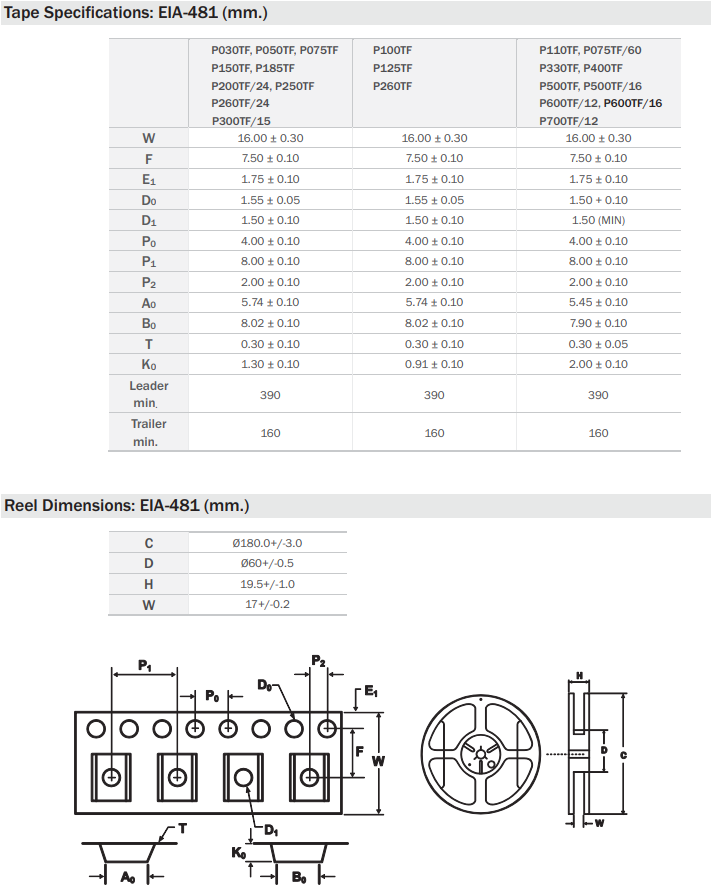

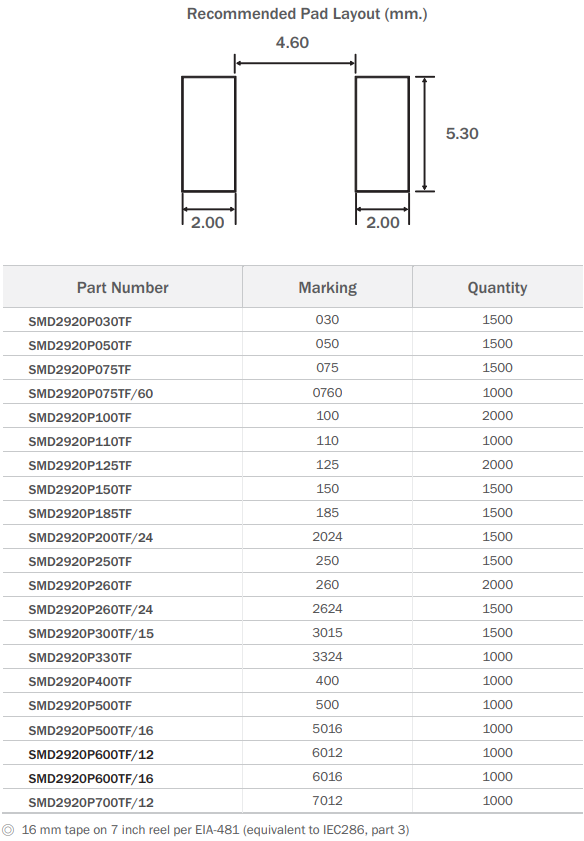

Packing:
