Features:

1. Fast acting, Inrush withstand capability

2. Wire-In-Air technology

3. Wide range of current rating available

4. 6.1mm×2.5mm cube shape

5. -55℃～125℃ operating temperature

6. Excellent environmental integrity

7. RoHS compliant & Halogen Free

Application:

1. Battery pack

2. Storage system

3. Power supply

4. PC & PC peripherals

5. Game console

6. PC server

7. Cooling fan system

8. Industrial equipment

9. Telecom system

10. LCD monitor and modules

11. Medical equipment

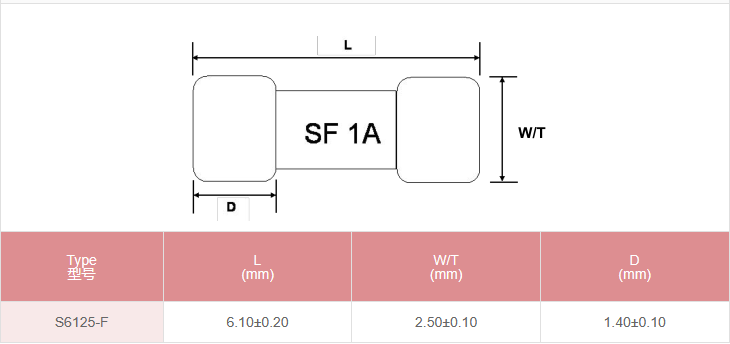

Outline structure drawing:

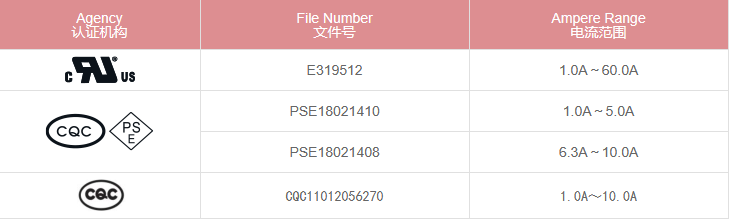

Certification Information：

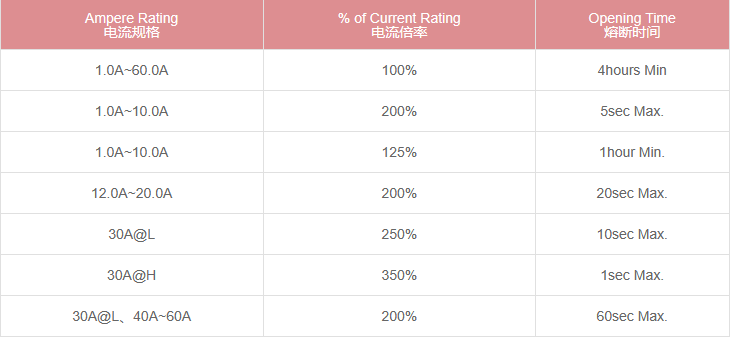

Electrical characteristics:

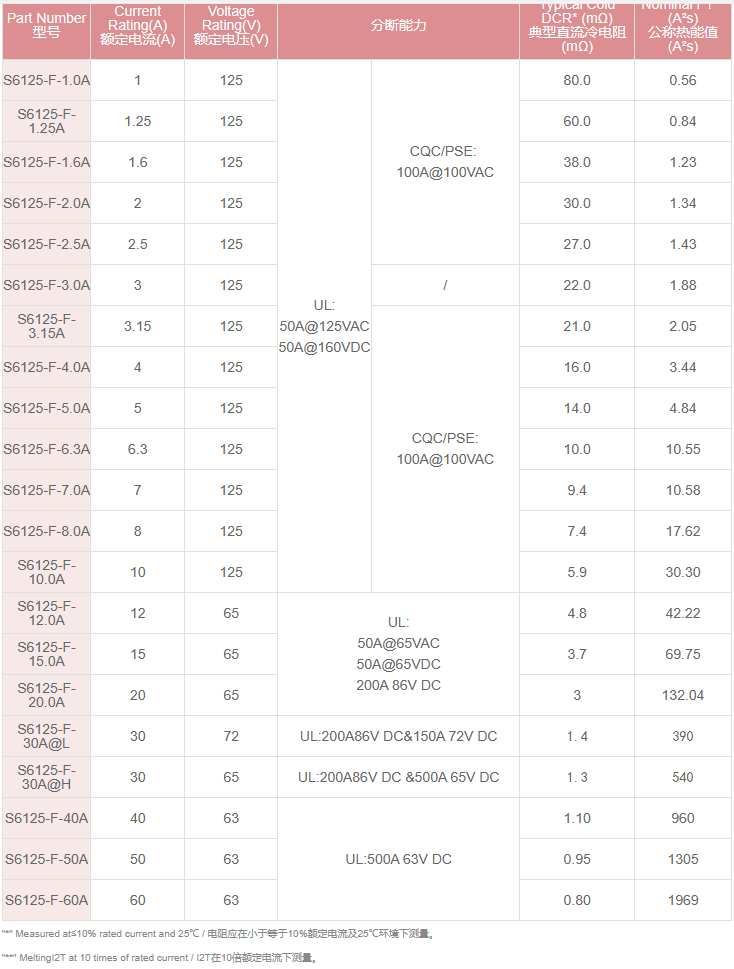

Electrical Specifications:
