Features:

1. Anti-surge capability

2. Dangling fuse process

3. Wide range of optional rated current

4. 6.1mm×2.5mm×2.5mm cube package

5. Working temperature of -55℃～125℃

6. Good environmental adaptability

7. Comply with ROHS standard, halogen-free

Application:

1. Battery pack

2. Module power supply

3. PC and PC peripherals

4. PC server

5. Wireless base station

6. Industrial equipment

7. Telecommunication System

8. LCD screen and display module

9. Medical equipment

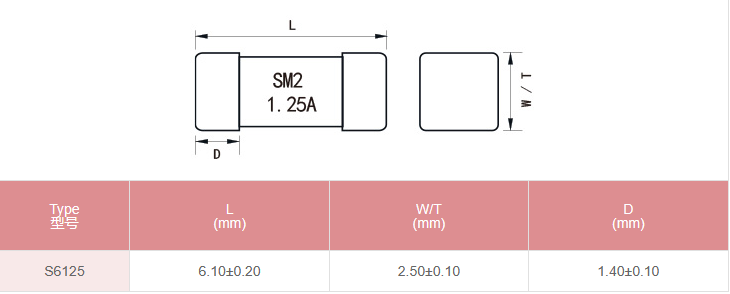

Outline structure drawing:

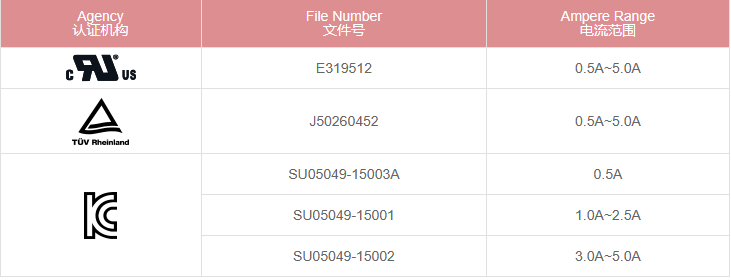

Certification Information：

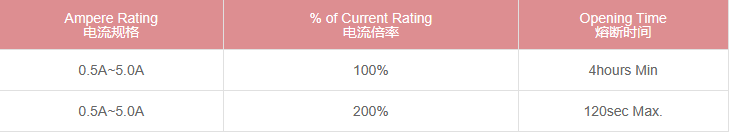

Electrical characteristics:

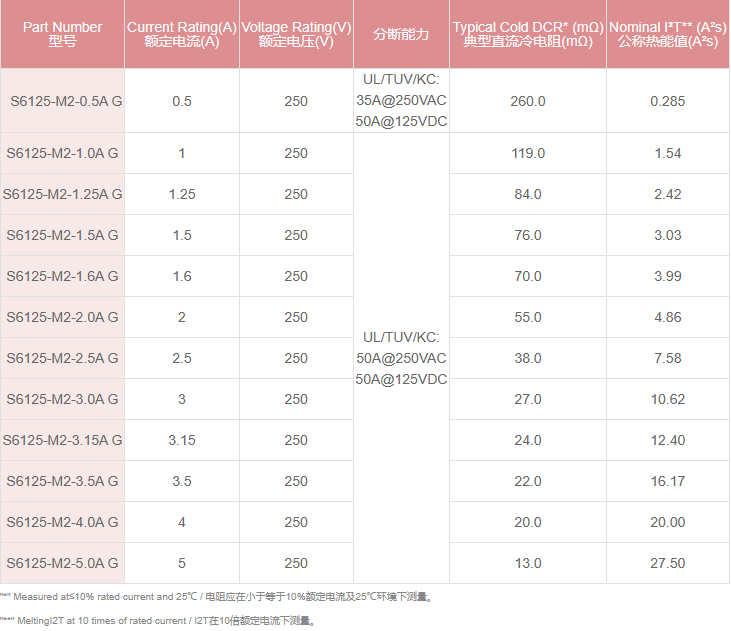

Electrical Specifications:
