Features:

1. Package size: 2512

2. Resistance range: 0.5mΩ~50mΩ

3. Low temperature drift coefficient

4. Low parasitic inductance: 0.5nH~5nH

5. There is a higher power to choose from

6. Meet ROHS standard, halogen-free

Application:

1. Switching power supply

2. Battery pack

3. Notebooks and personal computers

4. Test equipment

5. Power amplifier

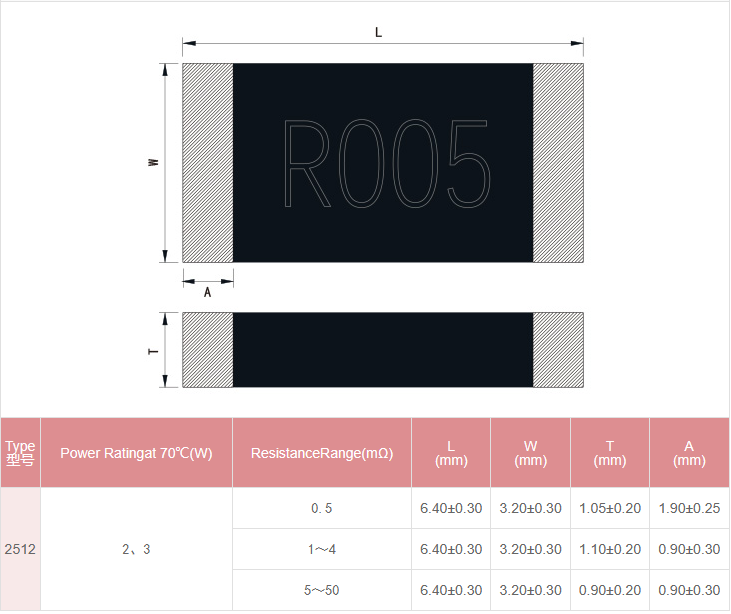

Outline structure drawing:

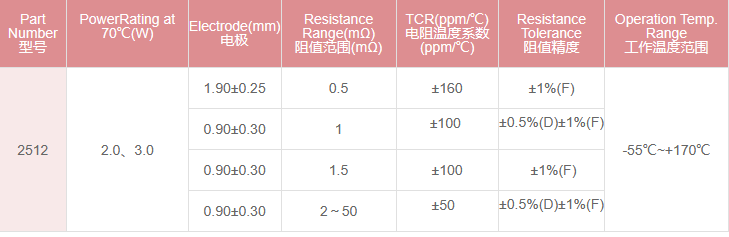

Electrical Specifications:
