Features:

1. Package size: 0805~2512

2. Resistance range: 1mΩ~50mΩ

3. Low temperature drift coefficient

4. Low thermal electromotive force

5. Comply with ROHS standard, halogen-free

6. There is more power to choose from

Application:

1. Switching power supply

2. Battery pack

3. Notebooks and personal computers

4. Test equipment

5. Power amplifier

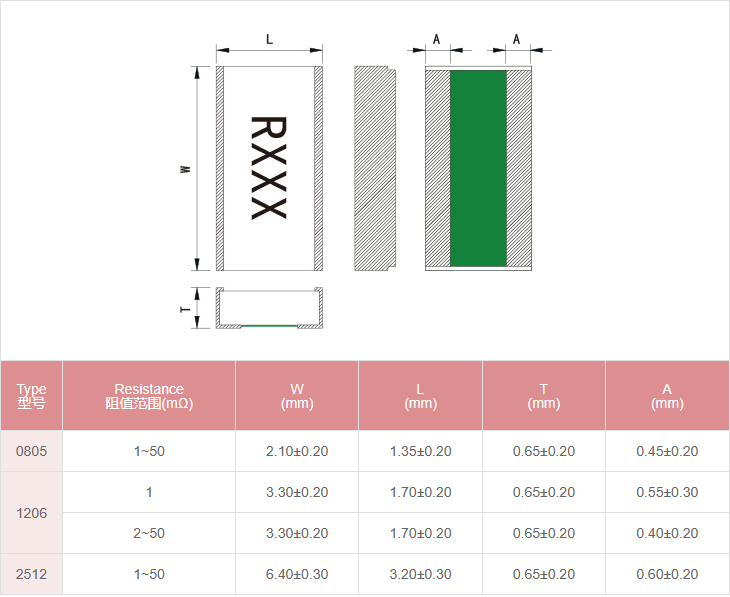

Outline structure drawing:

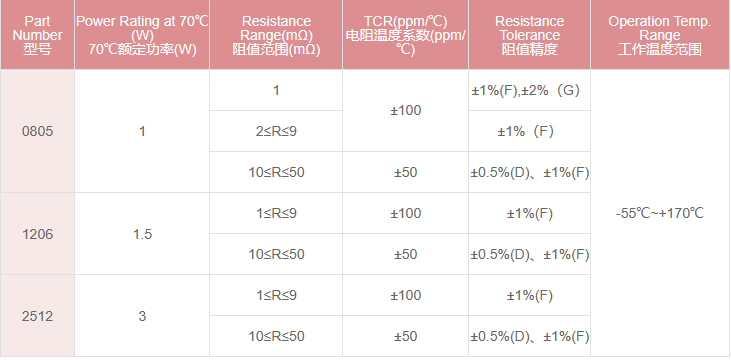

Electrical Specifications:
