Features:

1. Current conversion ratio (CTR) range: 130%~600% (IF=5mA, VCE=5V)

2. Input/output isolation voltage (Viso=5000 V rms)

3. Collector-emitter breakdown voltage BVCEO≥80V

Application:

1. Switching power supply

2. Smart meter

3. Industrial Control

4. Measuring Instruments

5. Office equipment, such as copiers

6. Household appliances, such as air conditioners, fans, water heaters, etc.

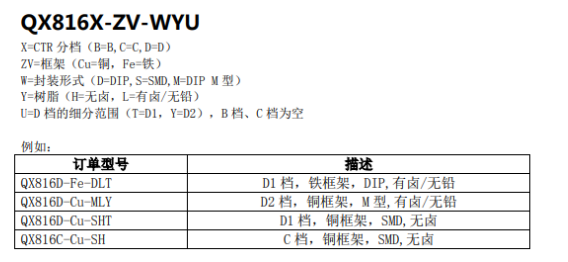

Encoding rules：

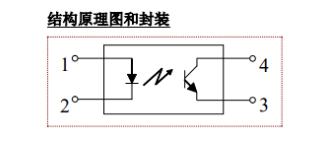

Outline structure drawing:

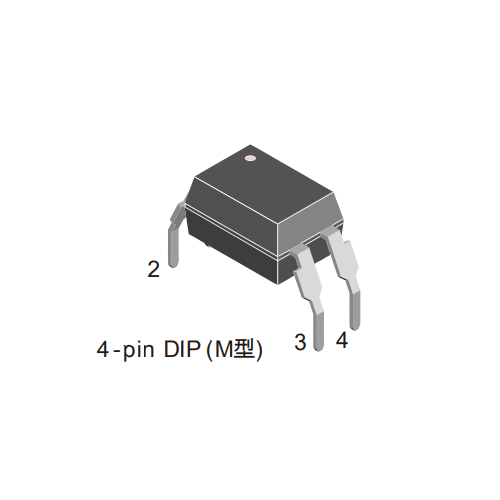

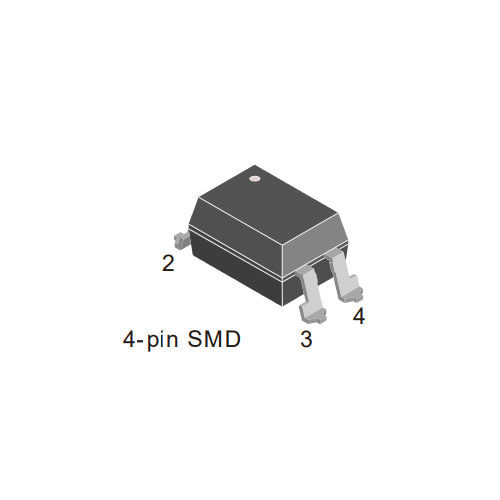

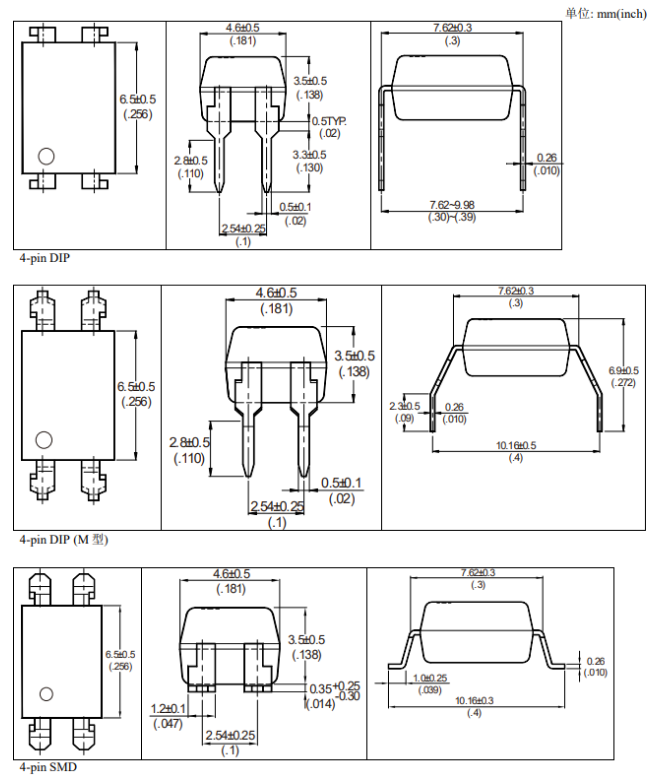

Package size:

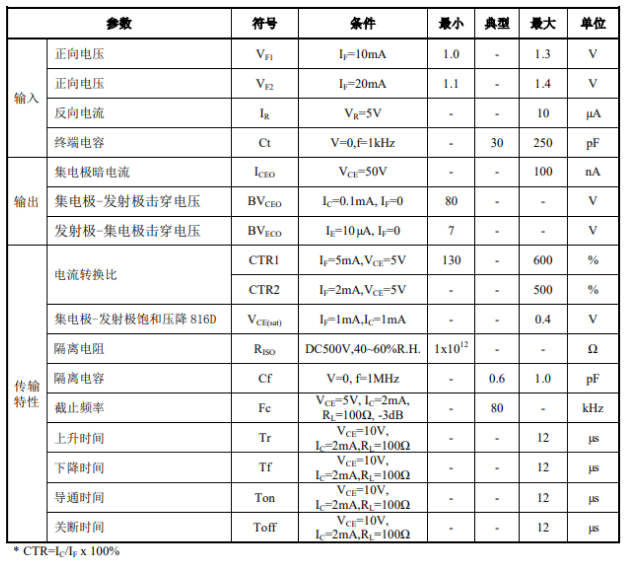

Electro-optical characteristics:

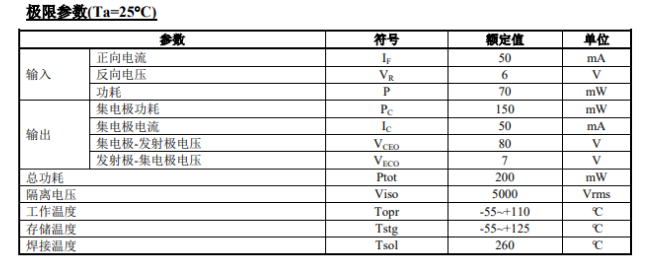

Limit parameters:

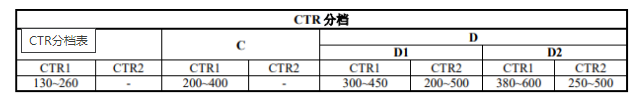

CTR classification table:

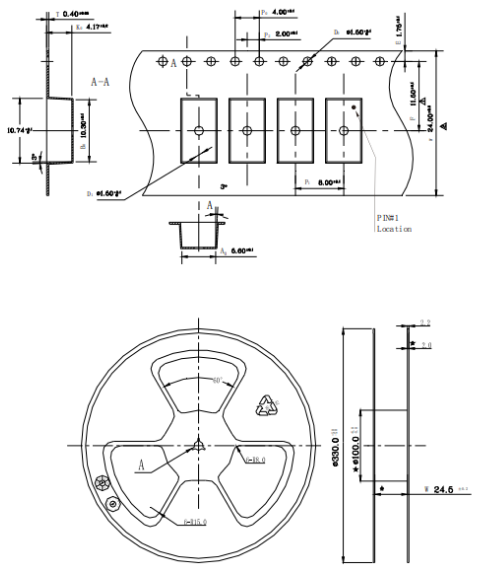

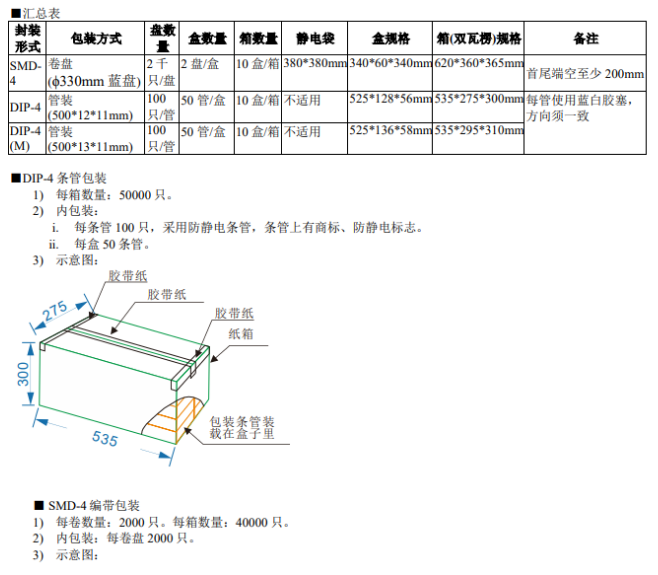

Packing:
