Features:

1. High input-output isolation voltage (Viso=5000 Vrms)

2. Compact 4-pin SOP (colloidal thickness 2mm)

3. 8mm long creepage distance

Application:

1. Power feedback circuit

2. System equipment, test equipment

3. Registers, photocopiers, vending machines

4. Household appliances, such as fans, water heaters, etc.

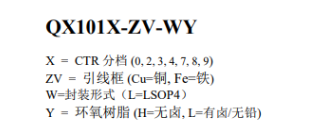

Encoding rules：

Outline structure drawing:

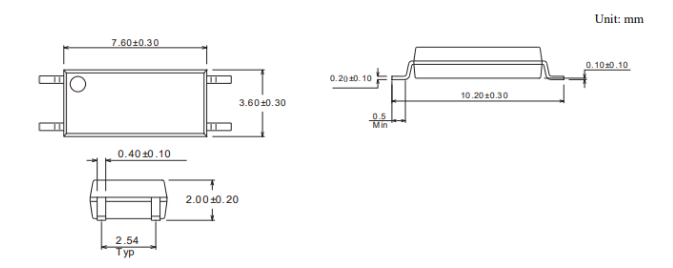

Package size:

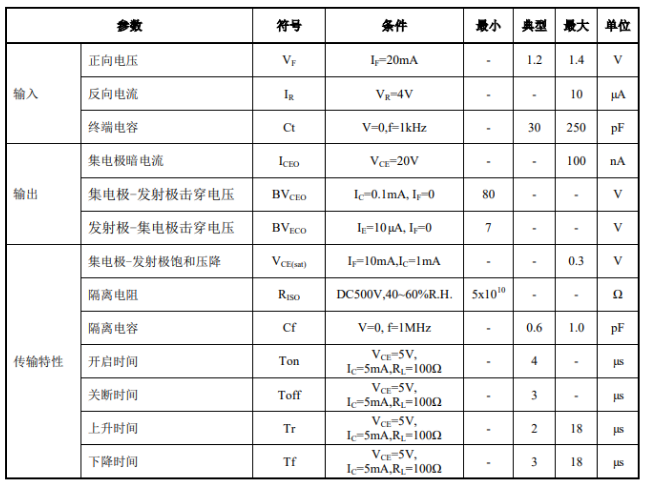

Electro-optical characteristics:

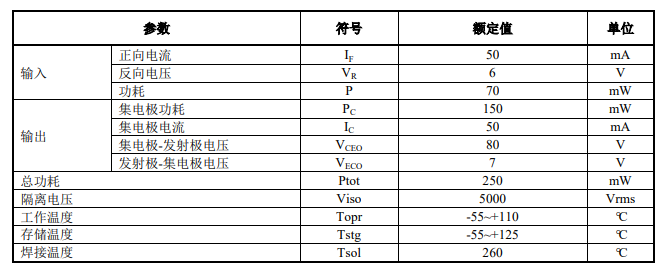

Limit parameters:

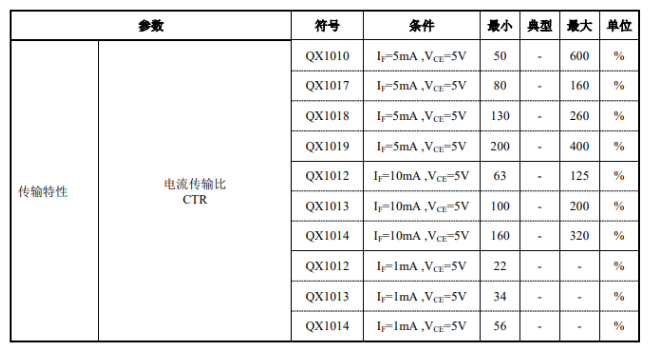

CTR classification table:

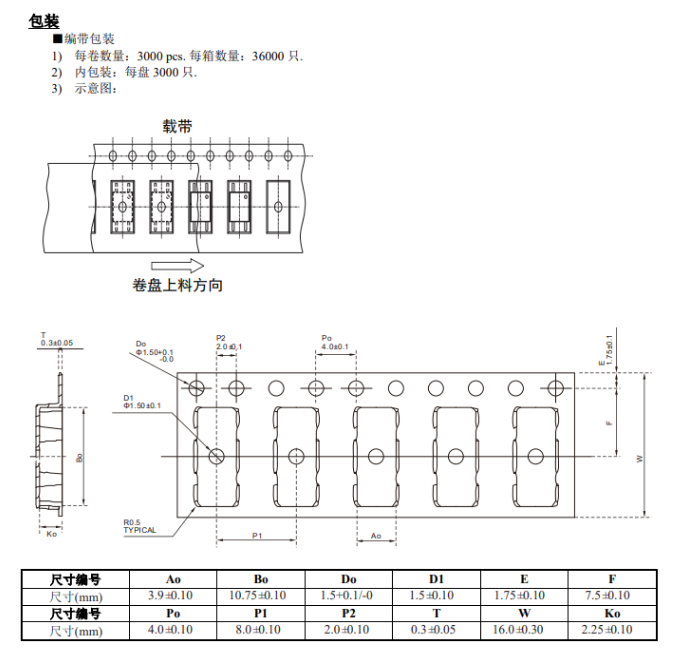

Packing:
