Features:

1. At the same size, a higher impedance value can be generated by inserting magnetic beads

2. Unlike traditional magnetic beads, chip magnetic beads have no lead and can inhibit EMI and RFI as long as they are simply installed on the PCB board

3. The shape and size of the magnetic beads meet EIA standards and can be automatically mounted by SMT equipment

Application:

1. Data transmission line

2. Signal cables

3. Anti-interference of power supply and circuit

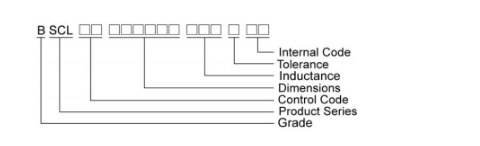

Encoding rules：

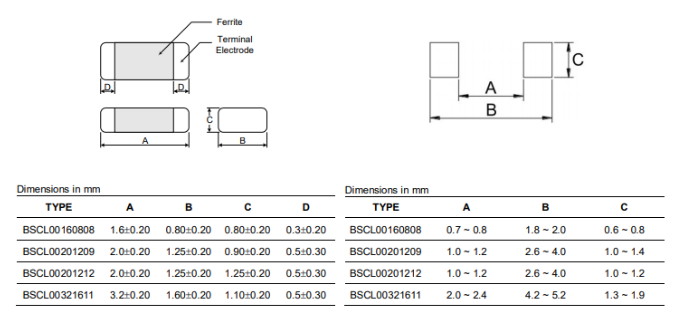

Outline structure drawing:

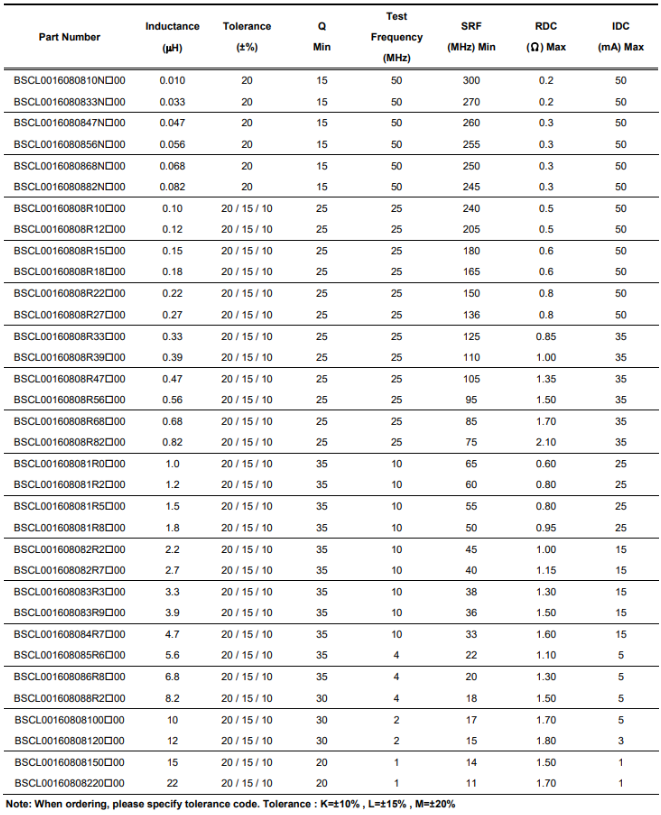

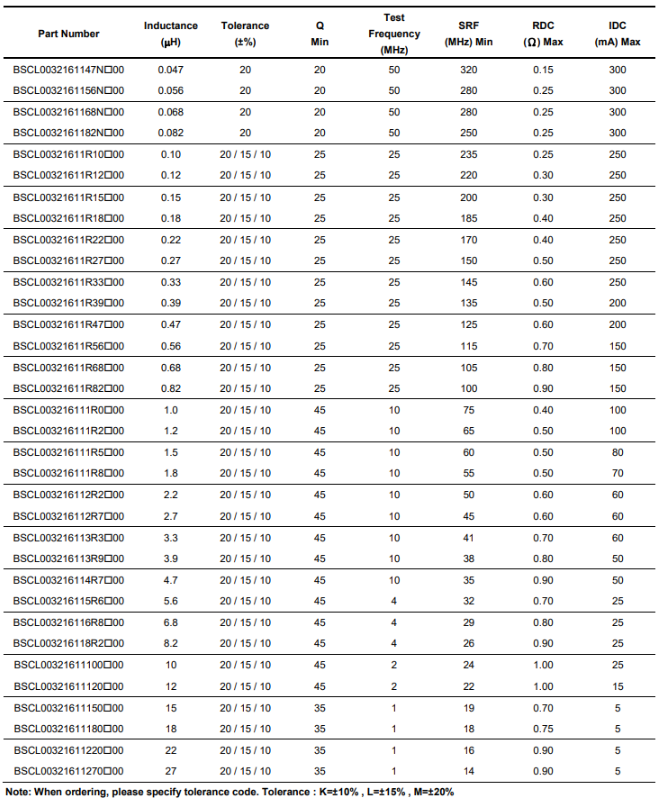

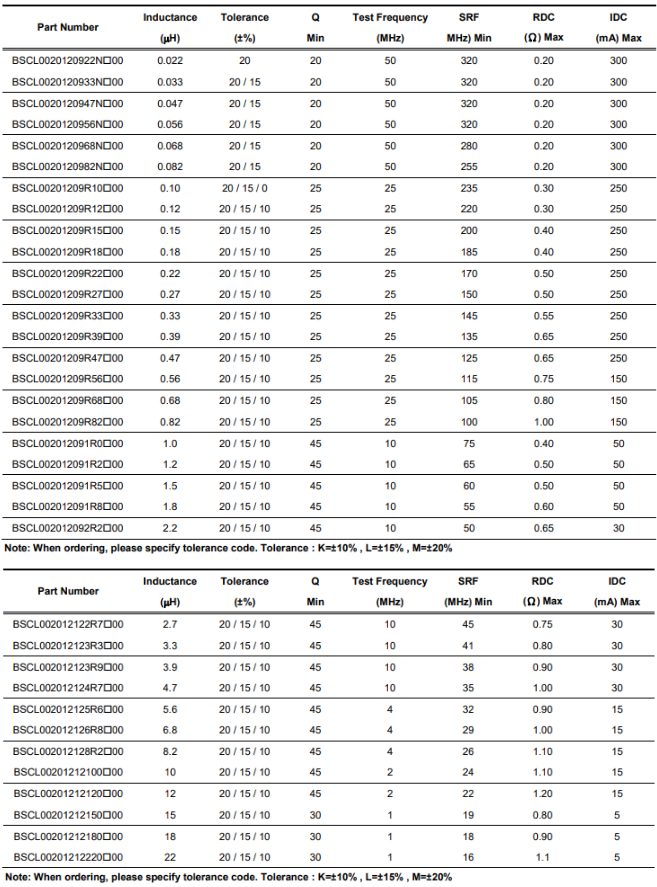

Electrical characteristics:
