Features:

1. Compact structure saves space

2. Suitable for surface mount applications

3. Comply with RoHS and halogen-free requirements

4. Reliable and low-cost plastic molding technology

5. Glass passivation junction

6. Can provide one-way and two-way products

7. Fast response time

8. Excellent voltage limiting and suppressing voltage capability

Application:

1. Communication equipment

2. Computer

3. Industrial equipment

4. Consumer Electronics

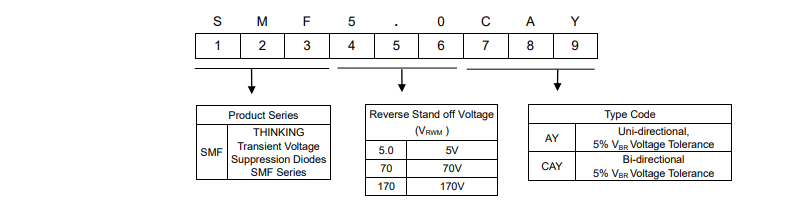

Encoding rules：

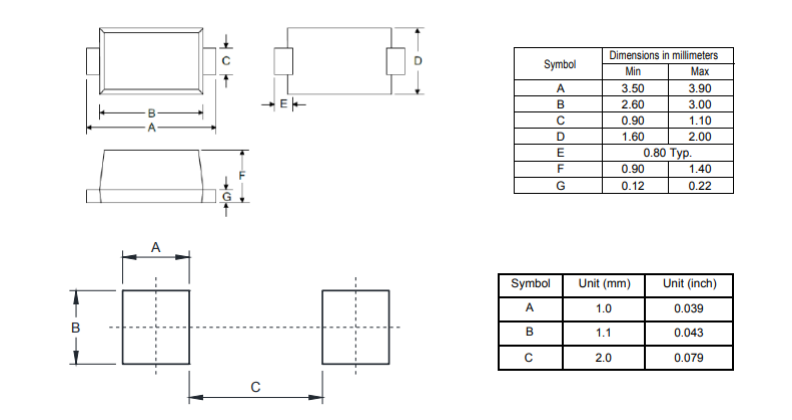

Outline structure drawing:

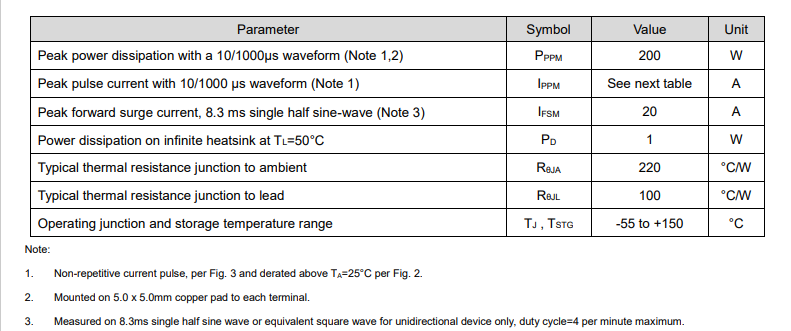

Maximum nominal information:

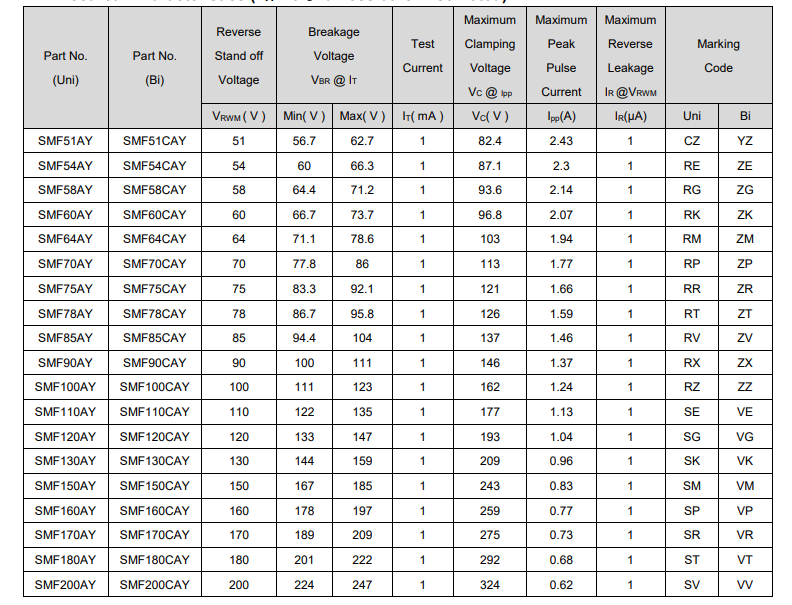

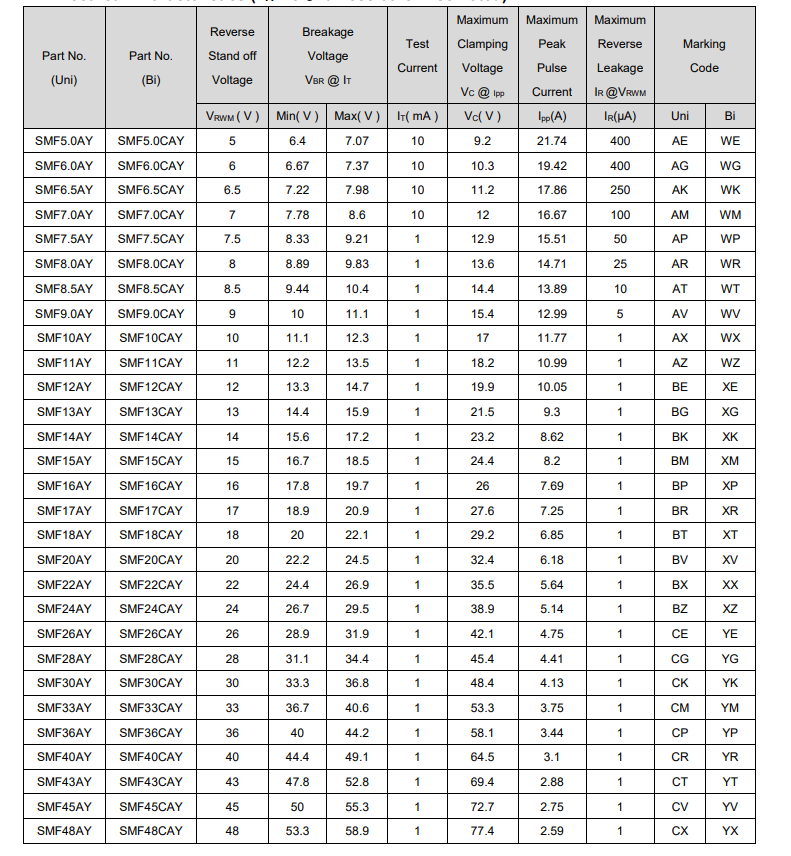

Electrical characteristics:

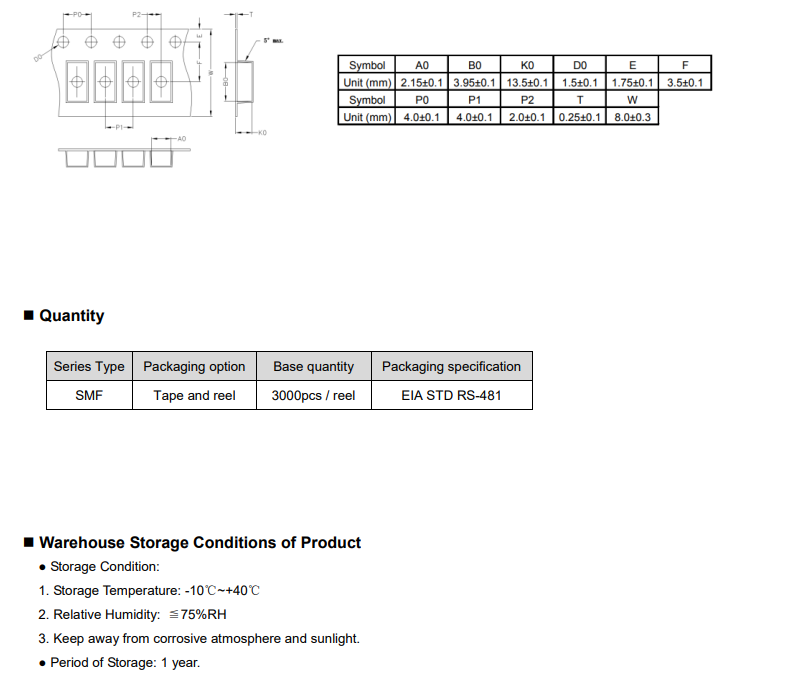

Packing:
