Features:

1. Meet RoHS and halogen-free requirements

2. Surface mount type

3. DC breakdown voltage: 75~600V

4. Low capacitance

5. Safety certification: UL

6. Operating temperature range: -40℃ ~ +105℃

Storage temperature range: -40℃ ~ +115℃

Application:

1. Cable Modem

2. xDSL

3. Set-top box

4. TV

5. Ethernet interface

6. Consumer Electronics

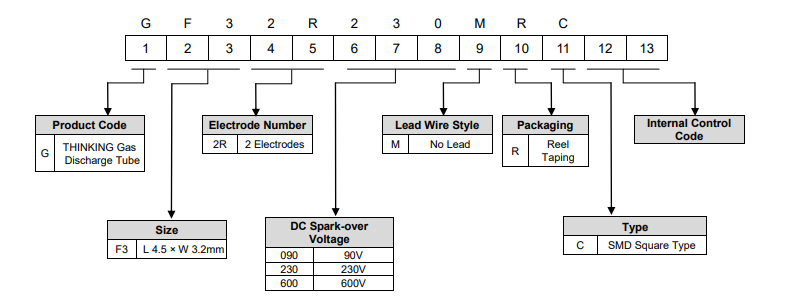

Encoding rules：

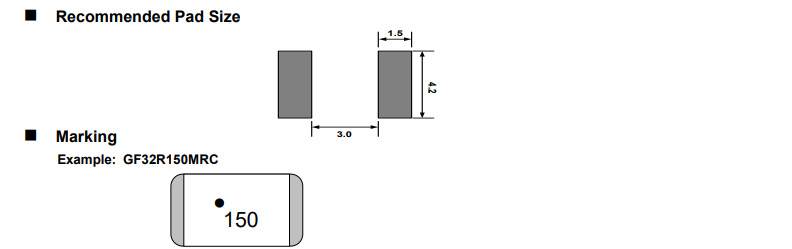

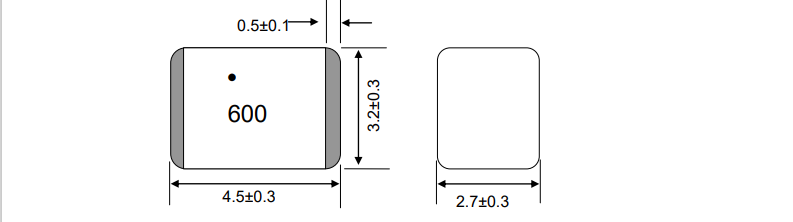

Outline structure drawing:

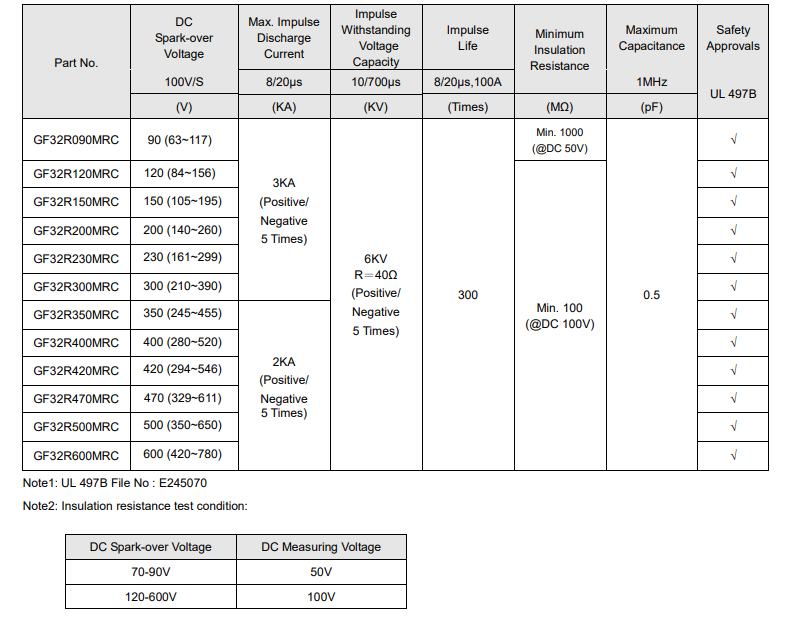

Electrical characteristics:

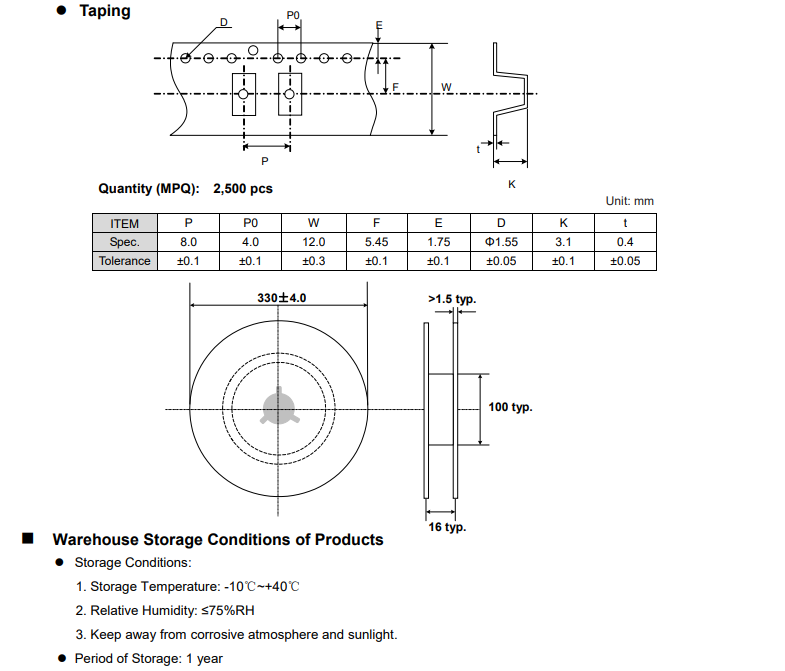

Packing:
