Features:

1. Working voltage :5vdc

2. Fast response, instantaneous clamping transient overvoltage.

3. High surge current handling capability.

4. High energy absorption capacity.

5. Low clamp voltage for better surge protection.

6. Low capacitance value, providing digital switching circuit protection.

7. High insulation resistance to prevent arc to adjacent equipment or circuits

8. Comply with IEC 61000-4-2 level 4 standards.

Application:

1. Universal Serial Bus (USB).

2. Mobile communication.

3. Computer/DSP products.

4. Video and audio interfaces.

5. Portable/handheld products.

6. Data and diagnostic I/O interfaces

Encoding rules：

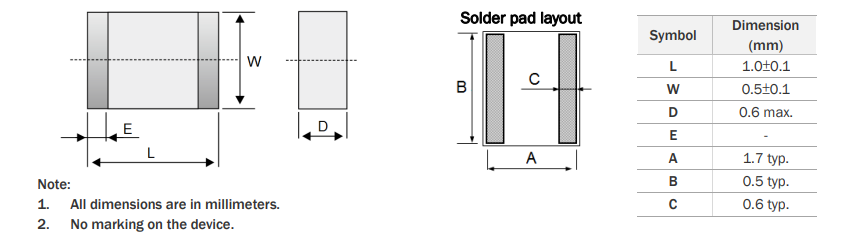

Outline structure drawing:

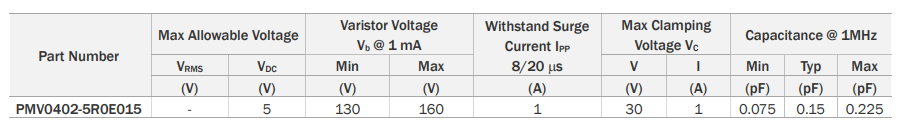

Electrical characteristics:

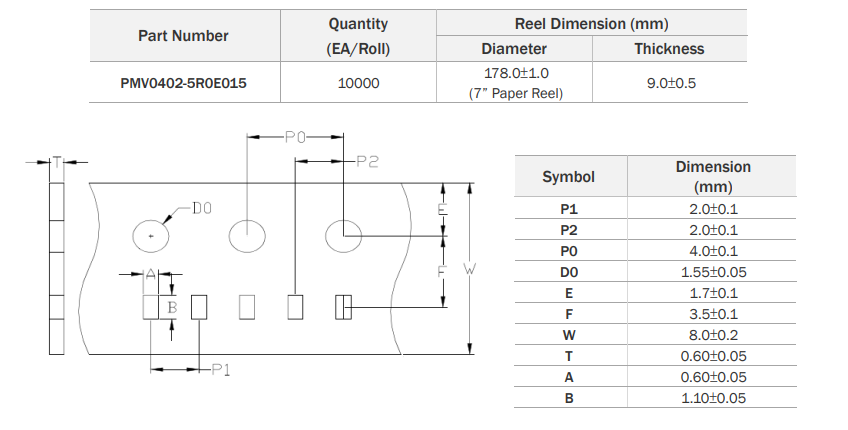

Packing:
