负温度系数热敏电阻
Negative temperature thermistor

TKS SCH series NTC thermistor

Number of Views:51092021-07-12 17:11:55



Features:

1. RoHS & Halogen Free (HF) compliant

2. Body size: Ф20mm, Ф25mm, Ф30mm

3. Radial lead resin coated

 4. Higher steady state current

5. 15% reduction of installation space when comparing with similar components

Recommended Applications :

1. High power switching mode power supply (SMPS), uninterruptible power supply (UPS), power conversion equipment

 2. Charger and charging station of electric vehicle

3. Motor drive system, high power plasma welding machine, cutting machine, high power lighting application

4. Magnetic resonance imaging (MRI) equipment, professional high power audio receiver, high power toroidal transformer, high capacity power inverter

5. Industrial robot driven by high voltage power supply, smart low-voltage power distribution unit

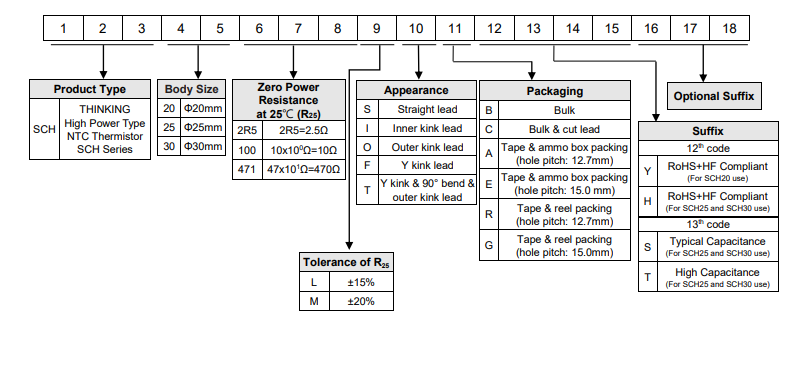

Part Number Code :

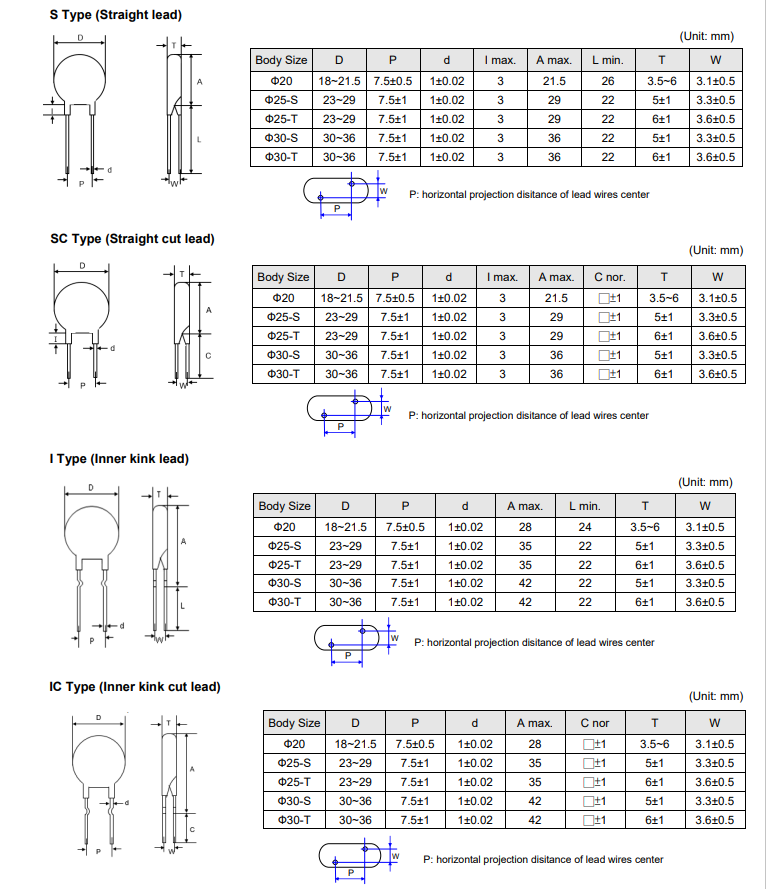

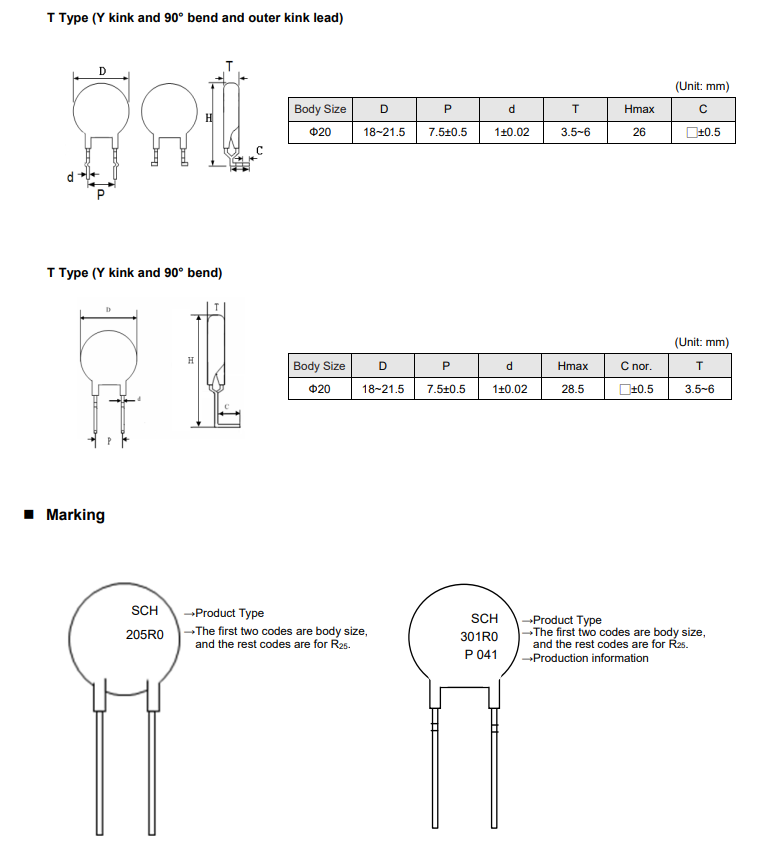

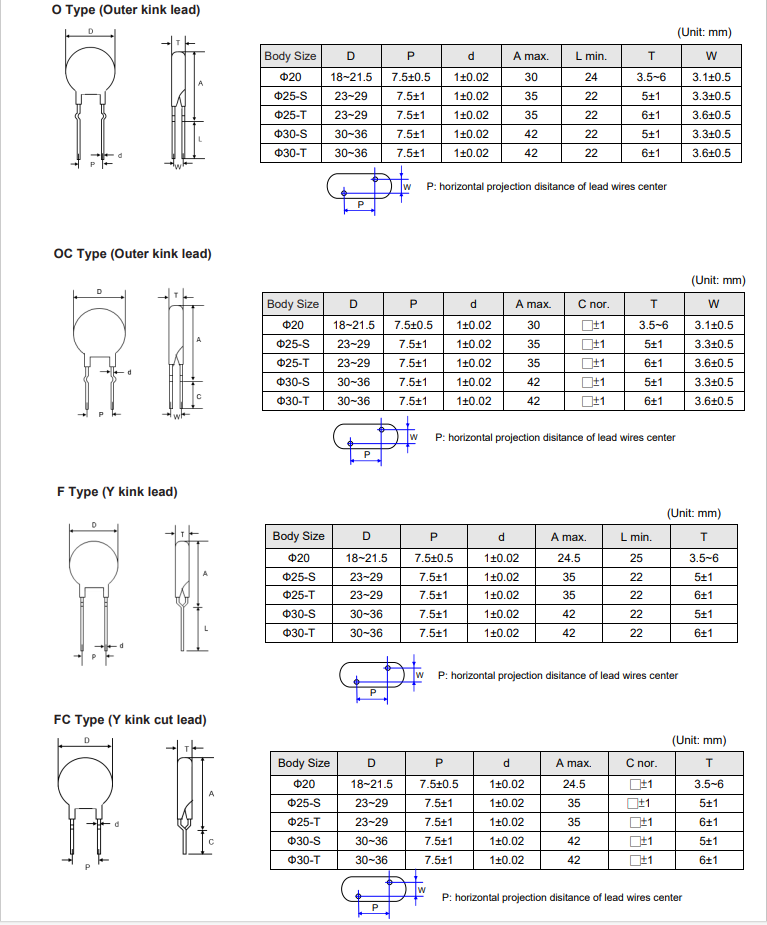

Structure and Dimensions:

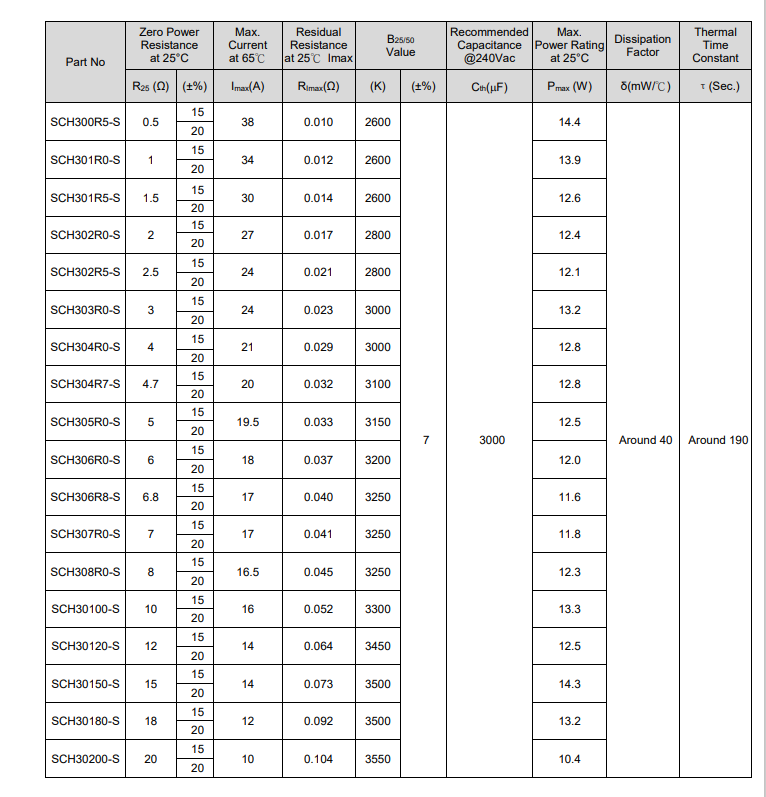

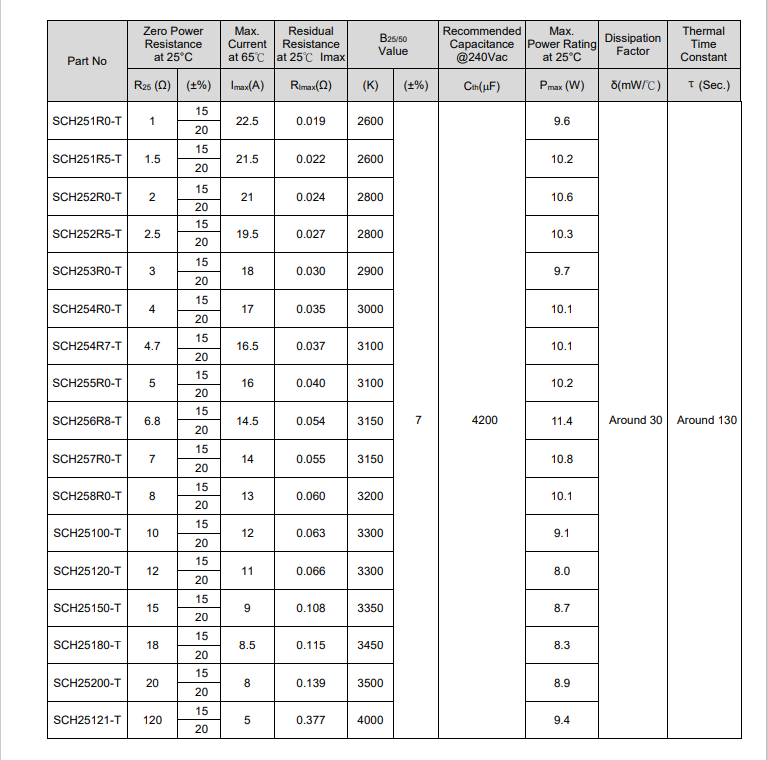

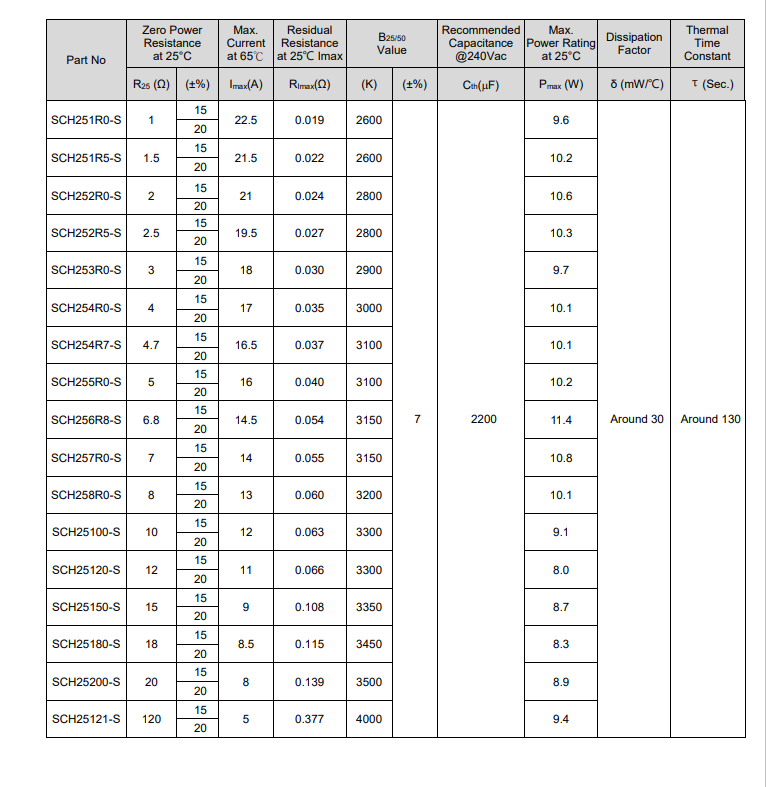

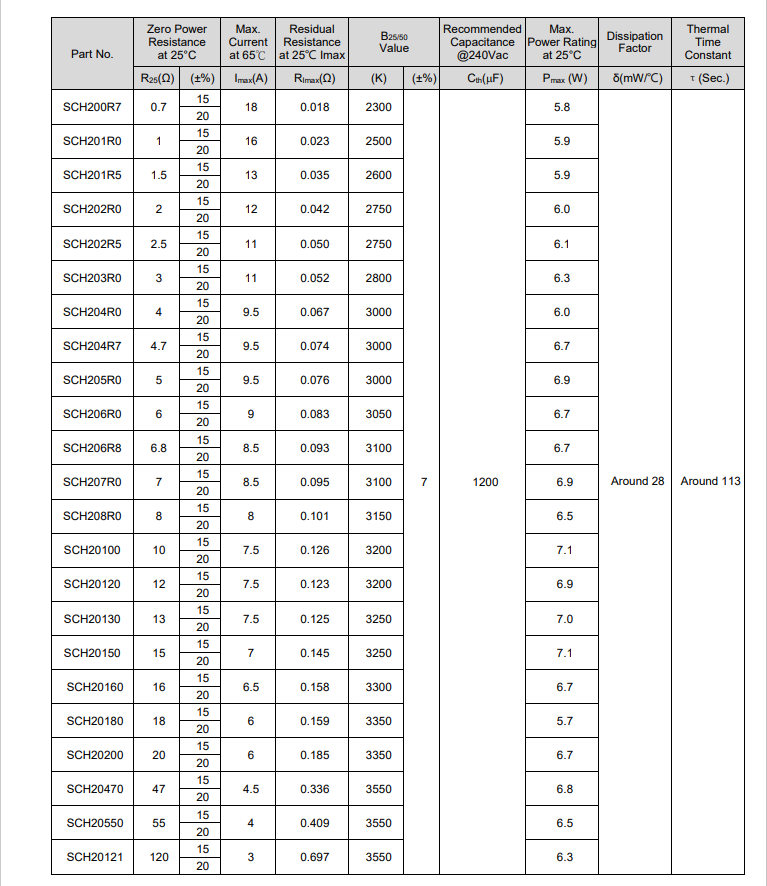

 Electrical Characteristics:

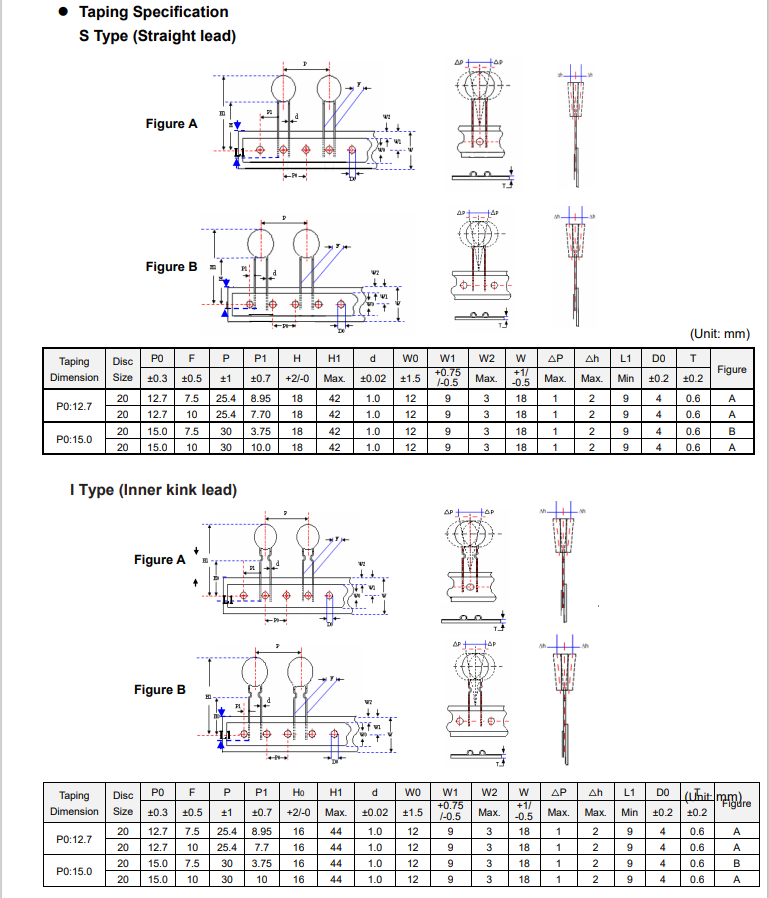

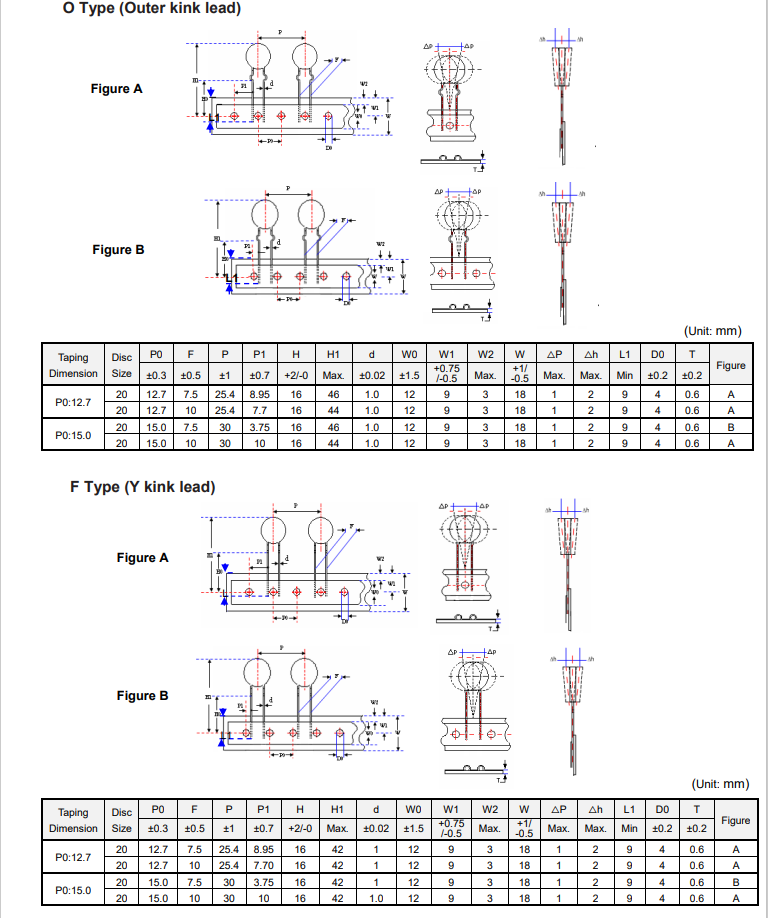

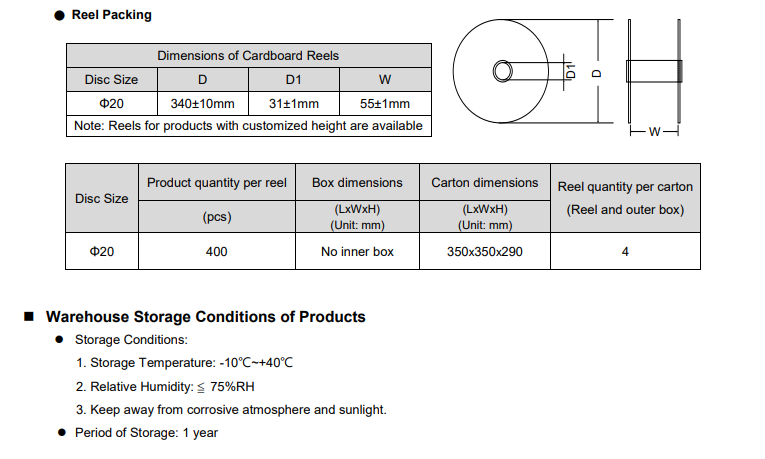

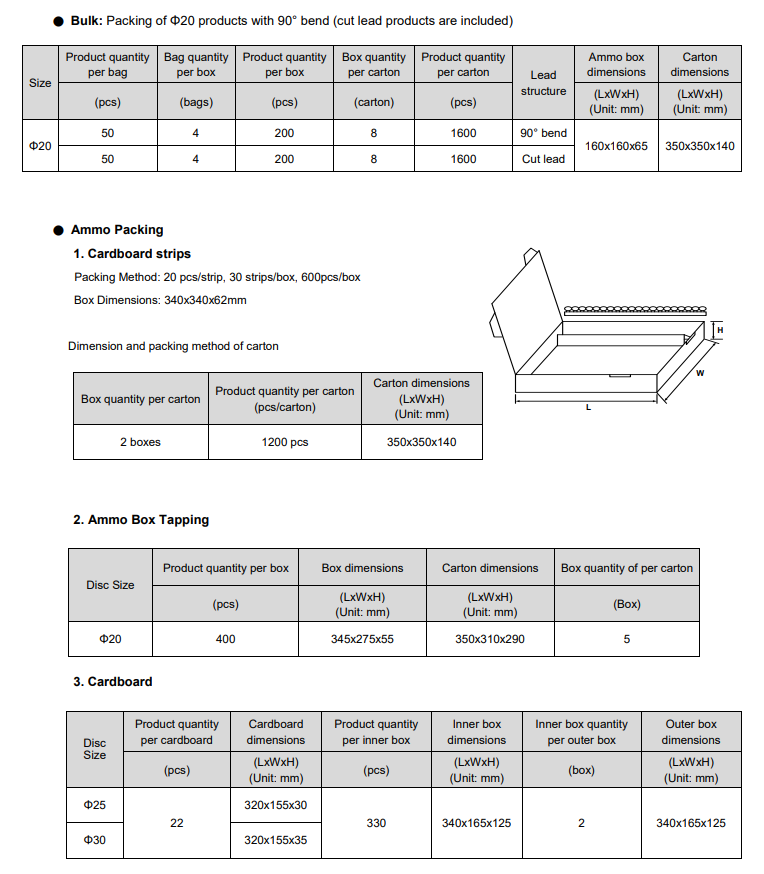

Packing  and  quantity:
