Features:

1. Meet RoHS and halogen-free requirements

2. The thermistor chip uses lead-free end electrodes

3. EIA size 0402,0603,0805

4. React quickly

5. Suitable for reflow welding

6. Safety certification:

UL & cUL Certificate Number :E138827

TUV Certificate Number: R50133294

Application:

1. DC/DC converter

2. AC power adapter

3. Inverter

4. Overheating protection of transistors and integrated circuits

5. LED

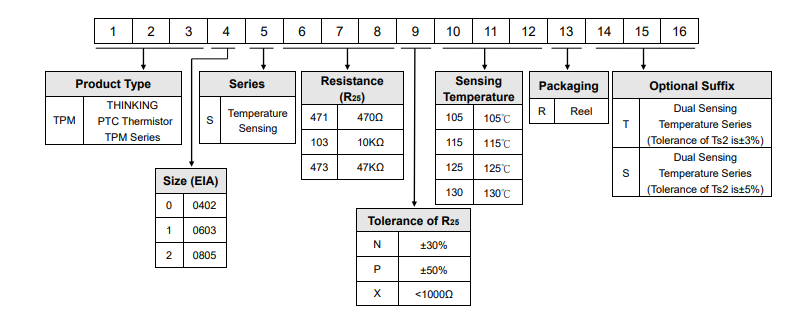

Encoding rules：

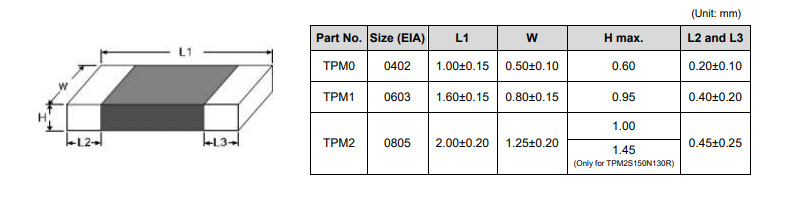

Outline structure drawing:

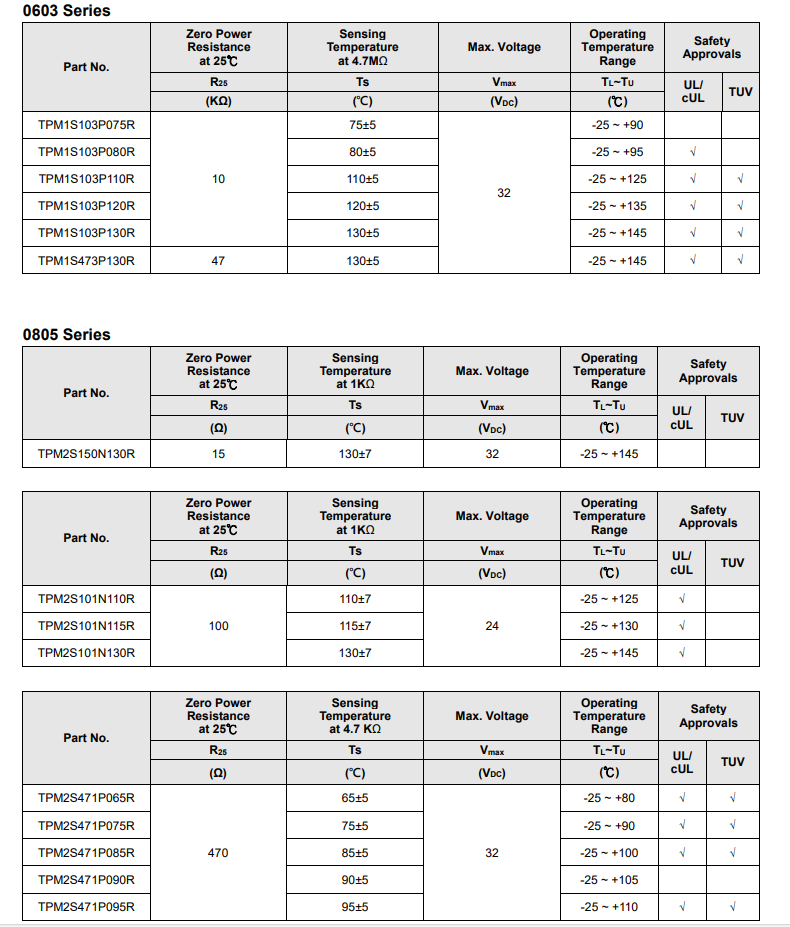

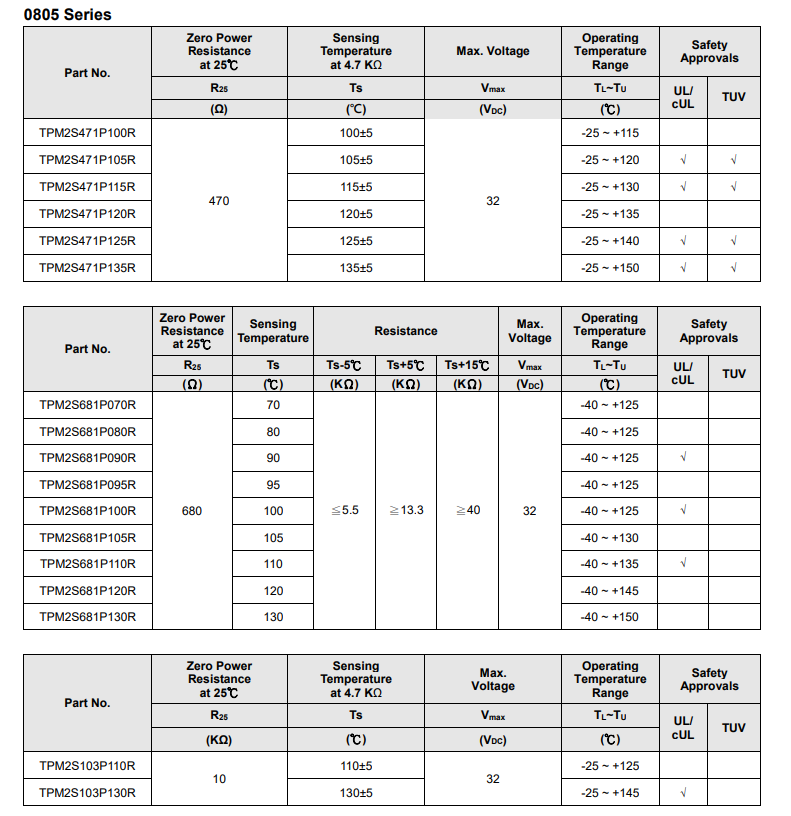

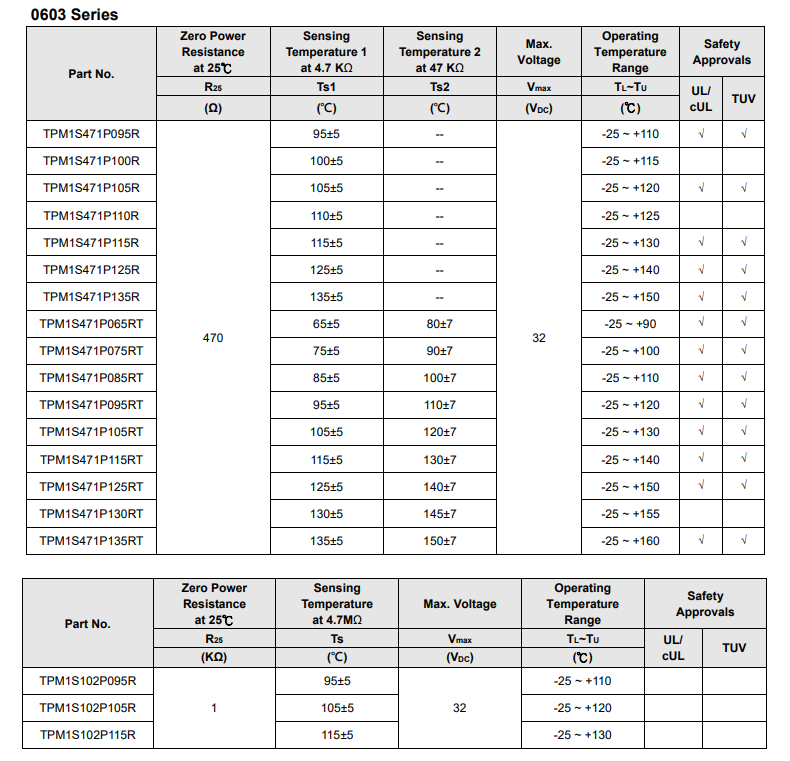

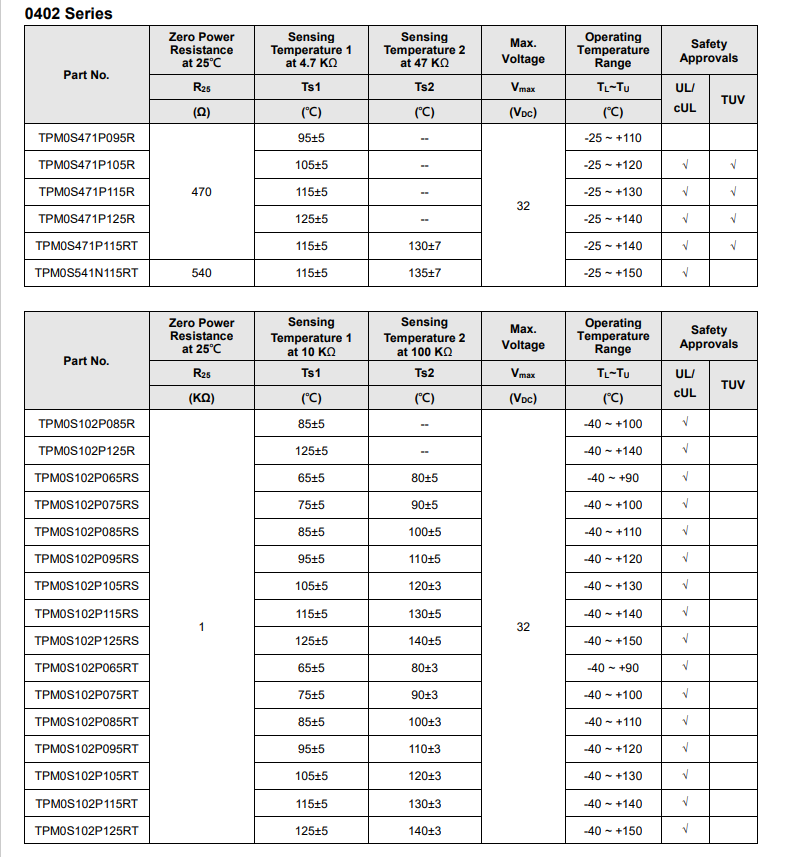

Electrical characteristics:

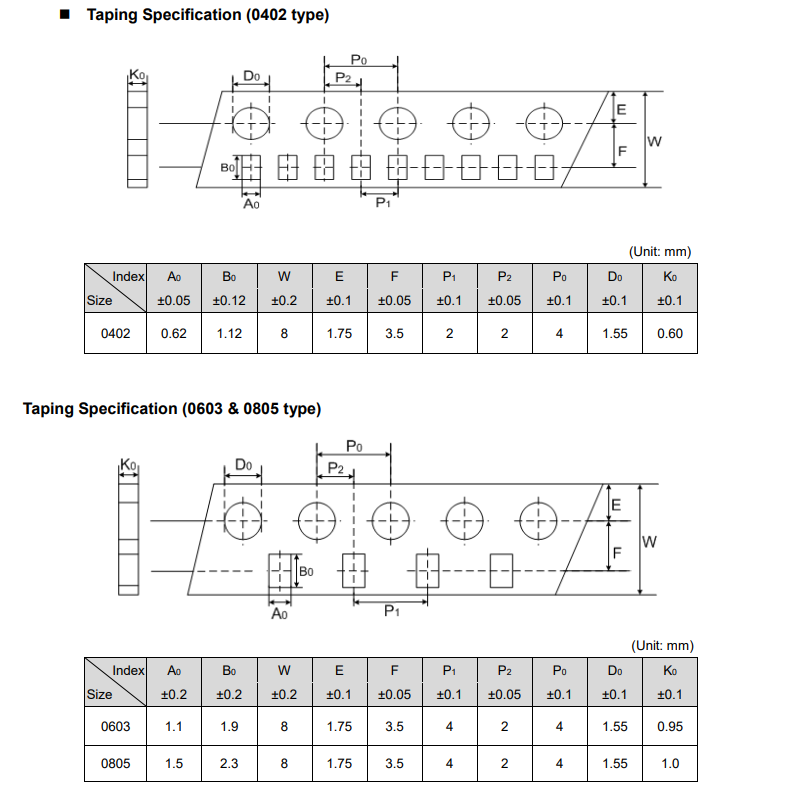

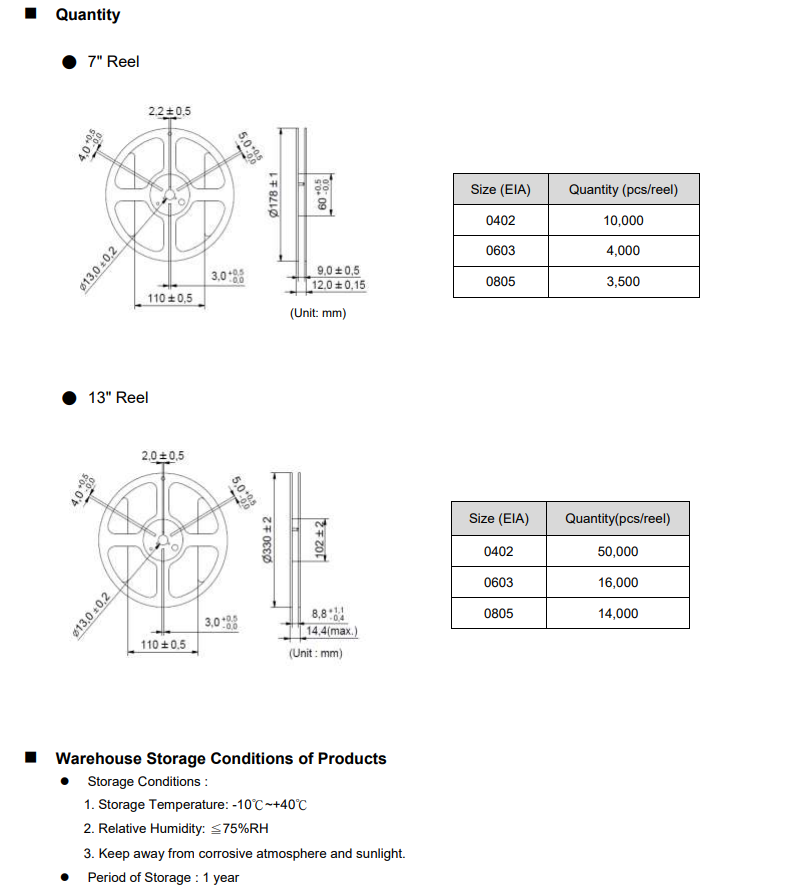

Packing:
