Features:

1. Meet RoHS

2. PSA is a light disc disc structure, suitable for clamping contact mode

3. Operating voltage range: 160Vac ~ 430Vac

4. Stay stable for a long time

5. Operating temperature range:

-10 ~ +85°C (V=Vmax)

-25 ~ +125°C (V=0)

6. Safety certification:

UL&cUL certificate number: E138827

VDE certificate number: 40017625

TUV certificate number: R 50030891

CQC certificate number: CQC03001008127, CQC03001008128

Application:

1. Delayed start of compressor in refrigerator or freezer

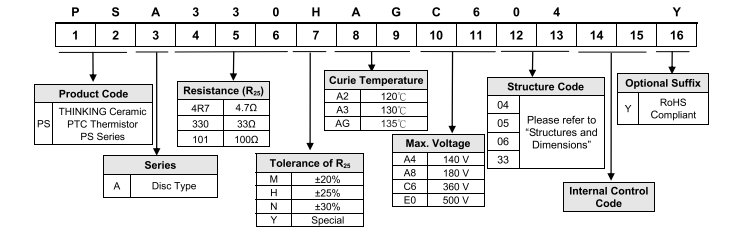

Encoding rules：

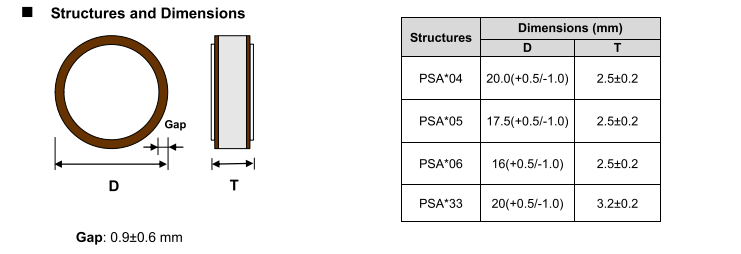

Outline structure drawing:

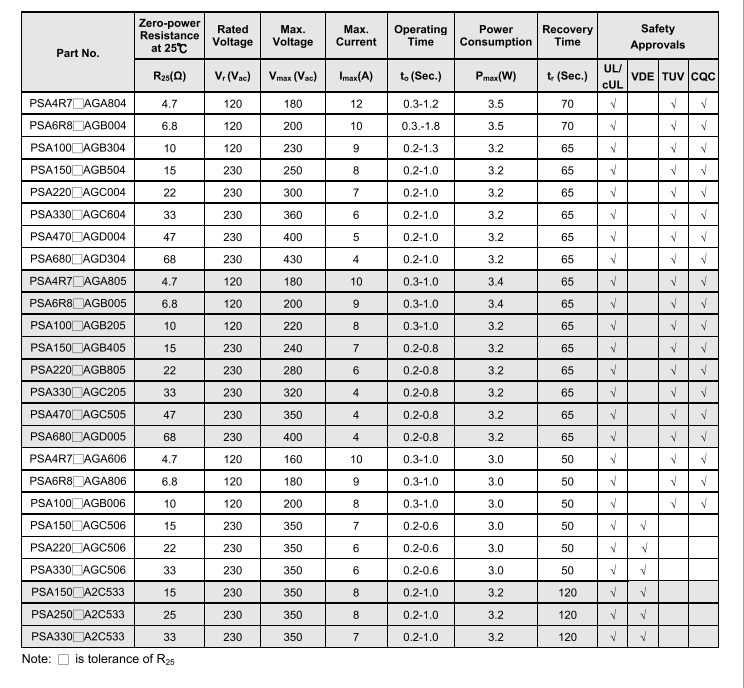

Electrical characteristics:

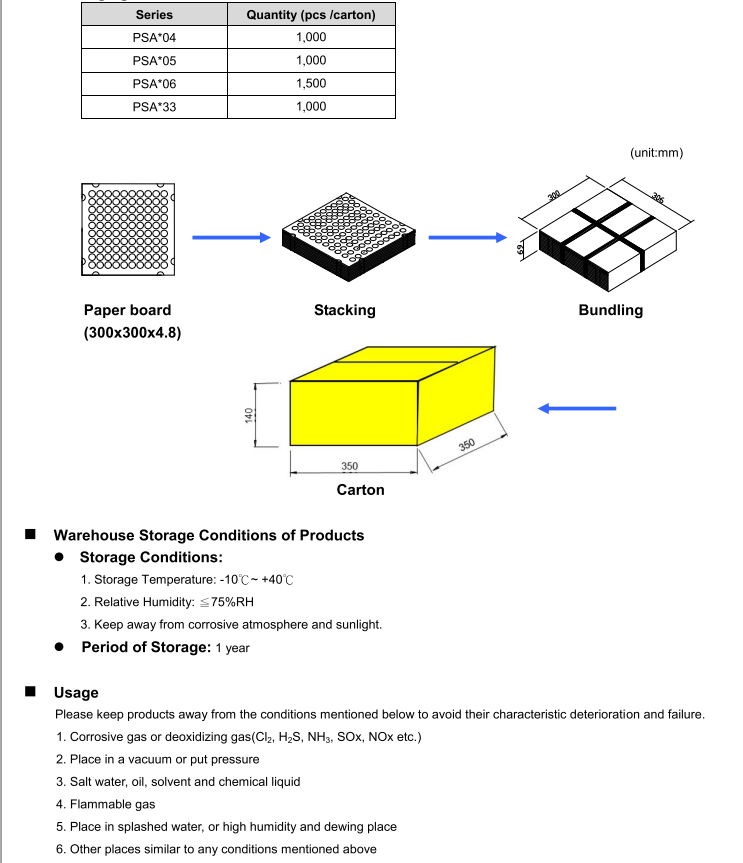

Packing:
