Features:

1. Fully integrated digital far-infrared thermopile sensor

2. SMD packages of different sizes

3. 1.68V to 3.6V single power supply continuous operation

4. Current consumption: 1.0mA (working mode)

5. Sleep current: 20nA (typical)

6. I²C interface

7. Working temperature: -40-85℃

8. Optical options: infrared optical bandpass filter/infrared Fresnel lens

Application:

1. Non-contact temperature sensing

2. Temperature monitoring

3. Mobile phones

4. Comfort index measurement

5. Power management system

6. Human body detection

Encoding rules：

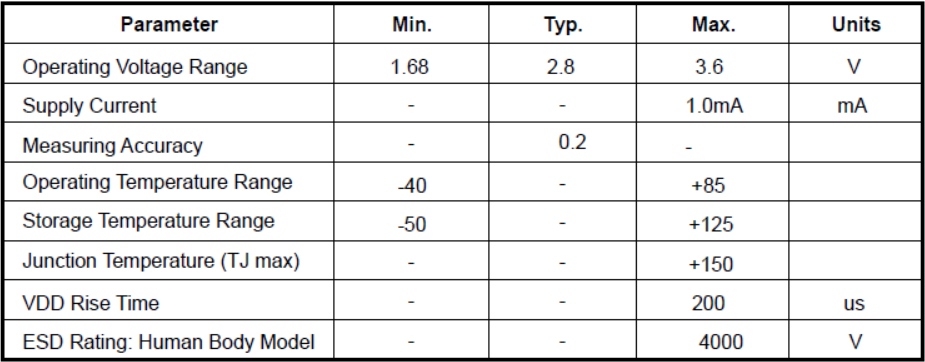

Electrical characteristics:

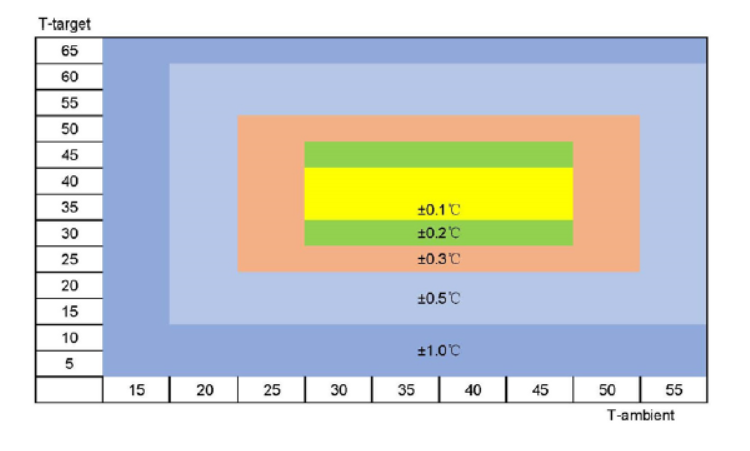

Measurement accuracy:

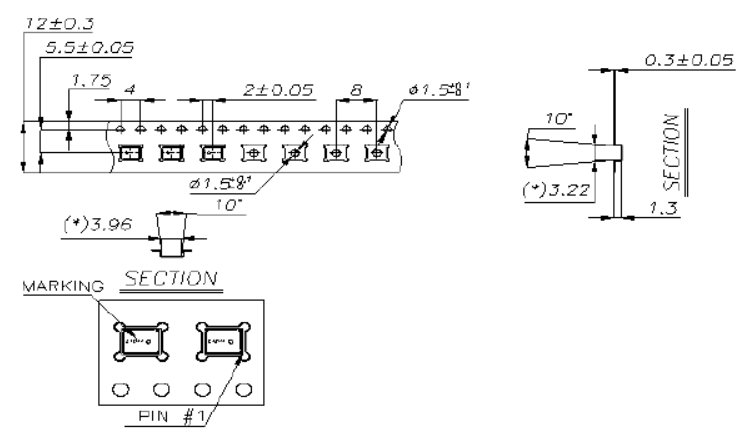

Packing:
