Features:

1. The resistance value and B value have high precision, good consistency and interchangeability

2. Good insulation, high reliability and fast response speed

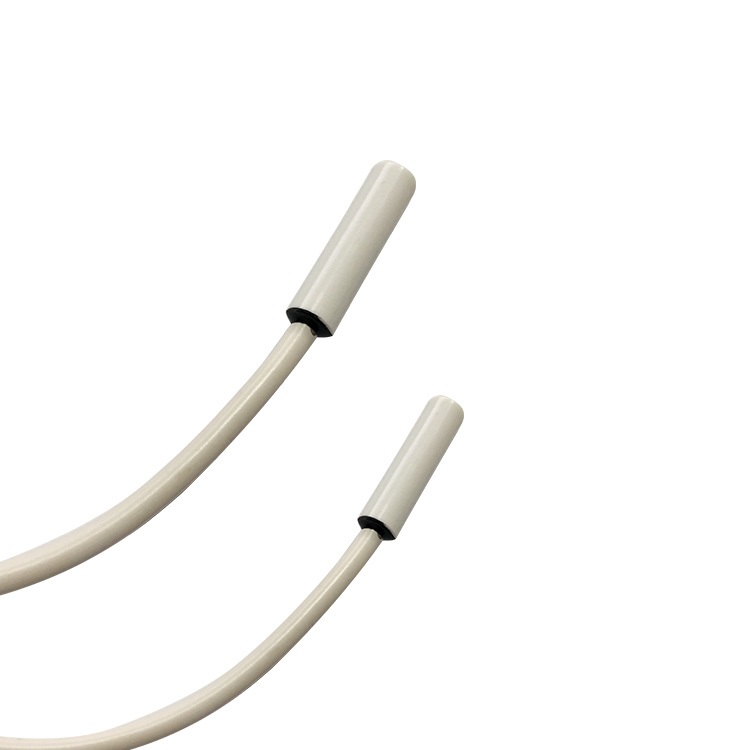

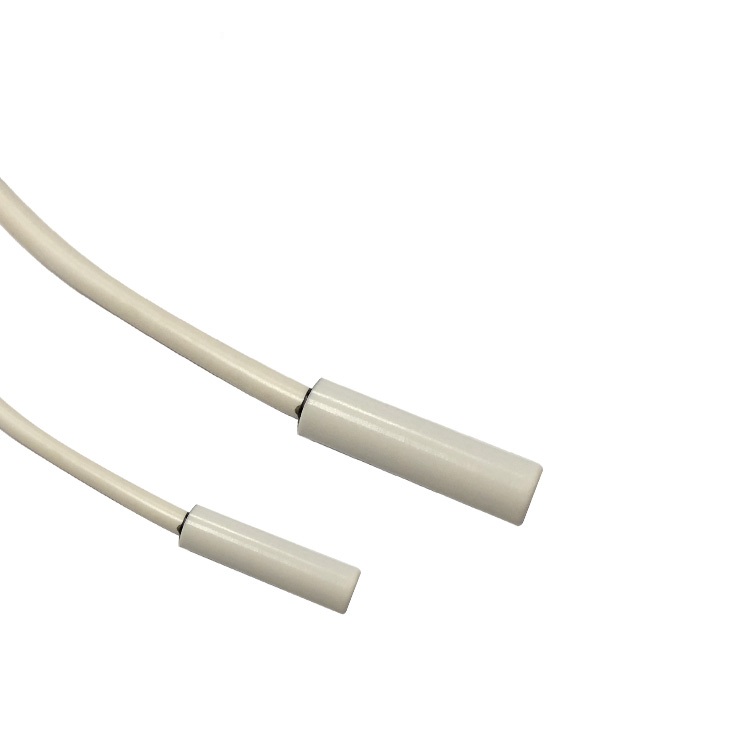

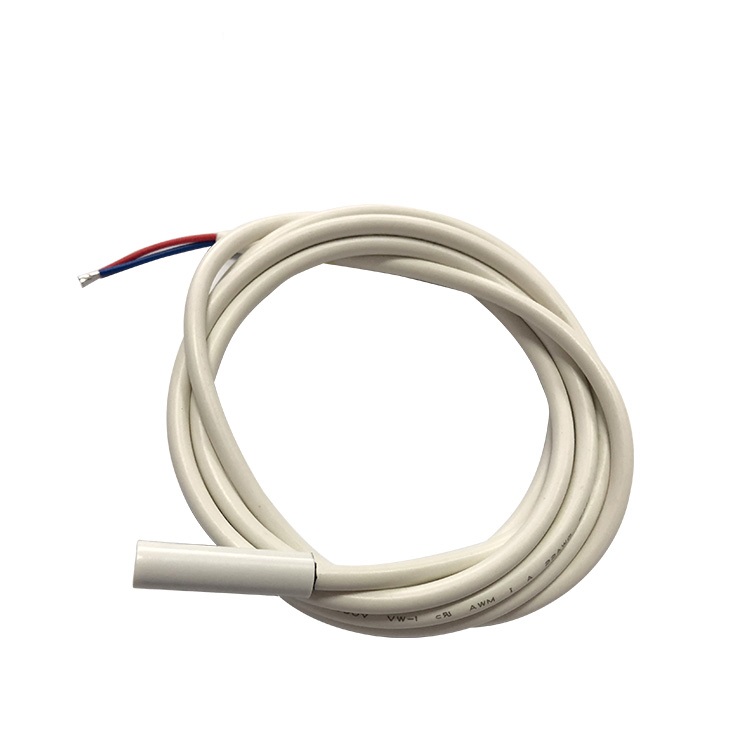

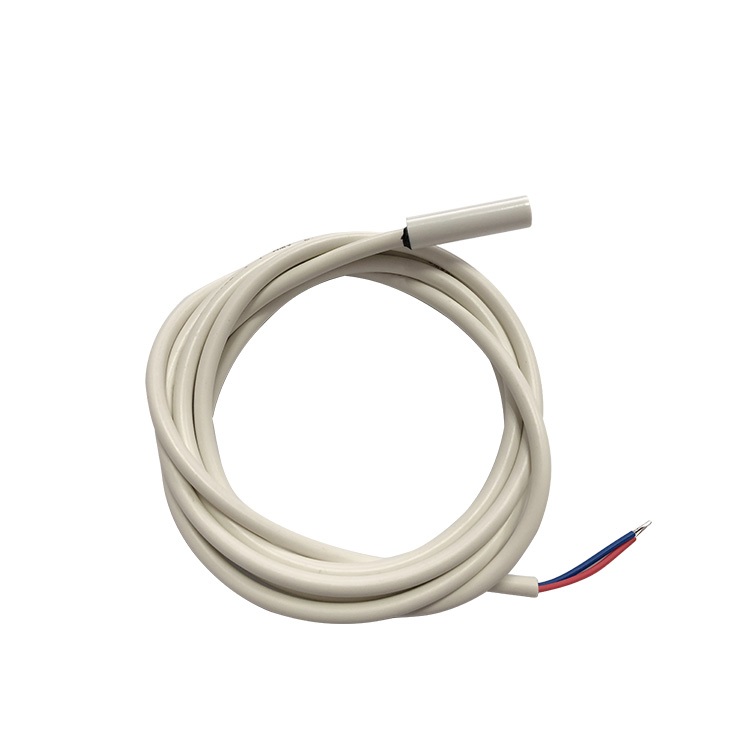

3. Packaged with ABS plastic material

4. Using double-layer sealing technology, it has good insulation and sealing performance, anti-mechanical collision and anti-bending ability

5. Can work stably for a long time (annual resistance value drift rate ≤ 1%)

6. It can be packaged according to the installation conditions used, which is convenient for users to install

Application:

1. Refrigeration system

2. Household air conditioners, car air conditioners

3. Refrigerators, freezers, water heaters, water dispensers

4. Air-conditioning equipment, heating equipment, medical equipment, temperature control instruments

5. Freezing

Electrical characteristics:

1. Thermal response time: ≤25 seconds in a water bath

2. Dissipation coefficient: about 2.6mW/℃ in the static air

3. Withstand voltage test: AC 1300V 2mA for 1 second.

4. Insulation test: ≥100MΩ

5. Rated power: ≤10mW

6. Operating temperature: -30℃～80℃

Outline structure drawing:

Download Google:

Please inform the following parameters when ordering NTC temperature sensor:

1. What is the resistance requirement (can be selected according to the above table)

2. How much B value is required (can be selected according to the above table)

3. Working environment (whether it needs to be waterproof, moisture-proof, cold-resistant, etc.)

4. Purpose: Choose different temperature-resistant wires, different resistance values, etc. for different purposes

5. What is the operating temperature range?

6. Accuracy requirements (1%-5% optional)

7. Shell material (copper, brass, stainless steel, ABS, epoxy resin, etc.)

8. Shell size (all can be customized)

9. Wire and length (both can be customized)

10. Does the end of the wire need a connector? (Molex, JST, CJT, etc. are optional).

Conventional resistance RT table:
