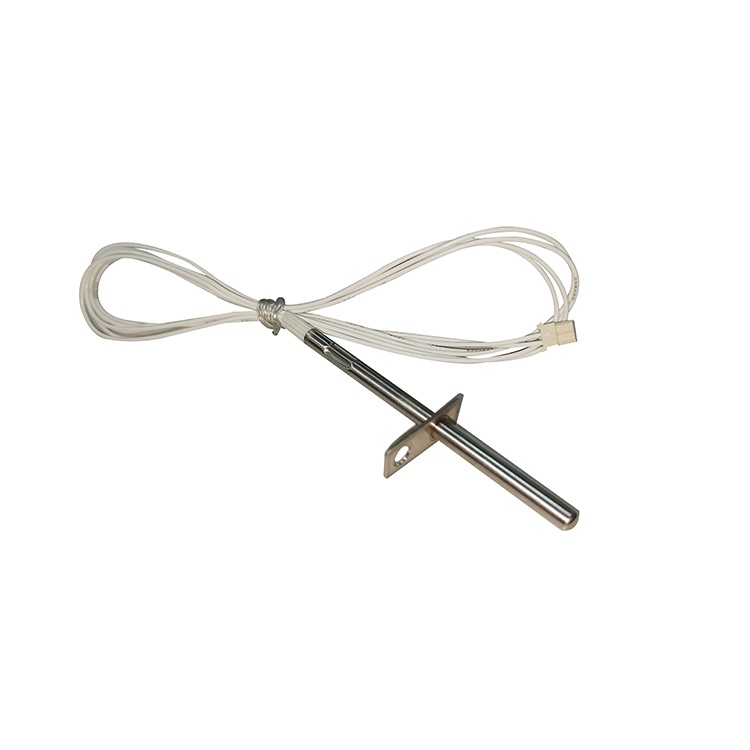

Features:

1. High temperature resistance, temperature range: 0-370 degrees

2. High resistance and B value accuracy

3. Glass package, can be used in harsh environments such as high temperature and high humidity

4. Small size, sturdy structure, easy for automatic installation

5. Good stability and high reliability

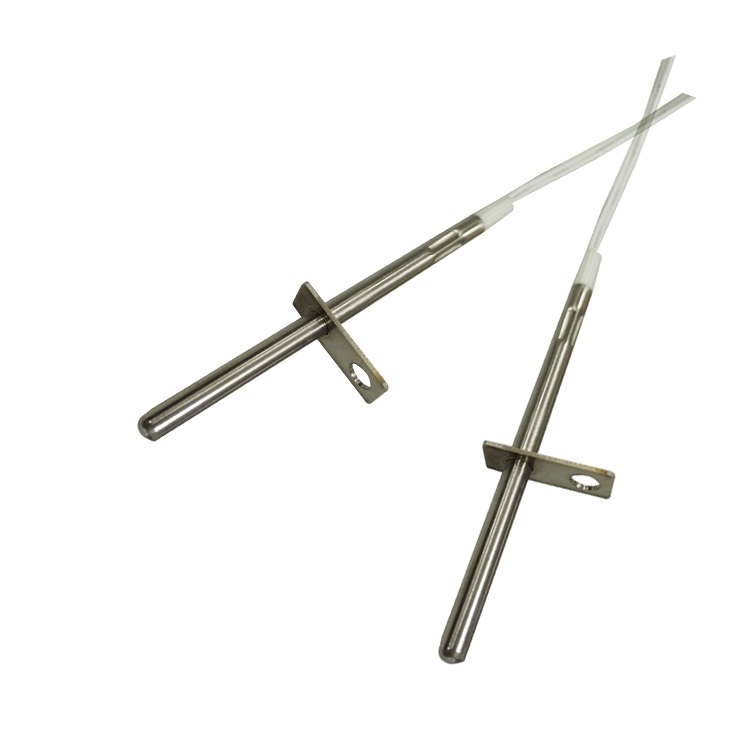

6. The flange shape is easy for customers to install

Application:

1. Steam oven

2. Oven

3. Electric pressure cooker,

4. Rice cooker, electric oven,

5. Disinfection cabinet, water dispenser, microwave oven

6. Coffee machine, dishwasher

Outline structure drawing:

Electrical characteristics:

1. Thermal reaction time: ≤12 seconds in water bath

2. Dissipation coefficient: about 2.6mW/℃ in the static air

3. Withstand voltage test: AC 2100V 2mA for 1 second

4. Insulation test: ≥100MΩ

5. Rated power: ≤10mW

6. Operating temperature: 0℃～370℃

Download Google:

Please inform the following parameters when ordering NTC temperature sensor:

1. What is the resistance requirement (can be selected according to the above table)

2. How much B value is required (can be selected according to the above table)

3. Working environment (whether it needs to be waterproof, moisture-proof, cold-resistant, etc.)

4. Purpose: Choose different temperature-resistant wires, different resistance values for different purposes, etc.

5. What is the operating temperature range?

6. Accuracy requirements (1%-5% optional)

7. Shell material (copper, brass, stainless steel, ABS, epoxy resin, etc.)

8. Shell size (all can be customized)

9. Wire and length (both can be customized)

10. Does the end of the wire need a connector? (Molex, JST, CJT, etc. are optional).

Conventional resistance R-T table:
