Features:

1. Peak breakdown voltage 250V: QX301X; 400V: QX302X; 600V: QX305X

2. High isolation voltage between input and output (Viso=5000 Vrms)

3. Compact dual in-line package

4. Lead-free, RoHS compliant

Application:

1. Solenoid valve control

2. Ballast

3. Static AC power switch

4. Microprocessor 115 to 240VAC peripheral interface

5. Incandescent lamp dimmer

6. Temperature control

7. Motor Control

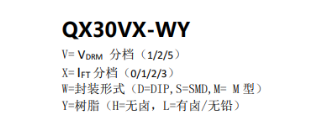

Encoding rules：

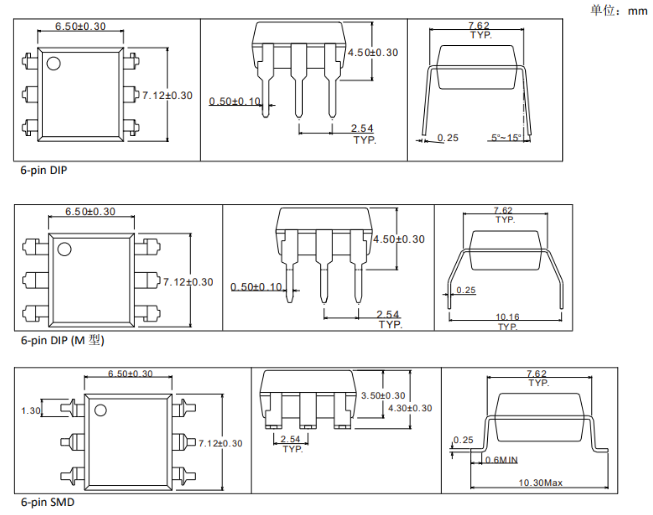

Outline structure drawing:

Package size:

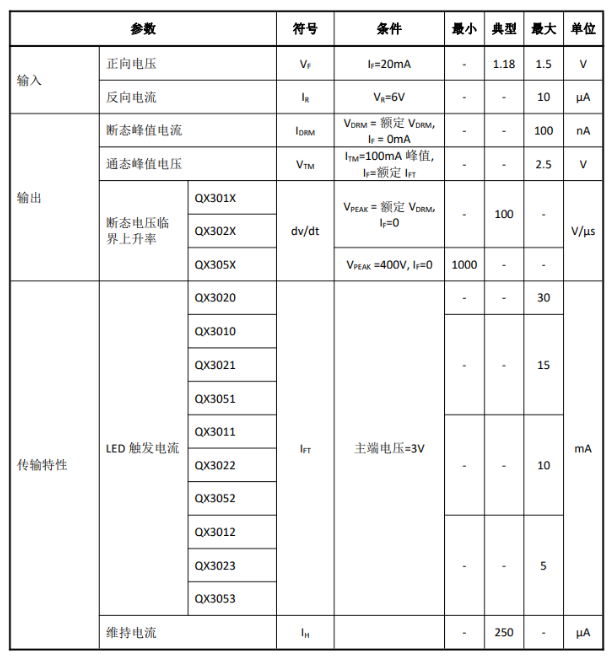

Electro-optical characteristics:

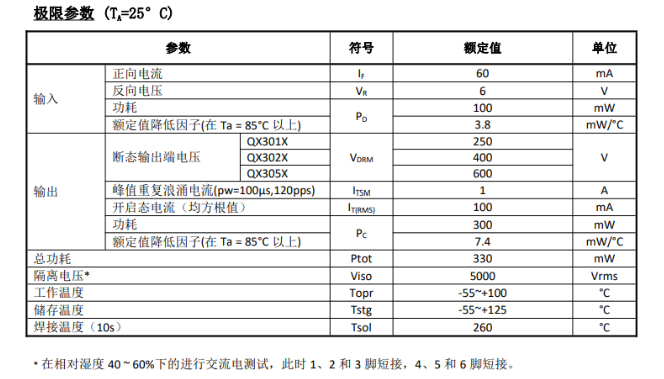

Limit parameters:

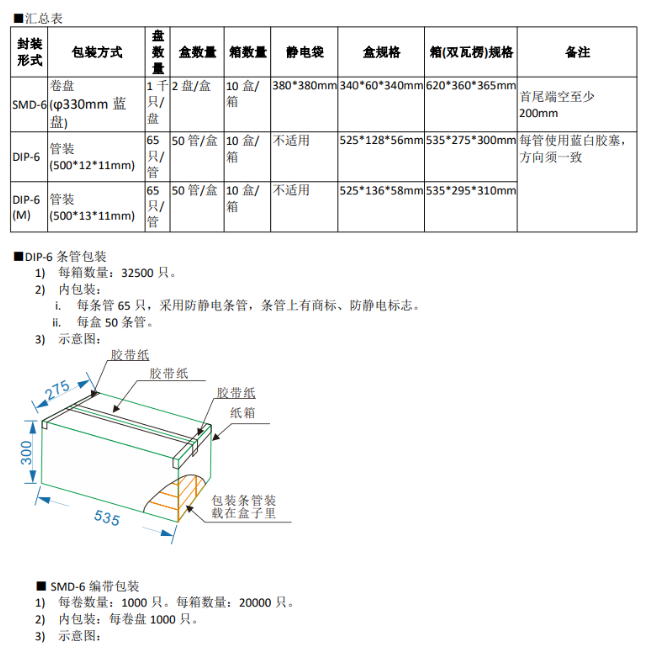

Packing:
