PolyTrans PTLC05R ESD static suppression tube

Number of Views:56902021-07-01 17:41:12



Features:

1. 100 Watts peak pulse power (8/20μs)

2. Tiny SOT-143 Package

3. Unidirectional Configuration

4. Protect two I/O lines

5. Solid state silicon-avalanche technology

6. Low operating voltage: 5V

7. Low capacitance (CJ = 0.4 pF typ I/O to I/O)

8. IEC61000-4-4 (EFT) 40A (5/50ns)

9. IEC61000-4-5 (Lightning): 6A (8/20s)

Application:

1. Universal Serial Bus (USB2.0).

2. Ethernet

3. Notebooks, Desktops and Servers

4. Video Line Protection

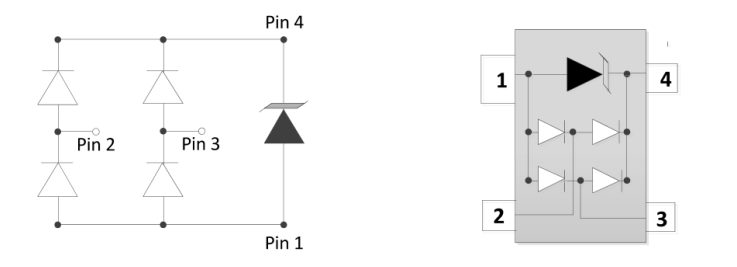

Schematic and PIN Configuration:

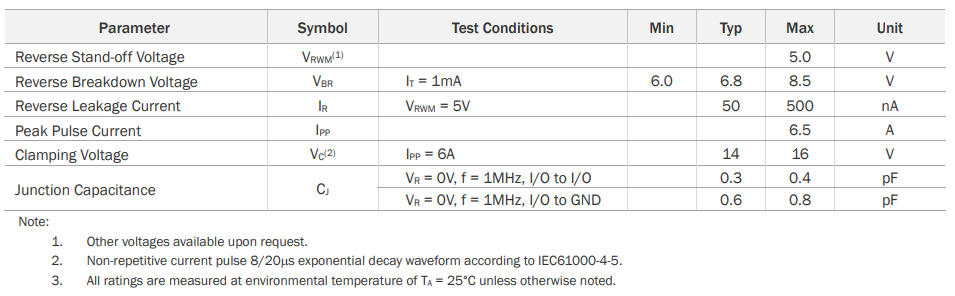

Electrical Characteristics:

Electrical Parameters:

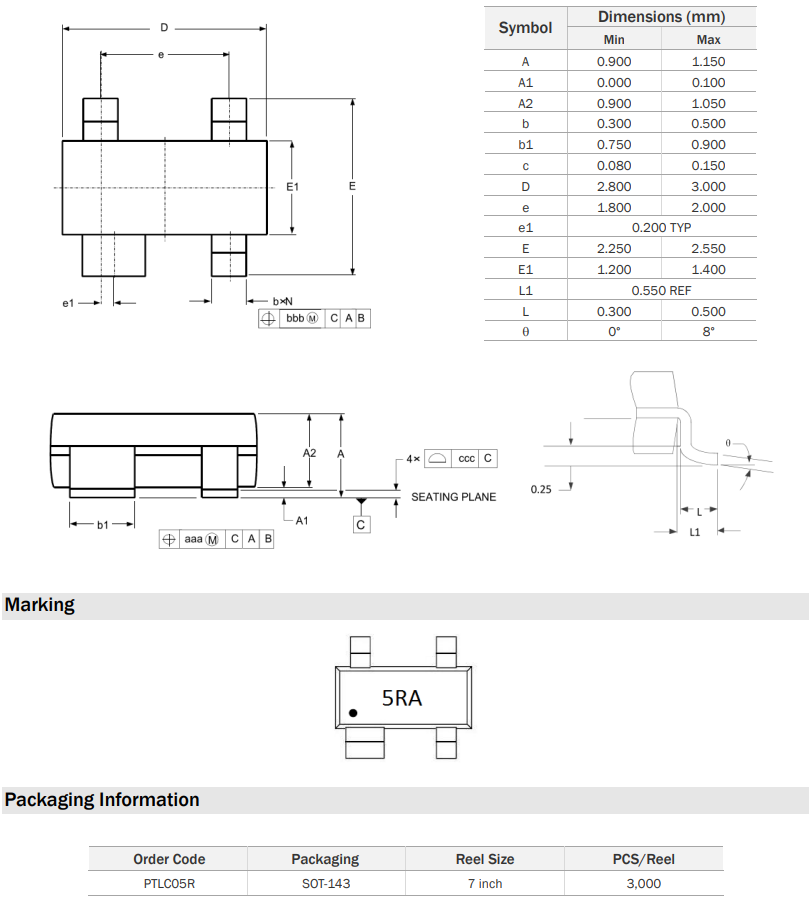

Packing:
