Features:

1. 30 Watts peak pulse power (8/20μs)

2. Tiny DFN3810 package

3. Protect up to eight lines

4. Solid state silicon-avalanche technology

5. Low clamping voltage

6. Low leakage current

7. Low capacitance (CJ = 0.2 pF typ.  I/O to I/O)

8. IEC61000-4-2 (ESD) ±15kV (Air), ±8kV (Contact)

9. IEC61000-4-4 (EFT) 40A (5/50ns)

10.IEC61000-4-5 (Lightning): 3A (8/20μs)

Application:

1. USB3.0/3.1, Type C

2. HDMI1.4/2.0, Display Port 1.3

3. Unified Display Interface

4. Digital Video Interface

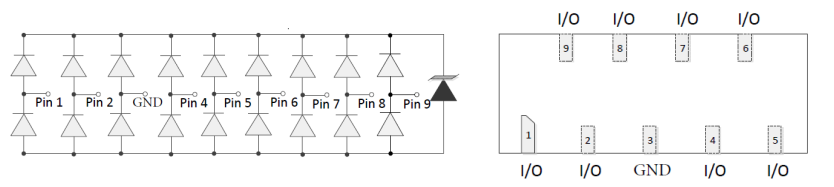

Schematic and PIN Configuration：

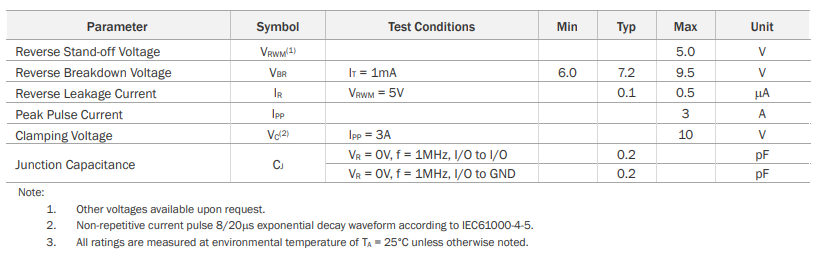

Electrical Characteristics:

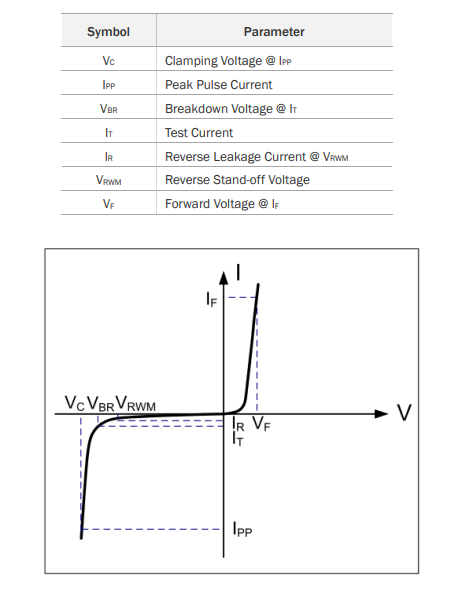

Electrical Parameters:

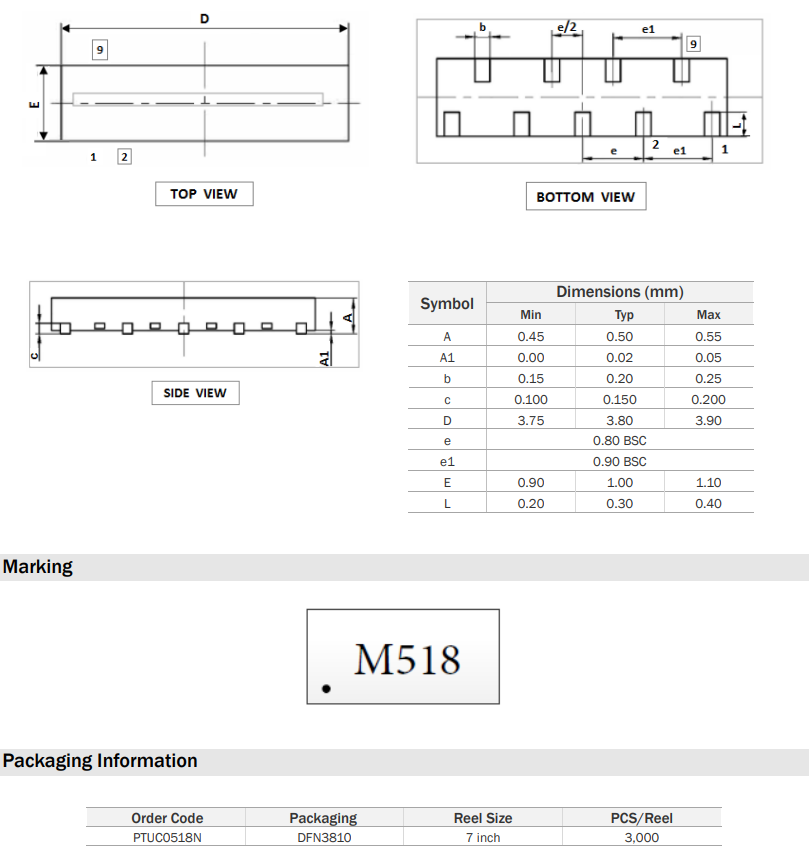

Packing:
