PolyTrans PTLC03D-B ESD electrostatic protector

Number of Views:52152021-06-30 11:34:11



Features:

1. 350 Watts peak pulse power (8/20μs)

2. Bidirectional configurations

3. Protect one power line

4. Solid state silicon-avalanche technology

5.Low operating voltage

6. Low leakage current

7.Low Capacitance: 1.0 pF Typical

8. IEC61000-4-2 (ESD) ±30kV (Air), ±30kV (Contact)

9. IEC61000-4-4 (EFT) 40A (5/50μs)

10. IEC61000-4-5 (Lightning): 20A (8/20μs)

Application:

1. Ethernet - 10/100/1000 Base T

2. Cellular Phones

3. Handheld - Wireless Systems

4. Personal Digital Assistant (PDA)

5. USB Interface

Schematic and PIN Configuration:

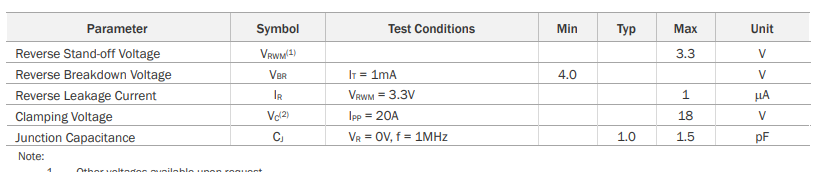

Electrical Characteristics:

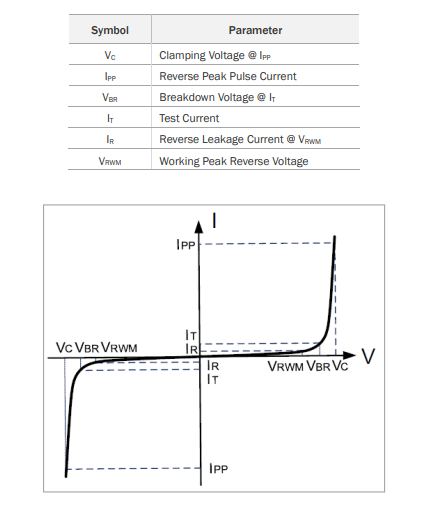

Electrical Parameters:

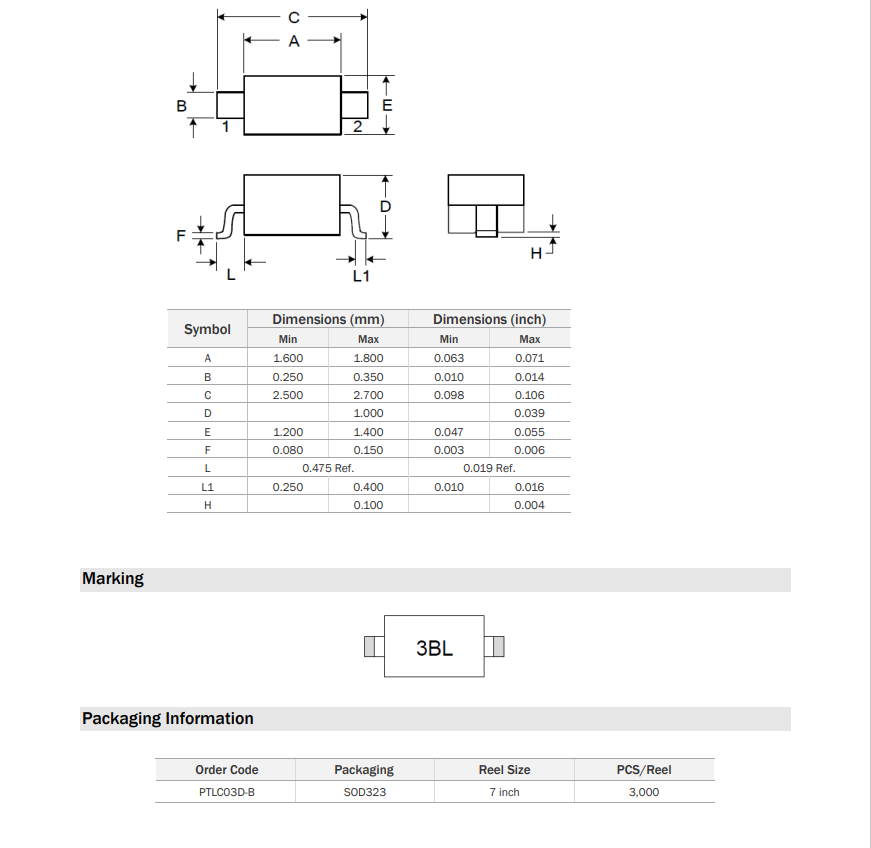

Packing:
