Features:

1. Meet RoHS and halogen-free requirements

2. Low limit voltage

3. EIA size: 0201, 0402, 0603, 0805

4. Working voltage: 5.5 Vdc ~ 30 Vdc

5. Non-polarity, symmetrical volt-ampere characteristics

6. Multilayer ceramic structure technology

7. Meet IEC61000-4-2 ESD level 4 test requirements

8. Various capacitance values

9. Working temperature range: -40℃~ +85℃

Storage temperature range: -40℃~ +125℃

Application:

1. Mobile phone

2. The input/output ports of the computer motherboard

3. LCD Module

4. Data cable (for example: USB)

5. Personal Digital Assistant

6. Bluetooth headset

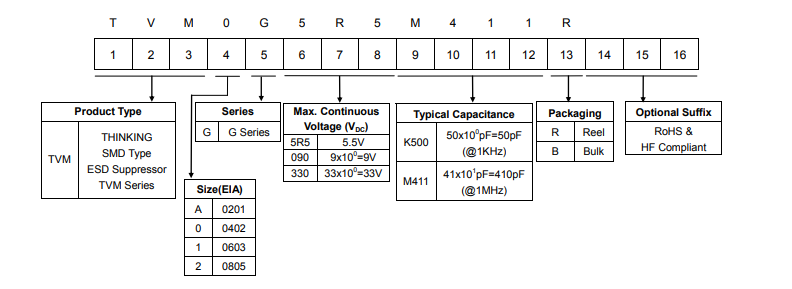

Encoding rules：

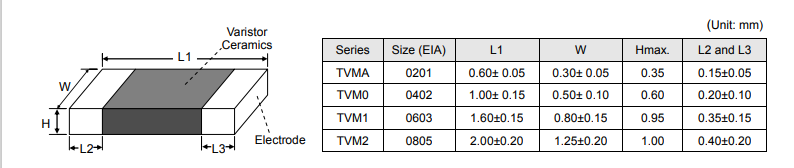

Outline structure drawing:

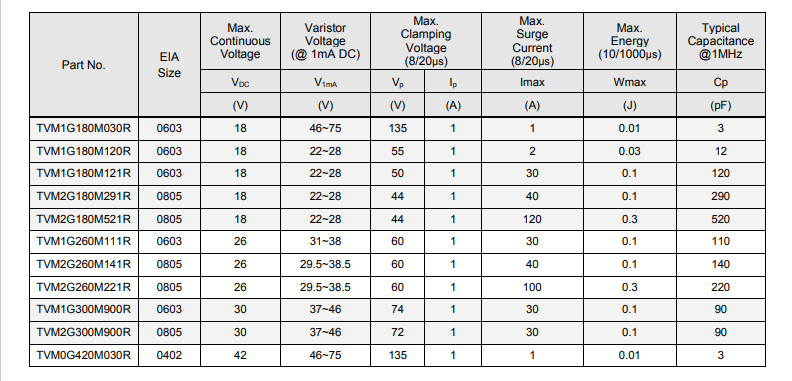

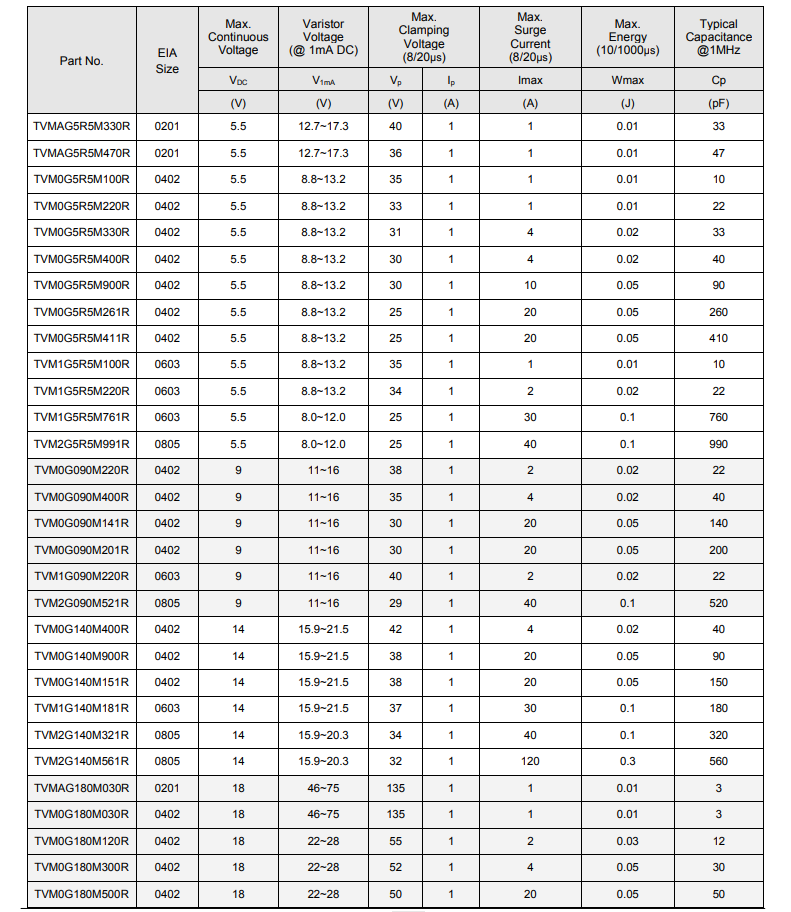

Electrical characteristics:

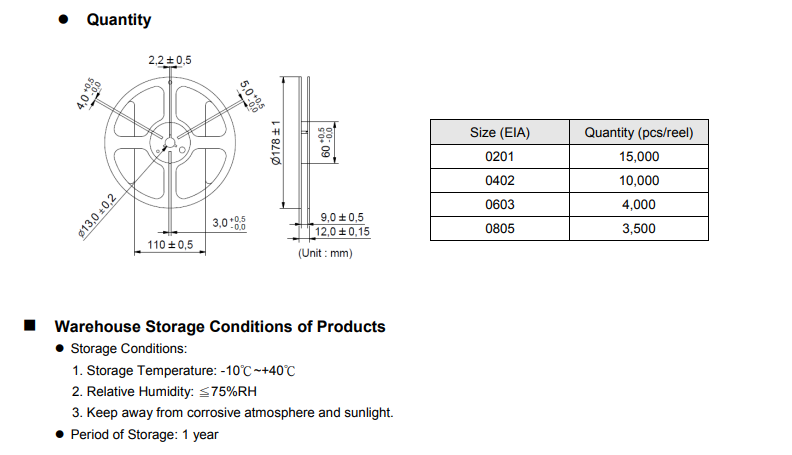

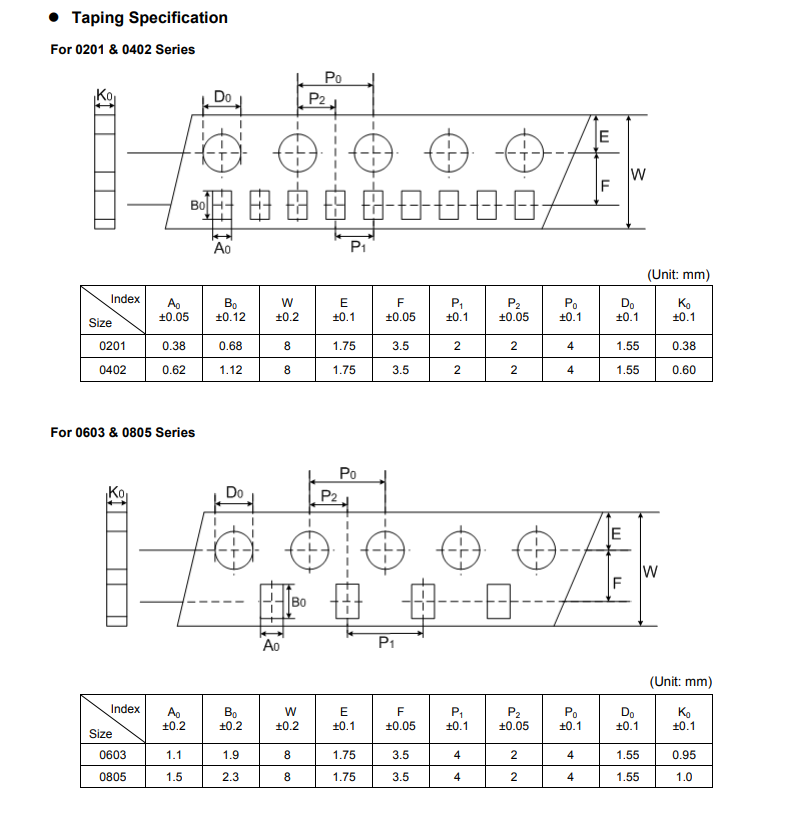

Packing:
