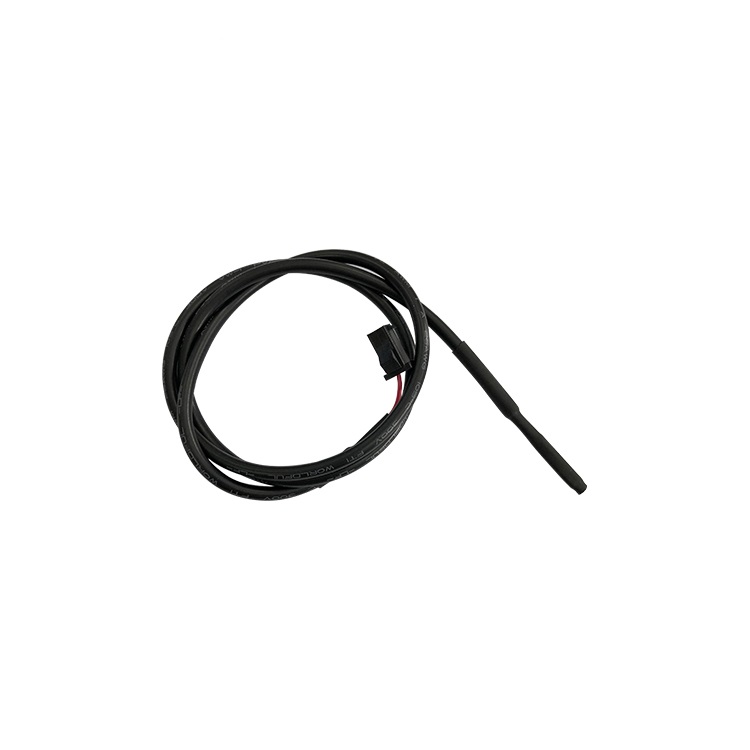

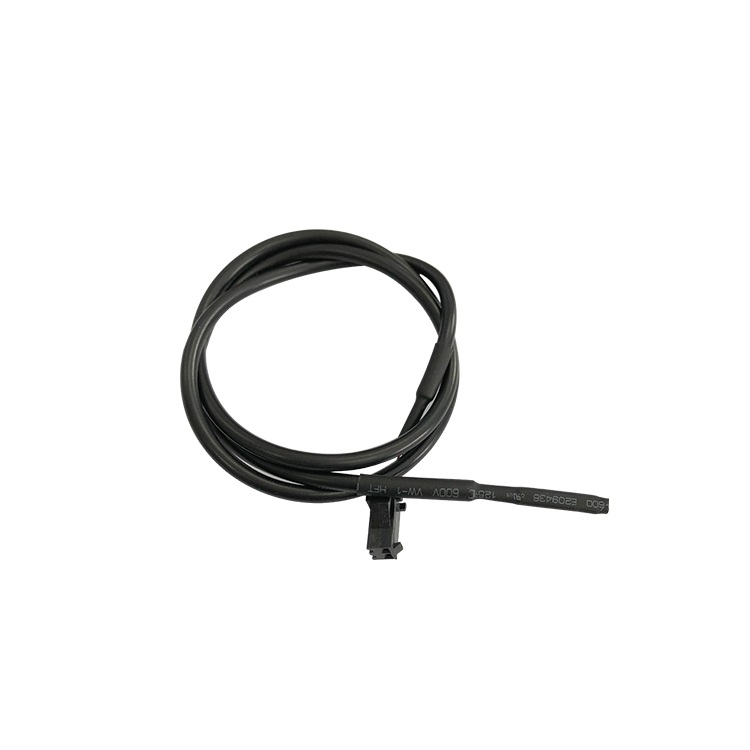

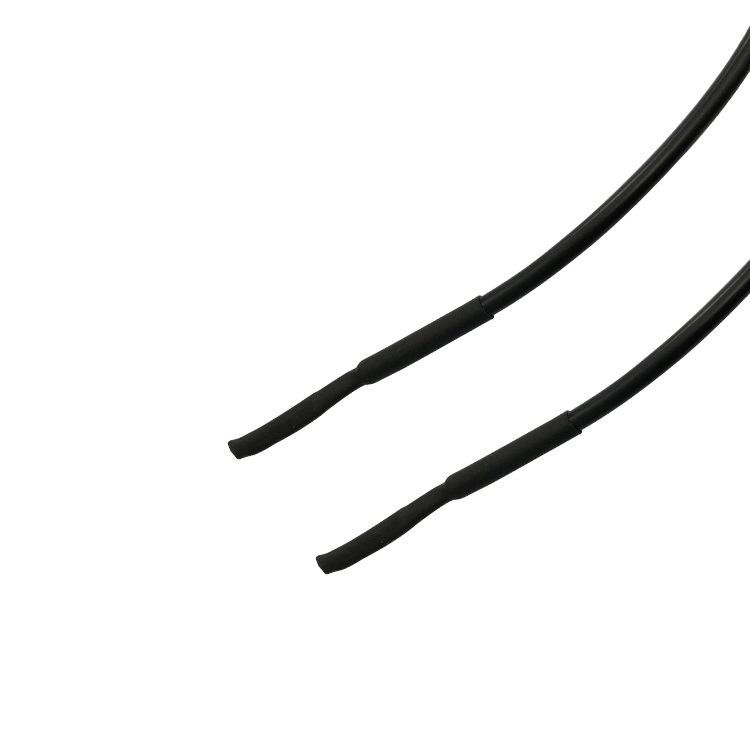

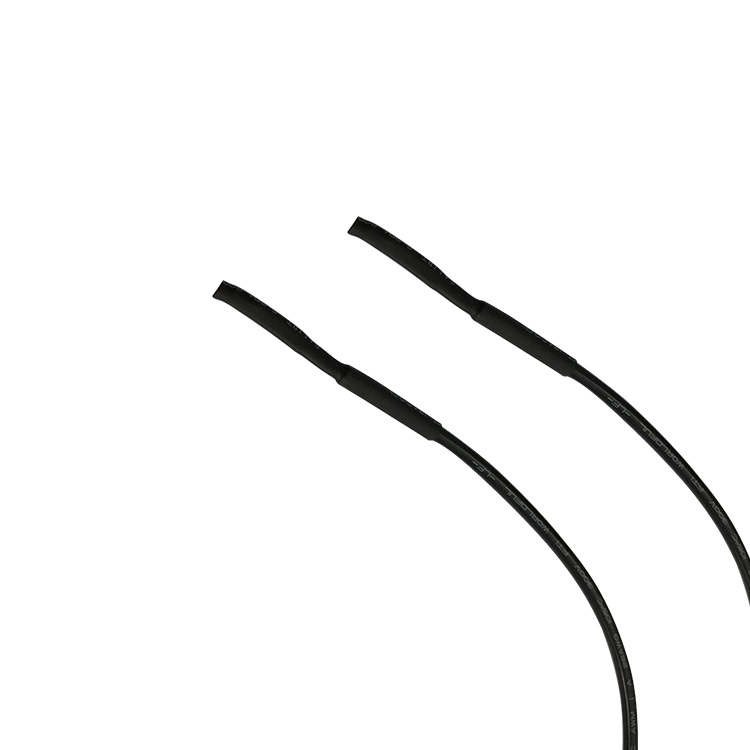

PT100 temperature sensor thermistor used in photo machine

Number of Views:59422021-05-23 17:03:11



PT100 temperature sensor thermistor used in photo machine

Features:

1. Using PT100 platinum resistance

2. High precision, resistance accuracy can be continuously stable

2. Good affinity, high reliability and fast response speed

3. Using double-layer sealing technology, it has good insulation and sealing performance and resistance to mechanical collision, bending resistance and high reliability.

4. Can work stably for a long time (annual resistance value drift rate ≤ 1‰)

5. It can be packaged according to the installation conditions used, which is convenient for users to install.

Application:

1. Photographic machine

2. High temperature environment temperature measurement

3. Burners, dishwashers, sterilizers, washing machines, automobile temperature control systems, medical equipment, new types of body temperature measurement, communication equipment

4. Printers, copies, motors, computers, temperature control modules for optical communication, industrial automation equipment, microwave ovens with temperature control instruments.

Electrical characteristics:

1. Thermal response time: maximum 12 seconds in water bath

2. Dissipation coefficient: about 2.8mW/℃ in the static air

3. Withstand voltage test: 1 second, no flashover, no breakdown and other abnormal phenomena in the steel ball

4. Insulation test: ≥100MΩ

5. Rated power: 2mW

6. Operating temperature: -20℃~105℃

Outline structure drawing:

Download Google:

Please inform the following parameters when ordering NTC temperature sensor:

1. What is the resistance requirement (can be selected according to the above table)

2. How much B value is required (can be selected according to the above table)

3. Working environment (whether it needs to be waterproof, moisture-proof, cold-resistant, etc.)

4. Purpose: Choose different temperature-resistant wires, different resistance values, etc. for different purposes

5. What is the operating temperature range?

6. Accuracy requirements (1%-5% optional)

7. Shell material (copper, brass, stainless steel, ABS, epoxy resin, etc.)

8. Shell size (all can be customized)

9. Wire and length (both can be customized)

10. Does the end of the wire need a connector? (Molex, JST, CJT, etc. are optional).

Conventional resistance RT table:
